These Operating Instructions are part of the delivered equipment. They must be
ready for use at any time and remain with the equipment in case of resale.
These Operating Instructions are not automatically revised.
For the latest revised issue please contact the manufacturer.
We reserve the right to carry out modifications concerning the technology or the
Transsonic Ultrasonic Cleaning Units
Operating Instructions
design of the unit.
The ELMA ultrasonic cleaning
baths are shielded and tested for
electromagnetic
compatibility and comply with the
CE criteria concerning the low
voltage directive
and EMV.
Multi-frequency Units
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elma Clean 10
Summary of Contents for Elma Clean 10

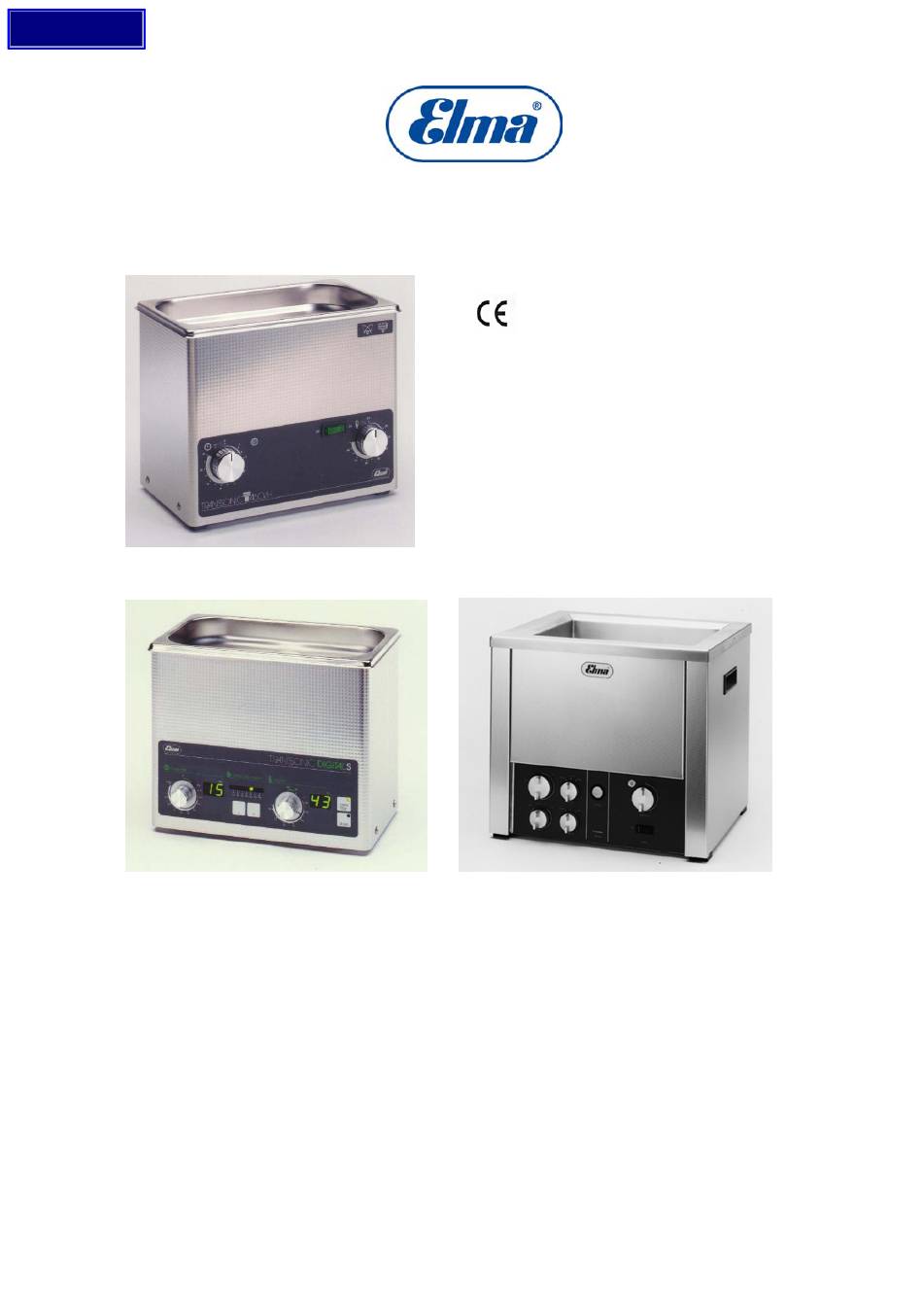

- Page 1 Exit Transsonic Ultrasonic Cleaning Units The ELMA ultrasonic cleaning baths are shielded and tested for electromagnetic compatibility and comply with the CE criteria concerning the low voltage directive and EMV. Analogous unit Digital unit Multi-frequency Units Operating Instructions These Operating Instructions are part of the delivered equipment. They must be ready for use at any time and remain with the equipment in case of resale.
-
Page 2: Table Of Contents
Content Content Page 2 1. Safety Warnings Page 3 2. Operation Page 5 3. Analogous Ultrasonic Units Page 5 4. Digital Ultrasonic Units Page 6 5. Multi-frequency Units Page 8 6. General Page 11 7. Cleaning chemicals / Application Page 11 8. -
Page 3: Safety Warnings
1. Safety Warnings CAUTION! Read carefully before use: This ultrasonic cleaning device is designed exclusively for the acoustic irradiation of objects and liquids. Check the housing, the operating elements and the transducer tank for possible shipping damage before connecting the unit to the power supply. In case of any shipping damage do not connect the unit to the mains. - Page 4 (e.g. glasses, gloves, caution and safety tips). We, therefore, recommend that you use the cleaning agent specially adapted for use in the ultrasonic bath developed and manufactured by ELMA. (Page 9, Cleaning Agents. Areas of Use) Maintenance and repairs Any repair, maintenance or alignment works on the connected and opened unit must be carried out by authorised personnel only.
-
Page 5: Operation
Fill the unit with liquid before connecting it to the power supply. If you use water as contact medium we recommend the use of the suitable ELMA Clean cleaning solution to be added to the water. The ELMA Clean chemicals contain tensides that reduce the surface tension and are specially designed for the use in an ultrasonic bath. -
Page 6: Digital Ultrasonic Units
b) Setting of the timer Timer For cleaning periods of up to 15 minutes use the timer with automatic switch-off. The required cleaning period is set by turning the knob. After the set period the ultrasound is switched off automatically. If you need to switch off the unit before the set period is over turn the timer knob back to the OFF position. - Page 7 a) Switch On/Off Switch on the unit by turning the knob (1) clockwise. Switch it off by turning the knob anti-clockwise to the 0 position. b) Setting of the Timer for Ultrasound Set the required time by turning the knob (1). When the unit is switched on it works in long-term mode.
-
Page 8: Multi-Frequency Units
f) Start/Stop The ultrasound is switched on by the button Start/Stop (8); the indicator flashes. When the ultrasound is switched on the set cleaning period starts and the remaining cleaning period is constantly indicated. Pressing the button again stops the ultrasound. The remaining cleaning period is still indicated and continues to run down when the Start/Stop button (8) is pressed again. - Page 9 a.) Switch On/Off You switch on the ultrasonic unit by setting the timer or turning the timer knob to the infinity position. The green lamp (not available on all units) indicates the operation of the unit. b) Setting of the timer For cleaning periods of up to 15 minutes use the timer with automatic switch-off.
- Page 10 f.) Heating The heating is switched on and off by means of push button (8). Set the required temperature by turning knob (7). The scale indicates the temperature in centigrade. As soon as the set temperature is reached the control lamp (6) switches off.
-
Page 11: General
In particular acid cleaners (e.g. for derusting or the removal of mineral dirt such as lime) must be used only when specially designed for this purpose. We offer our own range of ELMA cleaning chemicals specially developed and made for the use in ultrasonic cleaners which guarantees a long service life of our ultrasonic baths. - Page 12 - ELMA Clean 85 Alkali-free, acid-free cleaner for workshop and jewellery manufacture. - Elma Noble Clean Cleaning and brightening of gold, silver and platinum; acts within seconds; not suitable for soft stones. - ELMA Clean 80 Very mild cleaning concentrate for jewellery; suitable for precious metals with stones.
-
Page 13: Maintenance
1 minute to improve the cleaning effect. Then empty the bath and wipe it out. If neither ELMA Clean 60 nor ELMA Clean 115 is at hand use any lime remover on phosphoric acid base. The use of such a lime remover is possible as long as it does not contain any chloride ions. -
Page 14: Technical Data / Regulations
9. Technical Data / Regulations Model Internal tank Power Max. Ultrasonic dimesions Consumpt. volume Frequency 73/23/EWG 93/42/EWG Watts liter 89/336/EWG Analogous units √ √ T 310 190x85x60 √ √ T 310/H 190x85x60 √ √ T 310 – 25kHz 190x85x60 T 420 151x137x100 1,75 √... - Page 15 For safety reasons, the units must be connected to correctly earthed sockets only. The ELMA units are in compliance with the following EC regulations: EC EMV Regulation 89/336/EWG EC Low Voltage Regulation...
-
Page 16: Contact
10. Contact Elma Hans Schmidbauer GmbH&Co. KG Address: Kolpingstr. 1-7, D-78224 Singen Phone: ++49 (0) 7731 882-0 Fax: ++49 (0) 7731 882-266 Technical Support: ++49 (0) 7731 882-280 e-mail: info@elma-ultrasonic.com homepage: www.elma-ultrasonic.com...
