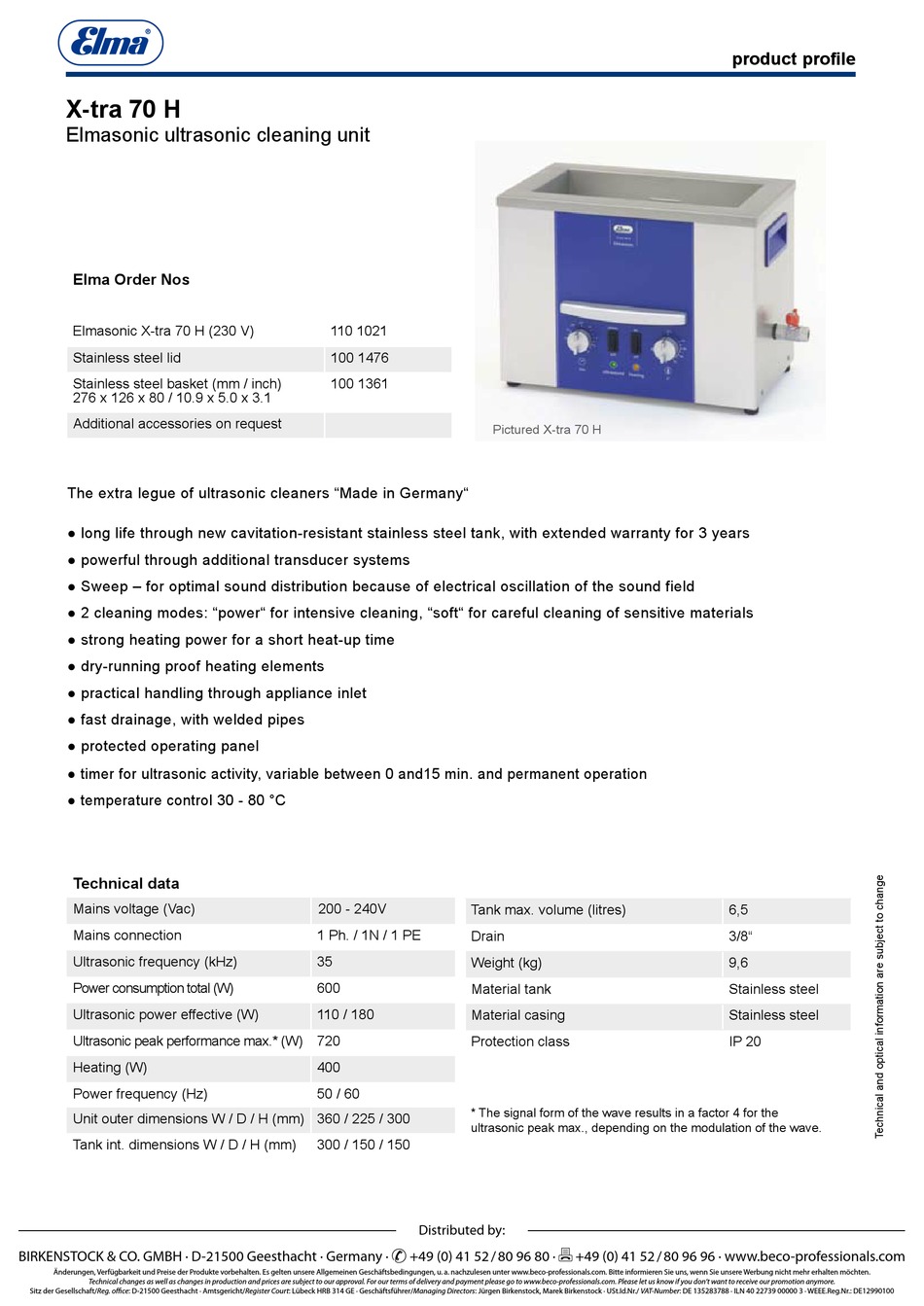

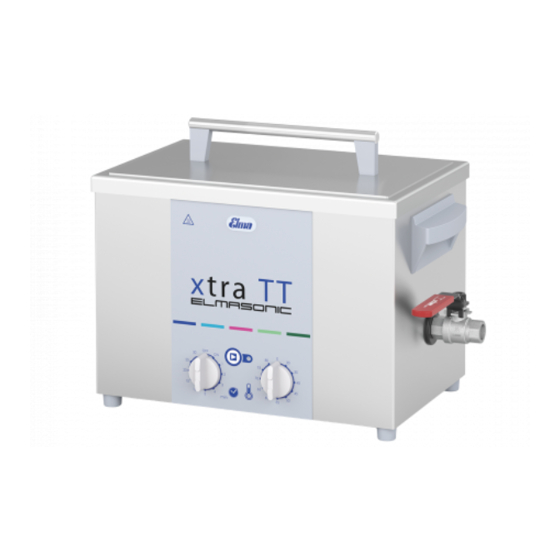

Elma Elmasonic X-tra Series Operating Instructions Manual

X-tra 70 H
X-tra 70 H
Elmasonic ultrasonic cleaning unit
Elmasonic ultrasonic cleaning unit
Elma Order Nos
Elma Order Nos
Elmasonic X-tra 70 H (230 V)
Elmasonic X-tra 70 H (230 V)
Elmasonic X-tra 70 H (115 V)
Elmasonic X-tra 70 H (230 V)
Elmasonic X-tra 70 H (115 V)
Stainless steel lid
Stainless steel lid
Stainless steel basket (mm / inch)
Stainless steel basket (mm / inch)
276 x 126 x 80 / 10.9 x 5.0 x 3.1
276 x 126 x 80 / 10.9 x 5.0 x 3.1
Additional accessories on request
Additional accessories on request
The extra legue of ultrasonic cleaners "Made in Germany"
The extra legue of ultrasonic cleaners "Made in Germany"
● long life through new cavitation-resistant stainless steel tank, with extended warranty for 3 years
● long life through new cavitation-resistant stainless steel tank, with extended warranty for 3 years
● powerful through additional transducer systems
● powerful through additional transducer systems
● Sweep – for optimal sound distribution because of electrical oscillation of the sound field
● Sweep – for optimal sound distribution because of electrical oscillation of the sound field
● 2 cleaning modes: "power" for intensive cleaning, "soft" for careful cleaning of sensitive materials
● 2 cleaning modes: "power" for intensive cleaning, "soft" for careful cleaning of sensitive materials
● strong heating power for a short heat-up time
● strong heating power for a short heat-up time
● dry-running proof heating elements
● dry-running proof heating elements
● practical handling through appliance inlet
● practical handling through appliance inlet
● fast drainage, with welded pipes
● fast drainage, with welded pipes
● protected operating panel
● protected operating panel
● timer for ultrasonic activity, variable between 0 and15 min. and permanent operation
● timer for ultrasonic activity, variable between 0 and15 min. and permanent operation
● temperature control 30 - 80 °C
● temperature control 30 - 80 °C
Technical data
Technical data
Mains voltage (Vac)
Mains voltage (Vac)
Mains connection
Mains connection
Ultrasonic frequency (kHz)
Ultrasonic frequency (kHz)
Power consumption total (W)
Power consumption total (W)
Ultrasonic power effective (W)
Ultrasonic power effective (W)
Ultrasonic peak performance max.* (W) 720
Ultrasonic peak performance max.* (W) 720
Heating (W)
Heating (W)
Power frequency (Hz)
Power frequency (Hz)
Unit outer dimensions W / D / H (mm) 360 / 225 / 300
Unit outer dimensions W / D / H (mm) 360 / 225 / 300
Tank int. dimensions W / D / H (mm)
Tank int. dimensions W / D / H (mm)
