- Page 1 BOLIY POWER OWNERS MANUAL MODEL Pro3600Si Pro3600Si/E Electric Start DIGITAL GENERATOR DSP T ECHNOLOGY...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PLEASE READ ENTIRE MANUAL BEFORE OPERATING Introduction ..................1 Warranty ..................2-3 Safety Information ................4-5 Exhaust Fumes Are Poisonous Never Run Generator Indoors Fuel is Highly Flammable and Poisonous Engine and Muffler May be Hot Electric Shock Prevention Connection Notes Extension Cord Notes Battery Control Function ................6-7... -
Page 3: Introduction
Record your generator model and serial number in the spaces provided, to assist you in ordering spare parts from a BOLIY dealer. Also record and keep these I.D. numbers in a separate place in case your machine is lost or stolen. - Page 4 2 YEAR FULL RUNABILITY & EMISSIONS COVERAGE BOLIY POWER WARRANTY POLICY his warranty is limited to Boliy products when distributed by Boliy Power. The following warranty applies to products purchased at retail or for recreational use after January 1, 2010.
-
Page 5: Warranty
BOLIY exactly as address. Mail to: specifi ed in the Owner’s Manual? A. Y es. The warranty on a new BOLIY can be Suzhou Zhonggu Mould Co., Ltd. Boliy Power America, Huangqiao Industrial Park, “voided”... -
Page 6: Safety Information
SAFETY INFORMATION WARNING EXHAUST FUMES ARE POISONOUS. Never operate the engine in a close area or it may cause unconsciousness and death within a short time. Operate the engine in a well ventilated area. NEVER RUN GENERATORS INDOORS OR IN CONFINED SPACES. •Never sleep a running generator due to the emission of carbon monoxide. -
Page 7: Battery
2. Check the positive lead (red) connection to the positive (+) terminal. 3. Connect the negative lead (black) to the negative (-) terminal. 4. Close the front door. To charge the battery Have a Boliy dealer charge the battery as soon as possible if it seems to have discharged. Recommended battery Recommended battery: Capacity: 12V/4.5Ah or 12V 5Ah... -
Page 8: Control Function
CONTROL FUNCTION Description and Control Panel Key 1. Carrying Handles 9. 30 Amp RV Receptacle 2. Fuel Level Gauge 10. Engine On/Off Switch 3. Fuel Cap and Vent 11. Choke Knob 4. Fuel On/Off Switch 12. Economy Control Switch 5. AC Ready Pilot Light (SMART throttle switch) 6. -
Page 9: Oil Warning System
CONTROL FUNCTION CONTINUED OIL WARNING SYSTEM If the oil level falls below the safe operating level, the engine will stop automatically. Unless you refill with oil, the engine will not start again. NOTE: If the engine stalls or does not start, turn the engine switch to “ON” position and then pull the recoil starter. If the oil warning light flickers for a few seconds, the engine oil is low. -
Page 10: Pre-Operation Check
PRE OPERATION CHECKLIST NOTE: Pre-operation checks should be made each time the generator is used. FUEL SYSTEM Make sure there is sufficient fuel in the tank. Recommended fuel: Unleaded gasoline Fuel tank capacity: Total 2.1 US Gallons The engine must use regular unleaded gasoline with a pump octane number (R+M)/2) of 86 or higher, or research octane number of 91or higher. -
Page 11: Operation
OPERATION STARTING THE ENGINE NOTE: Before starting the engine, do not connect any electric devices. 1. Turn the fuel switch lever to the “ON” position. 2. Turn the engine switch to the “ON” position. 3. Please make sure fix cathcode cable to the crank case(Electric start model). STOP Note: Sometimes the choke is required to start a warm engine. -
Page 12: Starting The Engine
OPERATION CONTINUED AC CONNECTION ALTERNATING CURRENT (AC) CAUTION • Be sure electric devices including the lines and plug connections are in good condition before connection to the generator. • Be sure any electric devices are turned off before plugging it in. •... -
Page 13: Connection
OPERATION CONTINUED CAUTION • Be sure the battery leads are properly connected and is not damaged or obstructed. • Be sure breather hose is properly connected and is not damaged or obstructed. • Reduce the load to the specified generator rated output if the DC protector turns off. If it turns off again, consult the authorized dealer. -
Page 14: Operation
OPERATION CONTINUED APPLICATION RANGE: APPROXIMATE WATTAGE REQUIRED FOR STARTING Household RV Household RV Coffee Maker 1750 1750 Electric Chain Saw 1100 1000 Dishwasher - 14 inces,2HP -Cool Dry 1400 Table Saw Electric Fry Pan 1300 1300 - 10 inches 1800 4500 Electric Range Drills... -
Page 15: Periodic Maintenance
More frequently if Decarburization necessary. Check the pilot light Generation comes on. Check all fittings and Fittings fasteners. Correct if /Fasteners necessary. CAUTION Use only genuine BOLIY replacement parts. If you have questions, contact your dealer or Boliy USA (651-407-1457) -
Page 16: Spark Plug Inspection
SPARK PLUG INSPECTION You should periodically remove and inspect the spark plug. 1. Check for discoloration and remove the carbon. 2. Check the spark plug type and gap. Standard electrode color: Tan Color Standard Spark Plug:BPR4ES(NGK)(F7RTC) Gap:(0.028-0.031 inches) (0.028-0.031 inch) 3. -
Page 17: Troubleshooting
TROUBLESHOOTING ENGINE WON’T START 1. Fuel system, engine is not getting fuel. • No fuel in tank... Supply fuel. • Clogged fuel line... Clean fuel line. • Foreign matter in fuel filter... Replace fuel filter. • Clogged carburetor... Clean carburetor. 2. -
Page 18: Specifications
BOLIY Pro 3600Si & 3600Si/E DSP INVERTER GENERATOR WIRING DIAGRAM Color code 1 - Main coil 13 - Ignition coil B - Black 2 - Sub coil 14 - Spark plug G - Green 3 - Control unit 15 - AC-CDI unit... - Page 19 BOLIY Pro 3600Si/ Pro3600SiE DSP INVERTER GENERATOR SPECIFICATIONS & DIMENSIONS OVERALL LENGTH (in) OVERALL WIDTH (in) 16.5 OVERALL HEIGHT (in) 18.5 DRY WEIGHT (lb..) 3600 SI - 68 lbs, 3600 SI/E - 74 lbs SHIPPING WEIGHT (lb.) SI - 72lbs, SI/E -78lbs FUEL TANK CAPACITY (US gal.)
-
Page 20: Grounding Information
ADDITIONAL GROUNDING INFORMATION & SAFETY TIPS MAJOR CAUSES OF INJURIES AND FATALITIES • Shocks & electrocution to users from improper use-improper connection to structures, such as residences, offices, shops and trailers. SAFE WORK PRACTICES • Maintain and operate generators in accordance with the manufacturer’s use and safety instructions. •... -
Page 21: Portable Generator Hazards
PORTABLE GENERATOR HAZARDS A Fact sheet on Portable Generator Safety Portable generators are useful when temporary or remote electric power is needed, but they can be hazardous. The primary hazards to avoid during use are carbon monoxide poisoning, electric shock or electrocution, and fire. -
Page 22: Appendix

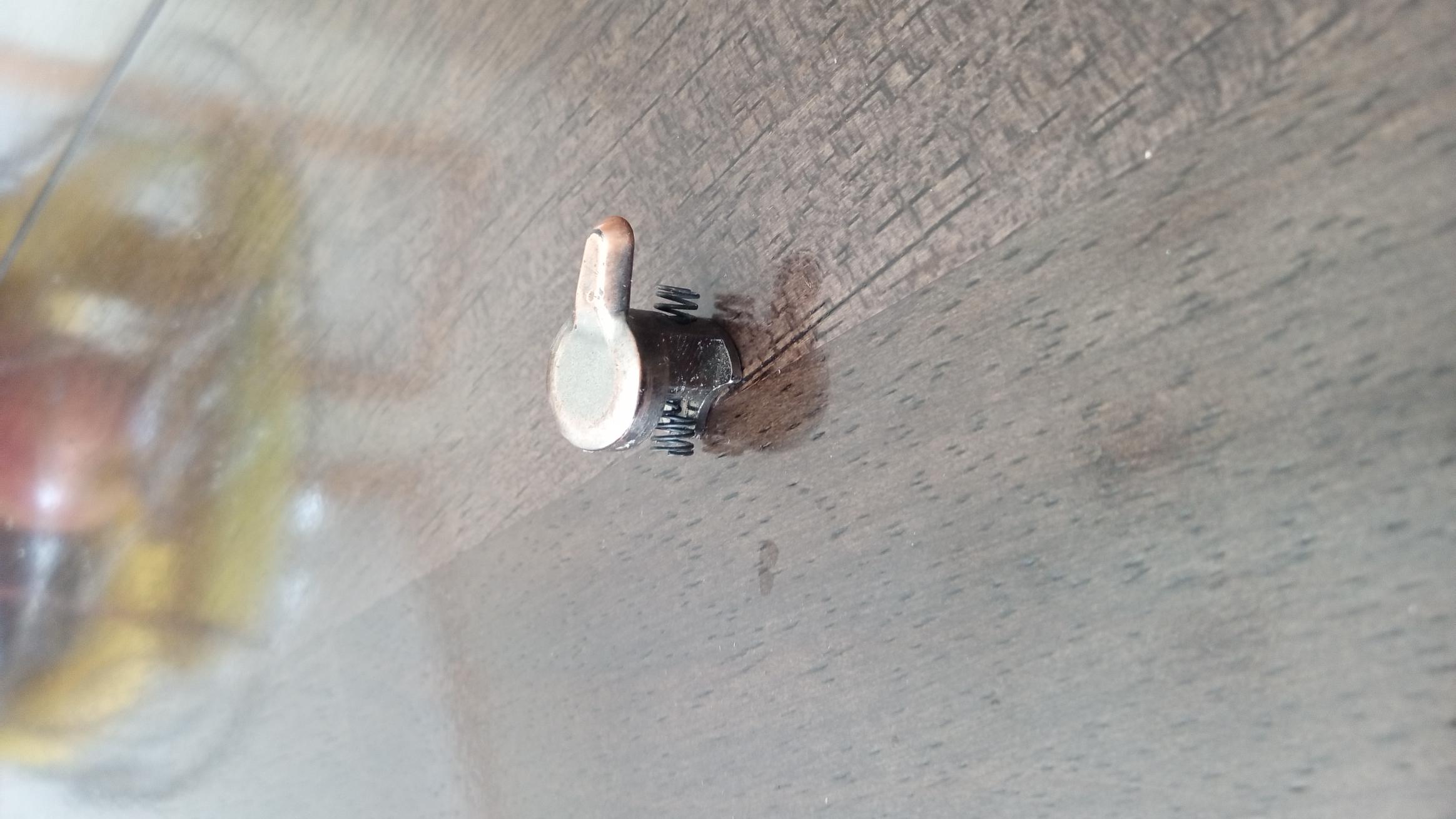

Appendix High Altitude Jetting 4,000 Feet and Over Change nozzle jet for high altitude application Modifications are as follows: On the bottom of the carburetor bowl there is a large hex nut. Unscrew the nut and pull off the bowl. Right up the center of where the nut just unscrewed from is the nozzle jet. - Page 23 BOLIY WARRANTY www.boliypower.com You can also register ONLINE at REGISTRATION Important ! Please complete and return within the next 15 days! Digital inverter generator First Name Initial Last Name Street Apt. No. City State ZIP code E-mail Address: Date of birth...
- Page 24 Fold, staple or tape as indicated, and mail. Fold Here Fold Here PLACE STAMP HERE The Post Office will not deliver mail without postage. Boliy Power America, PO BOX 007 Iselin, NJ 08830-0007 Fold Here Fold Here...
- Page 25 www.boliypower.com Suzhou Zhonggu Mould Co., Ltd. Huangqiao Industrial Park, Suzhou Jiangsu, 215132,China Tel: +86-512-65466507 Version 7, 2010...
