Summary of Contents for BOLIY Pro3600Si

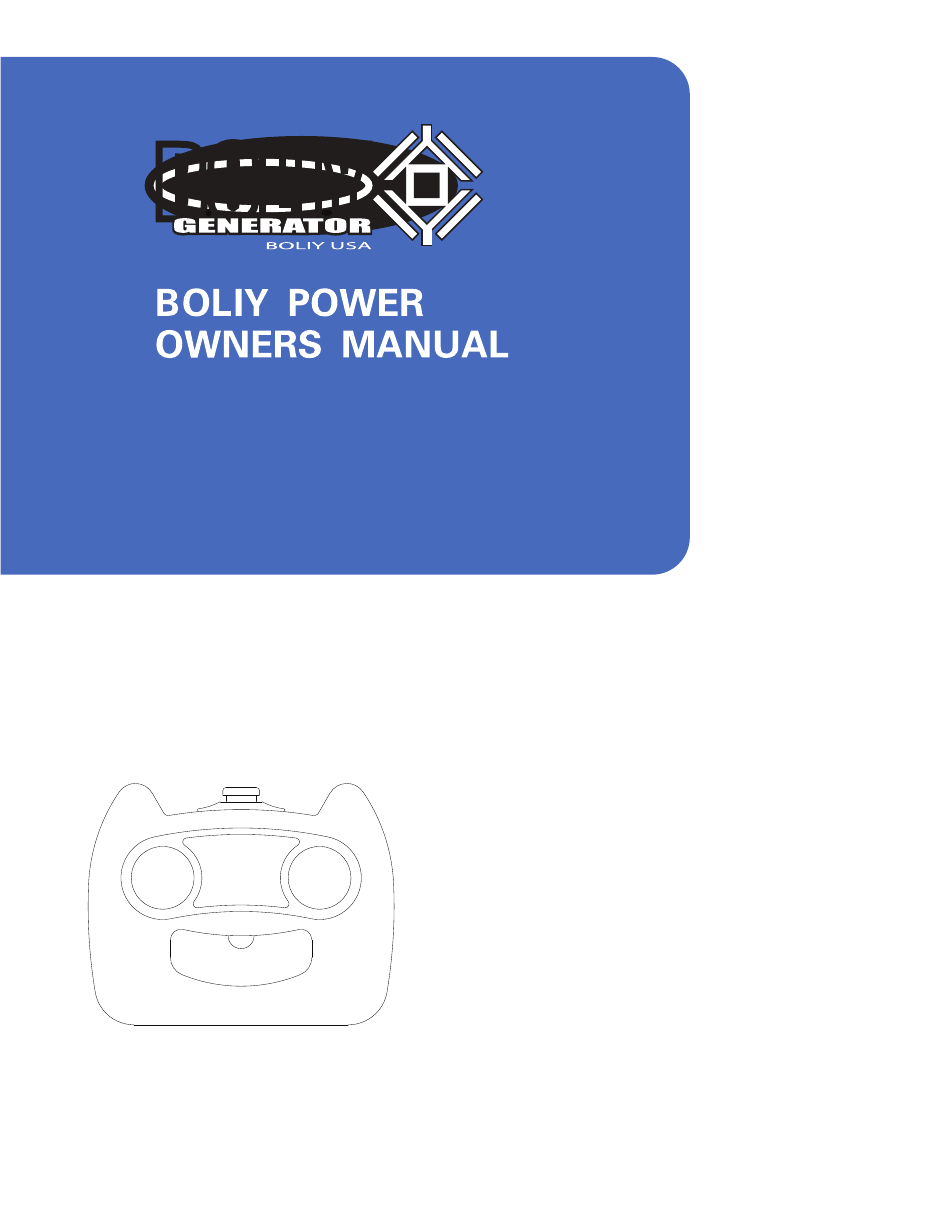

- Page 1 BOLIY MODEL Pro3600Si Pro3600Si/E Electric Start Pro3600Si/ER Remote Start DIGITAL GENERATOR DSP TECHNOLOGY...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PLEASE READ ENTIRE MANUAL BEFORE OPERATING Introduction ..............1 Warranty ................2-3 Safety Information ............4 Exhaust Fumes are Poisonous Never Run Generators Indoors Fuel is Highly Flammable and Poisonous Engine and Muffl er May be Hot Electric Shock Prevention Connection Notes Extension Cord Notes Control Function ..............5-6... -
Page 3: Introduction
Record your generator model and serial number in the spaces provided to assist you in ordering spare parts from a BOLIY dealer. Record and keep these I.D. numbers in a separate place in case your machine is lost or stolen. - Page 4 2 YEAR EMISSIONS COVERAGE BOLIY USA WARRANTY POLICY his warranty is limited to Boliy products when distributed by Boliy USA. The warranty is effective from the date of retail purchase and applies only to products used in recreational applications. Warranty Contact Information:...
-
Page 5: Warranty
Boliy Gen- machine with a broken or damaged part which erator back up and running as quickly as possible. -
Page 6: Safety Information
SAFETY INFORMATION WARNING EXHAUST FUMES ARE POISONOUS . Never operate the engine in an enclosed area. Uncon- sciousness and death will result. Always operate the engine in a well ventilated area. NEVER RUN GENERATORS INDOORS OR IN CONFINED SPACES. • Never sleep near a running generator due to the emission of carbon monoxide. •... -
Page 7: Control Function
CONTROL FUNCTION Description and Control Panel Key 1. Carrying Handles 9. 20 Amp Receptacle 2. Fuel Level Gauge 10. Engine On/Off Switch 3. Fuel Cap 11. Choke Knob 4. Fuel On/Off Switch 12. Economy Control Switch 5. AC Ready Pilot Light (SMART throttle switch) 6. -
Page 8: Oil Warning System
CONTROL FUNCTION CONTINUED OIL LIGHT & WARNING SYSTEM If the oil level falls below the safe operating level, the engine will stop automatically. Unless you refi ll with oil, the engine will not start again. NOTE: If the engine stalls or does not start, turn the engine switch to “ON” position and then pull the recoil starter. If the oil warning light fl... -
Page 9: Handle Function
HANDLE FUNCTION Pin location when the handle is stowed. Pin location to lock the handle. -
Page 10: Remote Start Function
REMOTE START/STOP FUNCTION 1) Turn the fuel knob to “On”. 2) Turn the engine kill switch to “On”. 3) Turn the key switch to “On”. Remote start will not work if key switch is not in the “On” position. 4) To start the engine remotely, push unlock button twice on the remote. - Page 11 PRE-OPERATION CHECKLIST NOTE: Pre-operation checks should be made prior to each use. FUEL SYSTEM Make sure there is suffi cient fuel in the tank. Recommended fuel: Unleaded gasoline Fuel tank capacity: Total 1.9 US Gallons The engine must use regular unleaded gasoline with a pump octane number ((R + M)/2) of 86 or higher, or research octane number of 91 or higher.
- Page 12 OPERATION STARTING THE ENGINE NOTE: Before starting the engine, do not connect any electric devices. 1. Turn the fuel switch lever to the “ON” position. 2. Turn the engine switch to the “ON” position. 3. Hold the choke knob fully out for a cold start. Note: Sometimes the choke is required to start a warm engine.
- Page 13 OPERATION CONTINUED AC CONNECTION ALTERNATING CURRENT (AC) CAUTION • Be sure electric devices including the lines and plug connections are in good condition before connection to the generator • Be sure any electric devices are turned off before plugging it in •...
- Page 14 OPERATION CONTINUED CAUTION • Be sure the battery leads are properly connected and are not damaged or obstructed. • Reduce the load to the specifi ed generator rated output if the DC protector turns off. If it turns off again, consult the authorized dealer. NOTE: •...
- Page 15 OPERATION CONTINUED APPLICATION RANGE: APPROXIMATE WATTAGE REQUIRED FOR STARTING Household Household Electric Chain Saw Coffee Maker 1750 1750 - 14 inches, 2 HP 1100 1000 Dishwasher Table Saw - Cool Dry 1400 - 10 inches 1800 4500 Electric Fry Pan 1300 1300 Drills...
-
Page 16: Pre-Operation Check
More frequently if Decarburization necessary. Check the pilot light Generation comes on. Check all fi ttings and Fittings/Fasteners fasteners. Correct if necessary. CAUTION Use only genuine BOLIY replacement parts. If you have questions, contact your dealer or Boliy USA (651-407-1457) -
Page 17: Spark Plug Inspection
SPARK PLUG INSPECTION You should periodically remove and inspect the spark plug. 1. Check for discoloration and remove the carbon. 2. Check the spark plug type and gap. Standard electrode color: Tan Color Standard Spark Plug: BPR4ES (NGK) (F7RTC) Gap: (0.028 – 0.031 inches) (0.028-0.031 inch) 3. -
Page 18: Troubleshooting
TROUBLESHOOTING ENGINE WON’T START 1. Fuel system, engine is not getting fuel.. • No fuel in tank… Supply fuel. • Clogged fuel line… Clean fuel line. • Foreign matter in fuel fi lter… Replace fuel fi lter. • Clogged carburetor … Clean carburetor. 2. - Page 19 BOLIY Pro 3600Si/ Pro3600Si/E Pro3600Si/ER DSP INVERTER GENERATOR SPECIFICATIONS & DIMENSIONS OVERALL LENGTH (in) OVERALL WIDTH (in) 16.5 OVERALL HEIGHT (in) 18.5 DRY WEIGHT (lb..) 3600 SI - 68 lbs, 3600 SI/E - 74 lbs SHIPPING WEIGHT (lb.) SI - 72lbs, SI/E -78lbs FUEL TANK CAPACITY (US gal.)
-
Page 20: Wiring Diagram
BOLIY Pro 3600Si & 3600Si/E DSP INVERTER GENERATOR WIRING DIAGRAM Color code 1 - Main coil 13 - Ignition coil B - Black 2 - Sub coil 14 - Spark plug G - Green 3 - Control unit 15 - AC-CDI unit... - Page 21 ADDITIONAL GROUNDING INFORMATION & SAFETY TIPS POSSIBLE CAUSES OF INJURY OR FATALITY • Shocks & electrocution to users from improper use – improper connection to structures, such as residences, offi ces, shops and trailers. SAFE WORK PRACTICES • Maintain and operate portable generators in accordance with the manufacturer’s use and safety instructions •...
-
Page 22: Portable Generator Hazards
PORTABLE GENERATOR HAZARDS Portable generators are useful when temporary or remote electric power is needed, but they can be hazardous. The primary hazards to avoid during use are carbon monoxide poisoning, electric shock or electrocution, and fi re. TO AVOID CARBON MONOXIDE HAZARDS: •... -
Page 23: High Altitude Jetting 4,000 Feet And Over
Note: there is also a small gasket between the fuel bowl and the large hex nut. Don’t misplace it and make sure it’s in place when you reinstall the nut or it will leak. Boliy USA 6800 Otter Lake Road... - Page 24 BOLIY 0213ex1758 REV.1...
