Paslode CF325Li Operating Manual

Paslode CF325Li Operating Manual

Cordless framing nailer

Advertisement

Model CF325Li
Part No. 902600
11
902613-2
08/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF325Li and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paslode CF325Li

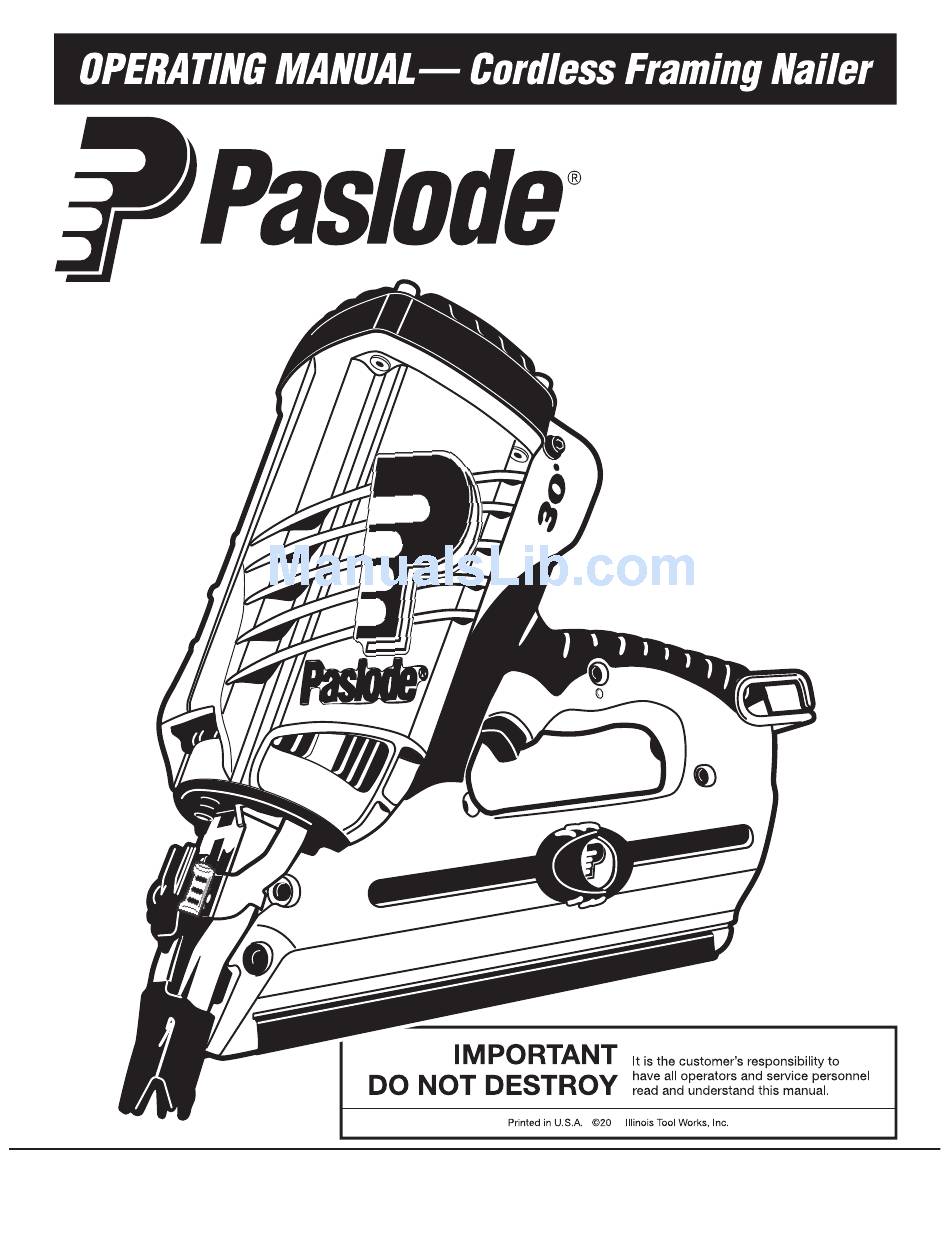

  • Page 1 Model CF325Li Part No. 902600 902613-2 08/11...
  • Page 2: Introduction And Warranty

    Service Center listing that was provided with your tool. ONE-YEAR LIMITED WARRANTY Paslode's sole liability hereunder will be to replace any part or accessory which proves to be defective within the specific time period. Any replacement A one-year warranty will apply to all parts, except those listed...
  • Page 3: Table Of Contents

    Contents Introduction and Warranty ............2 An Overview of the Paslode Cordless Framing Nailer ....4 Safety Instructions..............5 Battery and Charging System ........... 8 Fuel Cell and Metering Valve ..........10 Preparing the Paslode Cordless Framing Nailer for Use ..13 Paslode Cordless Framing Nailer Operation ......14 Fasteners and Applications .............
  • Page 4: An Overview Of The Paslode Cordless Framing Nailer

    Cycle Rate: Intermittent Operation – 2 to 3 nails As with any internal combustion motor, the Paslode Cordless per second Nailer will require periodic maintenance to keep it operating at it's peak performance. The cleaning procedure booklet NOTE: Exceeding these rates could cause tool to overheat, will instruct you on the proper cleaning of your tool.
  • Page 5: Safety Instructions

    The following safety instructions have been included in this booklet to provide you with basic information necessary for WARNING safe operation of the Paslode Cordless Framing Nailer. DO NOT ATTEMPT TO OPERATE THIS TOOL UNTIL YOU HAVE READ AND UNDERSTAND ALL SAFETY Never expose or store the PRECAUTIONS AND MANUAL INSTRUCTIONS.
  • Page 6 Tip the tool nose up slightly and fasteners should working with or in the slide out of the rear of the magazine. If fasteners are vicinity of the Paslode jammed, refer to the appropriate servicing section of Cordless Framing Nailer.
  • Page 7 Safety Instructions 18. KEEP YOUR HANDS CLEAR OF THE WORK AREA 13. ALWAYS MAINTAIN SECURE AND UNOBSTRUCTED SURFACE. FOOTING WHEN ON LADDERS, PLATFORMS OR OTHER HIGH LOCATIONS. WARNING WARNING A fastener may exit at an Never over-reach, since angle unexpectedly and tool recoil may cause a cause injury.
  • Page 8: Battery And Charging System

    This charging system is the only one that will work with stable surface and insert the wall transformer unit's plug Paslode Li-ion batteries. The first step in preparing a new into the plug receptacle on the bottom end of the char- tool for operation is to fully charge the battery.
  • Page 9 Battery and Charging System Battery Indicator Light The illustration is a close-up of the side of the Paslode Cordless framer handle. On the side of the handle is a small plastic lens. This is the battery indicator light. When you insert a fully-charged battery into the tool, you will see a blinking green light.
  • Page 10: Fuel Cell And Metering Valve

    It is not necessary to oil the tool cartridge. during normal operation. When cleaning the tool, use only Paslode Cordless tool oil. Using oils not formulated for the Exposure to Paslode Cordless Tool, may cause loss of power and may temperatures above damage the internal parts of the tool's motor.
  • Page 11 Paslode Cordless Fuel Cell/Cartridge Disposal Guidelines Paslode the industry leader in cordless technology provides this information to assist users with the proper disposal of discarded fuel cells/cartridges. Acceptable disposal options vary depending on the type of fuel cell/cartridge users. All users must consider federal, state and local solid waste regulations to ensure that discarded fuel cells/cartridges are disposed of properly.
  • Page 12: Inserting Fuel Cartridge

    Quicklode™ Fuel Cartridge Inserting Fuel Cartridge C. Release the adaptor so it is centered on the fuel A. Inserting the fuel cartridge into the Cordless Framing cartridge. Nailer is very simple. To begin, press up at the bottom of the actuator cover and pivot outward to open.
  • Page 13: Preparing The Paslode Cordless Framing Nailer For Use

    The blank cycling,which could waste fuel and damage ® use of nails that do not meet Paslode standards could cause tool components. Five (5) nails will be left in the tool damage and void your warranty. Paslode nail sizes and...
  • Page 14: Paslode Cordless Framing Nailer Operation

    Paslode Cordless Framing Nailer Operation PRESS WORK – CONTACTING ELEMENT AGAINST THE WORK SURFACE. Fan motor starts, fuel is injected into combustion Move up to Increase chamber and Drive Depth mixed with air by Move Down to Reduce the fan.
  • Page 15: Fasteners And Applications

    (Not for use in all-weather wood foundations.) Hardened Steel - For attaching wooden plates to green concrete foundations; 2X furring strips to cinder block. The Paslode Cordless Framing Nailer is not recommended for use with 3" Ring Shank nails in pressure treated lumber...
  • Page 16: Servicing

    DANGER sure (see page 10 for more information). Never attempt any maintenance of the Paslode Cordless Framing Nailer without first removing the fuel cartridge Clearing a Jam and battery. Maintenance should be started only after An occasional problem you may encounter is a jammed the tool is completely inoperative.
  • Page 17: End-Of-Workday Routine

    Cordless Framing Nailer Paslode Cordless Tool Accessories A variety of accessories are available for the Paslode Cordless Framing Nailer: No-Mar Work Contacting Element - Part No. 901252 Battery - Part No. 902650 Clear Safety Glasses - Part No.
  • Page 18: Troubleshooting

    Before” date stamped on the bottom of the fuel on how to check fuel cartridges. cartridge . Spark plug is dirty. Clean tool cylinder head and spark plug. No spark is generated. Return tool to authorized Paslode ® dealer for service.
  • Page 19: Paslode

    If tool will not operate after following the above service directions, return the tool to an authorized Paslode.® representative for service. For the nearest Paslode® representative call 1-800-682-3428. For Technical support call 1-800-222-6990 or visit our web site at www.paslode.com. To purchase parts, visit our website at www.itwconstructionparts.com...
  • Page 20: Forest Edge Drive Vernon Hills, Illinois

    An Illinois Tool Works Company 888 Forest Edge Drive Vernon Hills, Illinois 60061 www.paslode.com...
