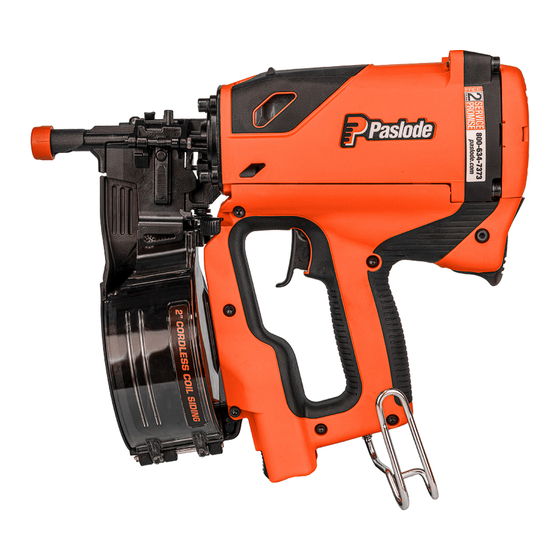

CORDLESS 2" COIL SIDING
AND FENCING NAILER
OPERATING MANUAL
Part No. 919100
Model CE20024
www.paslode.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE20024 and is the answer not in the manual?

Questions and answers

Summary of Contents for Paslode CE20024

  • Page 1 Part No. 919100 Model CE20024 CORDLESS 2" COIL SIDING IMPORTANT! AND FENCING NAILER DO NOT DESTROY It is the customer’s responsibility to have all operators and service personnel read and understand this manual. OPERATING MANUAL Printed in U.S.A. www.paslode.com ©2024 Illinois Tool Works Inc.
  • Page 2: Table Of Contents

    Preparing the Paslode Cordless 2" Coil Siding & Fencing Nailer for Use ......
  • Page 3: Introduction And Warranty

    United States, refer to the Service Center listing that was provided the original user. with your tool. Paslode’s sole liability hereunder will be to replace any part or accessory ONE-YEAR LIMITED WARRANTY which proves to be defective within the specific time period. Any...
  • Page 4: An Overview Of The Paslode Cordless 2" Coil Siding & Fencing Nailer

    The Handle Assembly contains the fuel cell, By using the Paslode Cordless Nailer at its recom- battery, indicator light, and trigger. mended cycle rate, you will be able to drive several thousand nails in a typical workday.
  • Page 5 Overview of the Paslode Cordless 2" Coil Siding & Fencing Nailer =200 Nails Diameter: .086-.099 Length: 1-1/4"-2" 0 Degree Plastic...
  • Page 6: Safety Instructions

    DO NOT ATTEMPT TO OPERATE THIS TOOL The following safety instructions have been includ- ed in this booklet to provide you with basic informa- UNTIL YOU HAVE READ AND UNDERSTAND tion necessary for safe operation of the Paslode ALL SAFETY PRECAUTIONS AND MANUAL Cordless Nailer. INSTRUCTIONS.
  • Page 7 Safety Instructions DANGER WARNING The Cordless Nailer is an Do not expose the tool 120º 49º internal combustion to temperatures in device. It produces hot excess of 120ºF (49º C). exhaust gases that may Fuel and/or the battery ignite flammable materi- may burst, releasing als.
  • Page 8 SAVE THESE INSTRUCTIONS! Battery Disposal: DANGER The Paslode batteries contain lithium and should be recycled or disposed of properly. It is illegal in some TO REDUCE THE RISK OF FIRE OR areas to place a lithium battery into the trash or solid waste stream.
  • Page 9: Battery And Charging System

    Battery and Charging System Battery and Charging System Charging Instructions The Paslode Cordless 2" Coil Siding & Fencing 1. Remove the charger unit from the tool case and Nailer comes with a rechargeable battery and its plug it into a 120V AC outlet. Set the charger base own charging system.
  • Page 10 Battery and Charging System Battery Indicator Light On the right side of the handle is a small plastic lens. This is the battery indicator light. When you insert a fully-charged battery into the tool, you will see a blinking green light. If the indicator light blinks red, recharge the battery.
  • Page 11: Fuel Cell

    filter for optimum tool operation. NOTE: Altitude Restriction WARNING Paslode Cordless technology is powered by an internal combustion engine, which is a ected by Sunlight can raise the inside temperature of an altitude. The tool may lose power or become unventilated car or van to above 140ºF (60ºC).
  • Page 12 Fuel Cell Note: Paslode Fuel Cells are marked with a “Best Used Before” date on the bottom of the can. For maximum performance use fuel before the “Best Used Before” date. DANGER Paslode Cordless Fuel Cells are flammable. Do not remove fuel cartridge cap or install on...
  • Page 13 CORRECT FUEL CELL LOADING PROCEDURE ALWAYS REMOVE BATTERY, FUEL CELL AND FASTENERS WHEN SERVICING OR CLEARING A JAM. ONLY USE PASLODE’S SPECIALLY FORMULATED FUEL, FAILURE TO DO SO MAY DAMAGE YOUR TOOL,CAUSE MISFIRES AND VOID WARRANTY. Check Load shots fuel...
  • Page 14: Preparing The Paslode Cordless 2" Coil Siding & Fencing Nailer For Use

    Preparing the Paslode Cordless 2" Coil Siding & Fencing Nailer for Use Fasteners The Paslode Cordless 2" Coil Siding & Fencing Use genuine Nailer drives Paslode 0 Degree Plastic Coil Siding Paslode 0 Degree Coil Siding Nails Nails designed to be used with the tool. The use of...
  • Page 15 Preparing the Paslode Cordless 2" Coil Siding & Fencing Nailer for Use =200 Nails Diameter: .086-.099 Length: 1-1/4"-2" 0 Degree Plastic CORRECT NAIL LOADING PROCEDURE Open nose gate Open magazine cover Place coil into magazine Insert nails into nose area...
  • Page 16: Paslode Cordless 2" Coil Siding & Fencing Nailer Operation

    Paslode Cordless 2" Coil Siding & Fencing Nailer Operation ADJUSTING THE DEPTH OF DRIVE - THUMB WHEEL ROTATION INCREASE DECREASE DEPTH OF DRIVE DEPTH OF DRIVE CORRECT BATTERY OPERATION ON/OFF SWITCH. Battery has 2 secure lock positions: Green indicates Red indicates battery...
  • Page 17: Servicing

    Periodically check the battery indicator light in the service procedures in this manual, contact Paslode. handle of the Cordless Nailer. When encountering a problem, the first step should always be to make sure DANGER the battery has enough charge to operate the tool.
  • Page 18 LUBRICATION OF FEED SYSTEM (per 5,000 shots) Paslode Cordless Tool Accessories Clear Safety Glasses - Part No. 401382 A variety of accessories are available for the Paslode Cordless 2" Coil Siding & Fencing Nailer: Paslode Cordless Lubricating Oil - Part No. 401482 Battery - Part No.
  • Page 19: Tool Schematic

    SCHEMATICS Schematic PASLODE CORDLESS CSF 919100 PARTS LEGEND PASLODE IMIM50S Li COILMASTER - B40001 MK2 919042 Grill 49 503231 O-Ring, Feed Piston Shaft 900455 Filter 50 919052-2 Piston, Feed 901065 Screw SHC 10-24 x 1-1/4 51 919102 Pawl, Feed 919040...
  • Page 20 Schematic SCHEMATICS cont. PASLODE CORDLESS CSF 919100 PASLODE IMPULSE IM50S COILMASTER B40001 SERVICE KIT 010031 Torque Values (in/lb) Item Torque Item Torque 55-60 30-35 30-35 30-35 20-25 43 155-165 15-20 15-20 8-10 30-35 35-40 Service Kit Item Loctite ® IM50S COILMASTER MANUAL...
  • Page 21 Schematic SCHEMATICS cont. PASLODE CORDLESS CSF 919100 PASLODE IMPULSE IM50S COILMASTER B40001 Torque Values (in/lb) Item Torque Item Torque 30-35 18-22 25-30 55-65 All parts sold as single items unless described as a pack, set or forms part of an assembly (multiple items defined within a box).
  • Page 22: Troubleshooting

    Spark plug is dirty. Clean tool cylinder head. Return tool to authorized Paslode dealer No spark is generated. for service. If tool will not operate after following the above service directions, return the tool to an authorized Paslode representative for service.
  • Page 23 Still not working? Here are more options: • Your nailer may qualify for our Cordless 2 Year Service Promise. Visit paslode.com for more information, or call us at 1-800-222-6990. • Keep you Cordless Nailer in top form. Visit paslode.com and watch our Cleaning and Maintenance videos...
