Instruction Manual
S-Video Video Extender over Cat 5 with Audio
SVIDUTPEXTA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
*actual product may vary from photos
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 2 x S-Video Extenders (local and remote ends)
• 1 x 20cm S-Video cable
• 1 x Installation/Mounting Kit
• 1 x User Manual
System Requirements
• An S-Video video Source
• An RCA component audio source
• Input and Output S-Video cables
• Input and Output RCA component audio cables
• A display with an available S-Video input

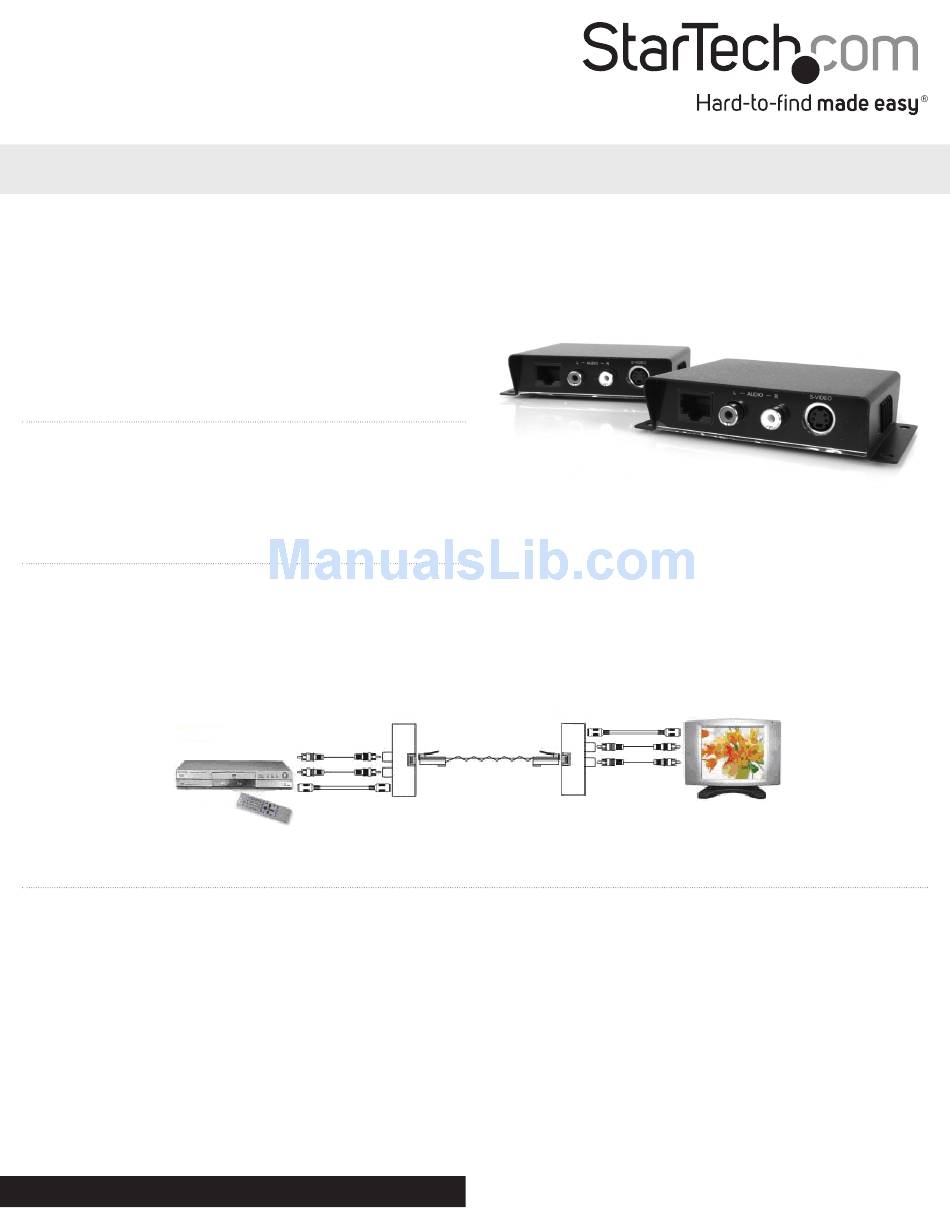

Cat5 Cable (up to 200m)
Audio Connection
Video Source
S-Video connection
Display Unit
Basic Setup
1. Connect the S-Video cable to the output on the back of the audio/video source.
2. Connect the opposite end of the S-Video cable used in Step 1 to the SVIDUTPEXT local unit (marked VIDEO).
3. Connect an audio RCA component cable to the output ports located on the audio/video source.
4. Connect the opposite end of the component audio cable to the audio ports on the local SVIDUTPEXT unit (marked as L - Audio - R).
5. Connect the Cat5 cable to the RJ45 port on the local SVIDUTPEXT unit.
6. Connect the opposite end of the Cat5 cable to the RJ45 port on the remote SVIDUTPEXT unit.
7. Connect a second S-Video cable to the designated port on the remote SVIDUTPEXT unit (marked VIDEO).
8. Connect the remaining end of the second S-Video cable to the monitor/display. For further instructions on how to locate the S-Video
port, please refer to the documentation that accompanied the display at the time of purchase.
9. Connect an audio RCA component cable to the audio ports located on the remote SVIDUTPEXT unit.
10. C onnect the opposite end of the component audio cable to the audio output ports located on the audio output device (i.e. Stereo
r eceiver, television etc.).
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/22/2012
