Tpm Header/Port 80 - Supero X9DRT-HF+ User Manual

TPM Header/Port 80

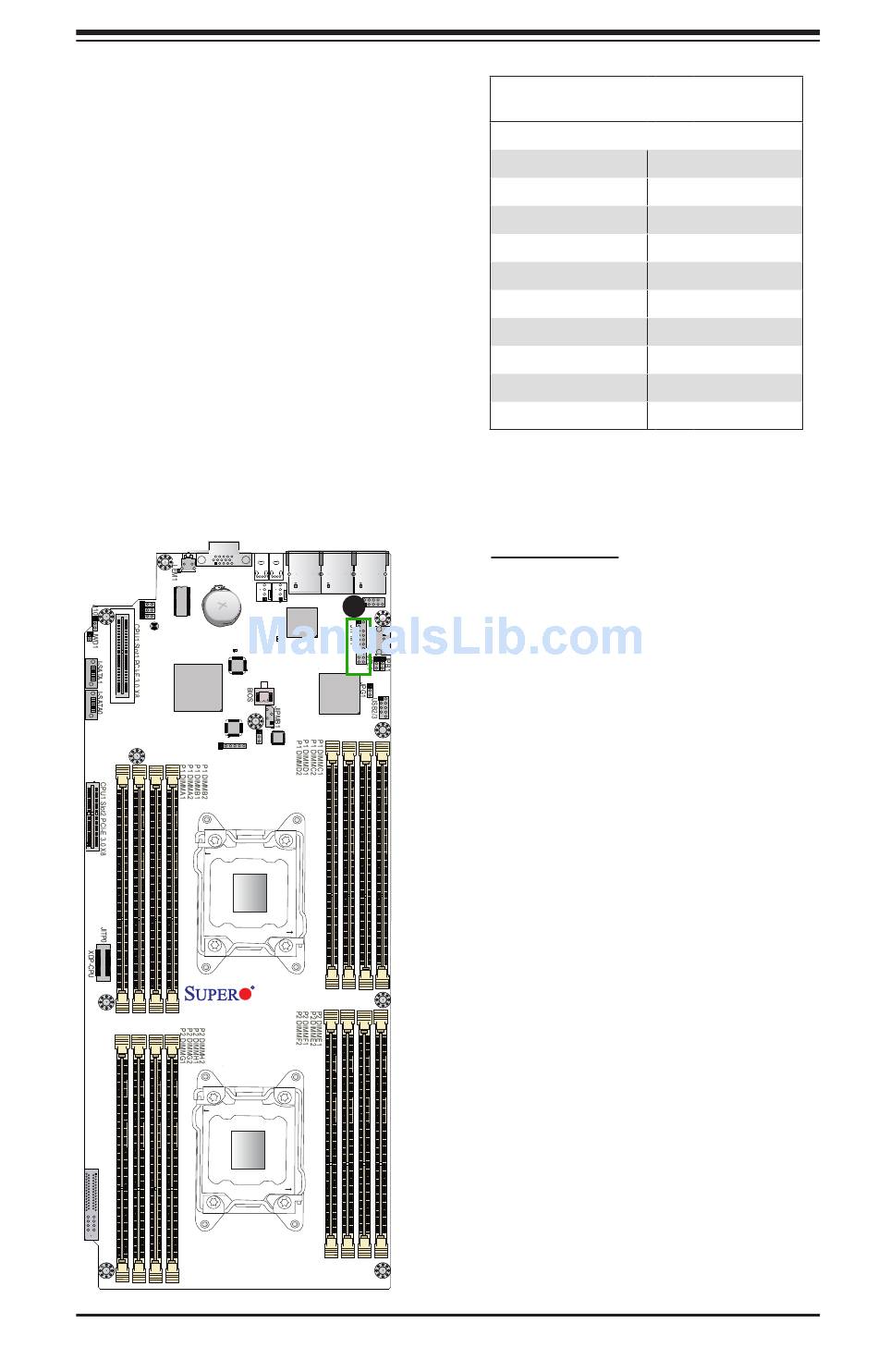

A Trusted Platform Module/Port 80 head-
er is located at JTPM1 to provide TPM
support and Port 80 connection. Use this
header to enhance system performance
and data security. See the table on the
right for pin definitions.
LE2
VGA
UID SW1
Battery
JPME1
JPME2
JBT1
LE3
Intel PCH
J21
CPU1
CLOSE 1st
CPU2
CLOSE 1st
JF2
USB0
USB1
1
LAN1 IPMI_LAN
LAN2
A
FAN4FAN3
COM1
LAN CTRL
LE1
BMC
OPEN 1st
X9DRT-HF+
Rev. 1.02
OPEN 1st
TPM/Port 80 Header
Pin # Definition
1 LCLK
3 LFRAME#
5 LRESET#
7 LAD 3
9 +3.3V
11 LAD0
13 SMB_CLK4
15 +3V_DUAL
17 GND
19 LPCPD#
A. TPM/Port80
2-25
Chapter 2: Installation
Pin Definitions
Pin # Definition
2 GND
4 <(KEY)>
6 +5V (X)
8 LAD 2
10 LAD1
12 GND
14 SMB_DAT4
16 SERIRQ
18 CLKRUN# (X)
20 LDRQ# (X)
