X9DRT-HF+ Motherboard User's Manual
2-8

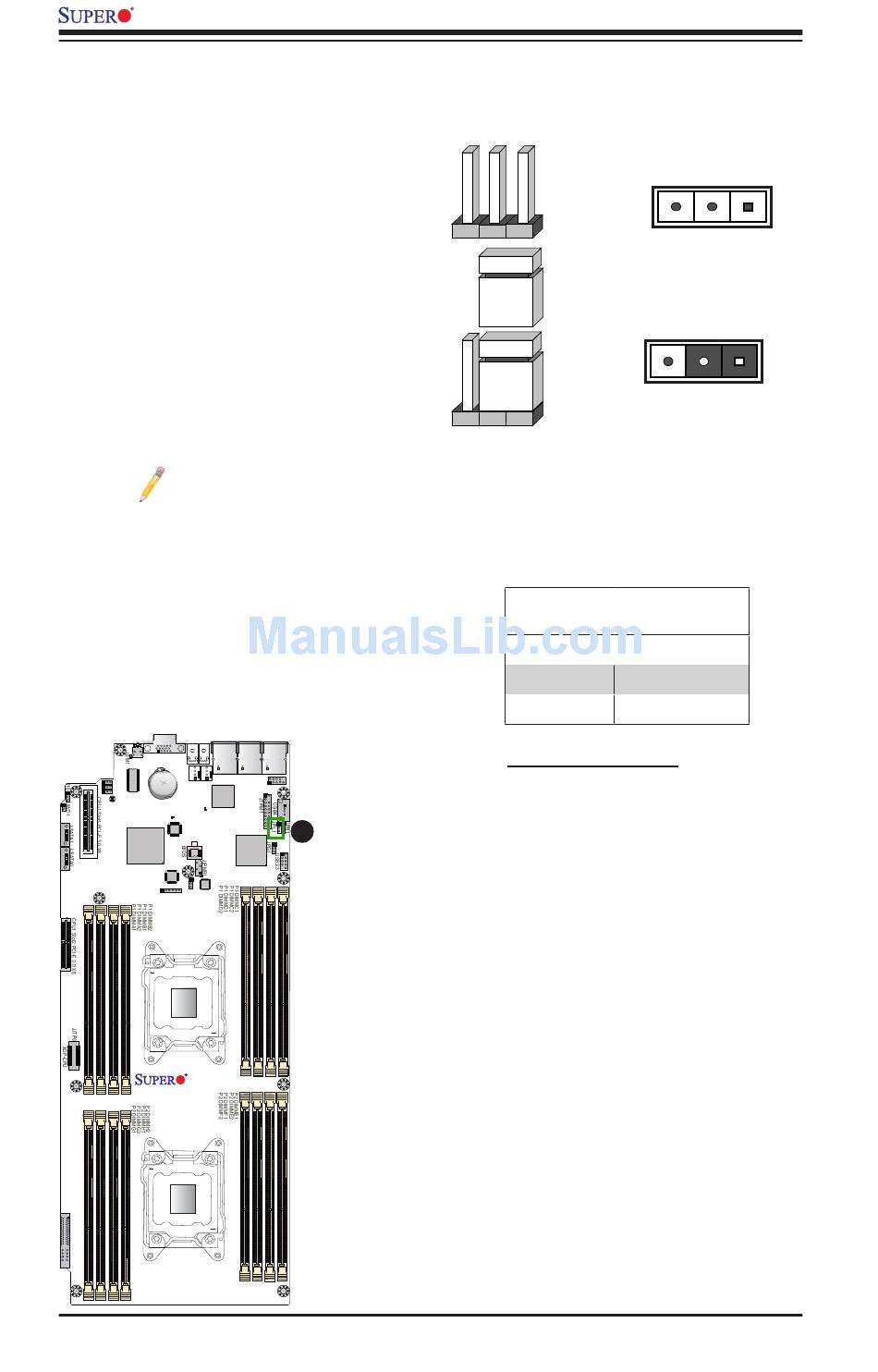

Jumper Settings

Explanation of Jumpers

To modify the operation of the mother-
board, jumpers can be used to choose
between optional settings. Jumpers cre-
ate shorts between two pins to change
the function of the connector. Pin 1
is identified with a square solder pad
on the printed circuit board. See the
motherboard layout pages for jumper
locations.
Note: On two-pin jumpers,
"Closed" means the jumper
is on and "Open" means the
jumper is off the pins.

GLAN Enable/Disable

JPL1 enables or disables the GLAN
1/2 ports on the motherboard. See the
table on the right for jumper settings.
The default setting is Enabled.
LE2
USB0 USB1
VGA
SW1
UID
1
LAN2
Battery
FAN4FAN3
JPME1
JPME2
LAN CTRL
JBT1 LE1
LE3
Intel PCH
J21
CPU1
CLOSE 1st
OPEN 1st
X9DRT-HF+
Rev. 1.02
CPU2
CLOSE 1st
JF2
OPEN 1st
LAN1 IPMI_LAN
COM1
A
BMC
2-26
Connector
Pins
Jumper
Cap
Setting
Pin 1-2 short
GLAN Enable
Jumper Settings
Jumper Setting Definition
1-2 Enabled (default)
2-3 Disabled
A. GLAN1/2 Enable
3 2 1
3 2 1
