Note 1: For the latest CPU/Memory updates, refer to our website at http://
www.supermicro.com/products/motherboard/ for details.
Note 2: Use only the correct type of onboard CMOS battery as specified
by the manufacturer. Do not install the onboard battery upside down to
avoid possible explosion.
Note 3: Changing BMC log-in information is recommended during initial
system power-on. The default username is ADMIN and password is
ADMIN. For BMC best practices, please refer to: http://www.supermicro.
com/products/nfo/files/IPMI/Best_Practices_BMC_Security.pdf

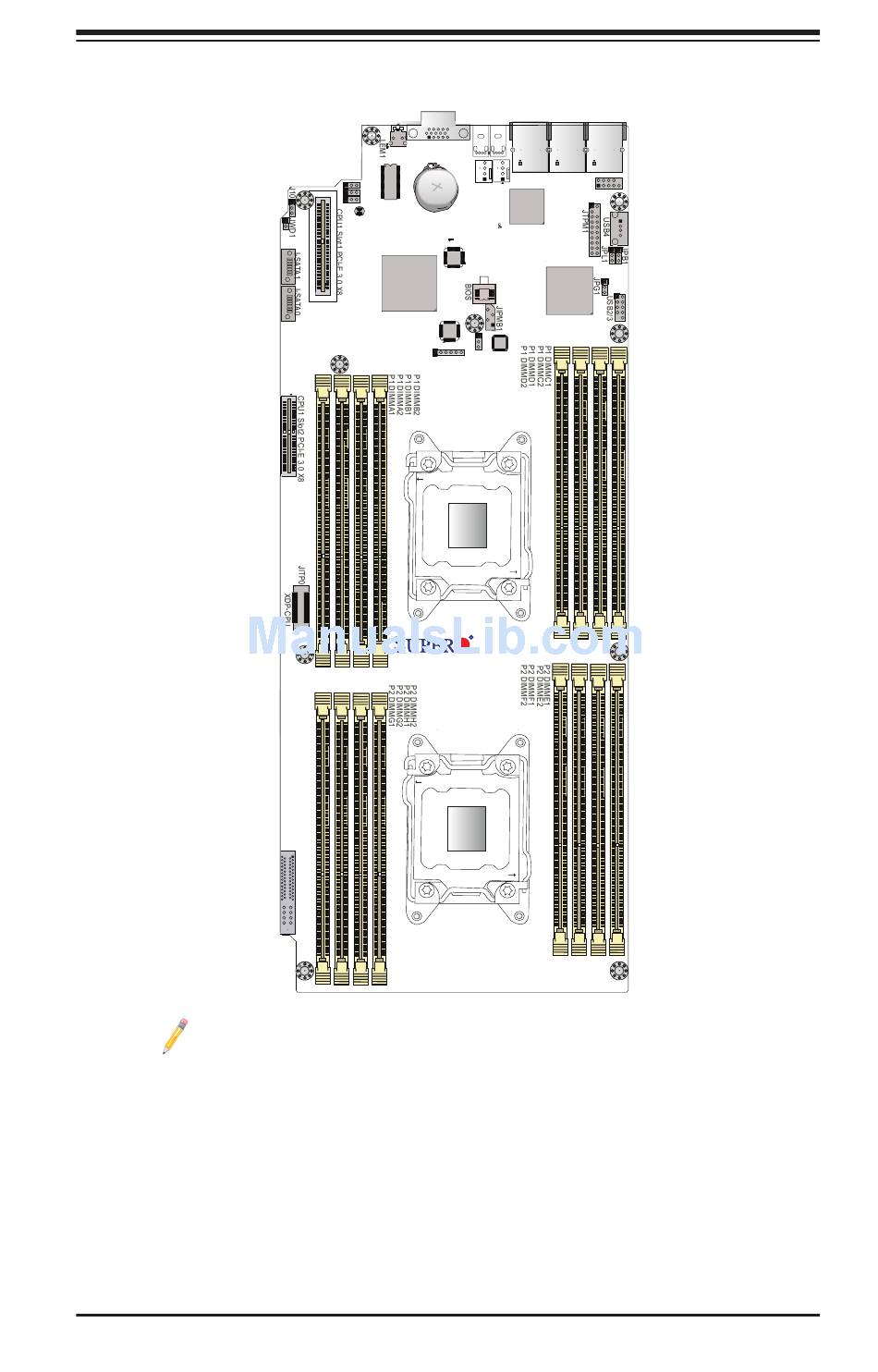

Motherboard Layout
LE2
USB0
USB1
VGA
UID
SW1
1
Battery
FAN4FAN3
JPME1
JPME2
LAN CTRL
LE1
LE3
Intel PCH
J21
CPU1
CLOSE 1st
OPEN 1st
X9DRT-HF+
Rev. 1.02
CPU2
CLOSE 1st
OPEN 1st
1-3
Chapter 1: Overview
LAN1
IPMI_LAN
LAN2
COM1
BMC
