Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on
the label area.
Notes:
•
Always connect the power cord last, and always remove it before adding, re-
moving or changing any hardware components. Make sure that you install the
processor into the CPU socket before you install the CPU heatsink.
•
If you buy a CPU separately, make sure that you use an Intel-certified multi-
directional heatsink only.
•
Make sure to install the system board into the chassis before you install the
CPU heatsink.
•
When receiving a motherboard without a processor pre-installed, make sure that
the plastic CPU socket cap is in place and none of the socket pins are bent;
otherwise, contact your retailer immediately.
•
Refer to the Supermicro website for updates on CPU support.
•
When one CPU is installed, be sure to installed on CPU Socket 1 first.

Installing the LGA2011 Processor

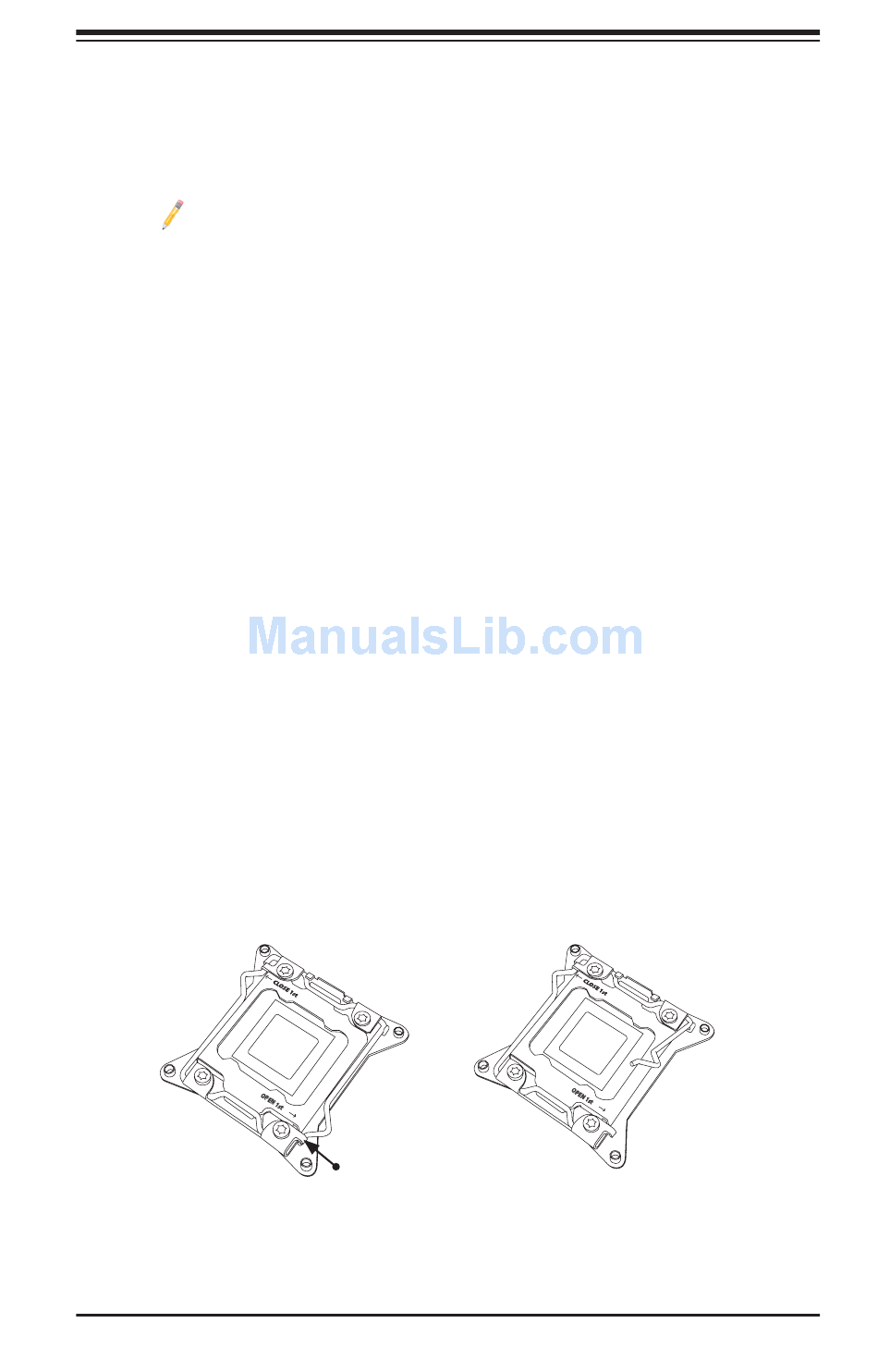

1. There are two load levers on the LGA2011 socket. To open the socket cover,
first press and release the load lever labeled 'Open 1st'.
1 2
Press down
on Load Lever
labeled 'Open 1st'.
