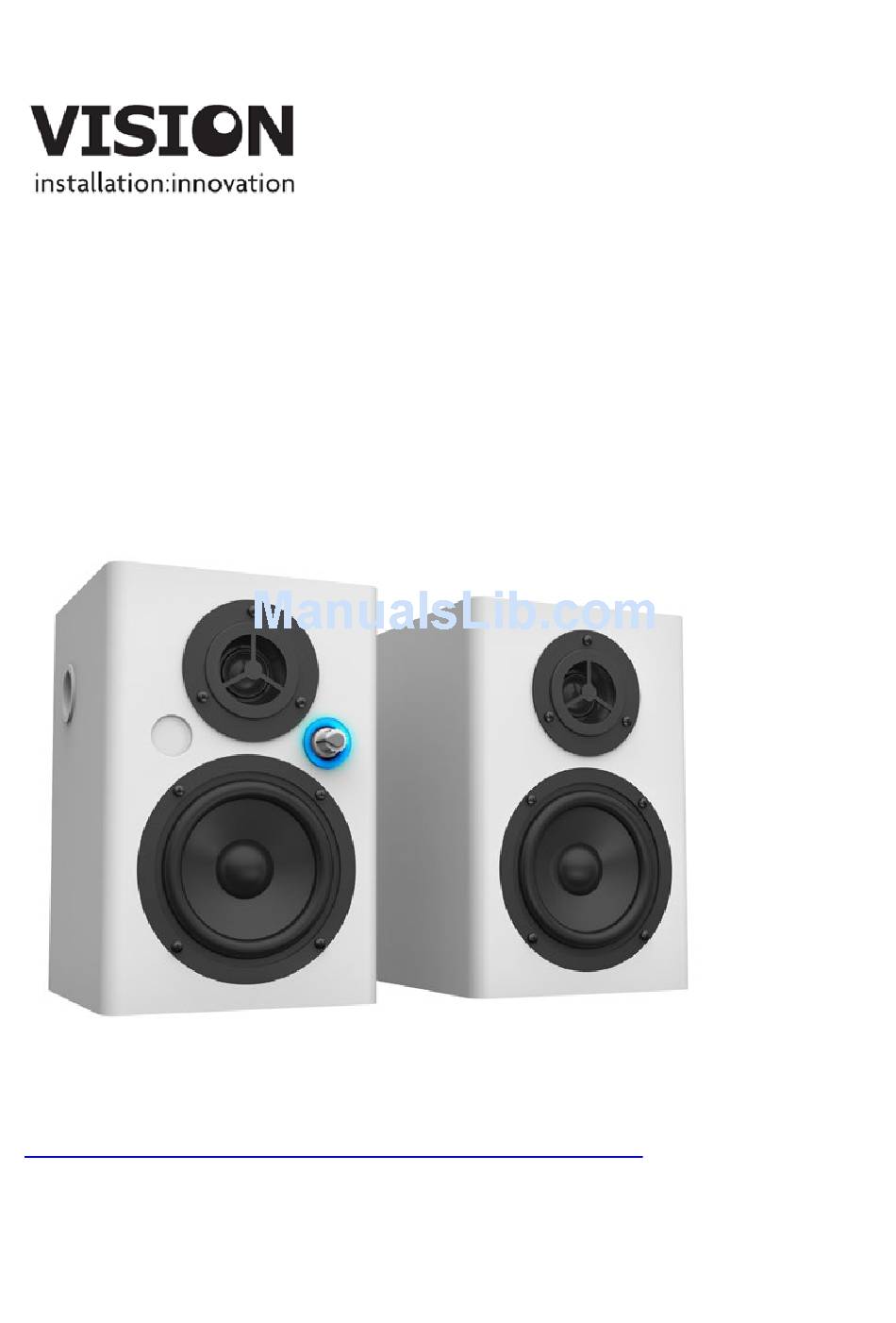

Page 1: Owners Manual

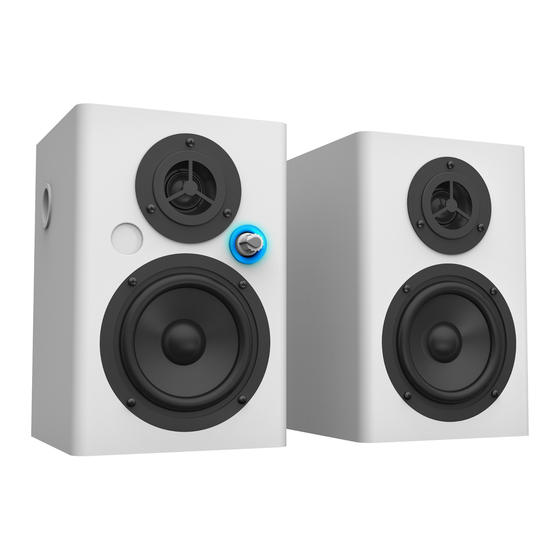

SP-1200P POWERED SPEAKERS OWNERS MANUAL www.visionaudiovisual.com/techaudio/sp-1200p SP-1200P_manual_en... -
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Front Panels
FRONT PANELS Active Loudspeaker Slave Loudspeaker Volume Dial Long push to turn on/off Short push to switch input IR receiver REMOTE CONTROL Power Input Select Volume Mute Tone Control NOTE: When power is turned on the last volume setting and input will resume. SP-1200P_manual_en... -
Page 5: Installation
INSTALLATION FIT BRACKETS TO WALL Position brackets over load-bearing studs and use appropriate screws to fix brackets. Ensure they are plumb. NOTE: Do not position the top of bracket closer than 90mm to ceiling. TERMINATE CABLES TO MOUNTS Slave loudspeaker bracket: Input from master loudspeaker Use unshielded speaker cable provided. -
Page 6: Operation
FIT LOUDSPEAKERS TO MOUNTS Fit loudspeakers to brackets from above. They click into place and cannot be removed. 90mm OPERATION TURN ON AND OFF Long press on volume dial CHANGE INPUT Short press on volume dial SP-1200P_manual_en... - Page 7 TO REMOVE LOUDSPEAKER Squeeze the two tabs together at top/rear of loudspeakers. Lift loudspeaker up and off. SP-1200P_manual_en...
-
Page 8: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction No power light Rotate volume control clock-wise. Check power source and power input cable. Check fuse in power cable plug. -
Page 9: Specifications
SPECIFICATIONS PRODUCT DIMENSIONS: 150 x 145 x 220 mm (length x width x height for each speaker) PRODUCT WEIGHT: 3.8 kg (per pair) CONSTRUCTION MATERIAL: MDF COLOUR: White TECHNICAL DETAILS: Amplifier Output: 2 x 15w watts (RMS) Woofer: 4″ Tweeter: 1.5″ Silk Input / Output Terminals: Phoenix connectors Output Impedance: 4 ohms Sensitivity: 85dB (1w/1m) -
Page 10: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
