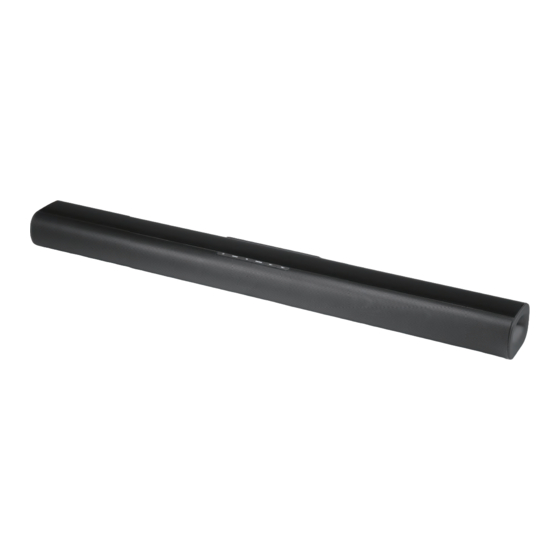

- Page 1 VISION SB-1900P Active Soundbar Model: SB-1900P USER MANUAL...
-
Page 2: Table Of Contents
Contents Important Safety Instructions .....................3 Safety .......................................3 Warning ....................................4 What’s in the Box ........................6 Specifications ........................6 Identifying the Parts ......................7 Main Unit ....................................7 Remote Control ...................................7 Preparations ..........................8 Prepare the Remote Control ............................8 Replace the Remote Control Battery ...........................8 Placement and Mounting .....................8 Placement ....................................8 Wall mounting ..................................9 Connections .........................10... -
Page 3: Important Safety Instructions
Important Safety Instructions plug has two blades with one wider than the CAUTION other. A grounding plug has two blades and RISK OF ELECTRIC SHOCK a third grounding prong. The wide blade or DO NOT OPEN the third prong is provided for your safety. If the provided plug does not fit into your CAUTION: TO REDUCE THE RISK OF ELECTRIC outlet, consult an electrician for replacement... -
Page 4: Warning
21 The use of apparatus in moderate climates. DO NOT INGEST BATTERY,CHEMICAL BURN HAZARD Caution: The remote control supplied with this Use of controls or adjustments or product contains a coin/button cell battery. performance of procedures other than those If the coin/button cell battery is swallowed, described herein, may result in hazardous it can cause severe internal burns in just 2 radiation exposure or other unsafe operation. - Page 5 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 6: What's In The Box
What’s in the Box Power Adapter AC Power Cord Main Unit Remote Control (for Main Unit) Screws x 4 3.5mm to 3.5mm Gum cover x 4 User Manual Audio Cable Wall Mount × 2 Specifications Soundbar Power Requirements .......................AC100-240V ~ 50/60Hz Adapter Power Output.............................DC 21V, 3A Power Consumption .............................. -
Page 7: Identifying The Parts
Identifying the Parts Main Unit button Turn ON or turn OFF the unit. 2 SOURCE button Select the play function. 3 EQ button Select equalizer (EQ) effect. /PAIR button Play/pause/resume playback in Bluetooth mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device. -
Page 8: Preparations
Preparations Prepare the Remote Control The provided Remote Control allows the unit to be operated from a distance. Even if the Remote Control is operated within the effective range 19.7 feet (6m), remote control • operation may be impossible if there are any obstacles between the unit and the remote control. If the Remote Control is operated near other products which generate infrared rays, or if other •... -
Page 9: Wall Mounting
Wall mounting Note: • Installation must be carried out by qualified • Use an electronic stud finder to check the personnel only. Incorrect assembly can wall type before drilling and mounting. result in severe personal injury and property 1. Drill 4 parallel holes (Ø 5.5-6 mm each damage (if you intend to install this product according to wall type) in the wall. -
Page 10: Connections
Connections Use the HDMI socket Using HDMI to connect the soundbar, AV equipment and TV: HDMI (ARC) HDMI OUT HDMI IN AV equipment Method 1: ARC (Audio Return Channel) The ARC (Audio Return Channel) function allows you to send audio from your ARC- compliant TV to your sound bar through a single HDMI connection. -
Page 11: Use The Aux Socket
Use the AUX Socket A. Use a 3.5mm to 3.5mm audio cable (included) to connect an external audio device headphone socket to the AUX socket on the unit. B. Use an RCA to 3.5mm audio cable (not included) to connect the TV’s AUDIO OUT socket to the AUX socket on the unit. -
Page 12: Mode Selection
Mode Selection Press the SOURCE button on the main unit or the AUX, HDMI 1, HDMI 2, HDMI ARC buttons on the remote control to select the desired mode. The indicator light on the front of the main unit will show which mode is currently in use.. •... -
Page 13: Listen To Music From Bluetooth Devices
/PAIR button on the unit. You will hear “Pairing“ from the unit and the Bluetooth Indicator will flash rapidly. 3 Select “SB-1900P” in the pairing list. After the “Paired” voice prompt, the system is successfully connected and and the Bluetooth Indicator will light up steadily. -
Page 14: Troubleshooting
Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. No power Ensure that the AC cord of the apparatus is properly connected . Ensure that there is power at the AC outlet.
