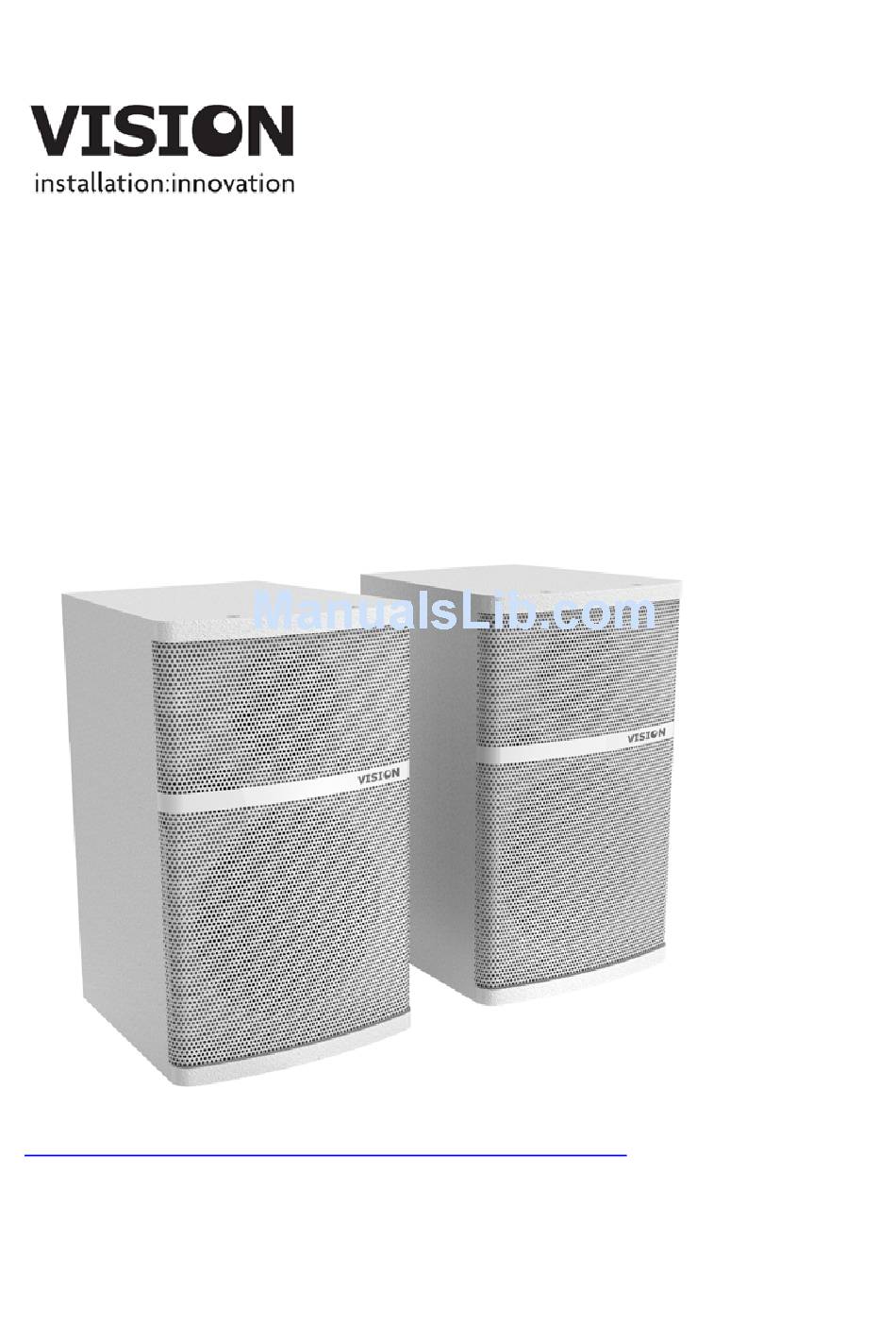

- Page 1 SP-1600 OWNERS MANUAL www.visionaudiovisual.com/techaudio/sp-1600 SP-1600_manual_en...
-
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
PLACE OF INSTALLATION Avoid installing this product under the following conditions: • Moist or humid places • Places exposed to direct sunlight or close to heating equipment • Extremely cold locations • Places subject to excessive vibration or dust • Poorly ventilated places Do not expose this product to dripping or splashing. -
Page 4: Installation
INSTALLATION FIT BRACKETS TO WALL Position brackets over load-bearing studs and use appropriate screws to fix brackets to wall. Ensure they are plumb NOTE: Do not position the top of bracket closer than 100mm to ceiling. TERMINATE CABLES TO MOUNTS Connect speaker cables from amplifier to speaker brackets. - Page 5 FIT LOUDSPEAKERS TO MOUNTS Fit loudspeakers to brackets from above. When in place they will click into place and cannot be removed. 100mm TO REMOVE LOUDSPEAKER Squeeze the two tabs together at top/rear of loudspeakers. Lift loudspeakers up and off. SP-1600_manual_en...
-
Page 6: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction Sound only coming out Turn off amplifier and switch output connections. If the side •... -
Page 7: Specifications
SPECIFICATIONS PRODUCT DIMENSIONS: 160 x 150 x 240 mm (length x width x height for each speaker) PRODUCT WEIGHT: 3.3 kg (per pair) CONSTRUCTION MATERIAL: 9mm MDF COLOUR: White POWER HANDLING: 50w watts (RMS) TECHNICAL DETAILS: Woofer: 4″ Tweeter: 1″ Silk Input / Output Terminals: Phoenix connectors Output Impedance: 8 ohms Sensitivity: 85dB (1w/1m) -
Page 8: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
