Summary of Contents for Vision SP-1100P
-

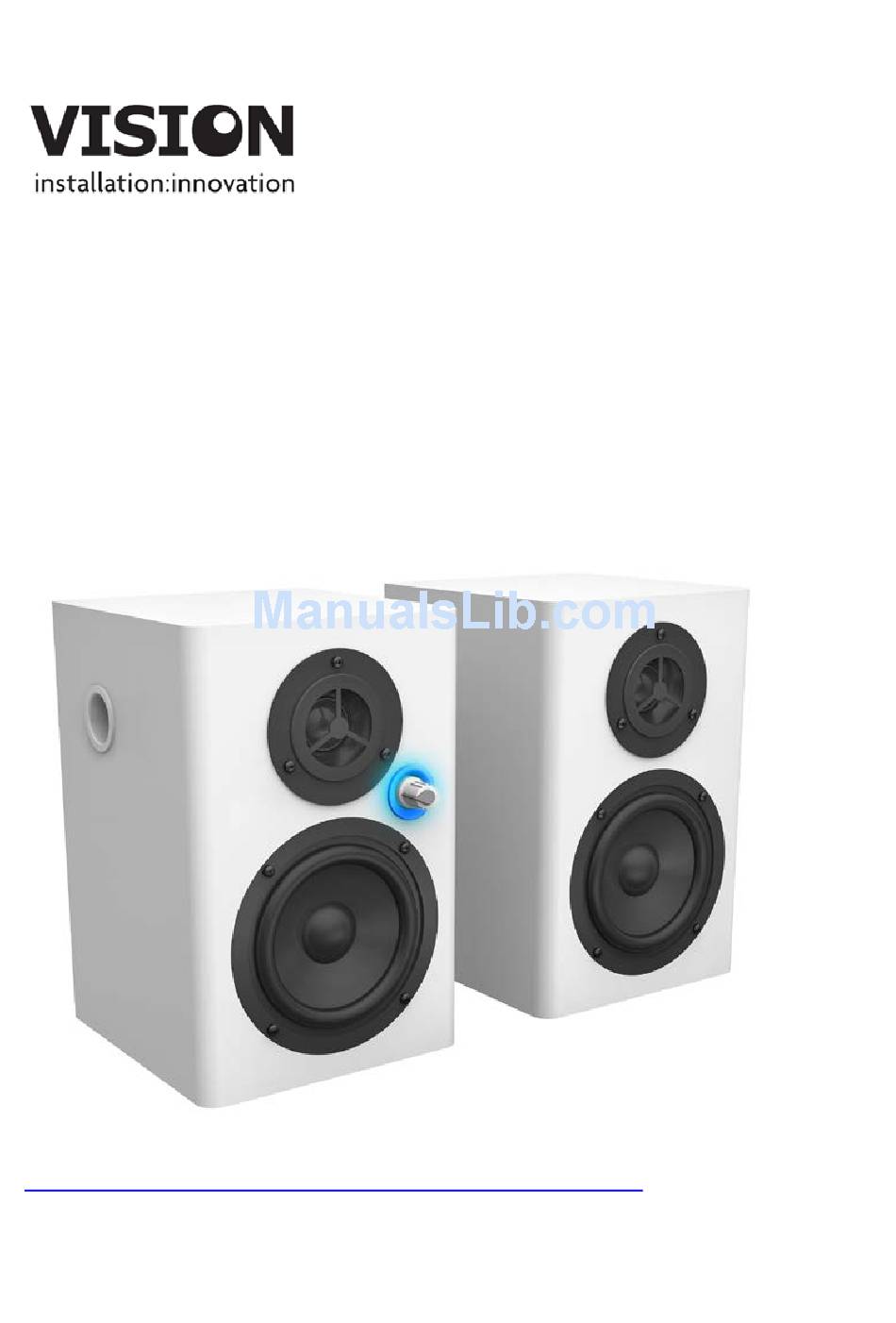

Page 1: Owners Manual
SP-1100P POWERED SPEAKERS OWNERS MANUAL www.visionaudiovisual.com/techaudio/sp-1100p SP-1100P_manual_en... -
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Front And Rear Panels
FRONT AND REAR PANELS Volume Dial Active Loudspeaker Rotate anti-clockwise to turn off Slave Loudspeaker Input connectors Loudspeaker Cable Figure-8 (C7) Power Socket SP-1100P_manual_en... -
Page 5: Installation
INSTALLATION FIT BRACKETS TO WALL Position brackets over load-bearing studs and use appropriate screws to fix brackets to wall. FIX LOUDSPEAKERS TO BRACKETS CONNECT LOUDSPEAKERS TOGETHER Use the included speaker cable as shown on previous page. If cable provided is not long enough use unshielded speaker cable with gauge of 0.75mm or higher. -
Page 6: Troubleshooting
Try disconnecting one input. The inputs summed inside the SP-1100P so are both live at the same time. Slave loudspeaker not Check speaker cable to ensure there a proper connection at working or quieter both ends. -
Page 7: Specifications
SPECIFICATIONS PRODUCT DIMENSIONS: 150 x 145 x 220 mm (length x width x height for each speaker) PRODUCT WEIGHT: 3.4 kg (per pair) CONSTRUCTION MATERIAL: MDF COLOUR: White TECHNICAL DETAILS: Amplifier Output: 2 x 10w watts (RMS) Woofer: 4″ Tweeter: 1.5″ Silk Input / Output Terminals: Phoenix connectors Output Impedance: 4 ohms Sensitivity: 85dB (1w/1m) -
Page 8: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
