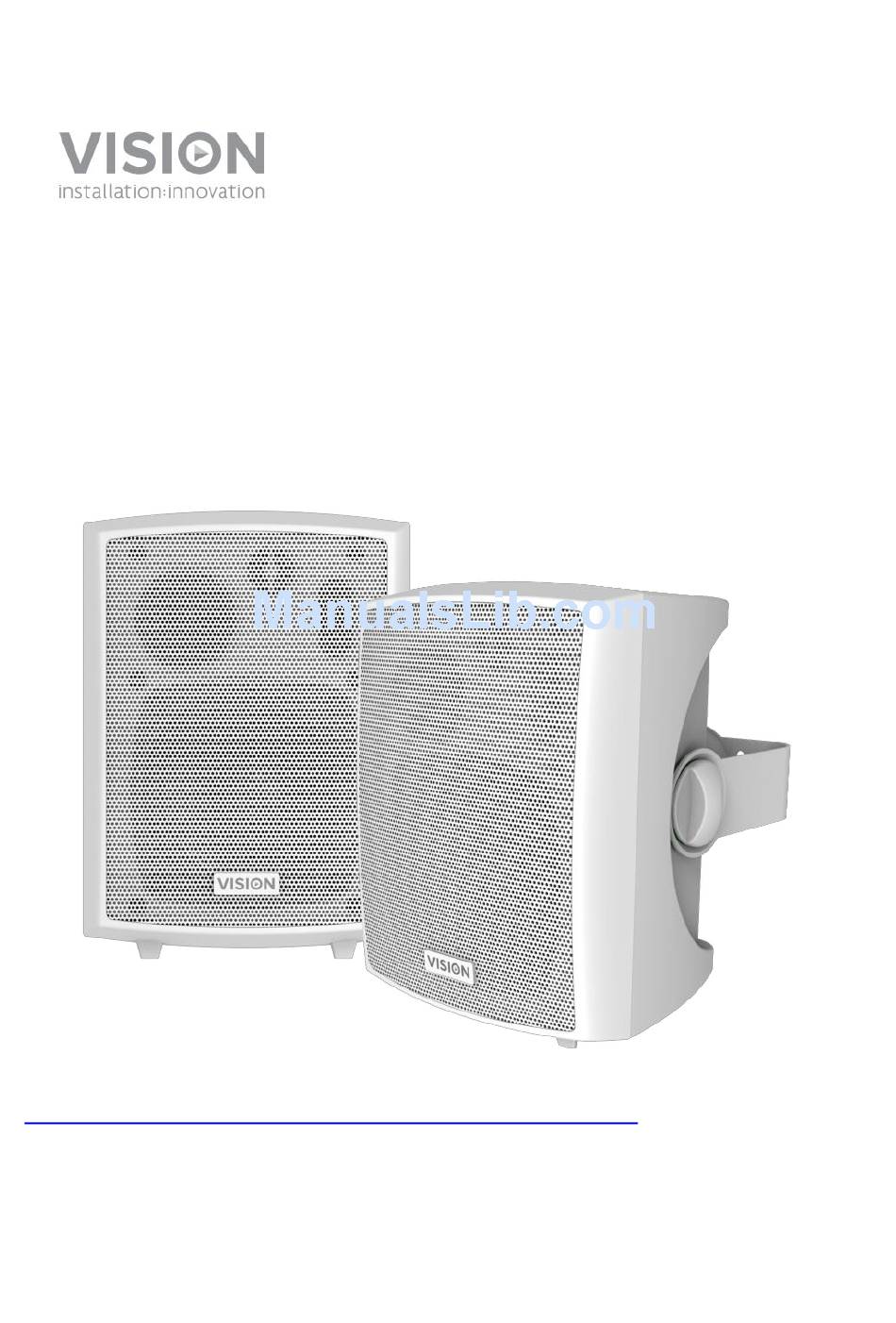

SP-800P POWERED SPEAKERS

OWNERS MANUAL

www.visionaudiovisual.com/techaudio/sp-800p/
1
SP-800P_manual_en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-800P and is the answer not in the manual?

Questions and answers

Related Manuals for Vision SP-800P

Summary of Contents for Vision SP-800P

  • Page 1: Owners Manual

    SP-800P POWERED SPEAKERS OWNERS MANUAL www.visionaudiovisual.com/techaudio/sp-800p/ SP-800P_manual_en...

  • Page 2: Declaration Of Conformity

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by „Vision‟ who is wholly owned by „Azlan Logistics Ltd.‟, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH.

  • Page 3: Place Of Installation

    WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair.
  • Page 4 CHASSIS Active Loudspeaker Slave Loudspeaker Loudspeaker Cable SP-800P_manual_en...

  • Page 5: Installation

    INSTALLATION FIT BRACKETS TO WALL Position brackets over load-bearing studs and use appropriate screws to fix to wall or ceiling. INSTALL POWER AND INPUT CABLE Run power and input cable from source positions to the master. Run speaker cable between brackets. INSTALL SPEAKER CABLE Run included speaker cable between speaker brackets.
  • Page 6 CONNECT LOUDSPEAKERS With mains power source off, connect cables to speakers. Volume Dial Rotate anti-clockwise to turn off Power Indicator (red) Minijack Input 2-Phono Input Power Socket (phoenix type) Speaker Output (phoenix type) to slave speaker SP-800P_manual_en...
  • Page 7 FIX LOUDSPEAKERS TO BRACKETS NOTE: Ensure adequate airflow around heatsink on master speaker. It should not be touching anything. ACTIVATE POWER Ensure volume dial is fully anti-clockwise to off position, then turn mains power on. NOTE: Inputs 1 and 2 are both „on‟ all of the time. There is no switching circuit. SP-800P_manual_en...

  • Page 8: Troubleshooting

    Try disconnecting one input. The inputs summed inside the SP-800P so are both live at the same time. Slave loudspeaker not Check speaker cable to ensure there a proper connection at working or quieter both ends.

  • Page 9: Specifications

    SPECIFICATIONS PRODUCT DIMENSIONS: 150 x 145 x 220 mm / 5.9″ x 5.71″ x 8.66″ (length x width x height for each speaker) PACKAGED DIMENSIONS: 370 x 170 x 220 mm / 14.6″ x 6.7″ x 8.7″ PRODUCT WEIGHT: 3.4 kg / 7.5 lb (per pair) PACKAGED WEIGHT: 3.5 kg /7.7 lb (per pair) CONSTRUCTION MATERIAL: MDF COLOUR: White...

  • Page 10: Warranty

    WARRANTY This product comes with a 3-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
