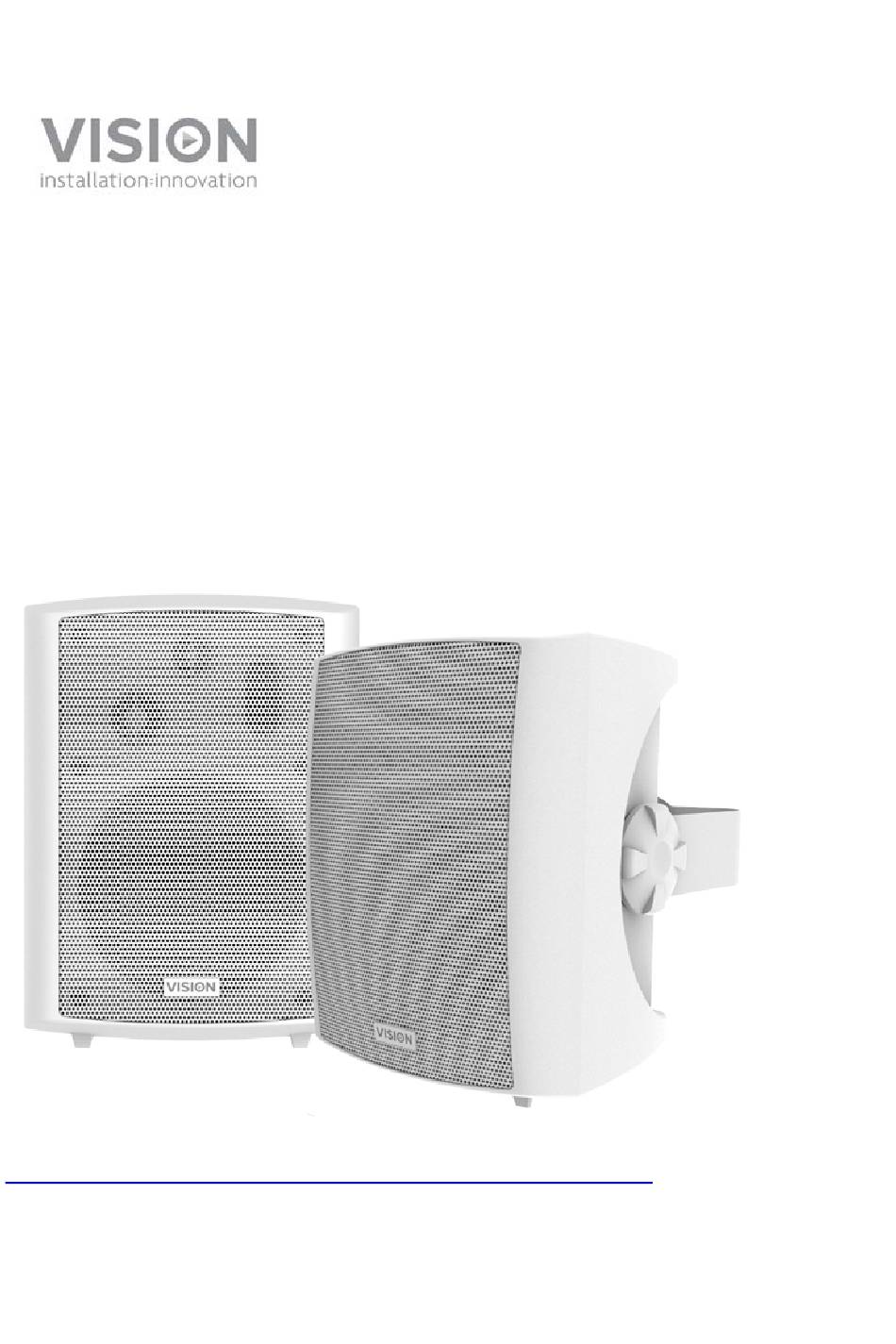

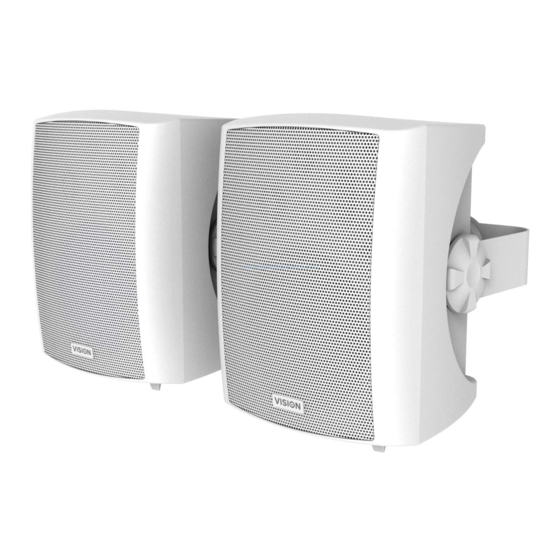

- Page 1 SP-1800PBT ACTIVE LOUDSPEAKERS OWNERS MANUAL www.visionaudiovisual.com/techaudio/sp-1800p SP-1800PBT_manual_en.doc...
-
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. - Page 4 CHASSIS Active Loudspeaker Slave Loudspeaker Loudspeaker Cable SP-1800PBT_manual_en.doc...
-
Page 5: Remote Control
REMOTE CONTROL POWER On / Off INPUT SELECT Bluetooth / Line-level (cabled) input RESET tone factory reset BLUETOOTH PRIORITY auto-switches when BT device paired AUTO STANDBY activate or deactivate MUTE TONE treble and bass VOLUME SP-1800PBT_manual_en.doc... -
Page 6: Installation
INSTALLATION FIT BRACKETS TO WALL Position brackets over load-bearing studs and use appropriate screws to fix brackets to wall or ceiling. Ensure they are level. NOTE: Do not position the top of bracket closer than 140mm to cornice. INSTALL POWER AND INPUT CABLE Run power and input cables from source positions to the master. - Page 7 CONNECT MASTER LOUDSPEAKER With power switch off, connect input and output cables. 9-Pin Female Serial input (male to male adaptor included) Minijack Input 2-Phono Input Bass dial Treble dial USB for changing Bluetooth name and pin Volume dial - push to change input Power Socket (phoenix type) Power Switch Speaker Output (phoenix type) to...
-
Page 8: Auto Standby
FIT MASTER LOUDSPEAKER TO BRACKET Fit as shown in point 4. ACTIVATE POWER Turn mains power on with switch on Master. NOTE: The Minijack and 2-Phono inputs are summed. BLUETOOTH AUTO-SWITCHING Use BT PRIORITY on remote control to enable auto-switching from line-level input to Bluetooth input when a Bluetooth device is paired. -
Page 9: Status Indicators
STATUS INDICATORS On the front panel is a row of status LEDs: BLUE LED – Bluetooth input Flashing slowly: Bluetooth is in pairing mode On: Device paired If devices unpaired it will turn off after 10 minutes. YELLOW – line-level input On: cable input selected RED LED –... - Page 10 RUN PSTool APPLICATION. Select USB\csr0 port as below NOTE: if port is not showing load drivers manually from C:\Program Files (x86)\CSR\BlueSuite 2.6.4\drivers TYPE “NAME” IN FILTER Adjust then select Set TYPE “FIX” IN FILTER The current PIN in this example is shown below: PIN: 0 Adjust PIN (last digit of each group), then press Set and Reset BC.
- Page 11 RS-232 CODES Table 1: Command Codes HEX Codes HEX Codes (16 Bytes) Function (16 Bytes) Function 98 11 11 98 AB AB Volume Step 11 98 15 15 98 AC AC Volume Step 12 98 05 05 MUTE 98 AD AD Volume Step 13 98 01 01 BLUETOOTH...
- Page 12 Table 2: Return Codes HEX Codes Return Name Function codes Remarks 98 D0 D0 Speaker working STANDBY Status ON/Working = 1 OFF/Standby = 0 98 D1 D1 MUTE Mute On/Off Mute Off = 0 Muted = 1 98 D2 D2 PT2314E_ SELECT Input Select...
-
Page 13: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction No power light Press volume control. Check power source and power input cable. Check fuse Power light on but no Press volume buttons on master loudspeaker to turn up. -
Page 14: Specifications
SPECIFICATIONS PRODUCT DIMENSIONS: 244 x 180 x 174 mm /9.61" x 7.1" x 6.85" (tall x wide x deep for each speaker) PRODUCT WEIGHT: 4.78 kg /10.54 lbs (per pair) CONSTRUCTION MATERIAL: ABS COLOUR: White TECHNICAL DETAILS: Amplifier Output: 2 x 30 watts (RMS) Woofer: 5.25″... - Page 15 COMPLIANCE: RoHS, CE/EMC, CE/ EMC-TR, FCC, FCC-V, IEC-TR, RCM, RCM/EMC, RCM/TVC, RCM-D Frequency Response Graph: (dBSPL vs Frequency) SP-1800PBT_manual_en.doc...
- Page 16 Some Vision products are very technical and require troubleshooting all elements of the installation as it may not be the Vision product at fault. Because of this the manufacturer may refuse to replace the item if an adequate description is not provided.
