Process Data Control COMPASS-EI User Manual page 58

shows any Permit Numbers for which emissions are found for the selected year, and
the next shows any Process Units indicated by the user. The term Process Unit refers
to the "Plant or Process ID" data filed in the emission inventory report.
In the upper right portion of the screen, equipment (i.e., Source-Point) relationships
appear. Any selection by the user from either the Permits or Process Units lists will
"filter" the equipment relationships that appear in this window. If the user clicks on any
of the equipment relationships in the list, the Emissions Report will show emissions only
from the selected sources and points. If no equipment relationships are highlighted by the
user, the emissions for all sources and points will be displayed in the report. Equipment
relationships can be sorted alphabetically by Source or by Point by clicking on the
column headings, as noted on the screen message above the window.
In the lower portion of the screen, additional "filters" can be selected by the user,
including both criteria pollutant Categories (e.g., TSP, VOC, etc.) and specific
Contaminants. A combination of categories and contaminants can be included in the filter
criteria for the same report.
There are checkboxes located in the middle of the screen to further refine the report
output. When checked by the user, the Report Permitted Emissions Only checkbox
function will suppress all emissions that do not reference a permit allowable emission
rate. When checked by the user, the Report Emissions > 0 Only checkbox function will
suppress all emissions for which the emission rate is 0 tons/year.
COMPASS-EI–Manual – Chapter 7

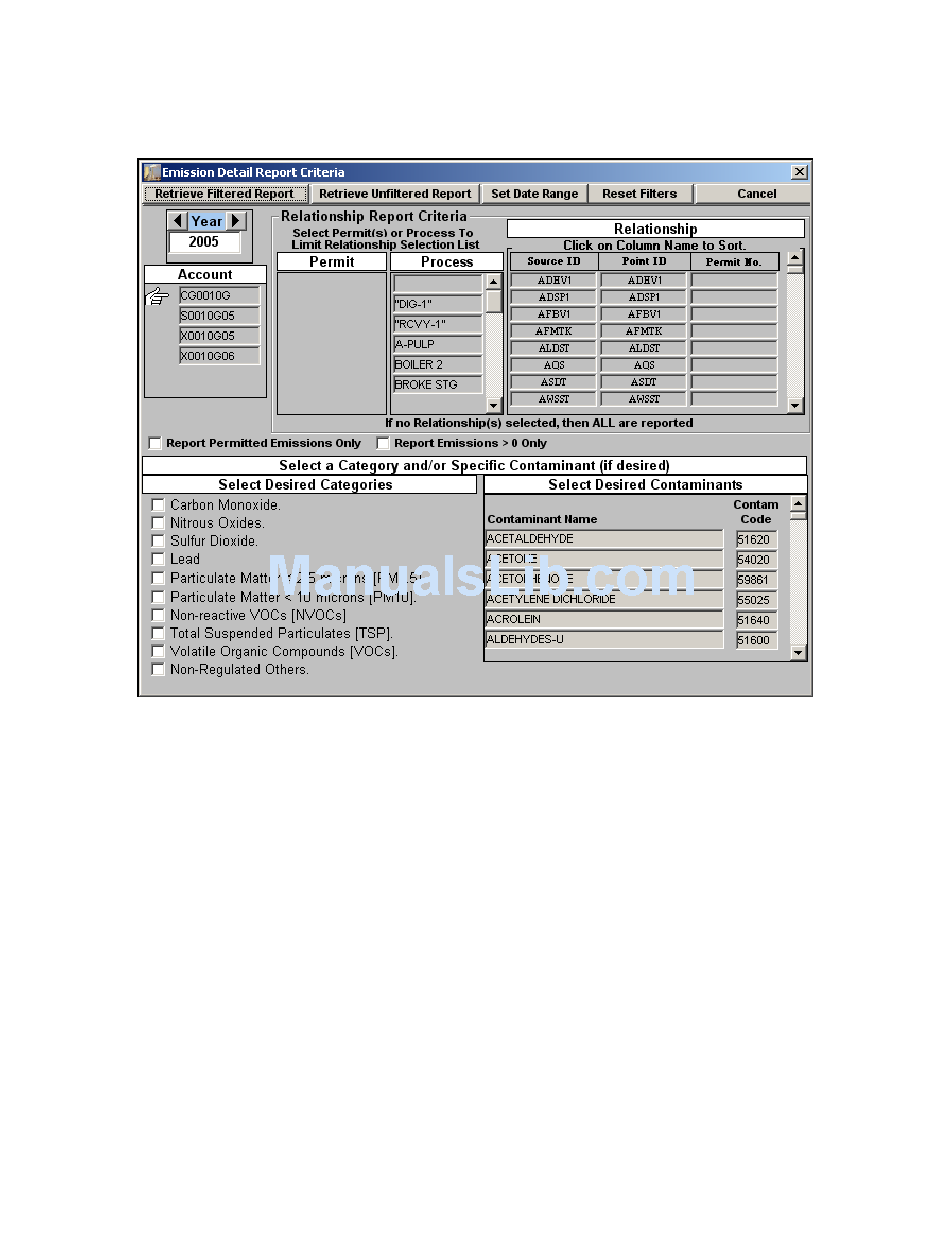

Figure 7.2
Page 55
