Summary of Contents for Marmitek X-10

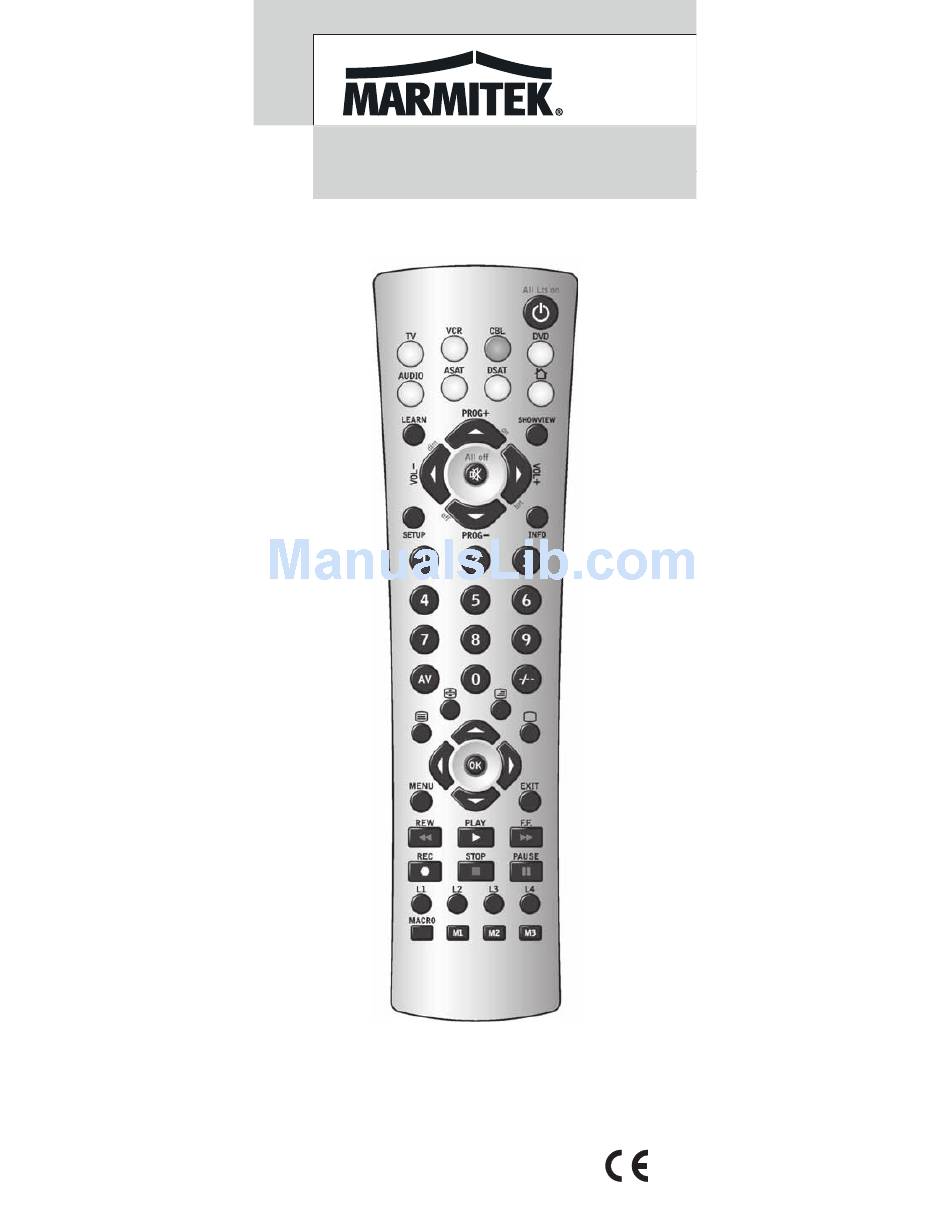

- Page 1 Marmitek X-10 ABX1 Gebruiksaanwijzing User Guide...

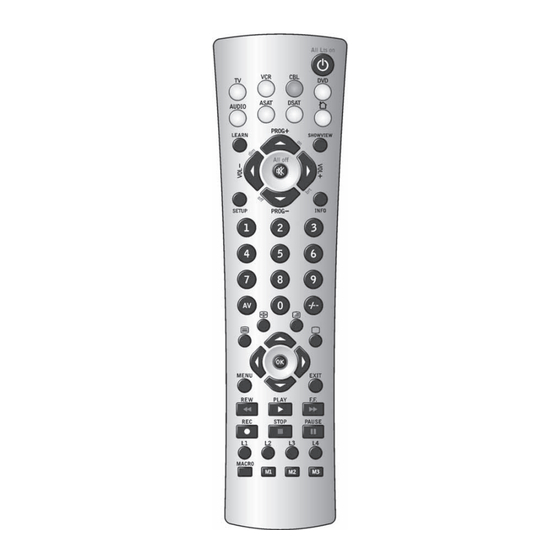

- Page 2 ABX1 Learning RF Universal Remote 8in1 Button layout 17 - 22...
-
Page 3: Table Of Contents
Please take care to set up the device correctly - consult your user guide. Children should use the device only under adult supervision. Important: the Marmitek X-10 remote control must be used according the instructions in this manual and is not suitable for other purposes. - Page 4 English Quick start guide 1) Put the batteries in 1. Open the cover on the back of the 8 in 1 Universal Remote Control 2. Insert 2 batteries (AAA alkaline). Make sure the batteries are NEW. 2) Program your 8 in 1 Universal Remote Control 1.
-
Page 5: Introduction
2. Insert the batteries (always use new AAA alkaline batteries). 1. Open the cover on the back of the Marmitek X-10 Remote. 2. Insert 2 AAA alkaline batteries, verify that they are placed correctly with the + on the battery in the same position as marked inside the battery compartment. -
Page 6: Function Of The Remote's Buttons
The indicator light flashes when the remote is operating or lights continuously while you are programming the remote. [3] TV, VCR, CBL, DVD, AUDIO, DVR, SAT, Marmitek X-10 These keys allow you to select the appliance you wish to control. - Page 7 [17] REW (rewind) In VCR, DVD or CD mode: This button works the same way as in your original remote. IN TV mode: Coloured key (Red), control of videotext or special equipment functions. [18] FF (fast forward) In VCR, DVD or CD mode: This button works the same way as in your original remote.
-
Page 8: Programming
The Marmitek X-10 remote control allows you to control all lights and electric appliances you have in your house. Here are some examples that you can do with your Marmitek X-10 remote using Marmitek X-10 modules: • Switch on/off, dim lights while you watch TV. -
Page 9: Manual Code Entry
To set the RFIX35 in the RF-secured mode please refer to the RFIX35 manual. To be able to use the RF-secured mode, the Marmitek X-10 remote control will have to be set in the RF-secured mode. To set the Marmitek X-10 remote control into the RF-secured mode please follow the next steps. -
Page 10: Automatic Code Search For Some Well-Known Brands
The LED (2) blinks once. 4. Enter the code corresponding to your brand, point the Marmitek X-10 Remote in the direction of your equipment, press CHAN+ (5) once only. Continue to point the Marmitek X-10 Remote at your equipment until the equipment changes Channel (the remote control sends an IR signal every second. -
Page 11: Manual Code Search
030, the search starts at 031 until the last possible code and then goes from 000 to 029. 4.6 Learning codes Your Marmitek X-10 Remote contains the codes for most TVs, videos etc. in its code library. If a certain device is not in this library, you can learn the codes for your existing remote control. - Page 12 The LED will flash once. 4. Press the LEARN (24) button. The LED will flash once. 5. Press the button on the Marmitek X-10 remote you want to store the new command under. The LED will blink once.
-
Page 13: Identifying Codes Found
long as you would when using the original remote control. 7. Repeat steps 5 and 6 for every button you want to learn. 8. When you have finished learning the buttons, press SETUP (8) Erasing the commands learned per mode to clear memory space You can erase the commands learned and saved for each separate function (TV, VCR, etc.):... -
Page 14: Default Volume Control For Satellite
• The macro buttons can execute both infrared (IR) and radio frequency (RF) commands. This means you can activate audio and video equipment and control the lights at the same time (using a Marmitek X-10 RFIX35 RF-... -
Page 15: Troubleshooting
• If the LED is lit permanently, in general it will be ecessary to replace the batteries. • Set the remote back to factory default. How to set the Marmitek X-10 Remote back to factory default (Master reset) • Press and hold SETUP (8) until the LED indicator (2) lights steadily. - Page 16 Copyrights Marmitek is a trademark of Pattitude B.V., ABX1™ is a trademark of Marmitek B.V. All rights reserved. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited.
