NOTE: PLEASE INSPECT HOOD
IMMEDIATELY UPON RECEIVING.
CLAIM OF DAMAGE AFTER 7
DAYS OF DELIVERY WILL BE
DENIED.
This unit is designed for indoor
residential use only. DO NOT USE
OVER A WOOD GRILL OR MOUNT
IN OUTDOOR ENVIRONMENT.
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.

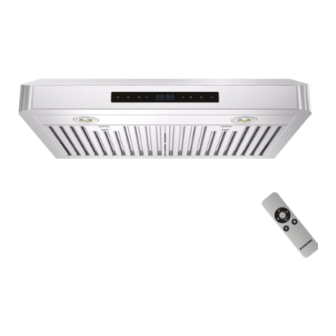

WS-2330SS
WS-2336SS
www.windsterhood.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Windster WS-2330SS
Summary of Contents for Windster WS-2330SS
- Page 1 User’s Manual WS-2330SS WS-2336SS NOTE: PLEASE INSPECT HOOD IMMEDIATELY UPON RECEIVING. CLAIM OF DAMAGE AFTER 7 DAYS OF DELIVERY WILL BE DENIED. This unit is designed for indoor residential use only. DO NOT USE OVER A WOOD GRILL OR MOUNT IN OUTDOOR ENVIRONMENT.
- Page 2 Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession als and in accordance with all applicable codes and standards, including fire-rated construction. •...
- Page 3 Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn OFF the burner.
-
Page 4: Table Of Contents
Table of Contents Tools Needed ................4 Parts Supplied ................5 Venting Requirements ............... 6 Calculating Vent System Length ..........7 Venting Methods ................ 8 Ductless Conversion/Electrical Req uirements ...... 9 Preparation ................10 Range Hood Operations ............12 Troubleshooting ..............13 Use and Care Information/Specifications ...... -
Page 5: Tools Needed
Tools Needed Page4... -
Page 6: Parts Supplied
Parts Supplied: Round Exhaust /VentAdapter Rectangular Exhaust/Vent Adapter (For vertical venting) (For vertical or horizontal venting) Qty:12PCS Qty:6PCS Qty:12PCS (For sheet rock only) Page 5... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance 一 • Vent system must terminate to the outside 星 (roof or side wall). • DO NOT terminate the vent system in an at tic or other enclosed area. • DO NOT use 4" (10.2 cm) laundry-type wall caps. -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6" round (standard for this range hood) or 3-1/4 x 10" rectangular duct(purchased separate ly) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods
IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. • Use metal/aluminum duct work only. • Fasten all collllections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape. •... -
Page 10: Ductless Conversion/Electrical Req Uirements
Ductless Conversion • Ductless conversion is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a purifying hood rather than an exhaust hood. Fumes and exhaust from cooking is drawn and filtered by a set of charcoal filters. The air is then purified and re-circulated back within the home. -
Page 11: Preparation
Preparation t \ WARNING Advanced Preparations: Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 13-14. Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet and turn on the Require three or more person to move and range hood. -
Page 12: Installation
Installation Installations (refer to Page 4 for parts): Measure the distance between stove top and the bottom of range hood. A distance of27" to 30" is recommended*. * Due to different ceiling height configurations, recommend ed height may not be applicable 1. -
Page 15: Use And Care Information/Specifications
Stainless Steel or Seamless Steel 120V/60Hz(USA & Canada standard) 256W 250W 4 Levels 503CFM Dual Motors Electronic Touch Control Panel... -
Page 18: Warranty/Contact Us
United States. For products purchased in Canada, please contact your local retailer where you purchased the unit for service. Windster Hoods, Inc. will not be held liable for removal and/or installation fees of the malfunctioning, defective, and/or replacement unit. - Page 19 WARRANTY / CONTACT US *Windster Hoods, Inc. reserves the right to determine the validity of your warranty claim. WHAT IS NOT COVERED BY MANUFACTURER WARRANTY Damages resulting from any of the following: Improper installation or maintenance Any repair, modification, alteration or adjustment not authorized by the...
- Page 20 WARRANTY / CONTACT US CONTACT US Windster Hoods, Inc. www.windsterhood.com Information subject to change without notice...
