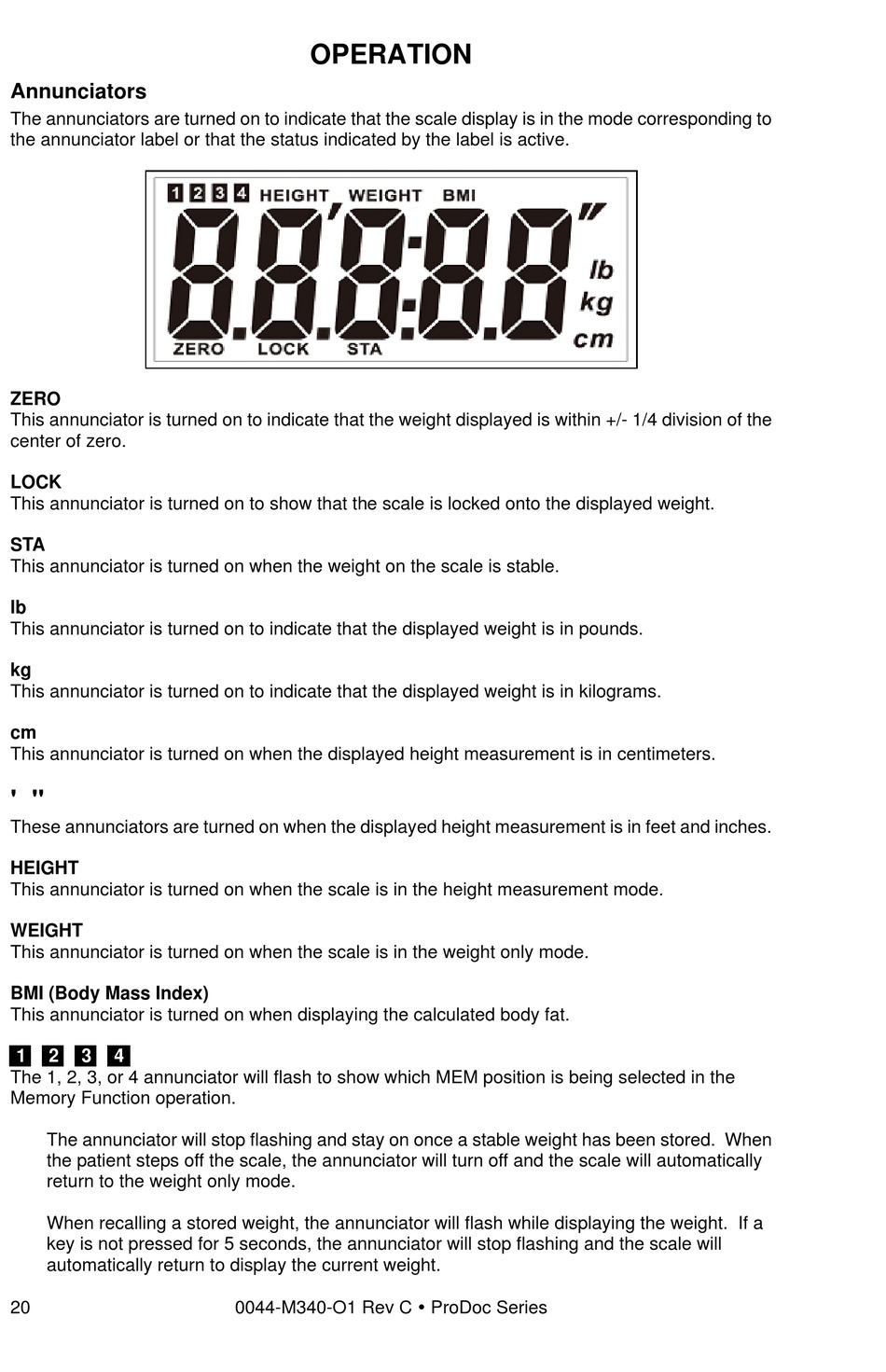

Annunciators

The annunciators are turned on to indicate that the scale display is in the mode corresponding to
the annunciator label or that the status indicated by the label is active.
ZERO
This annunciator is turned on to indicate that the weight displayed is within +/- 1/4 division of the
center of zero.
LOCK
This annunciator is turned on to show that the scale is locked onto the displayed weight.
STA
This annunciator is turned on when the weight on the scale is stable.
lb
This annunciator is turned on to indicate that the displayed weight is in pounds.
kg
This annunciator is turned on to indicate that the displayed weight is in kilograms.
cm
This annunciator is turned on when the displayed height measurement is in centimeters.
' "
These annunciators are turned on when the displayed height measurement is in feet and inches.
HEIGHT
This annunciator is turned on when the scale is in the height measurement mode.
WEIGHT
This annunciator is turned on when the scale is in the weight only mode.
BMI (Body Mass Index)
This annunciator is turned on when displaying the calculated body fat.
1 2 3 4
The 1, 2, 3, or 4 annunciator will flash to show which MEM position is being selected in the
Memory Function operation.
The annunciator will stop flashing and stay on once a stable weight has been stored. When
the patient steps off the scale, the annunciator will turn off and the scale will automatically
return to the weight only mode.
When recalling a stored weight, the annunciator will flash while displaying the weight. If a
key is not pressed for 5 seconds, the annunciator will stop flashing and the scale will
automatically return to display the current weight.
