Assembly
Installing the Column and Display, Cont.
2. Place the scale on a desk or table
3. Connect the socket end of the connection cable to the
preset cable in the scale base.
4. Align the long slot in the column with the slot in the column holder and then insert the column
into the hole on the column holder.
NOTE! Make sure the preset cable passes through the slots in both the column (the long slot)
and the column holder.

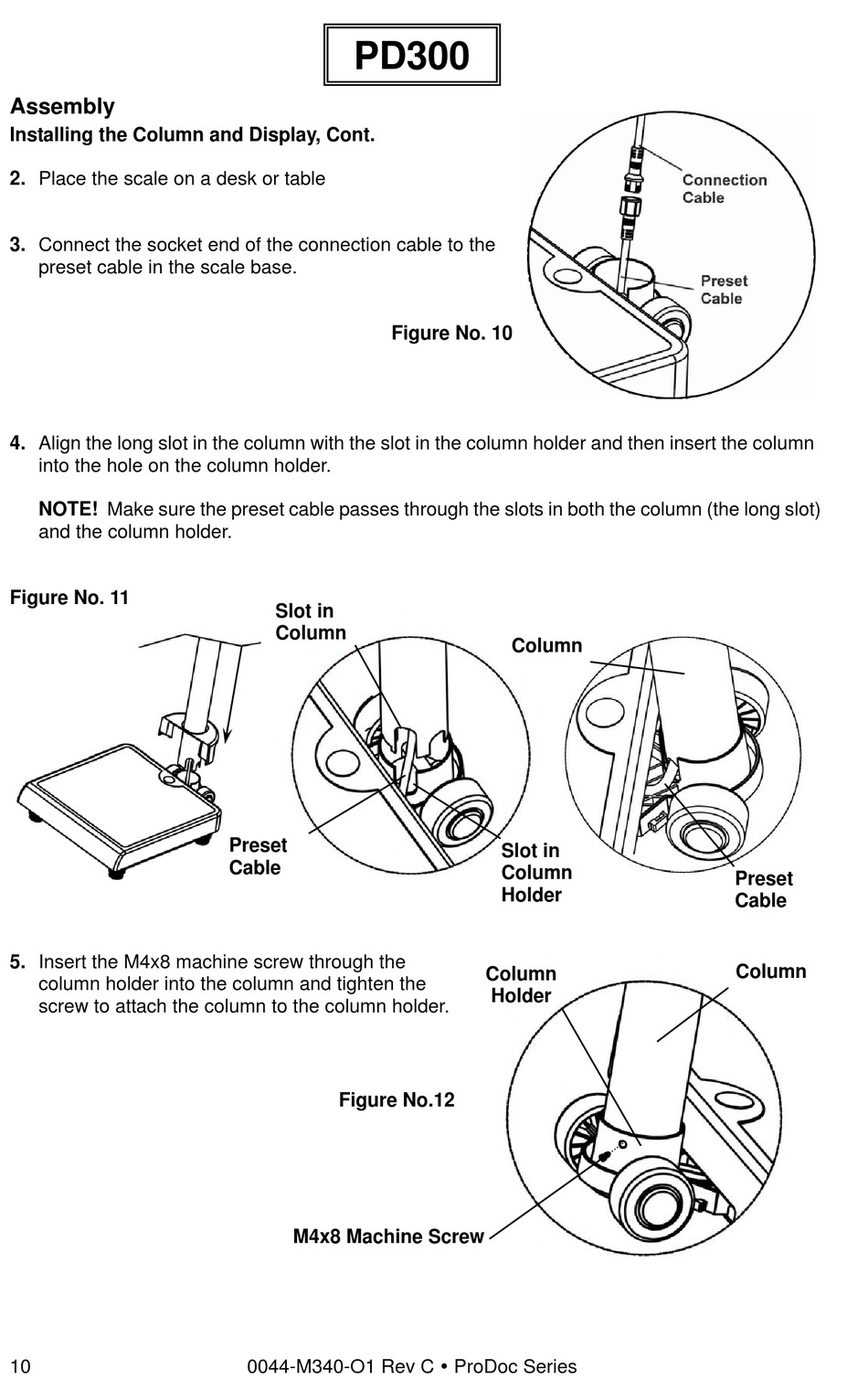

Figure No. 11
5. Insert the M4x8 machine screw through the
column holder into the column and tighten the
screw to attach the column to the column holder.
