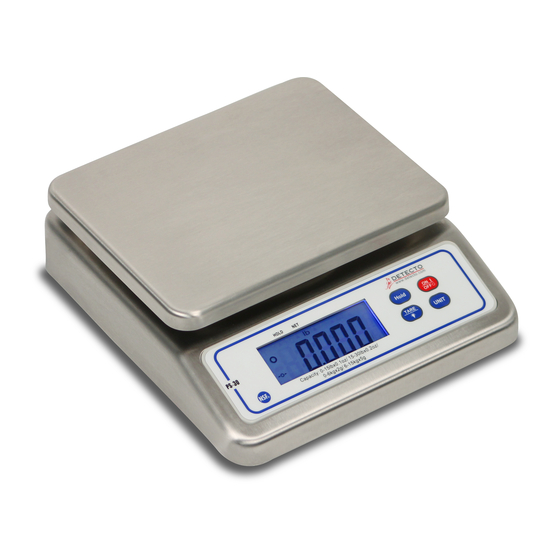

- Page 1 MODEL PS30 DIGITAL PORTION SCALE OWNER’S MANUAL CARDINAL SCALE MFG. CO. 8528-0408-0M Rev A 203 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 Fax: 417-673-2153 05/14 www.detectoscale.com Technical Support: Ph: 866-254-8261 tech@cardet.com...
-
Page 3: Table Of Contents
INTRODUCTION TABLE OF CONTENTS Thank you for purchasing our Detecto Model PS30 Installation …………………..………………. 1 Digital Portion Scale. This manual will guide you Display Annunciators ………..…..…………. 2 through installation, and operation of your scale. Key Functions ………………..…..…………. 3 Please read it thoroughly before attempting to Operation …..………….…………………..…... - Page 4 This page intentionally left blank. 8528-0408-0M PS30 Owner’s...
-
Page 5: Installation
2. 7. Turn scale over (display facing up) and press ON/OFF key. 8. If display turns on, batteries have been installed correctly. If not, remove battery cover and check for one or more improperly positioned batteries. 8528-0408-0M PS30 Owner’s... -
Page 6: Display Annunciators
If the battery voltage drops too low for accurate weighing, the scale will automatically shut off and you will be unable to turn it back on. When the low battery indicator is displayed, the operator should replace the batteries or remove the batteries and plug-in the 9-15VDC adapter. 8528-0408-0M PS30 Owner’s... -
Page 7: Key Functions
(tare) until the full capacity is reached. The membrane keyboard is not to be operated with pointed objects (pencils, pens, fingernails, etc). Damage to keyboard resulting from this practice will NOT be covered under warranty. 8528-0408-0M PS30 Owner’s... -
Page 8: Configuration
Enable (display will change to On ) or Disable (display will change to OFF ). 4. Press the TARE key and then the UNIT key 3 times. The display will change to Unit . 5. Proceed to AOFF (AUTOMATIC SHUTOFF). 8528-0408-0M PS30 Owner’s... - Page 9 1)005 kg,1%005 kg, 3)01 kg, 6)1 kg, 12)1 kg,15)1 kg, 18)1 kg. 4. When the desired capacity is displayed, press the TARE key. The display will change to show CAP . 5. Proceed to bUrr (BUZZER). 8528-0408-0M PS30 Owner’s...
- Page 10 1. With the display showing HRANG, press the UNIT key. The display will change to show end . 2. Press TARE key to save the settings. 3. The scale will reset and return to the normal operating mode. 4. Configuration is complete. 8528-0408-0M PS30 Owner’s...
-
Page 11: Display Messages
CARE AND MAINTENANCE The heart of the PS30 Digital Portion Scale is a precision load cell located in the center of the scale base. It will provide accurate operation indefinitely if protected against overload of scale capacity, dropping items on scale, or other extreme shock. - Page 12 8528-0408-0M PS30 Owner’s...
