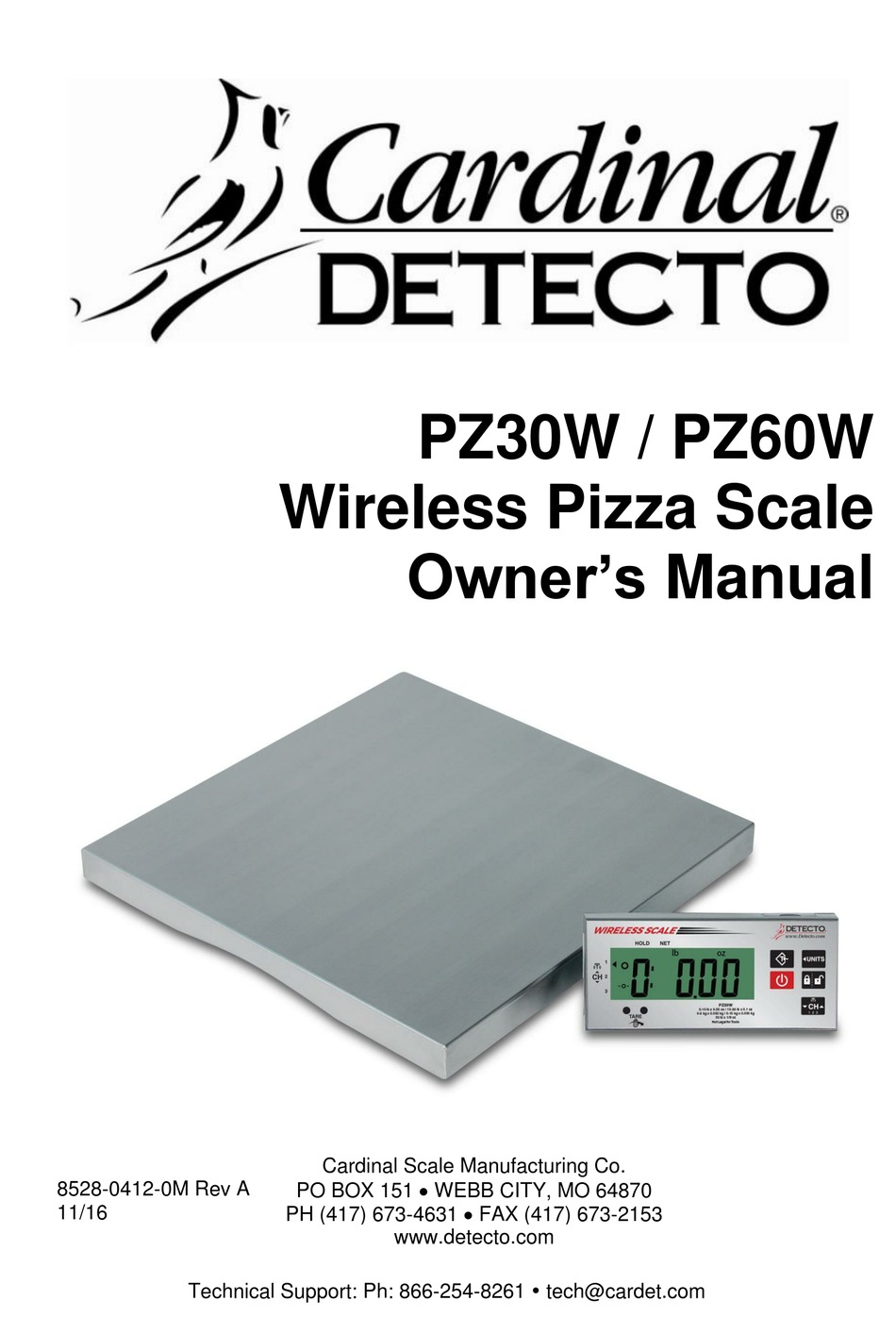

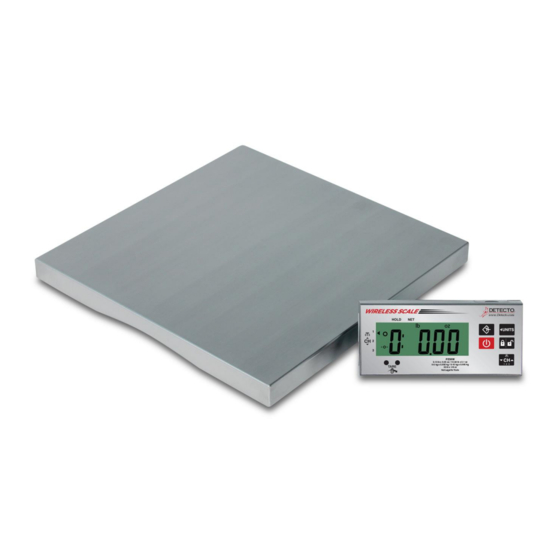

PZ30W / PZ60W
Wireless Pizza Scale
Owner's Manual
Cardinal Scale Manufacturing Co.
PO BOX 151  WEBB CITY, MO 64870
8528-0412-0M Rev A
PH (417) 673-4631  FAX (417) 673-2153
11/16
www.detecto.com
Technical Support: Ph: 866-254-8261  tech@cardet.com
8528-00412-0M Rev A  PZ30W / PZ60W Owner's
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PZ30W and is the answer not in the manual?

Questions and answers

Related Manuals for Cardinal PZ30W

Summary of Contents for Cardinal PZ30W

  • Page 1 Owner’s Manual Cardinal Scale Manufacturing Co. PO BOX 151  WEBB CITY, MO 64870 8528-0412-0M Rev A PH (417) 673-4631  FAX (417) 673-2153 11/16 www.detecto.com Technical Support: Ph: 866-254-8261  tech@cardet.com 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...
  • Page 2 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 3: Table Of Contents

    Before using this scale, read this manual Date of Purchase __________________ and pay special attention to all Purchased From ___________________ "NOTIFICATION" symbols: __________________________________ __________________________________ __________________________________ IMPORTANT ELECTRICAL WARNING RETAIN THIS INFORMATION FOR FUTURE USE 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...
  • Page 4 For this reason the Seller is not able to guarantee the result of any procedure contained herein. Nor can they assume responsibility for any damage to property or injury to persons occasioned from the procedures. Persons engaging the procedures do so entirely at their own risk. 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing our Detecto PZ30W / PZ60W Wireless Pizza Scale. Your scale has been designed for simple, straightforward use and to assure dependable accuracy for years to come. Please read this manual thoroughly before using your scale and keep it handy for future reference.

  • Page 6: Display

    Indicates the weighing unit. Activated with the TARE function. Indicates the displayed weight is the net weight on the scale. / o on base On (-) /Off (o) switch for scale base. 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 7: Preparing Scale For Weighing

    For example: if the scale’s channel is set to Channel-1, please select Channel-1 for the wireless display also. Power Switch 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 8: Changing The Wireless Display's Channel

    Channel numbers (1, 2 and 3) are shown on the left hand side of the display. When a channel is selected, a triangle icon points to the selected channel. For example: If Channel- 1 is selected, the triangle icon points to ‘1’. Channel 1 Channel 2 Channel 3 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 9: Selecting The Scale Base's Channel

    After selecting the channel, turn on the scale base first, then the wireless display. The dip switch is on the bottom of the scale base under the rubber stopper. Channel 1 Channel 2 Channel 3 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 10: Display Mounting

    1. Drill two (2) holes in the wall 32mm apart for the mounting wall anchors. 2. Insert the wall anchors in the wall until they are flush with the wall. 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...
  • Page 11 3. Place the display against the wall and insert the two (2) screws through the holes in the display bracket and into the wall anchors. 4. Tighten the screws to secure the display bracket to the wall. 5. Flip the display down as shown to use. 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 12: Ac Power Adapter

    The scale base uses (6) AA batteries and the wireless display uses (4) AA batteries (batteries not included), or both units use a 15V AC adapter (2 adapters included). 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 13: Operation

     Press the ‘HOLD’ button again to revert to the normal operating mode.  You can also press the ‘TARE’ button or use the Touch Free Tare sensor to revert to normal operating mode. 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 14: Function Settings

    Note that a higher setting makes it easier for the scale to lock on to the weight but is less accurate. (Touch Free Tare Sensor): on, off To confirm the settings and end the procedure 8528-00412-0M Rev A  PZ30W / PZ60W Owner’s...

  • Page 15: Error Messages

    CARE AND CLEANING The heart of the Detecto PZ30W / PZ60W Wireless Pizza Scale is four precision load cells located in each corner of the scale base. They will provide accurate operation indefinitely if protected against overload of scale capacity, dropping items on scale, or other extreme shock.
