Cardinal PS-11 Owner's Manual

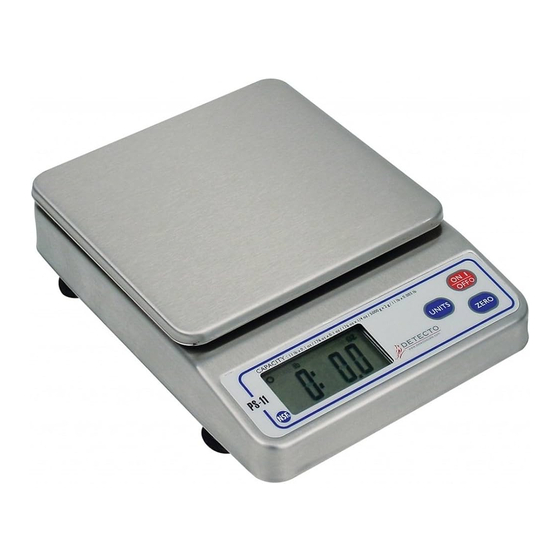

Digital portion scale
Hide thumbs Also See for PS-11:
Table of Contents

Advertisement

Quick Links

Download this manual

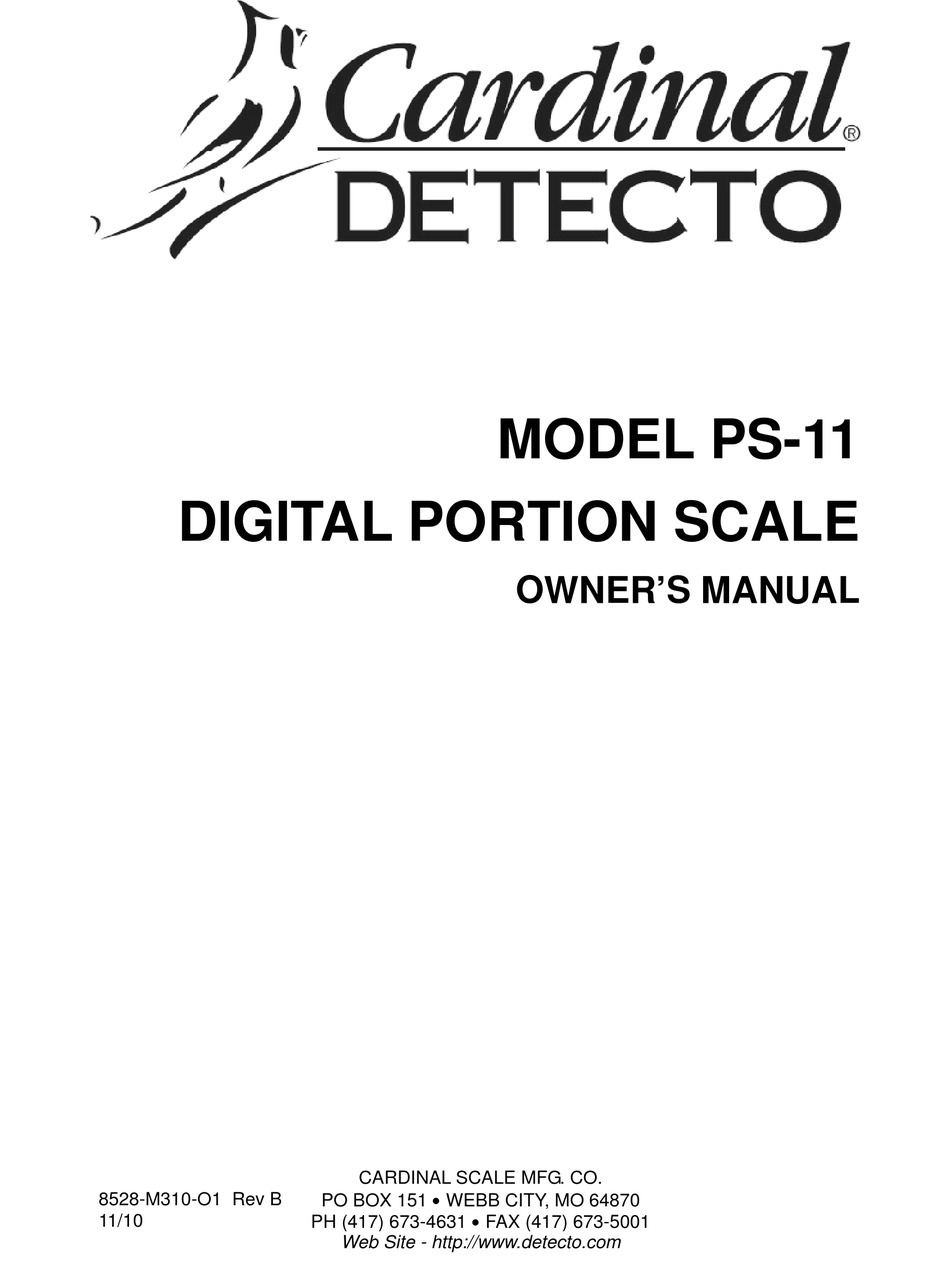

MODEL PS-11
DIGITAL PORTION SCALE
OWNER'S MANUAL
CARDINAL SCALE MFG. CO.
PO BOX 151  WEBB CITY, MO 64870
8528-M310-O1 Rev B
PH (417) 673-4631  FAX (417) 673-5001
11/10
Web Site - http://www.detecto.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-11 and is the answer not in the manual?

Questions and answers

Related Manuals for Cardinal PS-11

Summary of Contents for Cardinal PS-11

  • Page 1 MODEL PS-11 DIGITAL PORTION SCALE OWNER’S MANUAL CARDINAL SCALE MFG. CO. PO BOX 151  WEBB CITY, MO 64870 8528-M310-O1 Rev B PH (417) 673-4631  FAX (417) 673-5001 11/10 Web Site - http://www.detecto.com...

  • Page 3: Table Of Contents

    INTRODUCTION TABLE OF CONTENTS Thank you for purchasing our Detecto Model Installation …………………..………………. 1 PS-11 Digital Portion Scale. The PS-11 is Unpacking ……………………..………… 1 equipped with a rechargeable battery pack Power Supply …………………..………. 1 that (after 8 hours of charging) is able to Batteries ………………………..………..

  • Page 5: Installation

    It will take approximately 8 hours to fully recharge the battery pack in the scale. While the batteries are charging the PS-11 can still be operated. Note that charging the battery pack for more than 8 hours will not damage it.

  • Page 6: Display Annunciators

    DISPLAY ANNUNCIATORS The annunciators are turned on to indicate that the scale display is in the mode corresponding to the annunciator label or that the status indicated by the label is active. The O annunciator is turned on when the weight display is stable. The lb annunciator is turned on to indicate that the displayed weight is in pounds.

  • Page 7: Operation

    OPERATION TURN THE SCALE ON Press the ON/OFF key to turn the scale on. The scale will display 88888 then change to the selected weighing units. SELECT THE WEIGHING UNIT Press the UNITS key to alternate between the selected weighing units. NOTE! Multiple weighing units must be enabled during configuration for this function to be operational.

  • Page 8: Configuration

    CONFIGURATION The Scale has been pre-configured at the factory and should not require configuration for use in most applications. In the event that the factory settings do not meet the requirements of your application, the following describes the steps to configure the scale. TO BEGIN CONFIGURATION: 1.
  • Page 9 CONFIGURATION, Cont. To select “g” (gram) weighing units: 1. With the display showing Unit , press the ZERO key and then UNIT key 3 times. The display will change to show “g”. 2. Press ZERO key to display g (gram) status. 3.

  • Page 10: Gravity Compensation

    GRAVITY COMPENSATION The Gravity Compensation for your scale has been pre-configured at the factory and should not require changing in most locations. In the event that the factory settings do not meet the requirements of your location, contact the factory for the value for your location. With GrAu enable from the function setting of the Configuration mode, the scale will use the factory set value of 9.797 for the Gravity Compensation.

  • Page 11: Display Messages

    (+10%) CARE AND MAINTENANCE The heart of the PS-11 Digital Portion Scale is a precision load cell located in the center of the scale base. It will provide accurate operation indefinitely if protected against overload of scale capacity, dropping items on scale, or other extreme shock.
  • Page 12 IN-0866 4006B...
