Placing the Display

Desk or Table Mounting

1. The location chosen should be a stable, level surface (either a desk or solid table), free of
temperature extremes and water. The display should be where it can be easily viewed,
not subject to direct sunlight and where the keypad is within easy reach of the operator.

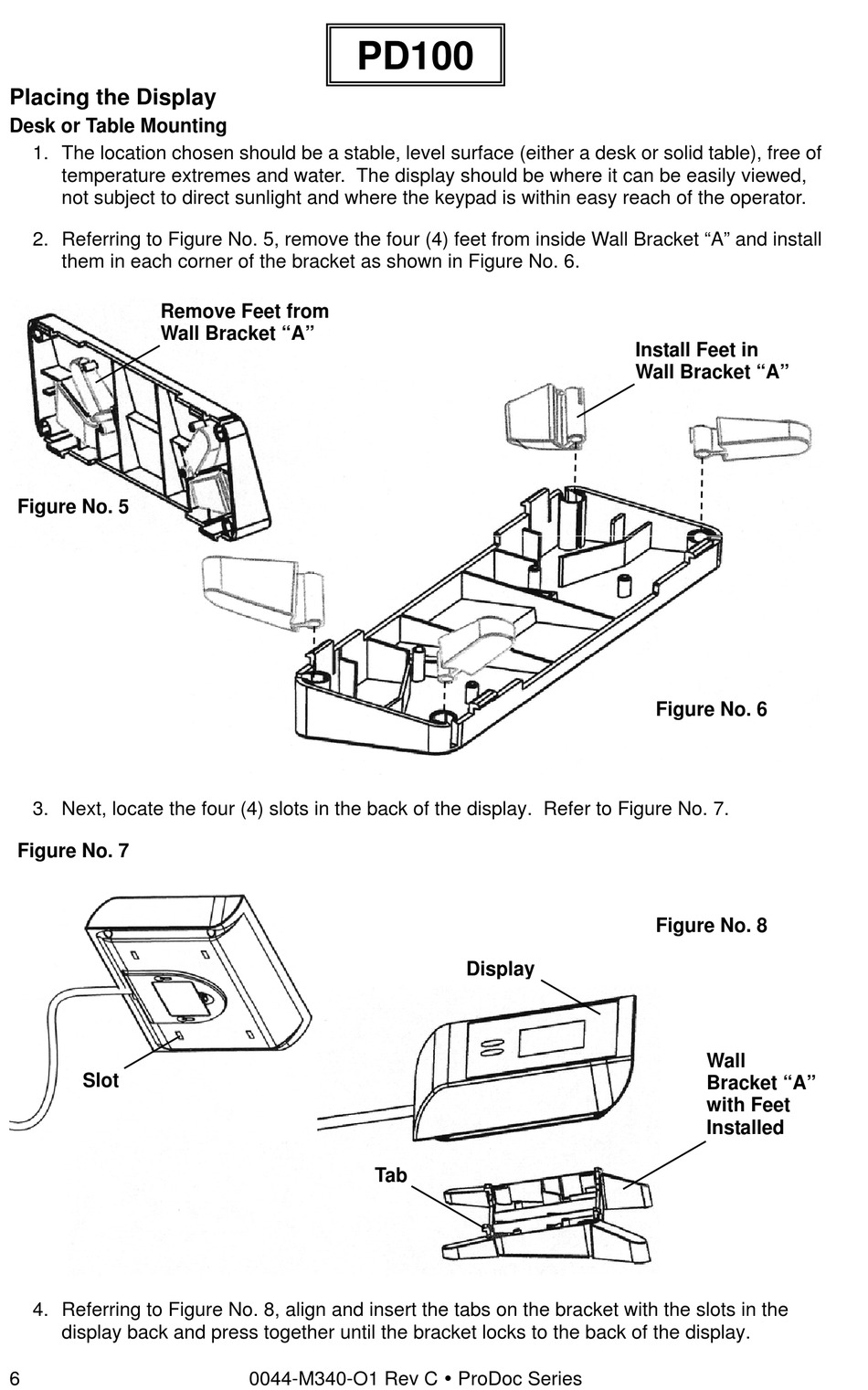

2. Referring to Figure No. 5, remove the four (4) feet from inside Wall Bracket "A" and install
them in each corner of the bracket as shown in Figure No. 6.
Remove Feet from
Wall Bracket "A"
Figure No. 5
3. Next, locate the four (4) slots in the back of the display. Refer to Figure No. 7.
Figure No. 7
Slot
4. Referring to Figure No. 8, align and insert the tabs on the bracket with the slots in the
display back and press together until the bracket locks to the back of the display.
6
PD100
Tab
0044-M340-O1 Rev C  ProDoc Series
Display
Install Feet in
Wall Bracket "A"
Figure No. 6
Figure No. 8
Wall
Bracket "A"
with Feet
Installed
