Physician's Scale
Eye-Level Beam Scale
Operation Instructions
CARDINAL SCALE MFG. CO.
8525-M063-O1 Rev G
PO Box 151 Webb City, MO 64870
10/08
Ph: 417-673-4631 Fax: 417-673-5001
Printed in USA
www.detectoscale.com
Technical Support: Ph: 866-254-8261 techsupport@cardet.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cardinal Physician’s Scale
Summary of Contents for Cardinal Physician’s Scale
-
Page 1: Operation Instructions

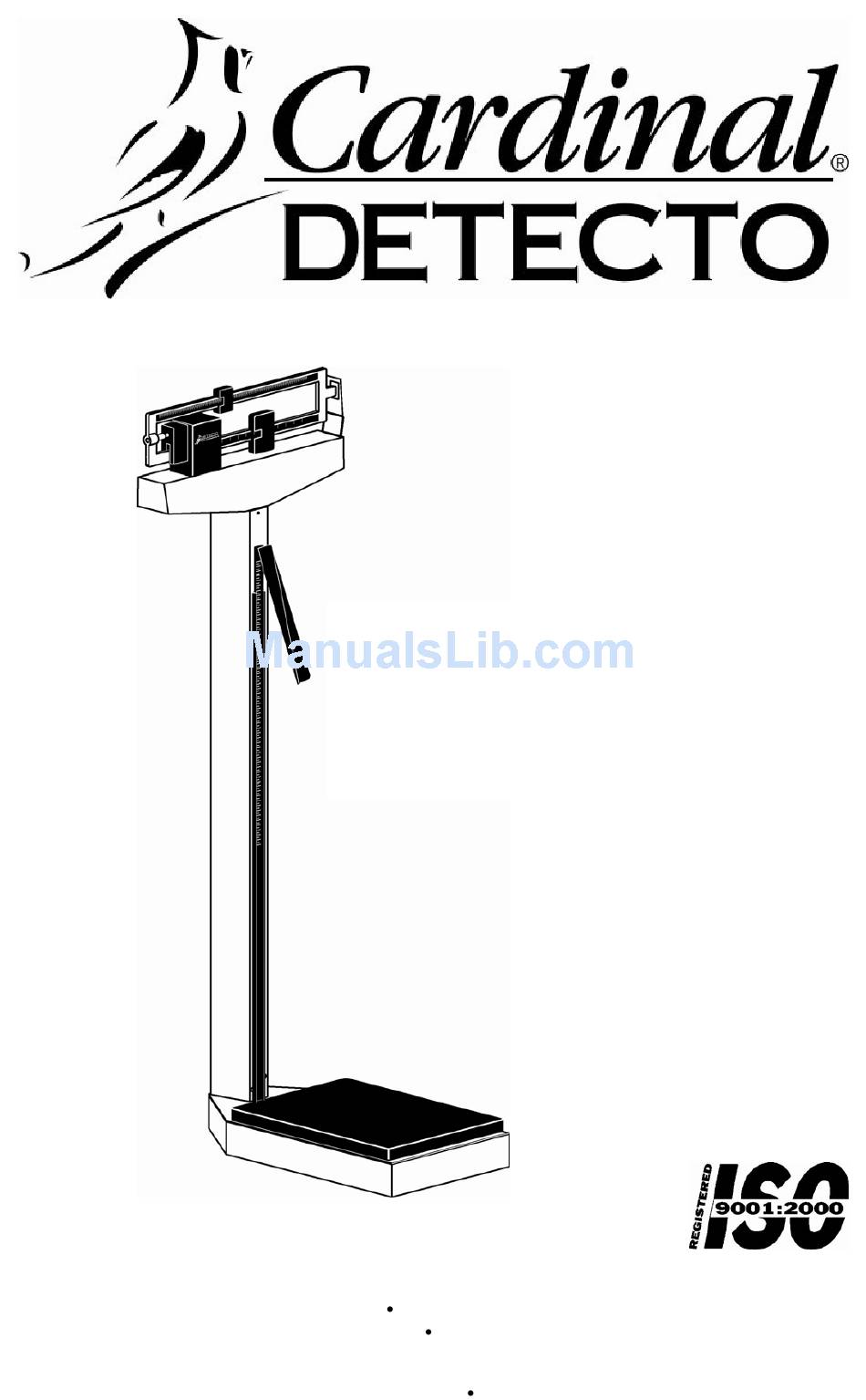

Physician’s Scale Eye-Level Beam Scale Operation Instructions CARDINAL SCALE MFG. CO. 8525-M063-O1 Rev G PO Box 151 Webb City, MO 64870 10/08 Ph: 417-673-4631 Fax: 417-673-5001 Printed in USA www.detectoscale.com Technical Support: Ph: 866-254-8261 techsupport@cardet.com... - Page 2 Detecto Physician's Scale Balanza para médicos Assembly Instructions Instrucciones de armado This precision instrument is Este instrumento de precisión es extremely easy to set up as facilísimo de armar ya que todos all major parts are factory pre- los componentes principales son assembled.
- Page 3 Poises Optional Hand Post Pesas Use the four screws to attach the hand Balance Screw post to the platform base. Tornillo de la balanza Use cuatro (4) tornillos para pegar el poste de mano a la base de la plataforma. To balance scale, move both poises to zero (0) and turn balance screw to right or left until scale balances.
- Page 4 Optional Height Rod Installation: Instalacion de la Barra Medidora de Altura: 1. Remove the height rod from the box. 1. Remueva el tallímetro de la caja. 2. If not already installed, insert the two hex 2. Si no estan instalados, coloque los tornillos head screws from the hardware pack into the con cabezas hexagonales en los huecos al holes in the front of the column and tighten...
- Page 5 REPLACEMENT PART IDENTIFICATION Item Part Part Name Req’d 3P1001X Base Weldment 0033-D244-0A Headpiece & Column Weldment 3P2011X Platform Weldment 3P5011X Platform Weldment (handpost) 3P8068 Mat (removable) 3P9068 Mat (handpost) 0033-C106-1A Hand Post Assembly 0033-D063-1A Measuring Rod Assy in/cm 0033-B333-08 Draft Rod 0033-C369-0A Shelf Lever w/Pivot 3P8002X Long Lever Assembly...
-
Page 6: Statement Of Limited Warranty
STATEMENT OF LIMITED WARRANTY Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of one (1) year from date of shipment. - Page 7 STATEMENT OF LIMITED WARRANTY Conditions Which Void Limited Warranty This warranty shall not apply to equipment which: A.) Has been tampered with, defaced, mishandled or have had repairs and modifications not authorized by Detecto. B.) Has had serial number altered, defaced, or removed. C.) Has not been grounded according to Detecto’s recommended procedure.
