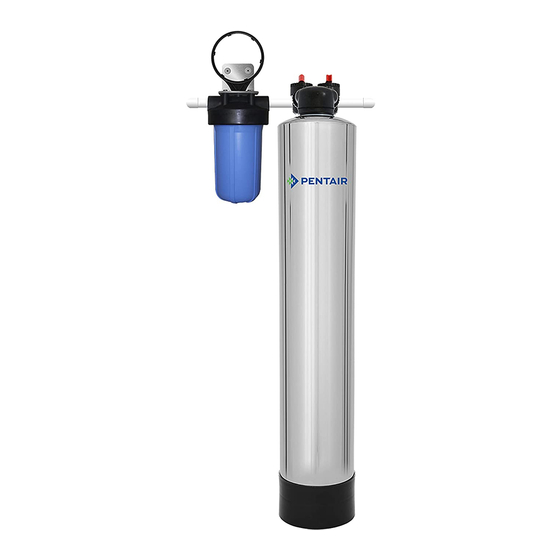

Pelican PC600 Owner's Manual
Premium whole house water filters
Hide thumbs
Also See for PC600:
- Installation manual (19 pages) ,
- Owner's manual (18 pages) ,
- Replacement instruction (4 pages)
Subscribe to Our Youtube Channel
Related Manuals for Pelican PC600
Summary of Contents for Pelican PC600
- Page 1 OWNER’S MANUAL Pelican PC600/PC1000 Premium Whole House Water Filter Pelican Water Technologies, Inc. ® An Advanced Water Technology Company...
- Page 2 Pelican Water Technologies, Inc. shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 3 Table of Contents Product Operation and Specifications ................. 4 Important Information ....................4 Complete Parts List ...................... 5 Installation Overview ....................6 Pre-Installation ......................6 Hose Bib Assembly ......................6 ... -
Page 4: Product Operation And Specifications
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 4 Product Operation and Specifications Specification Description PC600 PC1000 Rated Service Flow 8 GPM (10 GPM Peak) 12 GPM (16 GPM Peak) Minimum Working Pressure 25 PSI Maximum Working Pressure... -
Page 5: Complete Parts List
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 5 Complete Parts List Note: Pelican supplies the parts below to accommodate a variety of water supply lines. Not all parts will be used. Table 1: Parts List... -
Page 6: Installation Overview
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 6 Installation Overview Wall Wall Pre-Filter Shut-Off Valve Outgoing Incoming Water to Water House Supply 14" Whole House Water Filter Figure 1 Pre-Installation Hose Bib Assembly PVC Adapter PVC Reducer ©... -
Page 7: Elbow Assembly
The Bypass Valve comes pre-assembled and ready to install with the O-Rings, Split Rings, and Quick Connect Nuts. Push the Bypass Valve into the head of the Pelican Whole House Water Filter with the unthreaded ends oriented toward the tank and hand-tighten the Quick Connect Nuts. -
Page 8: Carbon Tank Soak
2. Connect the 1” PVC Elbow Assembly to the upflow inlet side of the Bypass Valve and hand- tighten the Quick Connect Nut to the 1” PVC Elbow Assembly. 3. Fill the Pelican Whole House Water Filter Tank full until water comes out of downflow inlet side of the Bypass Valve. -
Page 9: Carbon Tank Wash
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 9 Carbon Tank Wash ! IMPORTANT ! Do not perform the Carbon Tank Wash until the Carbon Tank Soak process is complete. Notice Water will flow out of the downflow inlet side of the Bypass Valve during this process. Be sure you perform this series of steps in a location suitable for water flow. -
Page 10: Installation
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 10 Installation: Pre-Filter Assembly Red Pressure Release Button Pre-Filter Cover Sediment Filter O-Ring Blue Pre-Filter Housing Stand Pipe Figure 7 1. Unscrew the cover from the Blue Pre-Filter Housing. -
Page 11: Whole House Water Filter Tank Installation
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 11 Whole House Water Filter Tank Installation 1. Level the Pelican Whole House Water Filter. Notice: If the tank is not level, lift the tank up and drop it on the ground until the tank stands vertical. The bottom of the tank is round and the boot allows the tank to stand upright. -
Page 12: Complete The Installation
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 12 Complete the Installation 1. Turn on the main water supply. 2. Check for leaks. 3. Peel off the protective plastic wrap from the chrome tank jacket. Notice Avoid high flow rates (such as bath tubs or multi-head showers) for the first 72 hours to avoid flow restriction caused by carbon blockage of the top basket inside the carbon tank. -
Page 13: Care And Cleaning
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 13 Care and Cleaning Whole House Water Filter Your Pelican PC600/PC1000 Premium Whole House Water Filter requires care and cleaning after a period of 5 years. Replacement media and instructions can be ordered on-line at www.waterfliterusa.com or by calling 866-767-6401. -
Page 14: Troubleshooting
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 14 Troubleshooting Problem Solution Pressure is dropping off during the carbon wash. Turn the water off and let the tank sit about 30 minutes to allow the carbon to settle down off of the basket inside the tank. -
Page 15: Warranty
Manufacture’s Performance Guarantee The Pelican PC600 Premium Whole House Water Filter is guaranteed to perform for 600,000 gallons or (5) years whichever comes first. The Pelican PC1000 Premium Whole House Water Filter is guaranteed to perform for 1,000,000 gallons or (5) years whichever comes first. -
Page 16: Warranty Registration Form
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 16 Warranty Registration Form Send in this Warranty Registration Form to validate your warranty or visit www.PelicanWaterTechnologies.com to complete warranty registration form. Pelican Warranty Registration Form Date Item(s) were Received:... -
Page 17: Product Certifications
PC600-1000 Rev A — Pelican PC600/PC1000 Premium Whole House Water Filter Page 17 Product Certifications Pelican 5 Micron Pre-Filter System– NSF/ANSI Certified Standard 42 for material and structural integrity requirements Carbon Filtration Media – NSF/ANSI Certified Standard 42 Clack V3007-xx Bypass Fittings – WQA Gold Seal Certified to NSF/ANSI Standard 44 for material safety and structural integrity only U.S.
