Page 1: Premium Whole House Water Filter
Installation Guide: Pelican PC600 or PC1000 Premium Whole House Water Filter Master Distributor Pelican™ www.Waterfilter-USA.com 1-866-767-6401... -
Page 2: Please Read First
Please Read First Step 1: Carbon Soak for Tank 1– Brief Description, see instructions for details on page 5 Connect the bypass valves to the tank head. Attach the threaded 90-degree elbow with the appropriate o-ring and split ring in place to the up-flow side of each bypass valve.(hand tight) Now screw the backwash assembly to the 90-degree elbow. - Page 3 Diagram 1- Parts list for single tank system PC600 or PC1000 Note Some of the parts included will not be used. We have included all the parts as a convenience to our customers. You may save the additional parts for the future.
- Page 4 Pre-Filter Assembly Includes: 1. 1ea. 10” blue pre-filter housing 2. 1ea. 5 micron pre-filter 3. 1ea. mounting bracket with mounting screws 4. 1ea. shut off valve 5. 1ea. pre-filter wrench for changing the pre-filters Installation of Pre-Filter Determine the size of the fittings you will need. Sequence for plumbing from incoming water supply before connecting to the filter tank(s): 1.
- Page 5 How to change the pre-filter When it comes time to change the pre-filter, it is an easy operation. Step 1: Turn the main water supply off by turning the shut-off valve to the off position Step 2: Push the red button on top of the pre-filter housing to relieve the pressure Step 3: Use the supplied pre-filter wrench to unscrew the blue housing (turn clockwise) Step 4: Replace the used pre-filter with a new one and screw the blue housing back onto black cap...
- Page 6 Carbon Soak Instructions You will need (1) bypass valve (1) threaded gray 90-degree elbow adapter, (1) black rubber o-ring, (1) white plastic split ring, and (1) black 1” quick connects. Then you will need (1) white 1” female-to-female threaded pvc adapter, (1) white pvc female-to-male ¾”...
- Page 7 Diagram 3 - Carbon Soak and Carbon Wash Assembly Unassembled Assembled...
- Page 8 Diagram 4 – Carbon Soak (top view of tank with hose connected)
- Page 9 Carbon Wash (labeled PC600 or PC1000) – Diagrams 3, 5, & 6 1. Attach the assembled 90-degree threaded elbow with the backwashing assembly attached, to the up-flow side of the bypass valve. 2. Now connect your garden hose to the backwashing assembly now attached to the bypass valve.
- Page 10 Diagram 6 – Connect hose to up-flow inlet side second...

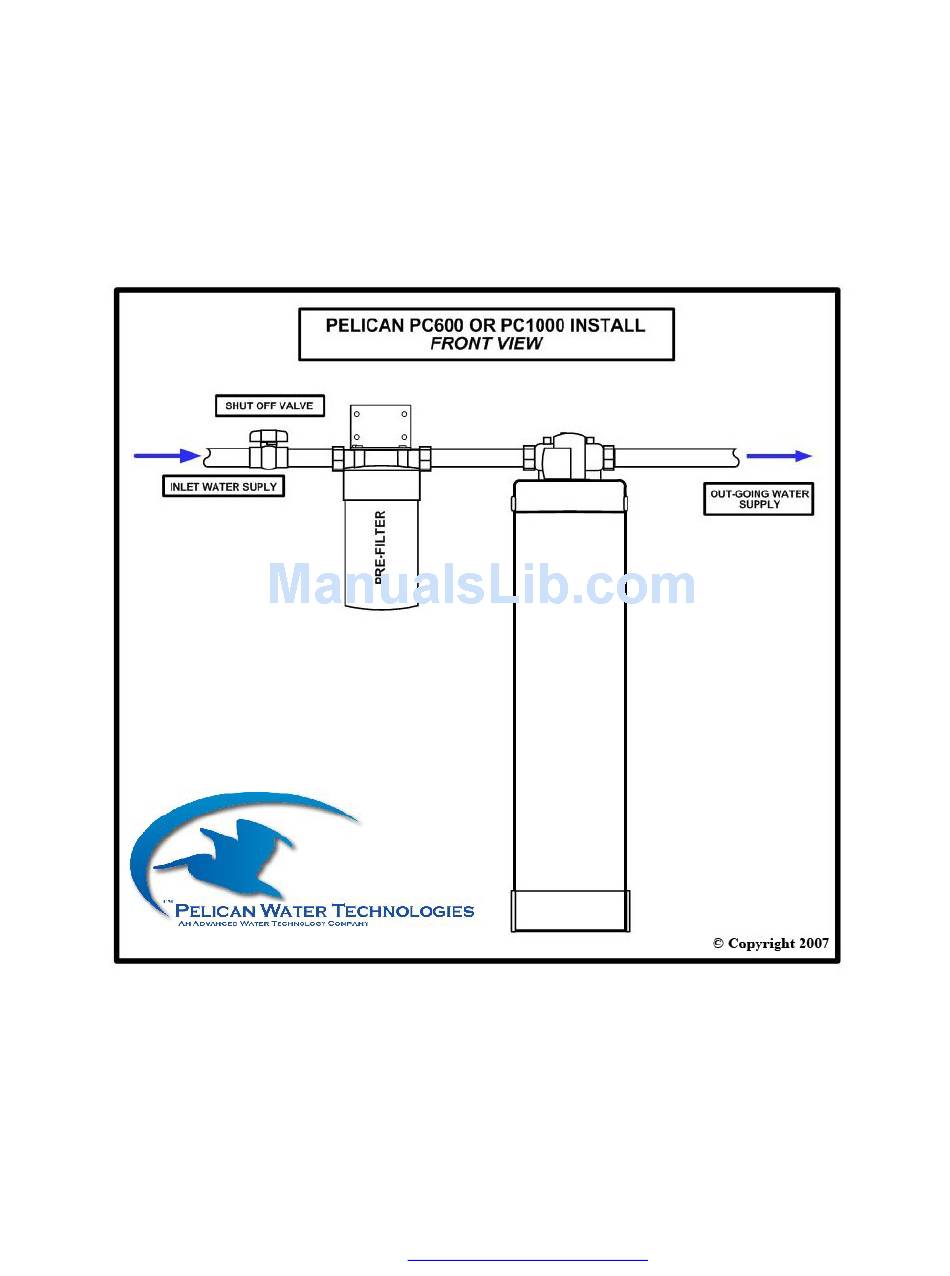

- Page 11 Installation of PC600 or PC1000 NOTE: Before installing make sure the tank has been soaked for 48 hours and tank 1 has been backwashed. 1. The plumbing will start with the shut off valve then the pre-filter followed by the filter.
- Page 12 Note: When installing any of the Pelican tanks from 1 ½” incoming waterlines you will need to reduce it down to 1¼” then to 1” to...
- Page 13 connect to the shut off valve. This will not reduce your pressure, as it will insure proper flow and prevent water pinging. Diagram 9 - Top view of the filter in Normal Operation Mode (Type of fittings may vary depending on the type of plumbing used) Normal Operation Position Water flows through the control valve during normal operation.
- Page 14 Diagram 10 - Top view of the filter in Bypass Mode (Type of fittings may vary depending on the type of plumbing used) Bypass Position Untreated water is supplied to the home. When the time comes to change the media this is the position to set the valve at...
- Page 15 Helpful Hints and Trouble Shooting If you notice the pressure dropping off during the carbon rinse turn the water off and let the tank sit about 30 minutes to allow the carbon to settle down off of the basket inside the tank.
- Page 16 Now take the tape off and take the tank head and place it over the riser tube now inside the tank and push down to screw the head back onto the tank. Follow the soak and back wash instructions for the PC600 and PC1000 and put back into service.
- Page 17 Manufactures Performance Guarantee: The Pelican™ Carbon Series PC600 is guaranteed to perform for 600,000 gallons or 5 years. The Pelican™ Carbon Series PC1000 is guaranteed to perform for 1,000,000 gallons or (5) years. The manufacturers authorized dealers shall be responsible for the replacement of defective media only labor to replace the media is the responsibility of the purchaser.
- Page 18 Name: ______________________________________________ Address: ____________________________________________ City: _______________ State: __________ Zip: __________ Send To: Water Filter USA – Attention Pelican Warranty Registration 3121 Suite D Opportunity Court South Daytona, Fl 32119 Plumbers Information (optional) We like to recommend good plumbers through out the USA and if you were happy with your installer please give us their information so we can pass it on as a courtesy.
- Page 19 For each referral that results in the purchase of a Pelican whole house system from WaterFilter USA, you will receive a $50 gift card that is eligible at all of the following restaurants: Olive Garden, Red Lobster, Bahama Breeze, or Smokey Bones.
