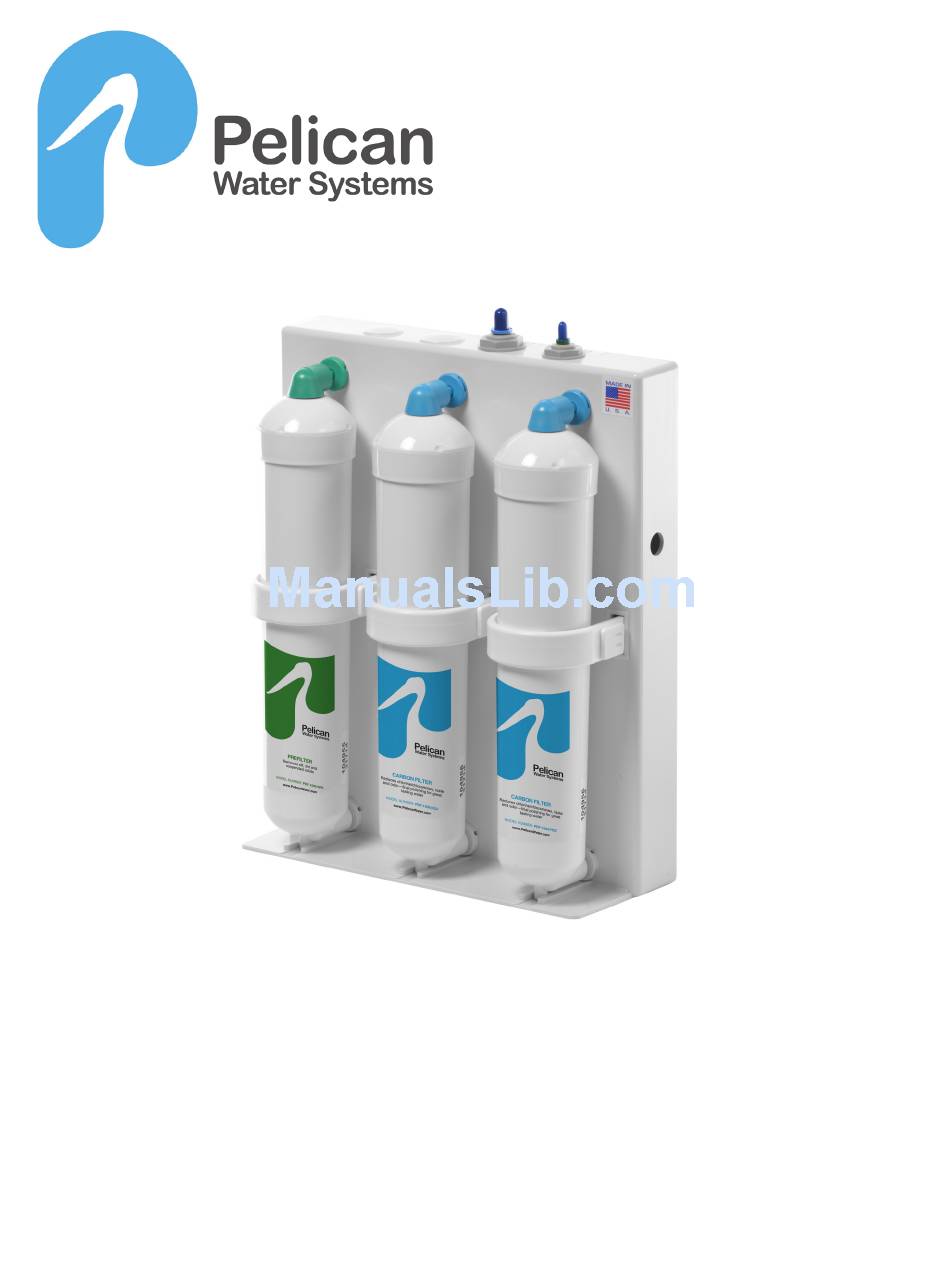

- Page 1 ® 3-Stage Drinking Water Filter Owner's Manual & Installation Instructions Pelican Model: PDF-1500 For more information: www.PelicanWater.com Toll free: 877-842-1635 Pelican Water Systems - 3060 Performance Cir Ste 2, Deland, FL 32724...
- Page 2 Please fill out this form immediately after installation and retain for future reference. Model Number PDF-1500 Code __ __ __ __ __ (On right side of frame below model number) Install Date Service Phone Pelican Water Systems | www.PelicanWater.com | 877-842-1635...

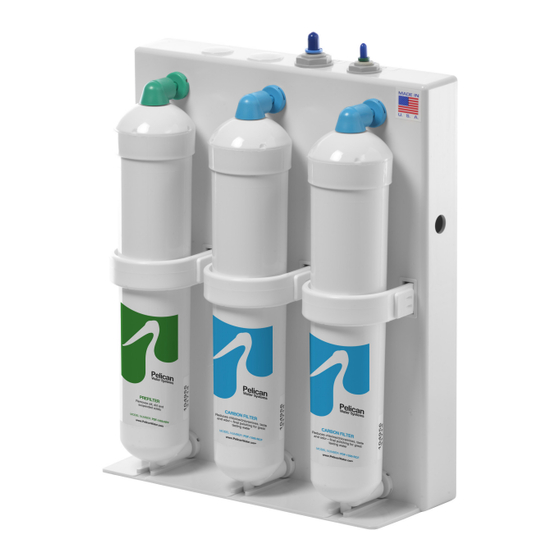

- Page 3 Introduction to the Pelican 3-Stage Water Filter Congratulations on your purchase of the Pelican 3-Stage Drinking Water Filter. When properly maintained, this system will provide you with years of trouble-free service. The next three sections contain important information on the proper care and maintenance of your system, please take a few minutes to read through this information.
-
Page 4: Warranty
Note: some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Other Rights: This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. Pelican Water Systems | www.PelicanWater.com | 877-842-1635... - Page 5 Improperly installed systems could result in water damage due to leaks or flooding. BACK COVER The connection parts kit supplied with the Pelican 3-Stage Drinking Water Filter includes components which repre sent the most common under-sink plumbing connections currently in use within the United States. If these components do not match the type of connections installed at your location, contact a local hardware or plumbing supplier to obtain the correct fittings.
- Page 6 9. Attach the Shutoff Warning label to the system so that it is directly visible. Fill out the configured to fit either Date of Installation label and attach to the side of the system. a 3/8" or 1/2" angle stop connection by changing the location of the adapter. Pelican Water Systems | www.PelicanWater.com | 877-842-1635...
-
Page 7: Faucet Installation
3-Stage Drinking Water Filter Faucet Installation Determine the most practical under-the-sink location for placement of the Pelican 3-Stage Drinking Water Filter. Ensure that the location allows adequate access for cartridge re placement. The faucet installation instructions below are for a standard non-airgap faucet with a quick-connection fitting. -
Page 8: Tubing Installation
2. Take the 1/4" green tubing, already connected to the feed water valve, and firmly insert it into the green connec tor marked FEED. Make sure the tubing is fully seated. 3. The Pelican 3-Stage Drinking Water Filter is now connected and ready for system activation. TUBING TIPS: Use a sharp knife or tubing cutter to cut the tubing squarely, being sure to remove all burrs. - Page 9 2. Feed water pressure to the unit is no less than 40 psi and no greater than 80 PSI. 3. All cartridge plastic retainer clips are installed properly. 4. All tubing connections, especially push-in quick connections, are fully inserted. 5. Feed valve is open. Pelican Water Systems | www.PelicanWater.com | 877-842-1635...
-
Page 10: Maintenance
6. Close the dispensing faucet. Turn on feed water valve. Observe system for any leaks, especially at newly re placed car- tridge. 7. If the replaced cartridge was a carbon filter, open the dispensing faucet and let water run for at least 3 minutes to flush out any carbon fines. Pelican Water Systems | www.PelicanWater.com | 877-842-1635...
