Pelican PC600 Replacement Instruction

Replacing the media for the carbon series whole house filters
Hide thumbs Also See for Pelican PC600:
1
2
3
4

Advertisement

Quick Links

Download this manual
Replacing the Media for the Pelican PC600/PC1000
Carbon Series Whole House Filters

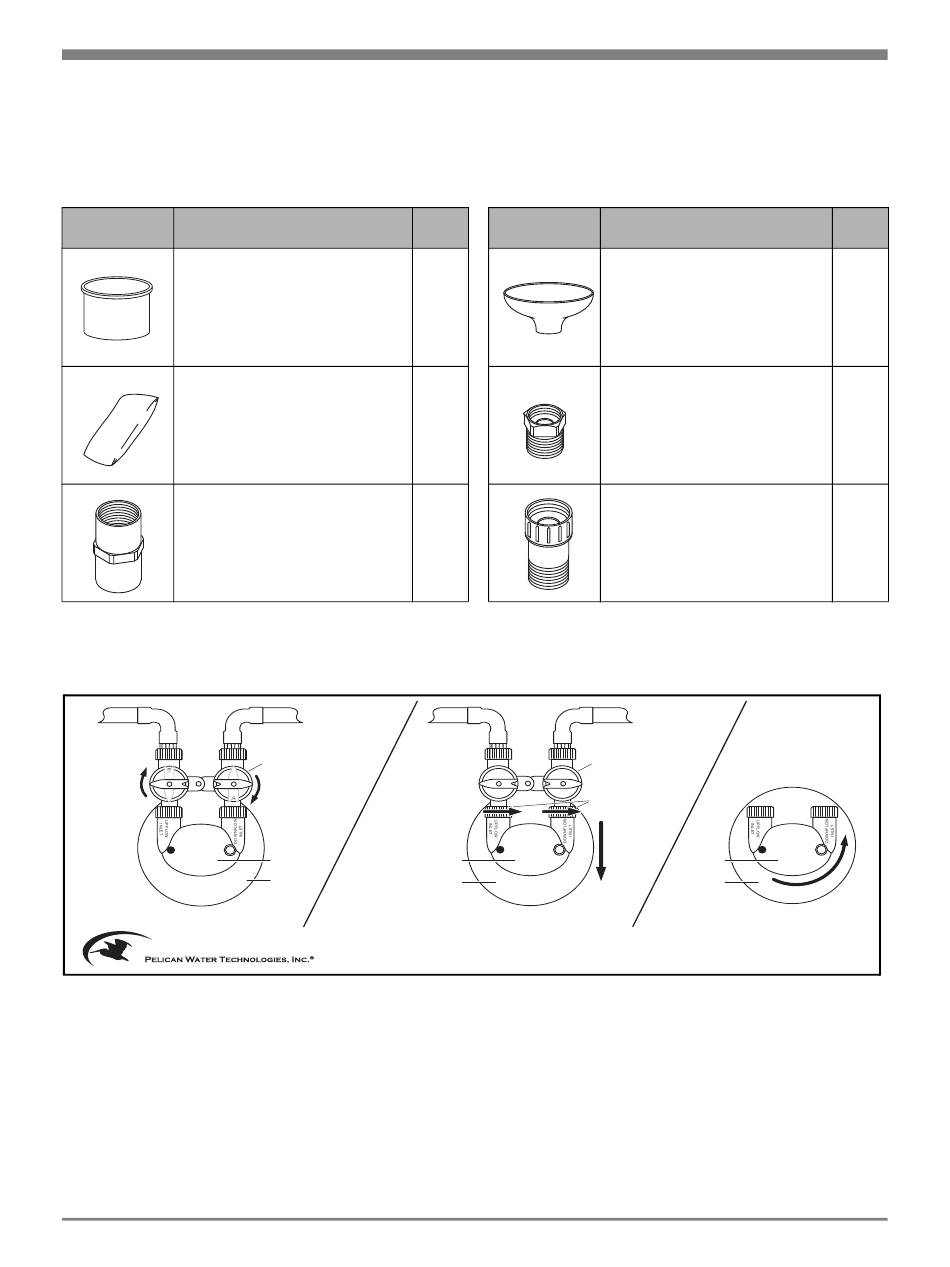

Complete Parts List

Table 1: Parts List
Part
Description
Red Cap
Carbon Media
** Depending on your system,
you could have multiple bags
of Carbon Media.
PVC Female Hose Adapter:
1" to 1" Female Threaded
Adapter
The riser tube may or may not be fixed inside the tank depending on the model. Follow all the directions
below if your model has a removable riser tube. If your model has a fixed riser tube, disregard the first
note below and leave riser tube as-is.
Whole House Water Filter
© 2010
Figure 1
1. Turn the arrows on the Bypass Valve as shown to place the Bypass Valve into bypass mode.
2. Unscrew the Quick-Connects on the tank side of the Bypass Valve, leaving the Bypass Valve
connected to the plumbing. Unscrew and remove the head from the tank.
3. Pour the expired carbon media from the tank. It may be necessary to use a water hose to wash
the wet media from the inside of the tank. Dispose of the expired carbon media with normal
household debris.
©
2016 Pelican Water Systems
3060 Performance Circle, Suite 2, DeLand, FL 32724
Qty.
1
**
1
Bypass Valve
Head
Head
Tank
Tank
Rev B
Part
Description
Blue Funnel
PVC Reducer:
PVC 1" Male to ¾" Threaded
Female Adapter
¾" PVC Hose Bib
Bypass Valve
Quick-Connect
Qty.
1
1
1
Head
Tank
www. pelicanwater.com
(866) 767-6401
