1.4 LED INDICATOR
The Mercury Elite Pro has a blue LED at the front
of the enclosure. The LED emits a solid blue light
when the unit is powered on and flashes during
hard drive activity.

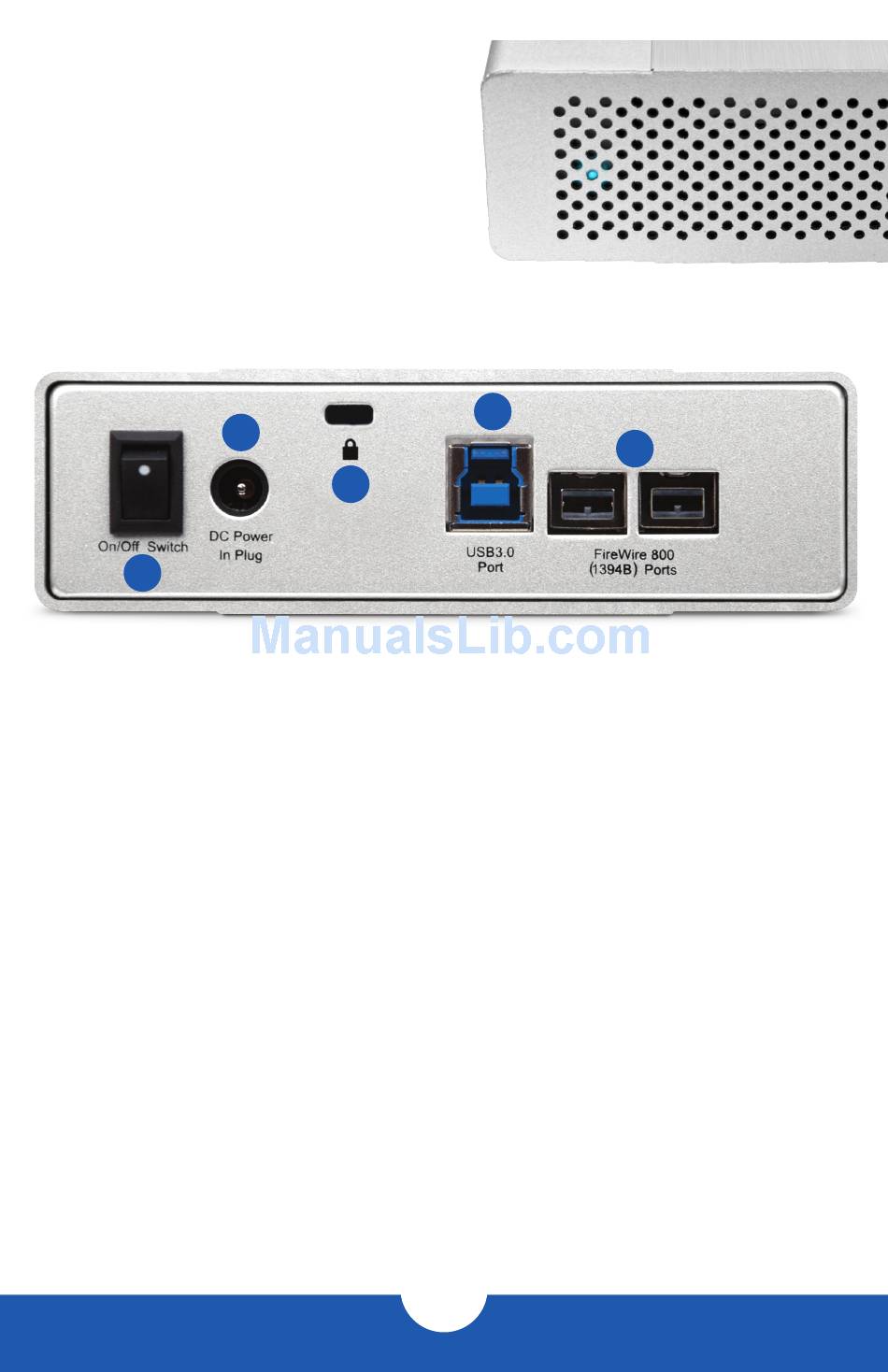

1.5 REAR VIEW

1

1.5.1 Rear Features

1. On/off switch — Turn on and off the Mercury Elite Pro here.
2. Power input — Connect the included power supply here.
3. Kensington Security Slot® — Attach a security tether here.
4. USB 3.0 port — Attach the included USB 3.0 (Standard-A to Standard-B) cable here.
5. FireWire 800 ports — Attach the included 9-9 pin FireWire 800 cable to one of these
ports and to your computer. Use the other FireWire 800 port to daisy-chain other
FireWire 800 devices.
NOTE:
• Only one interface (USB or FireWire) at a time can be used. When more than one cable
is connected, the fastest interface has priority.
• For the safe removal of your Mercury Elite Pro and to ensure that no data is lost, always
eject or unmount the drive from your operating system before powering off.
• In order for the computer to access volumes larger than 2TB, the operating system
needs to support large volumes (e.g., Windows Vista or OS X 10.4 and above).
OWC MERCURY ELITE PRO
2
3
4
2
5
INTRODUCTION
