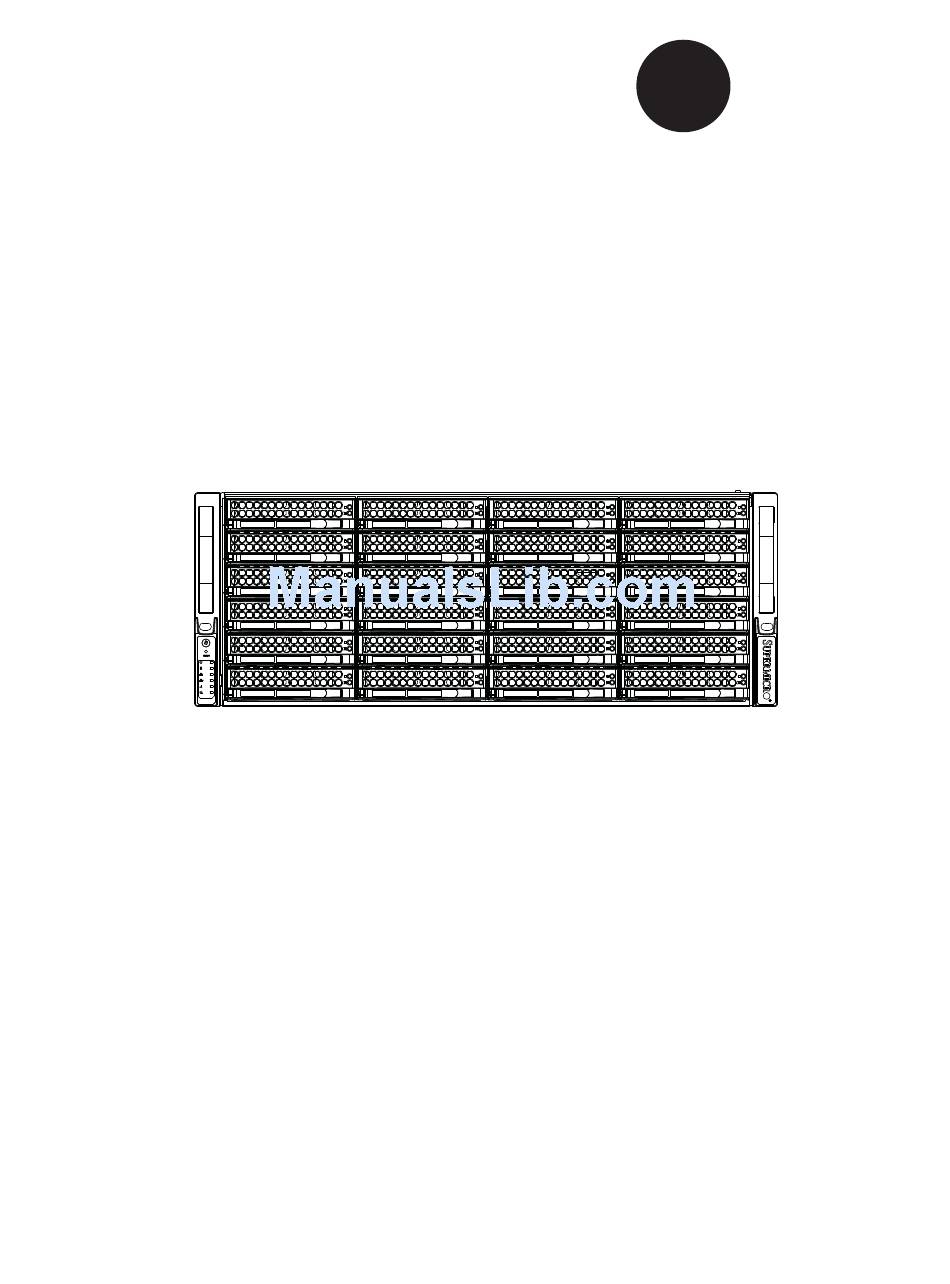

- Page 1 UPER ® SC847 CHASSIS SERIES CONNECTIVITY CONFIGURATIONS QUICK REFERENCE GUIDE...
- Page 2 SC847 Connectivity Confi gurations Quick Reference Guide The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
-
Page 3: Table Of Contents
Connectivity Confi guration Diagrams Table of Contents Contacting Supermicro ..................v SC847 Chassis Connectivity Confi gurations Quick Reference Guide Overview ......................1-1 Connectivity Confi gurations ................1-2 Confi guration One ................... 1-2 Confi guration Two ................... 1-3 Confi guration Three..................1-4 Confi... -
Page 4: Contacting Supermicro
SC847 Connectivity Confi gurations Quick Reference Guide Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address:... -
Page 5: Sc847 Chassis Connectivity Confi Gurations Quick Reference Guide
Connectivity Confi guration Diagrams SC847 Chassis Connectivity Confi gurations Quick Reference Guide Overview This quick reference guide serves as a supplement to the SC847 chassis manual. It provides diagrams showing the supported backplane connectivity options for the chassis, without including details on chassis maintenance, confi guration or safety warnings. -
Page 6: Confi Guration One
SC847 Connectivity Confi gurations Quick Reference Guide Connectivity Confi gurations The following diagrams represent the different connectivity confi guration options supported by the SC847 E series chassis. Confi guration One • Connectivity: Parallel • Features: Performance • Drive types: SAS/SATA •... -
Page 7: Confi Guration Two
Connectivity Confi guration Diagrams Confi guration Two • Connectivity: Parallel • Features: Performance/multi PCI buses • Drive types: SAS/SATA • Backplane type: Single expander CBL-0281L SC847-E1 Chassis SAS(or SAS2)-826EL1 RAID Cards RAID Cards SAS(or SAS2)-846EL1 CBL-0281L CBL-0352L-LP Figure 1-2: Connectivity Confi guration Option Two... -
Page 8: Confi Guration Three
SC847 Connectivity Confi gurations Quick Reference Guide Confi guration Three • Connectivity: Serial • Features: Capacity • Drive types: SAS/SATA • Backplane type: Single expander CBL-0281L CBL-0281L SC847-E1 Chassis SAS(or SAS2)-826EL1 RAID Cards SAS(or SAS2)-846EL1 CBL-0351L-LP Figure 4-19: Connectivity Confi guration Option Three... -
Page 9: Confi Guration Four
Connectivity Confi guration Diagrams Confi guration Four • Connectivity: Serial • Features: Capacity • Drive types: SAS/SATA • Backplane type: Single expander CBL-0351L-LP CBL-0281L SC847-E1 Chassis SAS(or SAS2)-826EL1 RAID Cards SAS(or SAS2)-846EL1 CBL-0281L Figure 4-20: Connectivity Confi guration Option Four... -
Page 10: Confi Guration Five
SC847 Connectivity Confi gurations Quick Reference Guide Confi guration Five • Connectivity: Serial • Features: Redundancy • Drive types: SAS only • Backplane type: Dual expander CBL-0352L-LP CBL-0281L SC847-E1 Chassis SAS(or SAS2)-826EL1 PRI-J1 PRI-J0 SEC-J1 SEC-J0 RAID Cards SEC-J0 SEC-J2 PRI-J0 PRI-J2 SEC-J1... -
Page 11: Confi Guration Six
Connectivity Confi guration Diagrams Confi guration Six • Connectivity: Parallel • Features: Redundancy/performance/multi PCI buses/capacity • Drive types: SAS only • Backplane type: Dual expander CBL-0352L-LP CBL-0281L SC847-E1 Chassis SAS(or SAS2)-826EL1 PRI-J1 SEC-J1 SEC-J0 PRI-J0 RAID Cards RAID Cards SAS(or SAS2)-846EL1 SEC-J2 PRI-J2 SEC-J0... - Page 12 SC847 Connectivity Confi gurations Quick Reference Guide Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in signifi...
