Supermicro SuperServer 5017R-iHDP User Manual

Supermicro SuperServer 5017R-iHDP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

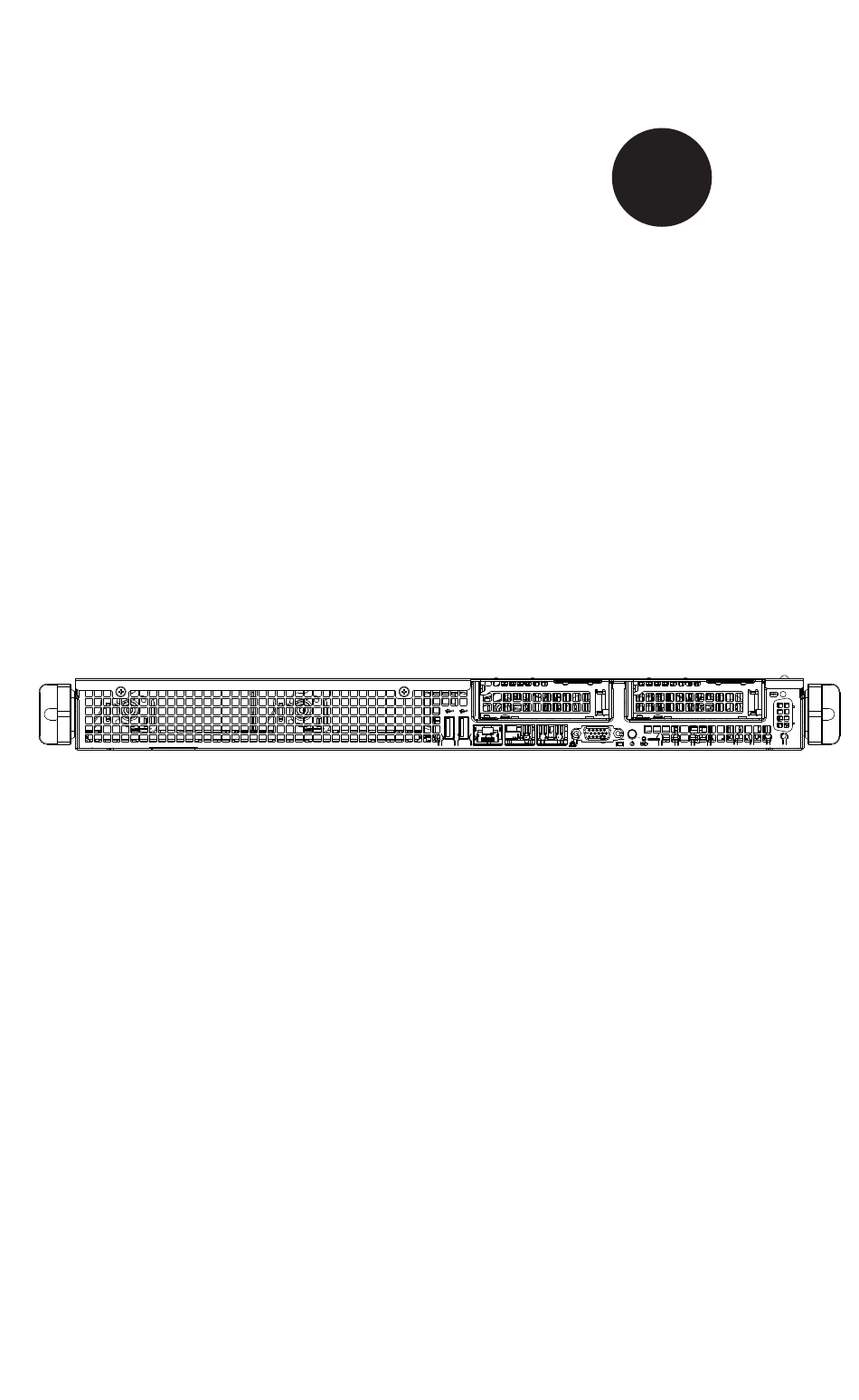

S
UPER
®
S
S
UPER
ERVER
5017R-iHDP
Revision 1.0

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SuperServer 5017R-iHDP

Summary of Contents for Supermicro SuperServer 5017R-iHDP

  • Page 1 UPER ® UPER ERVER 5017R-iHDP Revision 1.0...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 SuperServer 5017R-iHDP. Installation and maintenance should be performed by experienced technicians only. The SuperServer 5017R-iHDP is a 1U rackmount server based on the SC816LTS- 655BP server chassis and the Super X9SCFF-F motherboard. Please refer to our web site for updates on supported processors.
  • Page 4 SUPERSERVER 5017R-iHDP User's Manual Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the X9SCFF-F motherboard, including the locations and functions of connectors, headers and jumpers. Refer to this chap- ter when adding or removing processors or main memory and when reconfiguring the motherboard.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 5017R-iHDP User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Motherboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SATA ......................1-2 PCI Expansion Slots ..................1-2 I/O Ports ......................1-2 Server Chassis Features ................1-2 System Power ....................
  • Page 7 Table of Contents Attaching the Inner Rail .................. 2-5 Installing the Outer Rails to the Rack ............. 2-6 Chassis Installation ..................2-8 Chapter 3 System Interface Overview ......................3-1 Control Panel Button ..................3-1 Power ......................3-1 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 SUPERSERVER 5017R-iHDP User's Manual Motherboard Details ..................5-10 X9SCFF-F Quick Reference Table ..............5-11 Connector Definitions ................... 5-12 Power Headers (JPWR1,JPWR2,J3) ............5-12 Serial Link Headers (6-SGPIO) ..............5-12 SATA DOM Power (JSD1) ................ 5-12 Chassis Intrusion (JL1) ................5-12 Universal Serial Bus (USB) ..............5-13 Fan Headers (FAN) ..................
  • Page 9 Table of Contents Precautions ..................... 6-1 Unpacking ....................... 6-1 Removing the Covers ..................6-2 System Fans ....................6-3 Drive Bay Installation/Removal ............... 6-5 Replacing Hard Drives ..................6-5 Installing Expansion Cards ................6-7 Replacing the Power Supply ................6-8 Power Supply Replacement ................6-8 Chapter 7 BIOS Introduction ......................
  • Page 10 SUPERSERVER 5017R-iHDP User's Manual Notes...

  • Page 11: Chapter 1 Introduction

    • SATA Accessories Three SAS/SATA backplanes (BPN-SAS-815TQ) • One SuperServer 5017R-iHDP Quick Reference Guide • One rackmount rail kit (CSE-PT52L) Note: a complete list of safety warnings is provided on the Supermicro web site at http://www.supermicro.com/about/policies/safety_information.cfm...

  • Page 12: Motherboard Features

    ERVER 5017R-iHDP User's Manual Motherboard Features At the heart of the SuperServer 5017R-iHDP lies the X9SCFF-F, a single processor motherboard based on the Intel® PCH C204 chipset. Below are the main features of the X9SCFF-F. See Figure 1-1 for a block diagram of the chipset.

  • Page 13: Sata Subsystem

    Chapter 1: Introduction SATA Subsystem The SC816LTS-655BP chassis was designed to support 12 internal 3.5" fixed and two internal 2.5" SATA hard drives. These drives are not hot-swappable. Control Panel The SC816LTS-655BP's control panel includes a main power button and a UID indicator (LED).
  • Page 14 UPER ERVER 5017R-iHDP User's Manual Figure 1-1. Intel C204 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. BLOCK DIAGRAM RoHS 6/6 PCIe3.0_x8 PCIe x8 SLOT 1 8GT/s PCIe3.0_x8 DDR3 (CHA) DIMM1 PCIe x8 SLOT 2 8GT/s DIMM2(Far)

  • Page 15: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 16 UPER ERVER 5017R-iHDP User's Manual Notes...

  • Page 17: Chapter 2 Server Installation

    Preparing for Setup The box the SuperServer 5017R-iHDP was shipped in should include two sets of rail assemblies, six rail mounting brackets and the mounting screws you will need to install the system into the rack. Follow the steps in the order given to complete the installation process in a minimal amount of time.

  • Page 18: Warnings And Precautions

    SUPERSERVER 5017R-iHDP User's Manual installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units.

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 20: Installing The System Into A Rack

    SUPERSERVER 5017R-iHDP User's Manual Rack Mounting Instructions This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 21: Attaching The Inner Rail

    Chapter 2: Server Installation Attaching the Inner Rail The SC816LT chassis ships with the inner rails already installed. In most cases it is only necessary to install the inner rail extention. Releasing Inner Rail from the Outer Rails 1. Identify the left and right inner rails and inner rail extensions as illustrated in Figure 6-1.

  • Page 22: Installing The Outer Rails To The Rack

    2.6 x 5 mm 3 x 5 mm [0.197] [0.197] SUPERSERVER 5017R-iHDP User's Manual Flat head M5 x 12 mm [0.472] Washer for M5 Thumb screw ) standoff Secure to the 6-32 x 5 mm [0.197] 6-32 Rear of the Rack...
  • Page 23 Chapter 2: Server Installation Figure 2-4. Attaching the Outer Rails to a Rack 2. Adjust both the short and long brackets to the proper distance so that the rail fits snugly into the rack. 3. Secure the long bracket to the front side of the outer rail with two M5 screws and the short bracket to the rear side of the outer rail with three M5 screws.

  • Page 24: Chassis Installation

    SUPERSERVER 5017R-iHDP User's Manual Figure 2-5. Installing the Chassis into a Rack Note: figures are for illustrative purposes only. Always install servers into racks from the bottom up. Chassis Installation Installing the Chassis into a Rack 1. Confirm that the rails are correctly installed on the rack.

  • Page 25: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview The server chassis has a single power on/off button. No other buttons or indicators are needed on the Hadoop server. Control Panel Button The power on/off button is located just to the right of the COM port on the front of the chassis.
  • Page 26 UPER ERVER 5017R-iHDP User's Manual Notes...

  • Page 27: About Standardized Warning Statements

    Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger.
  • Page 28 SUPERSERVER 5017R-iHDP User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 30: Installation Instructions

    SUPERSERVER 5017R-iHDP User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 32: Power Disconnection Warning

    SUPERSERVER 5017R-iHDP User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 34: Equipment Installation

    SUPERSERVER 5017R-iHDP User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 36: Battery Handling

    SUPERSERVER 5017R-iHDP User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 38: Redundant Power Supplies

    SUPERSERVER 5017R-iHDP User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 39: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 40: Comply With Local And National Electrical Codes

    SUPERSERVER 5017R-iHDP User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬...

  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 42: Hot Swap Fan Warning

    SUPERSERVER 5017R-iHDP User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 43 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 44: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 45 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 46 SUPERSERVER 5017R-iHDP User's Manual Notes 4-20...

  • Page 47: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install the X9SCFF-F motherboard into the SC816LT-655BP chassis, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 48: Unpacking

    SUPERSERVER 5017R-iHDP User's Manual Unpacking The motherboard is shipped in antistatic packaging to avoid electrical static dis- charge. When unpacking the board, make sure the person handling it is static protected. Motherboard Installation This section explains the first step of physically mounting the X9SCFF-F into the SC816LT-655BP chassis.

  • Page 49: Connecting Cables

    Chapter 5: Advanced Serverboard Setup Connecting Cables Now that the motherboard is installed, the next step is to connect the cables to the board. These include the data cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the flow of cooling air that moves through the system from front to back.

  • Page 50: I/O Ports

    SUPERSERVER 5017R-iHDP User's Manual Figure 5-1. Control Panel Header Pins Ground x (Key) x (Key) Power On LED HDD LED NIC1 LED NIC2 LED OH/Fan Fail LED Vcc/Front UID LED Power Fail LED Ground Reset (Button) Ground Power (Button) I/O Ports The I/O ports are color coded in conformance with the PC 99 specification.

  • Page 51: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA1155 Processor 1. Press the load lever to release the load plate, which covers the CPU socket, from its locked position.
  • Page 52 SUPERSERVER 5017R-iHDP User's Manual 4. Align the CPU key (the semi-circle cutouts) against the socket keys. Once aligned, carefully lower the CPU straight down to the socket. (Do not drop the CPU on the socket. Do not move the CPU horizontally or vertically.

  • Page 53: Installing A Heatsink

    Chapter 5: Advanced Serverboard Setup CPU properly installed Load lever locked into place. Make sure "A" points are under B Installing a Heatsink 1. Remove the chassis cover. 2. Do not apply any thermal grease to the heatsink or the CPU die; the required amount has already been applied.

  • Page 54: Installing Memory

    SUPERSERVER 5017R-iHDP User's Manual Installing Memory Note: Check the Supermicro web site for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMMs to prevent any possible damage. Installing & Removing DIMMs 1. Insert the desired number of DIMMs into the memory slots, starting with DIMMB1 (blue slot), then DIMMB2, DIMMA1, DIMMA2.

  • Page 55: Memory Support

    The X9SCFF-F motherboard supports up to 32GB of DDR3-1600/1333/1066 ECC DIMMs. For the latest memory updates, please refer to our website at http://www. supermicro.com/products/motherboard. Populating Memory Slots When installing memory modules, the DIMM slots should be populated in the fol- lowing order: DIMMB1 (blue slot), DIMMB2 (blue slot), DIMMA1 and DIMMA2.

  • Page 56: Motherboard Details

    SUPERSERVER 5017R-iHDP User's Manual Motherboard Details Figure 5-5. X9SCFF-F Layout JUIDB1 IPMI_LAN LAN2 LAN1 JTPM1 JPL1 UUID LED BAT 1-2:ENABLE 2-3:DISABLE JBAT2 JPL1 JI2C2 JI2C1 JPCFG1 JI2C2/JI2C1 ON:ENABLE OFF:DISABLE X9SCFF-F 39 40 JPB1 JPB1 2-3:DISABLE SPKR1 JWD1:WATCH DOG 1-2:RST 2-3:NMI...

  • Page 57: X9Scff-F Quick Reference Table

    Chapter 5: Advanced Serverboard Setup X9SCFF-F Quick Reference Table Connector Description Front Panel I/O Refer to the "Front Panel I/O Connectors" Section COM1 Internal COM Ports JPWR2,JPWR1 8-Pin Power Connector JPI2C1 PWR supply (I2C) System Management Bus 4-Pin Power Connector Chassis Intrusion Header 11~14,17~20 Fans 1~4,5~8...

  • Page 58: Connector Definitions

    SUPERSERVER 5017R-iHDP User's Manual Connector Definitions Power Headers (JPWR1,JPWR2,J3) JPWR1, JPWR2 Pin Definitions These headers are used to connect Pin # Definition Pin # Definition the motherboard to the power supply +12V and are proprietary to the 1U chassis. +12V Please see the tables on the right for pin definitions.

  • Page 59: Universal Serial Bus (Usb)

    Chapter 5: Advanced Serverboard Setup Type A USB Pin Definition Pin# Definition Universal Serial Bus (USB) Five Universal Serial Bus ports are pro- USB_PN vided on the on the motherboard. Two USB_PP of these are on a header (USB 2/3), Ground and one on a Type A connector (USB 4).

  • Page 60: Tpm Header (Jtpm1)

    SUPERSERVER 5017R-iHDP User's Manual Trusted Platform Module Header Pin Definitions TPM Header (JTPM1) Pin # Definition Pin # Definition This header is used to connect a Trusted LCLK Platform Module (TPM), that is available LFRAME No Pin from a third-party vendor. A TPM is a se-...

  • Page 61: 5-10 Jumper Settings

    Chapter 5: Advanced Serverboard Setup 5-10 Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose Connector Pins between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder Jumper pad on the printed circuit board.

  • Page 62: Vga Enable/Disable

    SUPERSERVER 5017R-iHDP User's Manual VGA Enable/Disable VGA Enable/Disable Jumper Settings JPG1 allows you to enable or disable Jumper Setting Definition the VGA port. The default position is Pins 1-2 Enabled enables. See the table on the right for Pins 2-3 Disabled jumper settings.

  • Page 63: Me Manufacturing Mode

    Chapter 5: Advanced Serverboard Setup ME Manufacturing Mode ME Manufacturing Mode (JPME2) Pin# Definition Set the jumper to ME Manufacturing Normal (Default) Mode (Maintenance Mode) to enable this feature. ME Manufacturing Mode LAN1/LAN2 Enable/Disable LAN1/2 Enable/Disable Jumper Settings Change the setting of jumper JPL1/ Jumper Setting Definition JPL2 to enable or disable the LAN1 /...

  • Page 64: 5-11 Onboard Indicators

    SUPERSERVER 5017R-iHDP User's Manual 5-11 Onboard Indicators IPMI Dedicated LAN Port GLAN Link Indicator An IPMI Dedicated LAN port is included LED Color Definition on the I/O backpanel. The yellow LED No Connection or 10 on the right indicates activity, while...

  • Page 65: 5-12 Sata Ports

    Chapter 5: Advanced Serverboard Setup 5-12 SATA Ports SATA Port Pin Definitions I-SATA Ports Pin # Definition A total of six Serial ATA (SATA) ports are Ground provided on the motherboard. Of these, two ports support SATA 3.0 (I-SATA 0/1), while the remaining four are SATA 2.0.

  • Page 66: 5-13 Installing Software

    SUPERSERVER 5017R-iHDP User's Manual 5-13 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 67: Superdoctor Iii

    Chapter 5: Advanced Serverboard Setup SuperDoctor III The SuperDoctor® III program is a web-based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program allows you to monitor the environment and operations of your system.

  • Page 68: 5-14 Onboard Battery

    SUPERSERVER 5017R-iHDP User's Manual Figure 5-8. SuperDoctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/soft- ware/SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II application instead.

  • Page 69: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC816LTS-655B chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 70: Removing The Covers

    UPER ERVER 5017R-iHDP User's Manual Figure 6-1. Chassis Front View LAN Ports Low-Profile PCI-E Slot Covers COM Port Power Button UID Button Removing the Covers The SC816LT chassis features both a front and a rear cover, which allow access to the interior of the chassis. Removing the Chassis Covers 1.

  • Page 71: System Fans

    Chapter 6: Advanced Chassis Setup System Fans Eight internal system fans in two separate fan housings provide cooling for the system. The system fans are easily removed from the chassis with a screwdriver. Replacing a System Fan 1. Determine the location of the failed fan. If necessary, briefly remove the chas- sis cover while the system is running in order to locate the failed fan.
  • Page 72 UPER ERVER 5017R-iHDP User's Manual Left Side Fan Housing Right Side Fan Housing Figure 6-3. Replacing the Left and Right Fan Housings Left Side Fan Housing Right Side Fan Housing Figure 6-4. Left and Right Fan Housings...

  • Page 73: Drive Bay Installation/Removal

    4. Slide the HDD forward to release it from the mounting bracket that secures it to the floor of the chassis. Warning! Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web...
  • Page 74 UPER ERVER 5017R-iHDP User's Manual 5. Lift the HDD up and out of the chassis, noting that the number on the floor of the chassis and the corresponding number on the hard drive. 6. Transfer the number on the failed hard drive to the replacement hard drive. 7.

  • Page 75: Installing Expansion Cards

    Chapter 6: Advanced Chassis Setup Installing Expansion Cards The SC816LT chassis supports two low-profile expansion cards, one of which has a pre-installed LSI add-on card. Each expansion card connects to the motherboard with a riser card. To install expansion cards, follow the instructions below. Installing a Low-Profile Expansion Card 1.

  • Page 76: Replacing The Power Supply

    Power Supply Replacement The system must be powered down to replace the power supply. Replacement units can be ordered directly from Supermicro. Changing the Power Supply 1. Power down the system and disconnect the AC power cord from the power supply.

  • Page 77: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.) The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

  • Page 78: How To Start The Setup Utility

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 79 Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.) Supermicro X9SCFF-F Version: This item displays the version of the BIOS used in the system.

  • Page 80: Advanced Setup Configurations

    SUPERSERVER 5017R-iHDP User's Manual Advanced Setup Configurations Use the arrow keys to select Boot Setup and hit <Enter> to access the submenu items: BOOT Feature  Quiet Boot This feature allows the user to select the bootup screen display between POST messages and the OEM logo.
  • Page 81 Chapter 7: BIOS Interrupt 19 Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "trap" Interrupt 19 immediately and allow the drives that are attached to these host adaptors to function as bootable disks.
  • Page 82 SUPERSERVER 5017R-iHDP User's Manual Active Processor Cores Set to Enabled to use a processor's Second Core and beyond. (Please refer to Intel's web site for more information.) The options are All and 1. Execute-Disable Bit Capability (Available when supported by the OS and...
  • Page 83 Chapter 7: BIOS CPU C3 Report (Available when Power Technology is set to Custom) Select Enabled to allow the BIOS to report the CPU C3 State (ACPI C2) to the operating system. During the CPU C3 State, the CPU clock generator is turned off.
  • Page 84 SUPERSERVER 5017R-iHDP User's Manual Chipset Configuration  WARNING: Setting the wrong values in the following sections may cause the system to malfunction. CPU Bridge Configuration  This item displays the current CPU Revision, Current CPU1 Memory Frequency, Memory Type and Memory Reference Code Revision.
  • Page 85 Chapter 7: BIOS De-emphasis Control Use this feature to configure the de-emphasis control on PEG. The options are -6 dB and -3.5 dB. Detect Non-Compliance Device This feature enables or disables the detection of a non-compliant device that is attached to the PCI Express Graphics (PEG) port. The options are Disabled, and Enabled.
  • Page 86 SUPERSERVER 5017R-iHDP User's Manual IDE Mode The following items are displayed when IDE Mode is selected: IDE Legacy / Native Mode Selection Use this feature to specify the operating mode of the integrated SATA controllers. The options are Native and Legacy.
  • Page 87 Chapter 7: BIOS Hot Plug Set this item to Enabled to enable hot-plugging. The options are Enabled and Disabled. PCIe/PCI/PnP Configuration  This feature allows the user to set the PCI/PnP configurations for the following items: PCI Latency Timer This feature sets the latency Timer of each PCI device installed on a PCI bus. Select 64 to set the PCI latency to 64 PCI clock cycles.
  • Page 88 SUPERSERVER 5017R-iHDP User's Manual Super IO Configuration  Serial Port 1 Select Enabled to enable the onboard serial port. The options are Enabled and Disabled. Serial Port 1 Settings This option specifies the base I/O port address and the Interrupt Request address of Serial Port 1.
  • Page 89 Chapter 7: BIOS Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 Bits and 8 Bits. Parity A parity bit can be sent along with regular data bits to detect data transmission errors.
  • Page 90 SUPERSERVER 5017R-iHDP User's Manual Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400. Redirection After BIOS Post Use this feature to enable or disable legacy console redirection after BIOS POST.
  • Page 91 Chapter 7: BIOS Flow Control This feature allows the user to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop send- ing data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty.

  • Page 92: Event Logs

    SUPERSERVER 5017R-iHDP User's Manual Event Logs Change Smbios Event Log Settings  The following options are available: Smbios Event Log Change this item to enable or disable all features of the Smbios Event Logging during boot. The options are Enabled and Disabled.

  • Page 93: Ipmi Configuration

    Chapter 7: BIOS View Smbios Event Log Displays the Smbios Event Log stored in memory. IPMI Configuration Intelligent Platform Management Interface (IPMI) is a set of common interfaces that IT administrators can use to monitor system health and to manage the system as a whole.
  • Page 94 SUPERSERVER 5017R-iHDP User's Manual BMC Network Configuration  Set this feature to configure the IPMI LAN adapter with a network address. Update IPMI LAN Configuration Select Yes to update the IPMI LAN configuration. The options are Yes and No. Configuration Source...

  • Page 95: Boot Settings

    Chapter 7: BIOS Boot Settings Use this feature to configure Boot Settings: Setup Prompt Timeout Number of seconds to wait for setup activation key. Enter 65535 (0xFFFF) to wait indefinitely. The default setting is 1. Retry Boot Devices Select this option to retry booting from the configured boot devices if the systems fail to boot initially.

  • Page 96: Security Settings

    SUPERSERVER 5017R-iHDP User's Manual Security Settings Password Check Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the pass- word when entering setup and on each boot. The options are Setup and Always.

  • Page 97: Exit Options

    Chapter 7: BIOS Exit Options Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Reset When you have completed the system configuration changes, select this option to leave the BIOS Setup Utility and reboot the computer, so that the new system configuration parameters can take effect.
  • Page 98 SUPERSERVER 5017R-iHDP User's Manual Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>. This enables the user to save any changes to the BIOS setup for future use Restore User Defaults To set this feature, select Restore User Defaults from the Exit menu and press <En-...

  • Page 99: Appendix A Post Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A POST Error Beep Codes This section lists POST (Power On Self Test) error beep codes for the AMI BIOS. POST error beep codes are divided into two categories: recoverable and terminal. This section lists Beep Codes for recoverable POST errors. Recoverable POST Error Beep Codes When a recoverable type of error occurs during POST, BIOS will display a POST code that describes the problem.
  • Page 100 SUPERSERVER 5017R-iHDP User's Manual Notes...

  • Page 101: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors One Intel Xeon E3-1200 V2 series (Socket H2) processor ® Note: refer to our web site for details on supported processors and operating systems. Chipset Intel PCH C204 BIOS 64Mb SPI AMI BIOS SM Flash BIOS ®...
  • Page 102 SUPERSERVER 5017R-iHDP User's Manual Weight Gross Weight: 38 lbs. (17.3 kg.) System Cooling Eight 4-cm high performance fans System Input Requirements AC Input Voltage: 100-240VAC auto-range Rated Input Current: 8.5A max. Rated Input Frequency: 50 to 60 Hz Power Supply Rated Output Power: 650W (Part# PWS-655P-1HS) Rated Output Voltages: +12V (54.1A), +5Vsb (3A)
  • Page 103 Appendix B: System Specifications Notes...
  • Page 104 SUPERSERVER 5017R-iHDP User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
