SC829H
SC829HE1C4-R1K02LPB
SC829HE1C4-R1K62LPB
USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC829H and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SC829H

Summary of Contents for Supermicro SC829H

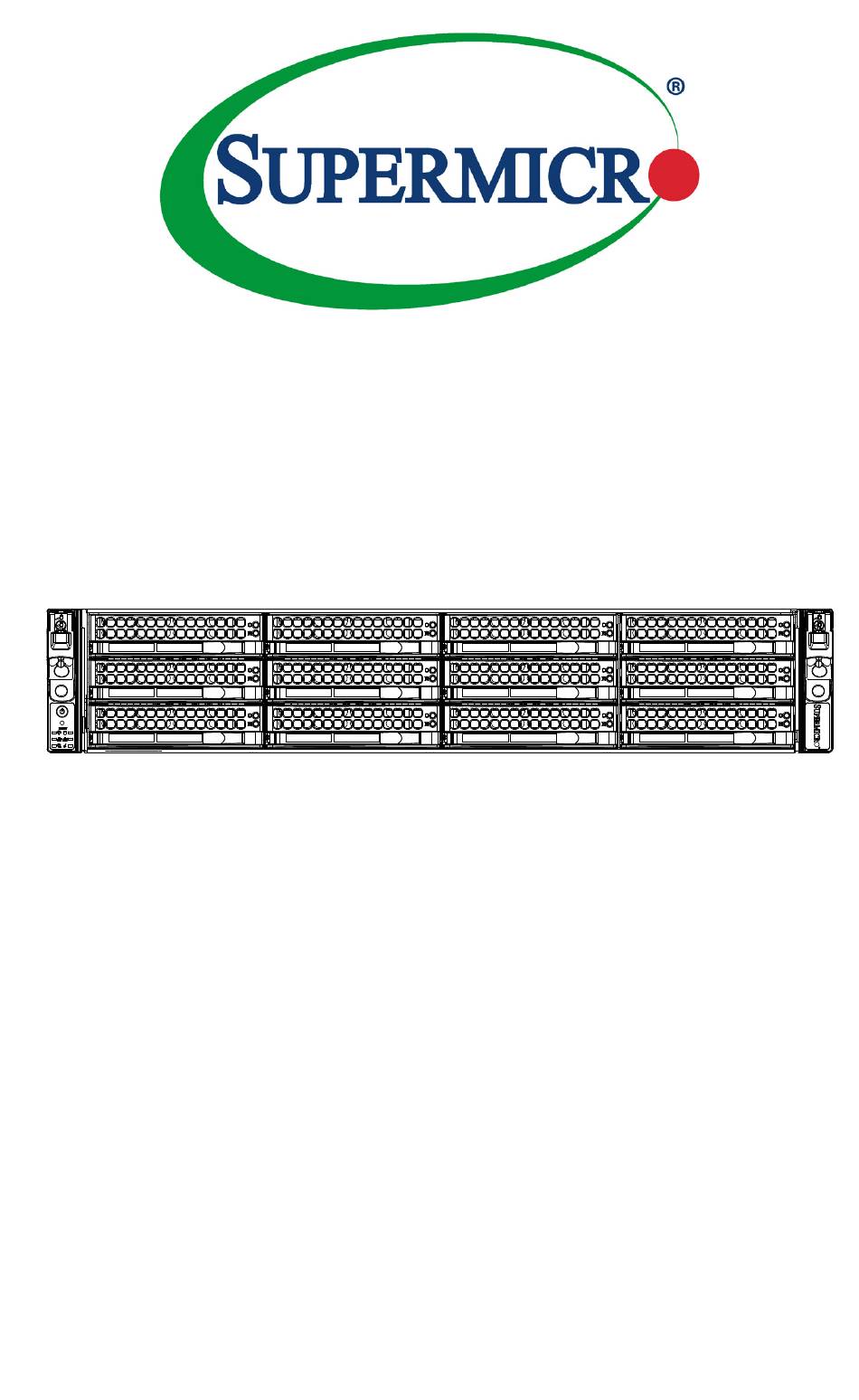

  • Page 1 SC829H SC829HE1C4-R1K02LPB SC829HE1C4-R1K62LPB USER’S MANUAL Revision 1.0b...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 Installation and maintenance should be performed by experienced technicians only. This document lists compatible parts available when this document was published. Refer to the Supermicro web site for updates on supported parts and configurations.

  • Page 4: Table Of Contents

    SC829H Chassis Manual Contents Chapter 1 Introduction Overview ......................1-1 Models ......................1-1 Features ......................1-2 Drives ......................1-2 System Power ....................1-2 Front Control Panel ..................1-2 Cooling System ....................1-2 Contacting Supermicro ..................1-3 Returning Merchandise for Service..............1-4 Chapter 2 Standardized Warning Statements for AC/DC Systems About Standardized Warning Statements ............
  • Page 5 Preface Chapter 4 Chassis Setup and Maintenance Removing Power from the System ..............4-1 Removing the Middle Top Cover ..............4-2 Removing the Rear Top Cover ............... 4-3 Hard Drives ..................... 4-4 Removing 3.5" Hot-Swappable Front Hard Drive Carriers ......4-4 Installing 3.5"...
  • Page 6 Installing the Inner Rails on the Chassis ............5-6 Installing the Outer Rails onto the Rack ............5-7 Sliding the Chassis onto the Rack Rails ............5-8 Appendix A SC829H Power Supply Specifications Appendix B BPN-SAS-826A Backplane Specifications Appendix C BPN-SAS2-826EL Backplane Specifications...

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction Overview Supermicro's SC829H chassis maximizes the storage capacity of a 2U form factor by offering sixteen hot-swappable hard drive bays. It is ideal for data storage applications. The chassis design optimizes every aspect of interior space, without compromising superior cooling and is equipped with a redundant power supply.

  • Page 8: Features

    SC829H Chassis Manual Features Drives The chassis supports sixteen 3.5" hot-swap SAS3/SATA hard disk drives and two optional 2.5" hot-swap drives for OS mirroring. System Power Different models offer redundant power supply modules of several different watt- ages. Front Control Panel The control panel provides a monitoring and control interface.

  • Page 9: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 10: Returning Merchandise For Service

    For faster service, RMA authorizations may be requested online (http://www. supermicro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

  • Page 11: Chapter 2 Standardized Warning Statements For Ac/Dc Systems

    Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.These warnings may also be found on our web site at http:// www.supermicro.com/about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger.
  • Page 12 SC829H Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 13 Warning Statements for AC Systems !‫تحذٌز‬ ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 14: Installation Instructions

    SC829H Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 15: Circuit Breaker

    Chapter 2: Warning Statements for AC/DC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 60VDC, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が60VDC、...

  • Page 16: Power Disconnection Warning

    SC829H Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 60V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 60V, 20A.
  • Page 17 Chapter 2: Warning Statements for AC/DC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 18: Equipment Installation

    SC829H Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 19: Restricted Area

    Chapter 2: Warning Statements for AC/DC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 20: Battery Handling

    SC829H Chassis Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
  • Page 21 Chapter 2: Warning Statements for AC/DC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 22: Redundant Power Supplies

    SC829H Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 23: Backplane Voltage

    Chapter 2: Warning Statements for AC/DC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 24: Comply With Local And National Electrical Codes

    SC829H Chassis Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 25: Product Disposal

    Chapter 2: Warning Statements for AC/DC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 26: Hot Swap Fan Warning

    SC829H Chassis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 27 Chapter 2: Warning Statements for AC/DC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 28: Dc Power Supply

    SC829H Chassis Manual DC Power Supply Warning! When stranded wiring is required, use approved wiring terminations, such as closedloop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and conductor.
  • Page 29 Chapter 2: Warning Statements for AC/DC Systems Attention Quand des fils torsadés sont nécessaires, utiliser des douilles terminales homologuées telles que celles à circuit fermé ou du type à plage ouverte avec cosses rebroussées. Ces douilles terminales doivent être de la taille qui convient aux fils et doivent être refermées sur la gaine isolante et sur le conducteur.

  • Page 30: Dc Power Disconnection

    SC829H Chassis Manual DC Power Disconnection Warning! Before performing any of the following procedures, ensure that power is removed from the DC circuit. 警告 次の手順を開始する前に、 DC回路から電源が切断されているこ とを確認してく ださい。 警告 進行以下任一操作程序前，請確保直流電路已斷電。 警告 请在进行以下任一操作程序前，确保直流电路的电源已经断开。 Warnung Vor Ausführung der folgenden Vorgänge ist sicherzustellen, daß die Gleichstromschaltung keinen Strom erhält.

  • Page 31: Hazardous Voltage Or Energy Present On Dc Power Terminals

    Chapter 2: Warning Statements for AC/DC Systems 주의! 다음 절차들을 수행하기 전에, 전원이 DC회로로부터 제거되었는지를 확인해 주십시오. Waarshuwing Wanneer geslagen bedrading vereist is, dient u bedrading te gebruiken die voorzien is van goedgekeurde aansluitingspunten, zoals het gesloten-lus type of het grijperschop type waarbij de aansluitpunten omhoog wijzen.
  • Page 32 SC829H Chassis Manual ¡Advertencia! Puede haber energía o voltaje peligrosos en los terminales eléctricos de CC. Reemplace siempre la cubierta cuando no estén utilizándose los terminales. Asegúrese de que no haya acceso a conductores descubiertos cuando la cubierta esté colocada.

  • Page 33: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview The SC829H chassis includes: • A control panel on the front that includes power buttons and status monitoring lights • Status lights on externally accessable hard drives • Status lights for the power supplies...

  • Page 34: Control Panel Buttons

    SC829H Chassis Manual Control Panel Buttons The chassis includes two push-buttons that control power to the system. Power: The main power switch is used to apply or remove power from the power supply to the server. Turning off system power with this button removes the main power but maintains standby power.

  • Page 35: Overheating

    There are several possible responses if the system overheats. Overheat Temperature Setting Some backplanes allow the overheat temperature to be set at 45, 50, or 55 degrees by changing a jumper setting. For more information, consult the backplane user manual on the Supermicro website.

  • Page 36: Responses

    SC829H Chassis Manual Responses If the server overheats 1. Use the LEDs to determine the nature of the overheating condition. 2. Confirm that the chassis covers are installed properly. 3. Check the routing of the cables and make sure all fans are present and operating normally.

  • Page 37: Removing Power From The System

    Chapter 4: Chassis Setup and Maintenance Chapter 4 Chassis Setup and Maintenance This chapter covers the steps required to install components and perform maintenance on the chassis. The only tool required is a Phillips screwdriver. Note and heed the warnings and precautions listed in Chapter 2: Warning Statements for AC/DC Systems, and those listed in the setup instructions.

  • Page 38: Removing The Middle Top Cover

    SC829H Chassis Manual Removing the Middle Top Cover Figure 4-1. Removing the Chassis Middle Top Cover Removing the Chassis Cover 1. Power down the server as descrbed in section 4-1 and lay the chassis on a flat stable surface. 2. Remove the two screws from the sides of the chassis cover.

  • Page 39: Removing The Rear Top Cover

    Chapter 4: Chassis Setup and Maintenance Removing the Rear Top Cover Figure 4-2. Removing the Rear Top Chassis Cover Removing the Rear Top Chassis Cover 1. Power down the server as descrbed in Section 4-1 and remove the middle top cover as described in Section 4-2.

  • Page 40: Hard Drives

    SC829H Chassis Manual Hard Drives The SC829H chassis supports twelve hot-swappable 3.5" front hard drives, two 2.5" hot-swappable hard drives mounted in a hard drive cage, and four hot-swappable internal 3.5" hard drives. Hot-swappable hard drives may be removed without powering-down the system. These drives are mounted in drive carriers to simplify their installation and removal from the chassis.

  • Page 41: Installing 3.5" Hard Drives In The Carriers

    Chapter 4: Chassis Setup and Maintenance Installing 3.5" Hard Drives in the Carriers Caution: Except for short periods of time (swapping hard drives), do not operate the server with the hard drive bays empty. Note: Your operating system must have RAID support to enable the hot-swap capability of the drives.
  • Page 42 SC829H Chassis Manual SAS/SATA Hard Drive Hard Drive Carrier Use a hard, stable surface when installing the hard drive Figure 4-6. Installing a Drive into the Carrier 4. Slide the hard drive into the carrier with the printed circuit board side facing down.

  • Page 43: Installing The Rear 2.5" Hard Drive Cage

    Chapter 4: Chassis Setup and Maintenance Installing the Rear 2.5" Hard Drive Cage The SC829HB model chassis supports an optional hard drive cage for two additional 2.5" hot-swappable hard drives. The hard drive cage installs in the rear of the chassis next to the power supply.
  • Page 44 SC829H Chassis Manual 5. Secure the top of the hard drive cage to the chassis frame with two screws, fastened at the upper edge of the hard drive cage above the opening of the hard drive cage. 6. Secure the back of the hard drive cage to the chassis with one screw as shown above.

  • Page 45: Installing 2.5" Rear Drives Into Carriers

    Chapter 4: Chassis Setup and Maintenance Installing 2.5" Rear Drives Into Carriers Figure 4-8. Removing the Dummy Drive from the Drive Carrier Installing a Hard Drive into a 2.5" Rear Drive Carrier 1. Insert a hard drive into the carrier with the PCB side facing down and the connector end toward the rear of the carrier.

  • Page 46: Installing Internal Hot-Swap 3.5" Hard Drives

    SC829H Chassis Manual Installing Internal Hot-Swap 3.5" Hard Drives SC829H chassis support four internal hot-swap 3.5" hard drives which are mounted in individual hard drive trays, contained in an internal chassis tray. After the chassis tray has been installed into the chassis, the power can stay on when removing or installing the hot-swap hard drives from their individual trays.
  • Page 47 Chapter 4: Chassis Setup and Maintenance 5. Lift the individual trays up and out of the chassis tray. Figure 4-12. Removing the Hard Drive Carrier from the Hard Drive Tray 6. Place a hard drive into each of the individual trays and secure it with four screws (optional).
  • Page 48 SC829H Chassis Manual 7. Place the hard drives and individual trays into the chassis tray. Figure 4-14. Installing a Hard Drive and Individual Tray into the Chassis Tray 8. Secure the individual trays into the chassis tray with four screws.
  • Page 49 Chapter 4: Chassis Setup and Maintenance 9. Place the loaded chassis tray into the chassis. 10. Secure the chassis tray with the two side screws previously set aside. 11. Plug the power cords into the rear of the power supply, replace the top cover and power up the system.

  • Page 50: Removing And Installing The Backplane

    Removing and Installing the Backplane Removing and Installing the Backplane The SC829H backplane is located in the back of the hard drive tray. In the unlikely event that it is necessary to replace the backplane, it is necessary to remove the hard drives from the tray.
  • Page 51 Chapter 4: Chassis Setup and Maintenance Figure 4-18. Installing the Backplane Installing the Backplane 1. Place the backplane into the chassis tray as illustrated above, aligning the mounting holes on the backplane with those in the chassis tray. 2. Secure the backplane to the rear of the chassis tray using the five screws previously set aside.

  • Page 52: Installing The Motherboard

    SC829H Chassis Manual Installing the Motherboard I/O Shield The I/O shield holds the motherboard ports in place. Install the I/O shield before installing the motherboard. I/O Shield Figure 4-19. I/O Shield Placement Installing the I/O Shield 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, and precautions.

  • Page 53: Permanent And Optional Standoffs

    Chapter 4: Chassis Setup and Maintenance Permanent and Optional Standoffs Standoffs prevent short circuits by securing space between the motherboard and the chassis surface. The chassis includes permanent standoffs in locations used by most motherboards. These standoffs accept the rounded Phillips head screws included in the accessories packaging.

  • Page 54: Installing The Motherboard

    SC829H Chassis Manual Installing the Motherboard Installing the Motherboard 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connections. 2. Lay the chassis on a flat, stable surface and remove the chassis covers as described in Section 4-2 and Section 4-3.

  • Page 55: Installing Expansion Cards

    Chapter 4: Chassis Setup and Maintenance Installing Expansion Cards The SC829H chassis supports either WIO (WIO is the new version of UIO or Uni- versal In/Out, with seven non-proprietary industry standard PCI slots in 1U and 2U chassis form factors) or LP (low-profile) expansion cards. Note that the motherboard must be installed before installing expansion cards.

  • Page 56: Installing The Air Shroud

    Perforated Tabs Perforated Tabs Figure 4-23. Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The SC829H chassis air shroud does not require screws to set it up. Installing the Air Shroud 1. Power down the server as desscribed in section 4-1, lay the chassis on a flat, stable surface and remove the chassis cover as described in Section 4-2.

  • Page 57: Checking The Airflow

    Chapter 4: Chassis Setup and Maintenance Checking the Airflow Checking the Server's Airflow • Make sure there are no objects to obstruct airflow in and out of the server. In addition, if you are using a front bezel, make sure the bezel's filter is replaced periodically.

  • Page 58: System Maintenance

    SC829H Chassis Manual System Maintenance In most cases, the chassis power supply and fans are pre-installed. Procedures to replace them follow. System Fans Four heavy-duty fans provide cooling for the chassis. Release Tab Figure 4-24. System Fan Replacing a System Fan 1.
  • Page 59 Chapter 4: Chassis Setup and Maintenance Figure 4-25. Placing the System Fan in the Chassis 4-23...

  • Page 60: Power Supply

    100v to 240v. An amber light on the power supply is illuminated when the power is switched off. An green light indicates that the power supply is operating. Replacement power supply units can be ordered directly from Supermicro. Figure 4-26. Removing the Power Supply Changing the Power Supply 1.

  • Page 61: Power Distributor

    Chapter 4: Chassis Setup and Maintenance Figure 4-27. Replacing the Power Distributor Power Distributor Chassis that are 2U or more in height require a power distributor. The power distributor provides failover and power supply redundancy. Changing the Power Distributor 1. Power down the server as described in section 4-1, lay the chassis on a flat, stable surface and remove the chassis covers as described in Section 4-2 and Section 4-3.

  • Page 62: Optional Front Bezel

    SC829H Chassis Manual Optional Front Bezel The SC829H chassis supports an optional full-face locking front bezel for added security. It can be ordered separately from the Supermico website referencing part number MCP-210-82601-0B. 4-26...

  • Page 63: Chapter 5 Rack Installation

    Chapter 5: Rack Installation Chapter 5 Rack Installation This chapter provides instructions for preparing and mounting your chassis in a rack. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way.

  • Page 64: Warnings And Precautions

    SC829H Chassis Manual Warnings and Precautions Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installations, stabilizers should be attached to the rack.

  • Page 65: Rack Mounting Considerations

    Chapter 5: Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (TMRA).

  • Page 66: Installing The System Into A Rack

    SC829H Chassis Manual Installing the System into a Rack This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 67: Releasing The Inner Rail

    Chapter 5: Rack Installation Releasing the Inner Rail Each inner rail has a locking latch. This latch prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing. To mount the rail onto the chassis, first release the inner rail from the outer rails. Releasing Inner Rail from the Outer Rails 1.

  • Page 68: Installing The Inner Rails On The Chassis

    SC829H Chassis Manual Installing the Inner Rails on the Chassis Installing the Inner Rails 1. Identify the left and right inner rails. They are labeled. 2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.

  • Page 69: Installing The Outer Rails Onto The Rack

    Chapter 5: Rack Installation Installing the Outer Rails onto the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2. Push the middle rail back into the outer rail. 3.

  • Page 70: Sliding The Chassis Onto The Rack Rails

    SC829H Chassis Manual Sliding the Chassis onto the Rack Rails Warning: Mounting the system into the rack requires at least two people to support the chassis during installation. Please follow safety recommendations printed on the rails. Installing the Chassis into a Rack 1.

  • Page 71: Appendix A Sc829H Power Supply Specifications

    Appendix B: Power Supply Specifications Appendix A SC829H Power Supply Specifications This appendix lists power supply specifications for the SC829H chassis models. 1000W MFR Part # PWS-1K021R 100-127V, 50-60Hz AC Input 200-240V, 50-60Hz Max: 62.5A and min. 0 amps (100Vac-127Vac) +12V Max: 83A (200Vac-240Vac) and min.
  • Page 72 SC829H Chassis Manual Notes...

  • Page 73: Appendix B Bpn-Sas-826A Backplane Specifications

    Appendix B: SAS-826A Backplane Specifications Appendix B BPN-SAS-826A Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. B-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully The following measures are generally sufficient to protect your equipment from ESD.
  • Page 74 This manual reflects BPN-SAS-826A Revision 1.00, the most current release available at the time of publication. Always refer to the Supermicro website at www.supermicro.com for the latest updates, compatible parts and supported...
  • Page 75 Appendix B: BPN-SAS-826A Backplane Specifications B-5 Front Connectors SAS826A C202 JP25 JP84 JP84:MODE REV 1.00 1-2:SGPIO C215 ALARM#1 2-3:I2C R325 9071 RST C285 9072 RST R376 JP69 C198 JP25:OH#1 TEMP UPGRADE#1 DESIGNED IN USA OPEN:45 1-2:50 JP78 2-3:55 C271 C272 C208 R226 C201...
  • Page 76 SC829H Chassis Manual B-6 Front Connector and Pin Definitions 1. Activity LED Headers SAS Activity LED Header Pin Definitions The activity LED headers, designated JP26 Pin # Definition Pin # Definition and JP47, are used to indicate the activity ACT IN#0 ACT IN#4 status of each SAS drive.
  • Page 77 Appendix B: BPN-SAS-826A Backplane Specifications 6. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors, designated JP10, 4-Pin Connector JP13, and JP46 provide power to the Pin# Definition backplane. See the table on the right for +12V pin definitions. 2 and 3 Ground 7., 8., 9.
  • Page 78 SC829H Chassis Manual B-7 Front Jumper Locations and Settings JP84 SAS826A C202 JP25 JP84 JP50 REV 1.00 JP84:MODE 1-2:SGPIO ALARM#1 C215 2-3:I2C R325 JP35 9071 RST C285 9072 RST JP69 C198 R376 JP25:OH#1 TEMP UPGRADE#1 DESIGNED IN USA OPEN:45 1-2:50...
  • Page 79 Appendix B: BPN-SAS-826A Backplane Specifications C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. SGPIO is the default mode and can be used without making changes to your jumpers. The following information details which jumper must be configured to use SGPIO mode or restore your backplane to I C mode.
  • Page 80 SC829H Chassis Manual Front LED Indicators SAS826A C202 Alarm 1 JP25 JP84 REV 1.00 JP84:MODE 1-2:SGPIO ALARM#1 C215 2-3:I2C R325 9071 RST C285 9072 RST JP69 C198 R376 JP25:OH#1 TEMP UPGRADE#1 DESIGNED IN USA OPEN:45 1-2:50 JP78 2-3:55 C271 C272...
  • Page 81 Appendix B: BPN-SAS-826A Backplane Specifications B-8 Rear Connectors and LED Indicators R174 SAS #2 SAS #11 SAS #8 SAS #5 SAS #1 SAS #7 SAS #10 SAS #4 SAS826A SAS #0 SAS #3 SAS #9 REV 1.00 SAS #6 Figure B-4. Rear Connectors and LEDs Rear SAS/SATA Connectors Rear SAS Drive...
  • Page 82 SC829H Chassis Manual Notes B-10...

  • Page 83: Appendix C Bpn-Sas2-826El Backplane Specifications

    Apendix C: BPN-SAS2-826EL Backplane Specifications Appendix C BPN-SAS2-826EL Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 84 This manual reflects BPN-SAS2-826EL Revision 1.00, the most current release available at the time of publication. Always refer to the Supermicro website at www.supermicro.com for the latest updates, compatible parts and supported configurations.
  • Page 85 UPER UPER R R R R R R R R R R UNLESS OTHERWISE SPECIFIED DIMENSIONS PRIMARY-SIDE ARE IN INCHES DESINGER: Teddy/Ben TOLERANCES DESIGNED BY SUPERMICRO U.S.A. DECIMAL ANGLE www.supermicro.com DATE: 2009.12.15 REV: 1.00 MACH FINISH SAN JOSE,CA 95131 .010...
  • Page 86 SC829H Chassis Manual C-7 Front Connector and Settings 1. EPP Ports The EPP ports are used for manufacturer di- agnostic purposes only. 2. Primary and Secondary Expander Chips This primary and secondary expander chips allow the backplane to support dual port, cas- cading, and failover configurations.
  • Page 87 UPER UPER R R R R R R R R R R UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Teddy/Ben TOLERANCES DESIGNED BY SUPERMICRO U.S.A. DECIMAL ANGLE www.supermicro.com DATE: 2009.12.15 REV: 1.00 Figure C-2. Front Jumpers MACH FINISH SAN JOSE,CA 95131 .010...
  • Page 88 SC829H Chassis Manual General Jumper Settings Jumper Jumper Settings Note PRI_MODE1 Pins 2-3 Factory setting do not change. PRI_MODE2 Pins 2-3 Factory setting do not change. SEC_MODE1 Pins 2-3 Factory setting do not change. SEC_MODE2 Pins 2-3 Factory setting do not change.
  • Page 89 UPER UPER R R R R R R R R R R UNLESS OTHERWISE SPECIFIED DIMENSIONS PRIMARY-SIDE ARE IN INCHES DESINGER: Teddy/Ben TOLERANCES DESIGNED BY SUPERMICRO U.S.A. DECIMAL ANGLE www.supermicro.com DATE: 2009.12.15 REV: 1.00 MACH FINISH SAN JOSE,CA 95131 .010...
  • Page 90 SC829H Chassis Manual C-10 Rear Connectors and LED Indicators ACT#2 ACT#5 ACT#8 ACT#11 FAIL#2 FAIL#8 FAIL#5 FAIL#11 SAS #11 SAS #5 SAS #2 SAS #8 ACT#4 ACT#7 ACT#1 ACT#10 FAIL#1 FAIL#4 FAIL#7 FAIL#10 SAS #7 SAS #4 SAS #1 SAS #10...
  • Page 91 UPER R R R R R R R R R R UNLESS OTHERWISE From HBA or higher SPECIFIED DIMENSIONS PRIMARY-SIDE ARE IN INCHES DESINGER: Teddy/Ben TOLERANCES DESIGNED BY SUPERMICRO U.S.A. www.supermicro.com DECIMAL ANGLE DATE: 2009.12.15 REV: 1.00 MACH FINISH backplane...
  • Page 92 SC829H Chassis Manual C-12 Failover The BPN-SAS2-826EL2 backplane has two expanders which allow effective failover and recovery. Single Host Bus Adapter SAS HBA In a single host bus configuration, the backplane connects to one host bus adapter. PRI_MODE2 UART_S1 ACTLED1...
  • Page 93 UPER UPER R R R R R R R R R R UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Teddy/Ben TOLERANCES DESIGNED BY SUPERMICRO U.S.A. DECIMAL ANGLE www.supermicro.com DATE: 2009.12.15 REV: 1.00 Port B Port A MACH FINISH SAN JOSE,CA 95131 .010...
  • Page 94 SC829H Chassis Manual C-14 Cables and Chassis Power Card Chassis Power Card In a cascaded configuration, the first chassis includes a motherboard and at least one host bus adapter. Other servers in this enclosed system must include a power card. This section describes the supported power card for the BPN-SAS2-826EL backplane system.
  • Page 95 UPER UPER R R R R R R R R R R UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Teddy/Ben TOLERANCES DESIGNED BY SUPERMICRO U.S.A. www.supermicro.com DECIMAL ANGLE DATE: 2009.12.15 REV: 1.00 SAN JOSE,CA 95131 MACH FINISH TEL:408-503-8000 FAX:408-503-8008...
  • Page 96 SC829H Chassis Manual Supported Internal HBA to Backplane Cables Use the following listed cables to create connections between the internal HBA and backplane. The cables required depend on the HBA connector. Cable Name: iPass to 4-Lane Part #: CBL-0117 Length: 46 cm (18 inches) Description: This cable has one SFF-8484 (32-pin) connector on one end and one iPass (SFF-8087/Mini-SAS) connector (36-pin) at the other.
  • Page 97 UPER UPER R R R R R R R R R R SILKSCREEN UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Teddy/Ben DESIGNED BY SUPERMICRO U.S.A. TOLERANCES www.supermicro.com DATE: 2009.12.15 REV: 1.00 DECIMAL ANGLE SAN JOSE,CA 95131 MACH FINISH...
  • Page 98 SC829H Chassis Manual Supported External HBA to Backplane Cable Use the following cable if your external HBA has an InfiniBand connector. Figure C-11. The CBL-0200L Cable Cable Name: SAS InfiniBand to Mini-SAS X4 1M cable, PBF Part #: CBL-0200L Length: 1 meter Description: This cable has an InfiniBand connector (SFF-8470) on one end and an SFF-8088-1X (26-pin) connector at the other end.
  • Page 99 UPER R R R R R R R R R R SILKSCREEN UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Teddy/Ben TOLERANCES DESIGNED BY SUPERMICRO U.S.A. www.supermicro.com DECIMAL ANGLE DATE: 2009.12.15 REV: 1.00 MACH FINISH SAN JOSE,CA 95131 TEL:408-503-8000 FAX:408-503-8008...
  • Page 100 SC829H Chassis Manual Single HBA Configuration Cables Single Port Cable Assembly Figure C-13. The CBL-0167L Cable Cable Name: BPN-SAS EL2/EL1 Backplane Cable (Internal) with 2-port Cascading Cable, 68 cm Part #: CBL-0167L (SFF-8087 to SFF-8088 x1) Ports: Single Placement: Internal cable Description: Internal cable.
  • Page 101 UPER UPER UPER R R R R R R R R R R UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Teddy/Ben DESIGNED BY SUPERMICRO U.S.A. TOLERANCES www.supermicro.com DATE: 2009.12.15 REV: 1.00 DECIMAL ANGLE SAN JOSE,CA 95131 MACH FINISH...
  • Page 102 SC829H Chassis Manual Dual HBA Configuration Cables Dual Port Cable Assembly Figure C-16. The CBL-0168L Cable Cable Name: SAS Dual-port Cable Assembly, 68/76 cm Part #: CBL-0168L (SFF-8087 to SFF-8088 x2 Ports: Dual Placement: Internal cable Description: Internal cascading cable. Connects the backplane to the host bus adapter or external port.
  • Page 103 UPER UPER R R R R R R R R R R UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Teddy/Ben TOLERANCES DESIGNED BY SUPERMICRO U.S.A. www.supermicro.com DECIMAL ANGLE DATE: 2009.12.15 REV: 1.00 MACH FINISH SAN JOSE,CA 95131 PROJECT NAME: BPN-SAS2-826EL2 .010...
  • Page 104 SC829H Chassis Manual Server System with Dual SAS HBA and Cascading Configuration IMPORTANT: See Section C-13 of this manual, Failover with RAID Cards and Multiple HBAs for important information on supported configurations. PRI_MODE2 UART_S1 ACTLED1 PRI_MODE1 EC19 OVERHEATFAIL1 BC518 BUZZER_ENB1...

  • Page 105: Appendix D Bpn-Sas3-826El Backplane Specifications

    Appendix D: BPN-SAS3-826EL Backplane Specifications Appendix D BPN-SAS3-826EL Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. D-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 106 This manual reflects BPN-SAS3-826EL Revision 1.00, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermicro.com for the latest updates, compatible parts and supported configurations.
  • Page 107 Appendix D: BPN-SAS3-826EL Backplane Specifications D-5 Front Connectors HB-LED PRI-SDB LED28 C502 I2C#4 DESIGNED IN USA LED29 I2C#0 LED25 LED26 BPN-SAS3-826EL1 SEC-UART SAS CODE PRI-UART C496 C497 SEC-SDB REV:1.00 SAS CODE C501 C495 ACT-LED SECONDARY EXPANDER C494 C492 C498 TEST C499 PRIMARY EXPANDER JPW3...
  • Page 108 SC829H Chassis Manual D-6 Front Connector and Pin Definitions 1. - 2. Primary and Secondary Expander Chips The primary and secondary expander chips allow the backplane to support dual port, cas- cading, and failover configurations. 3. Backplane Main Power Connectors...
  • Page 109 Appendix D: BPN-SAS3-826EL Backplane Specifications D-7 Front Jumper Location and Settings HB-LED PRI-SDB LED28 C502 DESIGNED IN USA LED29 I2C#4 I2C#0 LED25 LED26 BPN-SAS3-826EL1 SEC-UART SAS CODE PRI-UART C496 C497 SEC-SDB REV:1.00 SAS CODE C501 C495 ACT-LED SECONDARY EXPANDER C494 C492 C498 TEST...
  • Page 110 SC829H Chassis Manual D-8 Front LED Indicators HB-LED HB-LED (J28) LED27 (J29) HB-LED PRI-SDB LED28 C502 I2C#4 DESIGNED IN USA LED29 I2C#0 LED25 LED26 BPN-SAS3-826EL1 SEC-UART SAS CODE PRI-UART C496 C497 SEC-SDB REV:1.00 SAS CODE C501 C495 ACT-LED SECONDARY EXPANDER...
  • Page 111 Appendix D: BPN-SAS3-826EL Backplane Specifications D-9 Rear Connectors and LED Indicators LED3 LED6 LED9 LED12 LED15 LED21 LED18 LED24 C581 DRV#12 DRV#6 DRV#3 DRV#12 DRV#6 DRV#9 DRV#3 DRV#9 C173 C172 LED5 LED8 LED2 C171 LED11 C170 C158 C159 C161 C160 LED14 LED17 LED20...
  • Page 112 SC829H Chassis Manual Dual Port and Cascading Configurations D-10 Single and Dual Port Expanders SAS connectors PRI-J1 to J4 and SEC-J1 to J4 are bidirectional and can be treated as input or output. Single Ports BPN-SAS3-826EL1 backplanes have a single port expander that accesses all of the drives and supports cascading.
  • Page 113 Appendix D: BPN-SAS3-826EL Backplane Specifications D-11 Failover The BPN-SAS3-826EL2 model backplane has two expanders which enable effective failover and recovery. Single Host Bus Adapter SAS HBA In a single host bus configuration, the backplane connects to one host bus adapter. PRI-J4 LED28 HB-LED...
  • Page 114 SC829H Chassis Manual D-12 Failover with RAID Cards and Multiple HBAs The BPN-SAS3-826EL backplane may be configured for failover with multiple HBAs using either RAID controllers or HBAs to acheive failover protection. RAID Controllers: If RAID controllers are used, then the failover is accomplished through port failover on the same RAID card.
  • Page 115 (HBA). Other servers in this enclosed system must be equipped with a control card. This section describes the supported control card for the BPN-SAS3-826EL series backplane. For more information, see the Supermicro web site at www.supermicro.com. FAN4 FAN3...
  • Page 116 SC829H Chassis Manual Connecting an Internal HBA to the Backplane The following section lists the most common cables used to connect the HBA to the backplane. HB-LED PRI-SDB LED28 DESIGNED IN USA LED29 C502 I2C#4 I2C#0 PRI-J4 LED25 LED26 BPN-SAS3-826EL1...
  • Page 117 Appendix D: BPN-SAS3-826EL Backplane Specifications Cable Name: Internal iPass (Mini-SAS) to HD (Mini-SAS) Part #: CBL-SAST-0508-01 Length: 50 cm (19 inches) Part #: CBL-SAST-0507-01 Length: 80 cm (31 inches) Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36-pin) at one end and a Mini-SAS HD (SFF-8643) connector at the other end.
  • Page 118 SC829H Chassis Manual Connecting an External HBA to the Backplane This backplane supports external host bus adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD (Just a Bunch Of Drives) configuration from an existing system.
  • Page 119 Appendix D: BPN-SAS3-826EL Backplane Specifications Connecting Multiple Backplanes in a Single Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables. CBL-SAST-0531 (Internal Cable) HB-LED PRI-SDB LED28 DESIGNED IN USA PRI-J4...
  • Page 120 SC829H Chassis Manual Single HBA Configuration Cables Figure D-17. External Mini-SAS HD to External Mini-SAS HD Cable Cable Name: 1 Meter External Mini-SAS HD to External Mini-SAS HD Cable Part #: CBL-SAST-0573 Ports: Single Placement: External Cable Description: External cascading cable, connects ports between servers and JBODs.
  • Page 121 Appendix D: BPN-SAS3-826EL Backplane Specifications Connecting Multiple Backplanes in a Dual Channel Environment This section describes the cables used when cascading from dual HBAs. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables. Port A Expander 1 Port B Expander 2 LED28 HB-LED PRI-SDB...
  • Page 122 SC829H Chassis Manual Notes D-18...

  • Page 123: Appendix E Bpn-Sas3-829Ha Backplane Specifications

    Appendix E: BPN-SAS3-829HA Backplane Specifications Appendix E BPN-SAS3-829HA Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 124 SC829H Chassis Manual Front Connectors +12V JP10 LED_FP: JP35: ATMEL RST: LED_FP DRIVE FAIL_ALL LED TEST C149 JP35 1 2 3 1-2:RST JSM1 JP41 2-3:NO RST PRESS FIT BPN-SAS3-829HA-A4 BAR CODE REV:1.01 DESIGNED IN USA CUT OUT JP46 UPGRADE Figure E-1. Front Connectors 1.
  • Page 125 Appendix E: BPN-SAS3-829HA Backplane Specifications Front Jumper JP35 LED_FP: +12V JP10 JP35: C149 ATMEL RST: LED_FP DRIVE FAIL_ALL LED TEST JP35 1 2 3 1-2:RST 2-3:NO RST JSM1 JP41 PRESS FIT BPN-SAS3-829HA-A4 BAR CODE REV:1.01 DESIGNED IN USA CUT OUT LED_FP JP46 UPGRADE...
  • Page 126 SC829H Chassis Manual Rear Connectors and LED Indicators ACT#3 FAIL#3 FAIL#1 ACT#1 FAIL#2 ACT#2 FAIL#0 ACT#0 SAS#0 SAS#1 SAS#2 SAS#3 SAS#0 SAS#1 SAS#2 SAS#3 Figure E-3. Rear Connectors and LEDs Rear SAS3 Connectors Rear Connector SAS Drive Number SAS#0 SAS/SATA HDD #0...

This manual is also suitable for:

Sc829he1c4-r1k02lpbSc829he1c4-r1k62lpbSuperchassis 829hac12-r1k62lpbSuperchassis 829he1c4-r1k02lpbSuperchassis 829he1c4-r1k62lpb

Table of Contents
