OWNER'S MANUAL & OPERATING INSTRUCTIONS
1500 Peak Watts / 1200 Running Watts
PORTABLE GENERATOR
MODEL NUMBER
42451
10006 Santa Fe Springs Road
SAVE THESE INSTRUCTIONS
Santa Fe Springs CA 90670
Important Safety Instructions
USA / 1-877-338-0999
MADE IN CHINA
are included in this manual.
REV 42451-20120710
www.championpowerequipment.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Champion 42451
Summary of Contents for Champion 42451

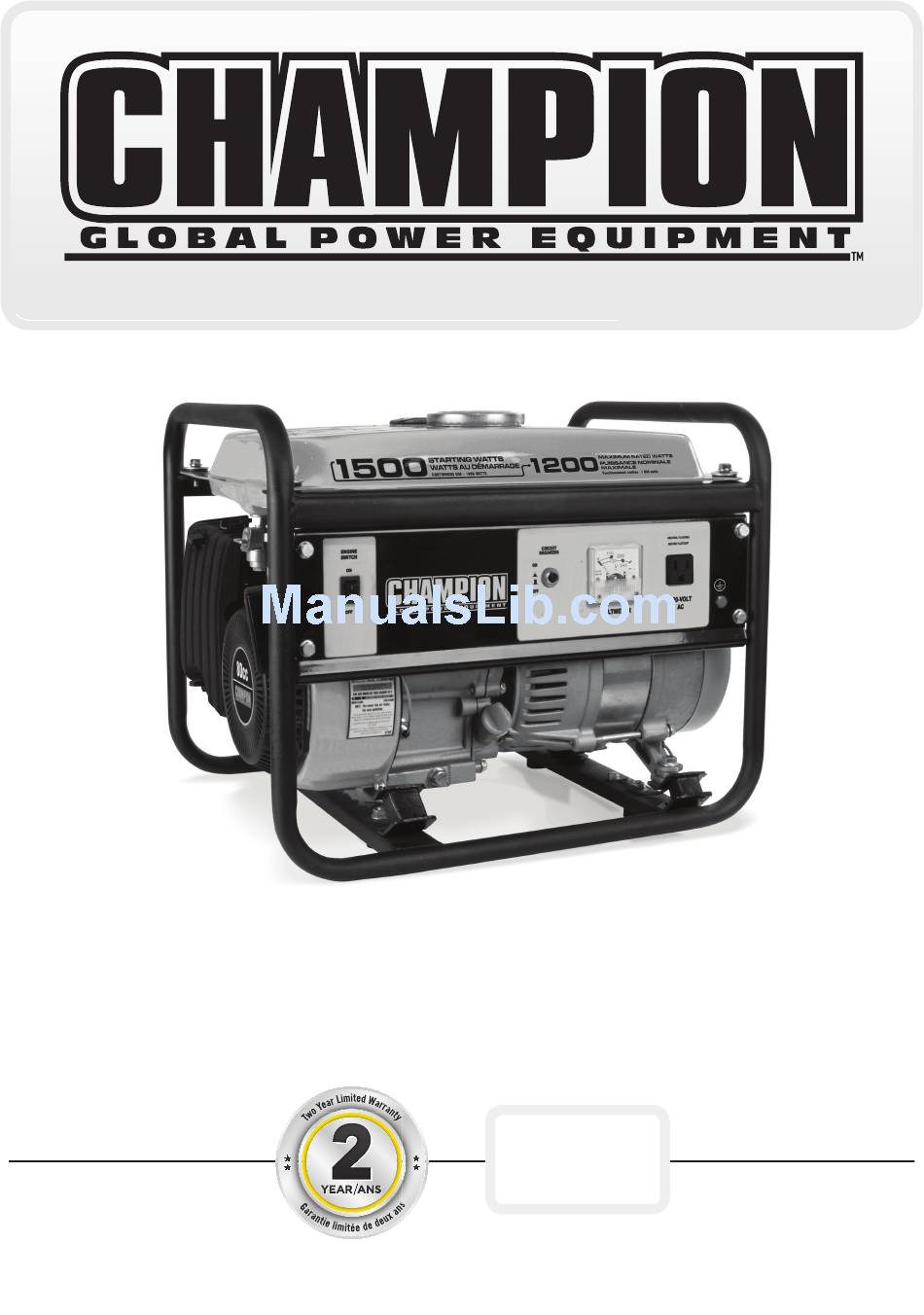

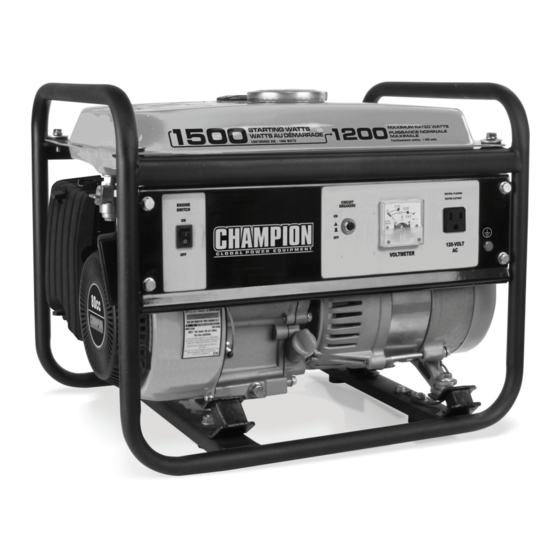

- Page 1 1500 Peak Watts / 1200 Running Watts PORTABLE GENERATOR MODEL NUMBER 42451 10006 Santa Fe Springs Road SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 42451-20120710 www.championpowerequipment.com...
- Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Table Of Contents
42451 1500 Peak Watts / 1200 Running Watts PORTABLE GENERATOR TABLE Of CONTENTS Maintenance Schedule . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
ENGLISH INTROdUCTION Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and sells Power Equipment generator . CPE designs and builds accessories designed to help you get the most from generators to strict specifications . With proper use and your purchase . -
Page 5: Manual Conventions
. Please call our help line at 1-877-338-0999 situation which, if not avoided, could result in death or serious injury . CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury . REV 42451-20120710... -
Page 6: Safety Rules
Inform your electricity provider immediately if you or anyone in your household depends on electrical euipment to live . Inform your electrical provider immediately if a loss of power would cause you or anyone in your household to experience a medical emergency . REV 42451-20120710... - Page 7 – Electrical output is lost – Equipment sparks, smokes or emits flames A spark arrestor may be required . The operator – Equipment vibrates excessively should contact local fire agencies for laws or regulations relating to fire prevention requirements . REV 42451-20120710...
-
Page 8: Controls And Features
. Oil Filler Cap – Check and fill engine oil level . Air Cleaner – Protects the engine by filtering dust and debris from the intake air . Power Panel – See “Power Panel” . REV 42451-20120710... -
Page 9: Power Panel
. Voltmeter – Displays the output voltage of the generator . Parts Included Your 42451 Gasoline Powered Generator ships with the following parts: Spark Arrester Kit – Spark Arrestor . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 10: Assembly
The recommended type of oil for use in the generator is 10W-30 . Please see “Specifications” section for more information on oil types . 1 . Place the generator on a flat, level surface . 2 . Remove oil fill cap/dipstick to add oil . REV 42451-20120710... -
Page 11: Add Fuel
5 . Slowly add fuel to the tank . DO NOT overfill . Allow electrician to ensure compliance with local electrical codes . approximately 1/4 inch (0 .635 cm) of space for fuel expansion . REV 42451-20120710... -
Page 12: Operation
. 1. Install UL1449, CSA-listed, plug-in surge suppressors on the outlets feeding your sensitive equipment. Surge suppressors come in single- or multi-outlet styles . They’re designed to protect against virtually all short-duration voltage fluctuations . REV 42451-20120710... -
Page 13: Stopping The Engine
5 . Plug in and turn on the next item . 6 . Allow the engine to stabilize . 7 . Repeat steps 5-6 for each additional item . NOTE Never exceed the specified capacity when adding loads to the generator . REV 42451-20120710... -
Page 14: Maintenance And Storage
2 . Remove the two screws holding the cover plate which retains the end of the spark arrester to the muffl er . 3 . Remove the spark arrester screen . 4 . Carefully remove the carbon deposits from the spark arrester screen with a wire brush . REV 42451-20120710... -
Page 15: Adjustments
Contact our help line at 1-877-338-0999 to locate the 3 . Turn off the fuel supply at the Fuel Valve . nearest Champion Power Equipment certified service 4 . Drain all fuel completely from the fuel line and dealer for your generator or engine maintenance needs . -
Page 16: Specifications
10% by volume . Use 4-Cycle automotive oil . Oil capacity is 0 .42 qt (0 .4 L) . Please reference the following chart for recommended oil types for use in the generator . REV 42451-20120710... -
Page 17: Wiring Diagram
42451 ENGLISH SPECIfICATIONS Wiring diagram REV 42451-20120710... -
Page 18: Parts Diagram
42451 ENGLISH SPECIfICATIONS Parts diagram REV 42451-20120710... -
Page 19: Parts List
NUT M4 GB7244 8 Lock Washer Φ8 ST01FD-05221001-CSA Capacitance ST154FD-3000007 Flange Bolt M8×175 GB823 M4×14 Screw M4×14 GB5789 M6×12 Flange Bolt M6×12 ST02FD-05212002 Plug ST154FD-1100400 Holder Muffler ST01FD-05211001 ConduitΦmetalΦ ST154FD-3000004 End Housing ST02FD-05212001 Plug ST154FD-3000008 Flange Bolt M6×90 REV 42451-20120710... -
Page 20: Engine Parts Diagram
42451 ENGLISH SPECIfICATIONS Engine Parts diagram REV 42451-20120710... -
Page 21: Engine Parts List
GB5789 M6x8 Bolt M6x8 ST154F-1110001 Governing Shaft ST154FD-1111000 Governing Rack ST154F-1110006 Clip ST160F-1126000 Diode Comp ST154F-1110005 Governing Spring 100 ST154F-1030300-A Oil Level Sensor ST154F-1110004 Governing Lever 101 GB16674 M6×18 Bolt M6x18 ST154F-1110002 Carburetor Connecting Rod 102 ST154F-1040008 Oil Seal REV 42451-20120710... -
Page 22: Troubleshooting
Review load and adjust . See “Power Management” Faulty cords or device Check for damaged, bare or frayed wires . Replace defective device for further technical support: Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 tech@championpowerequipment .com REV 42451-20120710... -
Page 23: Warranty
Other Exclusions Warranty Qualifications This warranty excludes: Champion Power Equipment (CPE) will register this – Cosmetic defects such as paint, decals, etc . warranty upon receipt of your Warranty Registration Card – Wear items such as filter elements, o-rings, etc . - Page 24 Champion Power Equipment, Inc (CPE), Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with Environment Canada (EC) emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: CPE is pleased to explain the Emission Control Systems Warranty on your 2012 small off-road engine.
- Page 25 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. Emission Control System Warranty (ECS Warranty): 1. APPLICABILITY: The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 26 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
