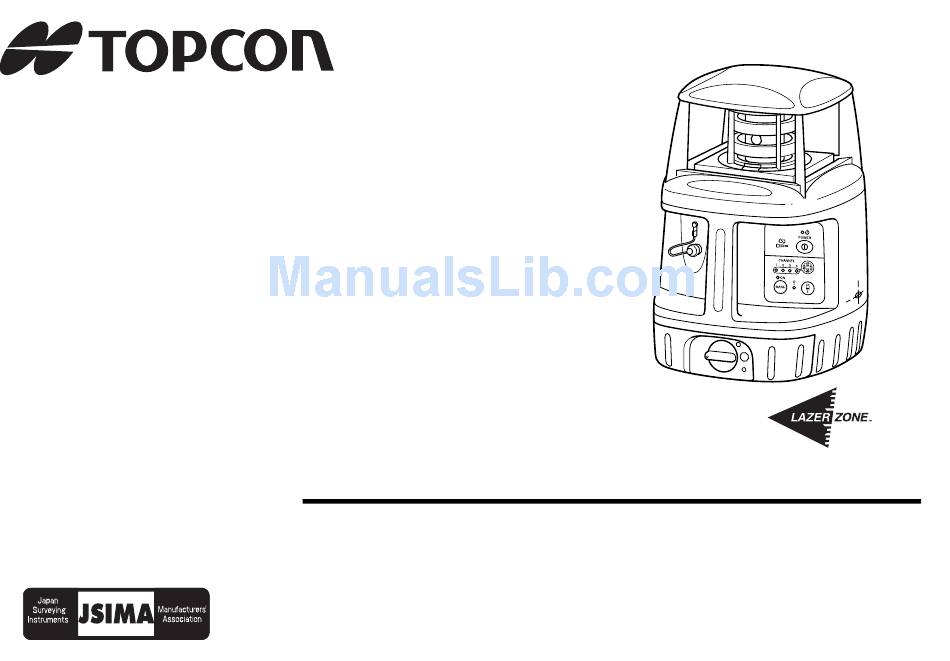

- Page 1 INSTRUCTION MANUAL LAZER ZONE PZL-1&PZS-1 PZL-1...
-
Page 3: Foreword
To quickly and effectively use the PZL-1&PZS-1, please read these brief instructions carefully, and keep them in a convenient location for future refer- ence. This instruction manual explains the basic operation of the PZL-1 and the PZS-1. For measuring with these instruments, see the instruction manual for the controller. -
Page 4: Safety Information
Safety Information In order to encourage the safe use of products, to prevent damage to properties, and to prevent any danger to the operator and to others, important warnings are placed on the prod- ucts and inserted in the instruction manuals. We suggest that everyone understand the meaning of the following displays and icons before reading the “Safety Cautions”... -
Page 5: Safety Cautions
• There is a risk of fire, electric shock or physical harm if you attempt to disassem- ble or repair the instrument yourself. This is to be carried out by TOPCON or an authorized dealer, only! • Laser beam can be dangerous, and can cause eye injury if used incorrectly. - Page 6 CAUTION Use of controls or adjustment or performance of procedures other than those specified herein may result in hazardous radiation exposure. Let the laser beam reach the aimed object or the target without anybody else in the laser beam path. When operating in an open area, avoid radiating laser beam at eye level. It is quite possible for the beam to enter into one's eyes, and it is possible to lose visual sight temporarily, and lose one's caution and awareness of other dangers - avoid glaring beam.
-
Page 7: User
User Wear the required protectors (safety shoes, helmet, etc.) when operating. Exceptions from Responsibility 1) The user of this product is expected to follow all operating instructions and make periodic checks of the product’s performance. 2) The manufacturer, or its representatives, assumes no responsibility for results of a faulty or intentional usage or misuse including any direct, indirect, consequential damage, and loss of profits. -
Page 8: Laser Safety
As per the said standard, PZL-1 rotating laser is classified as “Class 1 (I) Laser Products” and PZL-1 plumb beam is classified as “Class 2 (II) Laser Products”. In case of any failure, do not disassemble the instrument. Contact TOPCON or your TOPCON dealer. -
Page 9: Table Of Contents
Contents Foreword..........................1 Handling Precautions ..........................1 Safety Information ..........................2 Safety Cautions ............................3 User ................................ 5 Exceptions from Responsibility ....................... 5 Laser Safety ............................6 Labels ..............................6 Contents ..............................7 Standard System Components ....................... 8 Nomenclature and Functions....................9 Preparation for Use...................... -
Page 10: Standard System Components
Standard System Components The numerical value in parentheses shows the quantity. PZL-1(1) AD-7C/9B(1) PZS-1(1) (Only for PZL-1&PZS-1 model) Battery BT-63Q(1) Instruction manual(1) BC-30(1), BT-62Q(1) (Only for PZL-1&PZS-1 model) Shoulder belt(2) 5/8 inch plug(1) (Only for PZL-1&PZS-1 model) Carrying case(1) Joint cable JC-8(1) (Only for PZL-1&PZS-1 model) -
Page 11: Nomenclature And Functions
Nomenclature and Functions PZL-1 Laser emitting window Beam aperture Rotary head Handle Serial port Control panel Instrument height mark Battery holder Battery compartment lock... - Page 12 Remote Control Option (The lamp functions only for Bluetooth built-in model.) There are two PZL-1 models, standard and Bluetooth built-in. Bluetooth built-in models are designated by the letter "W" fol- lowing the model name on the serial number tag as shown...
- Page 13 Key or Lamp Function Battery power Indicates the amount of battery power remaining. remaining lamp (That lamp will automatically go off after approximately a minute. It will go back on if any key is pressed.) Channel Indicates the selected channel. selecting lamp Manual mode Lights up when the manual mode is in use.
-
Page 14: Preparation For Use
Instrument Set-up Procedure Set the instrument on any smooth surface that is within ±3° of true level. The PZL-1 auto-level sys- tem will not function if the unit is placed more that ±3° out of level. For best operation, it is recom- mended that it be mounted to a tripod. -
Page 15: Battery Power Remaining Lamp
Battery Power Remaining Lamp The battery power remaining lamp will be shown for several minutes when the instrument is powered on or when the battery level changes. The battery power remaining lamp will be shown again when any key is pressed. Battery is sufficient. -
Page 16: Operation
Operation Set up the instrument on a flat surface or a tripod. At this time, the instrument will perform auto-leveling in a range of ±3°. Turn on the power, then select a channel with the channel selecting key. (Press the channel selecting key within 5 seconds after the power goes on.) After auto-leveling ends, the head will rotate and the laser will go on. -
Page 17: Height Alert Function
Height Alert Function When auto-leveling and height alert function are active, this function prevents the instrument from operating if it is disturbed. This helps insures accurate control. If the height or inclination of the instrument changes, the height of instrument should be verified and re-established if necessary. The height alert function will become active about 10 minutes after power is turned on. -
Page 18: Checking And Adjusting
Checking and Adjusting Switching to Adjustment Mode While pressing the plumb beam key, turn on the power. The channel selecting lamps will light up in order, from 1 to 4, and the instrument will switch to the adjustment mode. Use the controller when inspecting or adjusting the instru- ment. -
Page 19: Standard / Optional Accessories
Standard / Optional Accessories Laser Zone Beam Receiving Sensor PZS-1 Fixing screw Control panel Serial port 5/8 inch plug (Exclusive for PZS-1) Detective window Battery cover knob Control panel Power lamp Battery cover Power switch (To turn off, press for more than two seconds.) Battery error lamp Blinking:The power is low, but PZS-1 is still usable. -
Page 20: Battery
Battery Battery BT-62Q, Battery charger BC-30 For Charging Install the battery on the BC-30. Plug the power cord in an outlet.(AC-120V or 230V) Charging is completed after approxi- mately 3 hours. CHARGE lamp BT-62Q POWER lamp BC-30 The POWER lamp of BC-30 Red ON : Power is on. -
Page 21: Battery Holder Db-63C
The lamp of DB-63C will indicate charging status; Red ON : Charging. Green ON : Charging completed. Green flashing : DB-63C is not connected to BT-63Q. Red flashing : BT-63Q protection feature is working automatically. PZL-1 can be used in this state. - Page 22 Automatic protection feature; In case of overcharge or high or low temperature state exceeding charging range, charging will be stopped or changed to protect battery. Note DB-63C can be used with dry batteries instead of BT-63Q. Note for charging 1)Recharging should take place in a room with an ambient temperature range of +10°C to +40°C (+50°F to +104°F).
- Page 23 Dry Batteries Replacing Dry Batteries Remove the battery cover by turning the battery com- partment lock to “OPEN”. Remove the old batteries and replace with four (4) new “D” cell alkaline batteries making sure each is placed in the proper direction as indicated. Replace the battery cover and turn the knob to “Lock”.
-
Page 24: Error Code
Error Code Use the table below to determine operation errors indicated by blinking lamps on the con- trol panel. If corrective action listed does not correct error, please contact your local Topcon dealer. Lamp Indication Error Corrective Action All lamps blink... - Page 25 Lamp position Battery power Power lamp remaining lamp Channel selecting lamp Manual mode lamp Bluetooth communication lamp...
-
Page 26: Specifications
Specifications PZL-1 Zone Width ±10° (5~30m), ±5m (30~300m) Zone Radius 300m(985ft) Laser Zone Accuracy Vertical: 1 arc second resolution Auto-leveling range ±3° Rotation speeds 600rpm Laser Class Class 2 Light source L.D. (Laser Class : Class 1 (I) , Invisible laser) - Page 27 PZS-1 Detective angle Horizontal ±10° Vertical ±10° Serial port RS-232C Power supply BT-62Q Continuous operating time Approx. 8 hours at +20°C (+68°F) Tripod screw 5/8 inch x 11Thred Operating temperature -20°C to +50°C (-4°F to +122°F) Protection against water IPX6 (Based on the standard IEC60529) Dimensions Approx.
- Page 28 ™ ™ ™ Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., USA and licensed to Topcon Corporation. N 13813...
