Socket 10/100 Ethernet CF Card User Manual page 9

Pocket PC 2003

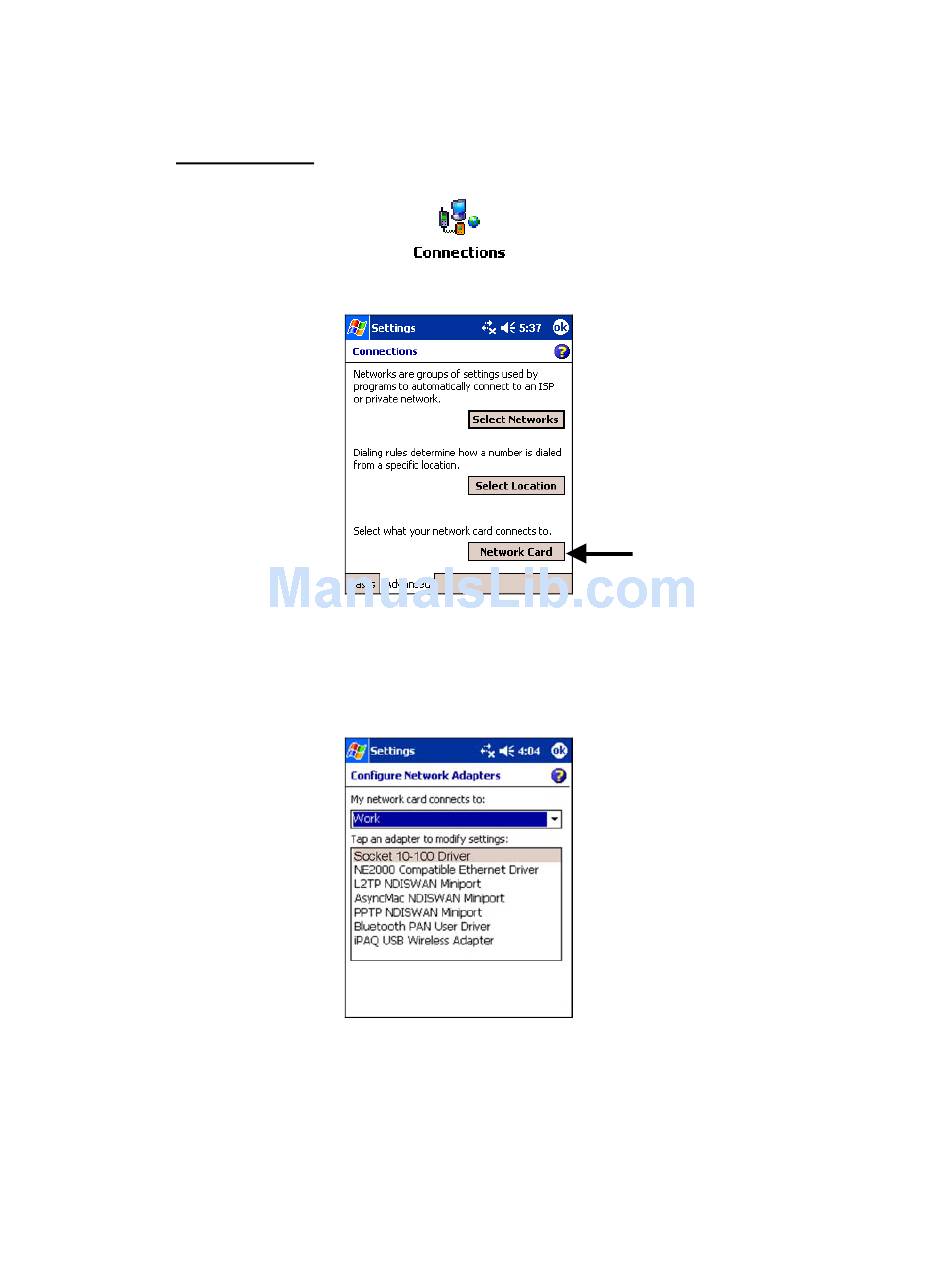

1. Go to Start | Settings | Connections | Connections.
2. Tap on the Advanced tab. Tap on the Network Card button at the bottom
of the screen.
3. The Configure Network Adapters screen will appear. In the drop-down
menu at the top of the screen, select the appropriate option.
• The Internet: For connecting from home and/or via an ISP
• Work: For connecting to a private network, such as at work, or a
proxy network.
4. If you DO NOT need to enter any IP addresses, (i.e., your network uses
DHCP), tap ok. You are now ready to proceed to STEP 3 to connect to a
10/100 Mbps LAN and insert the card.
8 | CHAPTER 2: SETUP
Tap on
the
Network
Card
button.
Note: If you are
connecting to a
proxy or secure
network, refer
to your Pocket
PC 2003
documentation
for
configuration
information.
