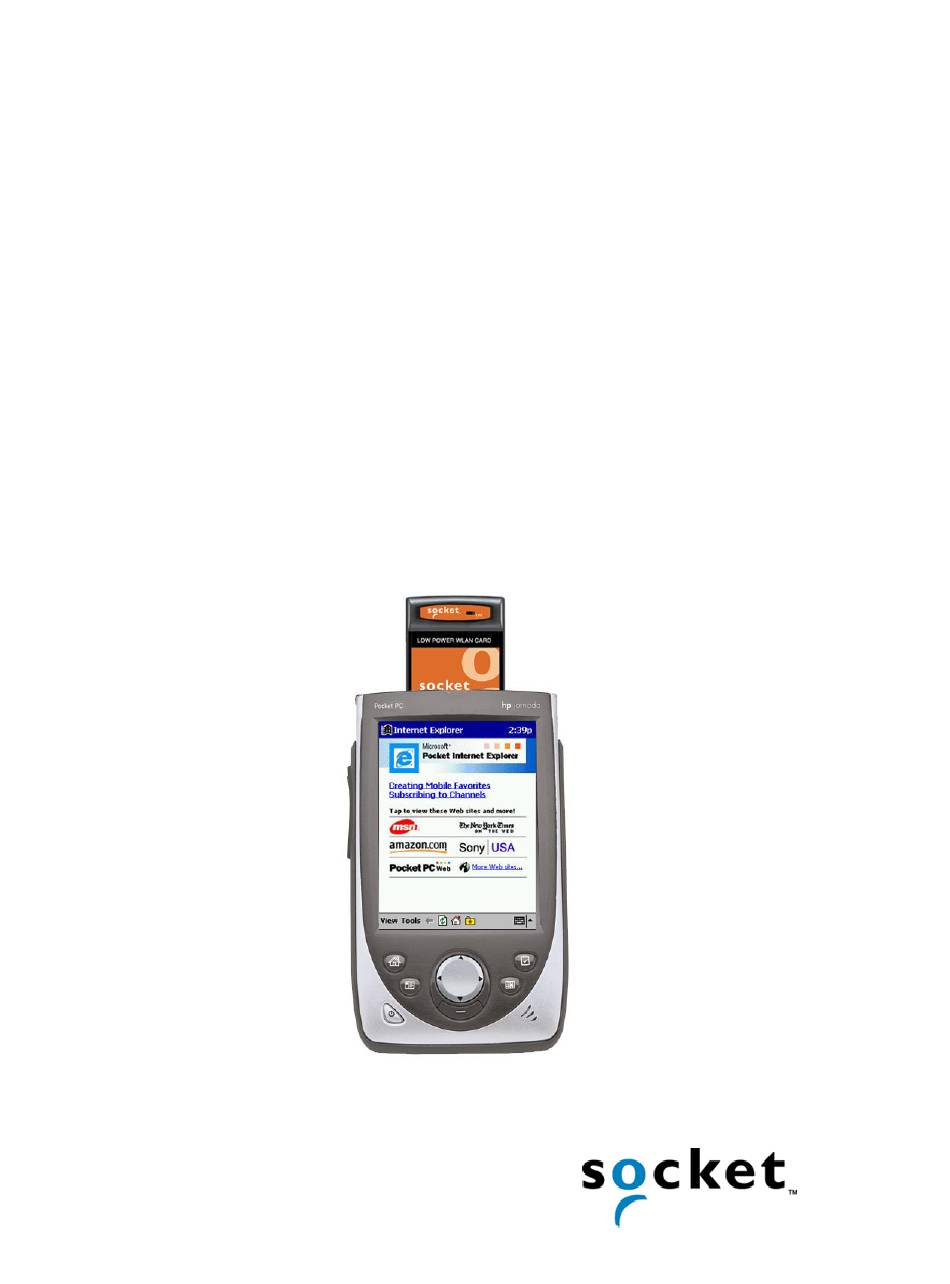

Low Power Wireless LAN Card
Type I CompactFlash card for adding Wireless LAN
connectivity to the following mobile computers:
• Pocket PCs
• Pocket PC 2002s
• HPC 2000s
• Handheld PC Pros
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Low Power Wireless LAN Card and is the answer not in the manual?

Questions and answers

Related Manuals for Socket Low Power Wireless LAN Card

Summary of Contents for Socket Low Power Wireless LAN Card

  • Page 1 Low Power Wireless LAN Card Type I CompactFlash card for adding Wireless LAN connectivity to the following mobile computers: • Pocket PCs • Pocket PC 2002s • HPC 2000s • Handheld PC Pros User’s Guide...
  • Page 2 How this Manual is Organized This manual is designed to help you install and use the Socket Low Power Wireless LAN Card. Chapter 1, Introduction, describes key features of the Low Power Wireless LAN Card and identifies package contents. Chapter 2, Settings, explains the minimum steps needed to install and use the Low Power Wireless LAN Card.

  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1 INTRODUCTION Overview Package Contents Installation Steps Summary CHAPTER 2 BASIC SETUP STEP 1: Register the Card STEP 2: Network Information Form STEP 3: Install the Software STEP 4: Insert the Card STEP 5: Enter Network Settings Mode Page IP Configuration Page Power Settings Page...

  • Page 4: Chapter 1 Introduction

    Internet, email, and corporate servers. In the Ad Hoc Mode, you can communicate directly with other Wi-Fi 802.11b users. The Socket Low Power Wireless LAN Card uses Direct Sequence Spread Spectrum (DSSS) technology operating between 2.4 and 2.5 GHz. The Low Power WLAN Card conforms to IEEE 802.11b specifications and is Wi-Fi...

  • Page 5: Package Contents

    • A product registration card Installation Steps Summary It takes only five steps to install and use the Socket Low Power Wireless LAN Card. STEP 1: Register the card with Socket Communications. STEP 2: Print and complete the Network Information Form.

  • Page 6: Chapter 2 Basic Setup

    This chapter covers the minimum steps you must complete to install and use the Low Power Wireless LAN Card. STEP 1: Register the Card Register your Socket Low Power Wireless LAN Card online at www.socketcom.com/product/prodreg.htm You can also use the product registration form in your product package.
  • Page 7 3. Does the network support DHCP (Dynamic Host Configuration Protocol) YES. If Yes, then you do not need any of the IP address info below. NO. If No, then please specify any applicable IP addresses: (a) Mobile Computer IP address: _____ . _____ . _____ . _____ (b) Subnet Mask: _____ .

  • Page 8: Step 3: Install The Software

    An active partnership exists if data can be moved between the mobile computer and the host PC via a serial/USB/Ethernet cable or cradle. 2. Insert the Socket Low Power WLAN Card Installation CD into the host computer. IF YOUR DEFAULT WEB BROWSER IS...
  • Page 9 IF YOUR DEFAULT WEB BROWSER IS NETSCAPE, DO NOT run the SETUP.HTM file on Netscape, because it will not work properly. Instead, choose either of two options: OPTION ONE: Use Internet Explorer to run the SETUP.HTM file. (a) In the Internet Explorer screen, click File | Open. (b) In the Open screen, type X:\SETUP.HTM (Replace X with your CD drive letter.) Open screen from Internet Explorer 5.5...

  • Page 10: Step 4: Insert The Card

    PCs). If connected to an access point, the Link LED will flash. About the Link Indicator The Low Power Wireless LAN Card Link Indicator is an LED that flashes a green light to indicate connection with an access point. LED Status...

  • Page 11: Step 5: Enter Network Settings

    1. Tap on the card icon screen for Pocket PCs). In the pop-up menu, select Settings. 2. The Socket WLAN Utilities screen will appear, with the Mode page open. Following your completed Network Information Form, tap on the tabs to enter any necessary settings.

  • Page 12: Ip Configuration Page

    IP Configuration Page Use the IP Configuration page to configure any necessary IP addresses. DHCP — Select this if your network supports DHCP. The IP addresses and other information will be automatically assigned. Static — Select this to manually enter the necessary IP addresses. 12 | CHAPTER 2: BASIC SETUP...

  • Page 13: Power Settings Page

    Power Settings Page The Power page varies depending on operating mode. Infrastructure mode: Radio Transmission Power — Select Automatic to use the same power level as the access point. Other options will be available in future releases. Automatic Power Saving Mode — Recommended. If desired, uncheck this box and use the sliding scale to manually set the power savings.

  • Page 14: Options Page

    Options Page The Options page is the same for all operation modes. Allow Pocket PC to suspend when wireless network is used — Check this box to allow the device to use its automatic power-off feature when the adapter is still active to save battery power. Enable Sounds —...

  • Page 15: Chapter 3 Advanced Features

    This chapter explains advanced features available while using the Low Power Wireless LAN Card. The features covered in this chapter involve the five Advanced Socket WLAN Utilities pages. Some pages only appear in certain operating modes. The Advanced pages include: •...

  • Page 16: Signal Page

    Signal Page Use the Signal page to view radio signal transmission strength from the WLAN Card to the associated access point. The Signal page displays a real-time graph of the signal quality received by the adapter, the number of times the adapter has roamed between APs, the current data rate and the network in-range status.

  • Page 17: Ping Page

    Ping Page Use the Ping page to view the signal strength, data rate transmission, test statistics and to perform data transmission test. This test sends an ICMP ping packet across the network to a selected address to test data transmissions between wireless devices or between a wireless device and the associated access point.

  • Page 18: Aps Page

    APs Page Use the APs page in Infrastructure mode to view access points with the same ESSID as the adapter within the wireless network. View the AP MAC address, signal and direct sequence channel of each located access point. Radiation marks beside the antenna indicate the currently associated access point.

  • Page 19: Peers Property Page

    Peers Page Signal When Ad Hoc is selected as the operating mode, the Peers property pages disappear and display the property page. Known Peers Use the field to view the BSSID or MAC addresses of the other adapters (peers) in the wireless network, their power mode, their transmit rate, supported rate and the length of time an adapter has been out of the Ad Hoc network.

  • Page 20: Encryption Property Page

    Encryption Page Encryption Use the property page to set the adapter security level. The absence of a physical connection makes wireless links vulnerable to information theft. Encryption is an efficient method of preventing data theft Open System (no and improving data security. The firmware supports encryption), 40-bit Shared Key 128-bit Shared Key (40-bit) and...
  • Page 21 When 40-bit Shared Key encryption is selected, the user is required to enter a 10 Hex digit encryption key. The key can be entered by spreading the 10 Hex digits between the two encryption key fields provided. Tap Apply to save and implement the encryption key data.

  • Page 22: Appendix A Specifications

    Appendix A Specifications Physical Characteristics: CF Type I Size: 2.18 x 1.69 x 0.13 in (55.4 x 42.8 x 3.3 mm) Total Weight: 0.48 oz (13.6 g) Operating Temperature: -4 to 158 °F (-20 to 70 °C) Storage Temperature: -22 to 176 °F (-30 to 80 °C) Power Consumption (3.3 V Supply): Idle (listening): <20 mA Transmission: 170 to 280 mA...
  • Page 23 Hardware Compatibility: Standard CF Card: Pocket PC, Pocket PC 2002, HPC 2000 or Handheld PC Pro with Windows CE v2.11 or greater Software Included: Socket Low Power WLAN Installation CD Warranty: CompactFlash Card: Three years Certification: FCC: Part 15, Class B C-TICK s.182...

  • Page 24: Appendix B Safety And Usage Tips

    • Changes or modifications of this product, not expressly approved by Socket, may void the user’s authority to operate the equipment. Antenna Care Do not place a metallic shield around your Low Power Wireless LAN Card since it will reduce the radio transmission efficiency. Efficient Use For optimum performance, please make sure that there is no metallic surrounding your Low Power Wireless LAN Card.

  • Page 25: Radio Frequency Exposure

    2.4 to 2.5 GHz. The maximum output power of the radio transmitter is 100 mW. The Low Power Wireless LAN Card unit is designed to be in compliance with the RF exposure limits set by national authorities and international health agencies when installed or used separately from other antennas or radio transmitters.

  • Page 26: Appendix C Troubleshooting

    SOLUTION The software was not installed or Install the software properly. installed incorrectly. SYMPTOM: • The Socket Utilities icon doesn’t appear on the task tray when I insert the WLAN Card. POSSIBLE REASONS SOLUTION Your Pocket PC may be frozen.

  • Page 27: Appendix D Technical Support

    Appendix D Technical Support If you have trouble installing or using the Low Power Wireless LAN Card, please refer to the “Troubleshooting” section. You can also visit Socket’s online forum for users to discuss technical support issues with each other at www.socketforum.com...

  • Page 28: Limited Warranty

    Incompatibility is not a defect covered by Socket’s warranty. During the warranty period, Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center.

  • Page 29: Limited Software Warranty

    90 days from the date of delivery of the SOFTWARE. CUSTOMER REMEDIES. SOCKET’S entire liability and your exclusive remedy shall be, at SOCKET’S option, either (a) return of the price paid or (b) replacement of the SOFTWARE which does not meet SOCKET’S Limited Warranty and which is returned to SOCKET with a copy of your receipt.

  • Page 30: Copyright Notice

    Socket Communications requests that you refrain from any applications of the Socket Bluetooth Card that are not described in this manual. Socket Communications also requests that you refrain from disassembling the Bluetooth Card. Disassembly of this device will void the product warranty.

  • Page 31: Regulatory Compliance

    Regulatory Compliance The Socket Low Power Wireless LAN Card is designed to be compliant with the rules and regulations in locations where they are sold and will be labeled as required. This product is type approved users are not required to obtain license or authorization before using.
  • Page 32 Radio Frequency Interference Requirements – Canada This Class B digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Classe B respecte toutes les exigencies du Reglement sur le Matériel Brouilleur du Canada. NOTE: To comply with FCC and Industry Canada exposure requirements, this device is approved for operations in a user’s hand when there is a distance of 2ocm or more between the device antenna and the user’s body.
  • Page 33 Printed in U.S.A.
