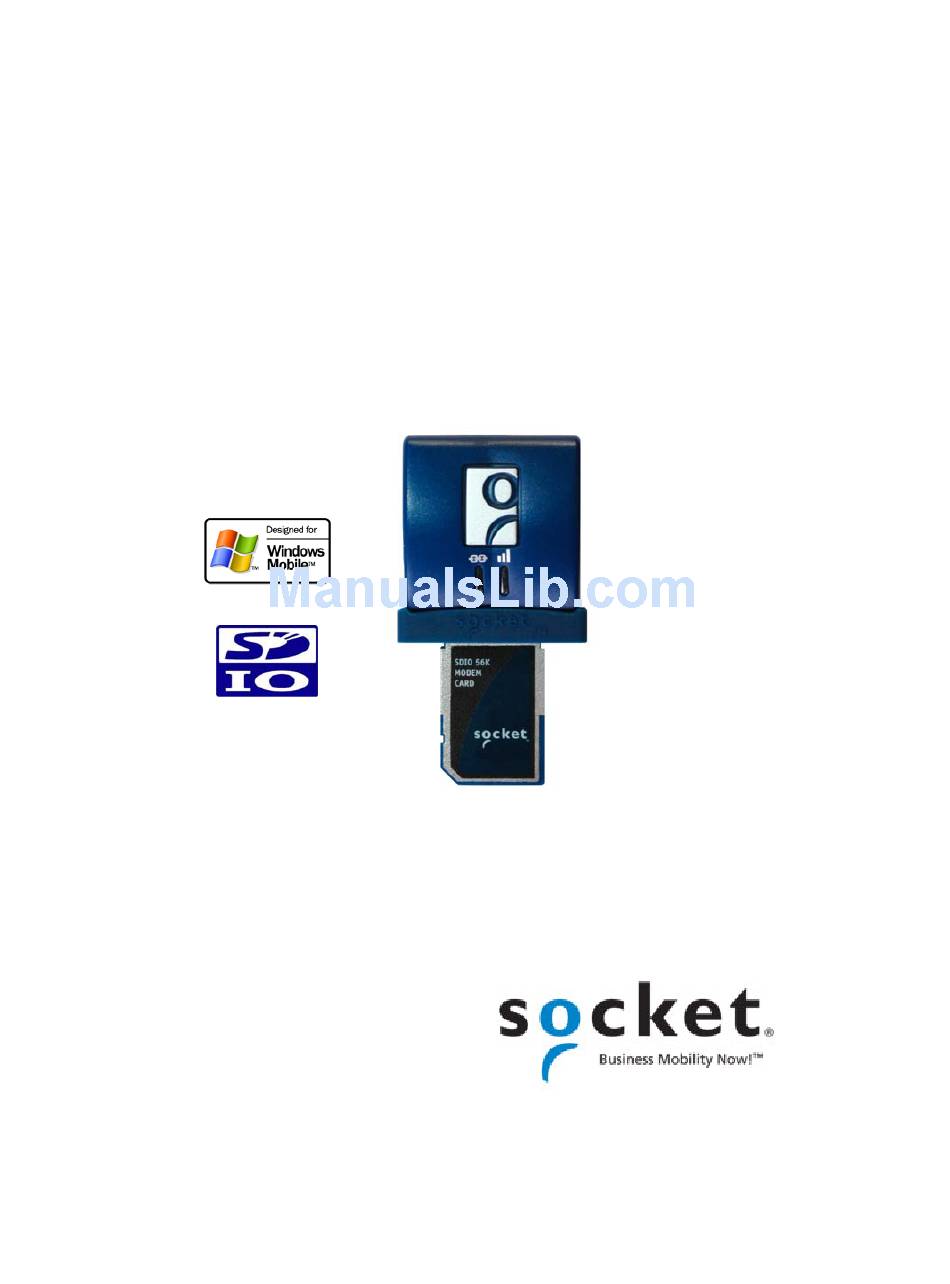

  • Page 1 SDIO 56K Modem Card User’s Guide...

  • Page 2: Copyright Notice

    Socket Mobile requests that you refrain from any applications of the SDIO 56K Modem Card that are not described in this manual. Socket Mobile also requests that you refrain from disassembling the product. Disassembly of this device will void the product warranty.

  • Page 3: Table Of Contents

    2 | SETUP FOR WINDOWS MOBILE STEP 1: Prepare Dial-up Information STEP 2: Install the Software STEP 3: Complete the Connection Setup Wizard STEP 4: Dial and Connect Socket Mobile Modem Utilities Modem-On-Hold APPENDICES A | SPECIFICATIONS B | NETWORK INFORMATION...

  • Page 4: Introduction

    1 | I NTRODUCTION Thank you for purchasing the SDIO 56K Modem Card. The SDIO 56K Modem Card gives you the freedom of high speed Internet access, email, and faxing from any analog phone line. It plugs directly into any Pocket PC with an SDIO slot and provides a durable physical connection for data communication.

  • Page 5: About V.92 Quick Connect

    — or in other words, “train” itself for the last phone line used. While dialing into a network, the SDIO 56K Modem Card will compare the phone line characteristics with the stored data, and if a match is found, the handshake starts using previous settings.

  • Page 6: System Requirements

    • 56K Modem Installation CD • Booklet with warranty and copyright information Product Registration Socket Mobile highly recommends that all customers register their products. Registered users receive the following benefits: • Priority for technical support • Special offers for future products and product upgrades •...
  • Page 7 To register your product online, go to: www.socketmobile.com/support/support/new About the Status Indicator LEDs LED Activity Meaning Data Not transmitting data Status Blinking Sending or receiving data Green Link Not connected Status Solid Green Connected CHAPTER 1: INTRODUCTION...

  • Page 8: Setup For Windows Mobile

    ETUP FOR INDOWS OBILE This chapter explains how to install and use the SDIO 56K Modem Card with a device running Windows 2003/2003SE/5.0 for Pocket PC/Pocket PC Phone or Windows Mobile 6 Classic/Professional. Socket Mobile has developed software expressly for Windows...

  • Page 9: Step 2: Install The Software

    STEP 2: Install the Software IMPORTANT! Make sure to install the software BEFORE inserting the modem card into your Pocket PC. Symbol MC50: Your device requires custom modem software. When you run the installation CD, make sure you choose the Symbol MC50 software. Do not install the general Windows Mobile software.
  • Page 10 4. The Socket 56K Modem Setup Center will launch in your web browser. Read the information in the welcome screen and click next. 5. In the Installation page, click SD 56K Modem. 6. In the SD 56K Modem Installation page, select the correct software for your type of Pocket PC.

  • Page 11: Step 3: Complete The Connection Setup Wizard

    STEP 3: Complete the Connection Setup Wizard Note: The Socket Mobile Connection Setup Wizard does not work on the HP iPAQ 6315 and some Phone Edition devices. Refer to Appendix D for instructions on manual setup. 1. If your device is still connected to your host PC, remove it from the cable/cradle.
  • Page 12 4. In next screen, select SDIO 56K Modem Connection. Tap Next. 5. Follow the next screens to enter a name for your connection, plus the user name, password, and dial-up number for your ISP account. 6. When prompted to insert the modem card, first connect the modem to an analog phone line, then insert the modem card into your Pocket PC.
  • Page 13 When inserting the modem card, make sure it is right-side up. Push it all the way into the slot. WARNING! • Do not plug the modem into a digital PBX line. The modem will not work and may be damaged! •...
  • Page 14 8. The last screen will report that you have completed the wizard. Tap on the Remote Networking link to access the Connection Manager and begin dialing. Otherwise tap Finish to exit the wizard. If you receive an error message saying that a connection was not able to be set up, remove the card, rerun the wizard, and when prompted, make sure you insert the modem card all the way into the...

  • Page 15: Step 4: Dial And Connect

    STEP 4: Dial and Connect Socket Mobile recommends using either of two methods for dialing into your network. METHOD 1: Tap on the Connection icon 1. If you just completed the Connection Setup Wizard and tapped on the Remote Networking link, the Connections screen will appear.
  • Page 16 3. Your SDIO modem connection should be listed. Tap and hold your stylus on the name of the connection. In the pop-up menu, tap Connect. 4. If you did not use the Socket Mobile Connection Setup Wizard, the Network Log On screen may appear. Enter the Password and tap OK.
  • Page 17 7. Windows Mobile 2003/2003SE: After you dial from the SDIO modem connection for the first time, you will be able to quickly dial the connection in the future by tapping on the connection icon (two arrows). The bubble will list the SDIO modem connection.
  • Page 18 (e.g., in Pocket Internet Explorer, enter a URL and tap the green arrow). 2. If you did not use the Socket Connection Setup wizard, the Network Log On screen may appear. Enter the Password and tap OK.
  • Page 19 If the phone number of dialing location is wrong, tap Settings. Tap Manage Connections and Edit the properties of your connection. 4. When the device has connected: • The Link Status LED will remain on • The Pocket PC will receive/transmit the information as requested (e.g., Pocket Internet Explorer will display the requested website).

  • Page 20: Socket Mobile Modem Utilities

    Socket Mobile Modem Utilities 1. If the SDIO 56K Modem Card is in your device, remove the card. Press the card in to let it spring outwards, then pull the card out. Always use the spring to remove the card. Do not just pull the card out.
  • Page 21 This feature is helpful if you plan to use the SDIO 56K Modem Card repeatedly with the same phone line. This feature requires a V.92 Internet Service Provider (ISP).
  • Page 22 Socket Mobile recommends that you disable Quick Connect if you plan to use the modem with different phone lines. Otherwise, it may take twice as long to establish a connection because the modem searches for the previous line characteristics before trying to connect to a new line.

  • Page 23: Modem-On-Hold

    Type 2 Caller ID service from your local phone company. 1. When you are connected to your network and receive a call, the Socket Mobile Modem Status screen will appear in the foreground. If you are connected to your network and would like to initiate a call, access the Socket Mobile Modem Status screen by tapping on the task tray icon.
  • Page 24 Socket Mobile Modem Status screen again. 6. In the Socket Mobile Modem Status screen, tap RESUME to resume the network connection. 7. Wait for the device to resume the connection before you use any Internet applications.

  • Page 25: A Specifications

    PPENDIX PECIFICATIONS Physical Characteristics Dimensions: L x W x H: 81 x 41 x 20 mm Power Consumption (DC 3.3V): Active: 118 mA Inactive: 18 Data Mode: - ITU-T V.92: 56 kbps - ITU-T V.90: 56 kbps upstream, 33.6 kbps downstream - ITU-T V.34: (33.6 kbps) - ITU-T V.32bis: (14.4 kbps) - ITU-T V.32: 9.6 kbps, V.22 (1200 bps)
  • Page 26 Dialing Methods: Tone and Pulse Operating Modes: - Asynchronous - Full Duplex - Automatic and Manual Call - Originate Certifications/Compliance: FCC Part 68 CTR 21 RoHS Environmental Conditions: Operating: Temp: 32 to 131° F (0 to 60° C) Humidity: 5 – 95% (Non Condensing) Storage: Temp: -13 to +158°...

  • Page 27: B | Network Information

    PPENDIX ETWORK NFORMATION Network Information Form For Advanced Users Only Contact your office network administrator or Internet Service Provider (ISP) for the information below. 1. Please provide the following dial-up information: Dial-up number: ( ____ ) _______________ User name: _________________________ Password: _________________________ Domain: __________________________ 2.

  • Page 28: C | Advanced Software Installation

    NSTALLATION Advanced Users Only! If you do not want to use the application installer to install Socket’s modem software, you can install the software from a CAB (cabinet) file. A CAB file contains all the software and drivers needed to install your product on a particular Pocket PC platform.
  • Page 29 5. Your device may warn that the CAB file comes from an unknown publisher. Tap Yes to continue installation. 6. After software installation, soft reset the device by pressing the reset button. APPENDIX B: NETWORK INFORMATION | 29...

  • Page 30: D | Manual Connection Setup

    ANUAL ONNECTION ETUP If you do not want to use the Socket Connection Setup wizard, you can manually set up a dial-up connection in Windows Mobile. These instructions are for a standard dial-up connection to an Internet Service Provider (ISP). If you want to connect to your work network or a VPN/ proxy server, refer to your Pocket PC documentation for instructions.
  • Page 31 3. In the Network Management screen, make sure My ISP is selected in the top field, and My Work Network is selected in the bottom field. Tap ok. 4. Tap on the Tasks tab. In most cases, you should tap Add a new modem connection under My ISP.
  • Page 32 5. In the next screen, enter the following: • Enter a name…: Enter a name, such as “My 56K Connection” • Select a modem: Select Socket SDIO 56K Modem. Tap Next. 6. In the next screen, enter the dial-up number exactly how it should be dialed from your current location.
  • Page 33 9. In the General screen, check the Wait for dial tone before dialing box. The baud rate value does not matter, because the modem’s baud rate is internally configured to optimize data compression and decompression speeds. If you DO NOT need to enter any IP addresses, tap ok. If you DO need to enter IP addresses, tap on the TCP/IP and Servers tabs to enter any necessary IP addresses.

  • Page 34: E | Technical Support

    PPENDIX ECHNICAL UPPORT For help with the Socket Mobile Modem Utilities, tap on the Help icon If you have trouble installing or using the SDIO 56K Modem Card, Socket Mobile has two technical support resources you can use: Socket Online Support (SOS) Socket Online Support provides the quickest turnaround time and is the best place to start for technical support.

  • Page 35: Limited Warranty

    Socket Mobile may, at its option, replace or repair the product with new or reconditioned parts and the returned product becomes the property of Socket Mobile. Socket Mobile warrants the repaired or...
  • Page 36 This product may contain fully tested, recycled parts, warranted as if new. For warranty information, please visit: www.socketmobile.com/support...

  • Page 37: Limited Software Warranty

    Limited Software Warranty Socket Mobile LIMITED WARRANTY. warrants that the original disk or CD ROM is free from defects for 90 days from the date of delivery of the SOFTWARE. Socket Mobile CUSTOMER REMEDIES. The entire liability of and your...
  • Page 38 Government ‘s rights to the SOFTWARE are as provided in clause 52.227- 19 of the FAR. CONTROLLING LAW AND SEVERABILITY. This License shall be governed by the laws of the United States and the State of California. If for any reason a court of competent jurisdiction finds any provision, or portion thereof, to be unenforceable, the remainder of this License shall continue in full force and effect.

  • Page 39: Regulatory Compliance

    Part 68 compliant. See installation instructions for details. 6. If the SDIO 56K Modem Card causes harm to the Socket Mobile telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required.
  • Page 40 9. For any other repairs to the device, also contact Socket Mobile technical support department by the method mentioned above. 10. Connection to party line service is subject to state tariffs.
  • Page 41 5/2008 Printed in U.S.A.
