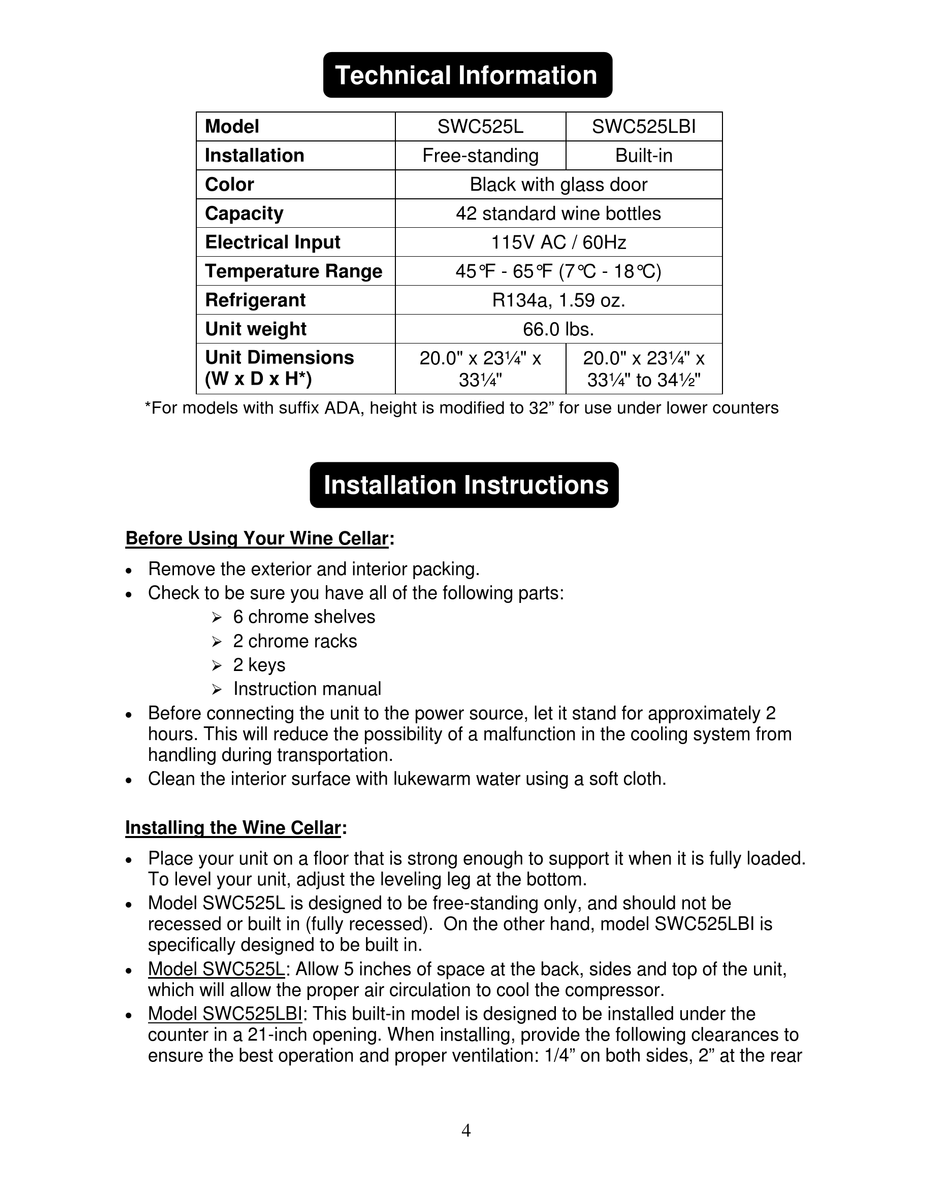

Technical Information; Installation Instructions; Before Using Your Wine Cellar; Installing The Wine Cellar - Summit SWC525L Owner's Manual

Model
Installation
Color
Capacity
Electrical Input
Temperature Range
Refrigerant
Unit weight
Unit Dimensions
(W x D x H*)
*For models with suffix ADA, height is modified to 32" for use under lower counters

Before Using Your Wine Cellar:


Remove the exterior and interior packing.

Check to be sure you have all of the following parts:

6 chrome shelves

2 chrome racks

2 keys

Instruction manual

Before connecting the unit to the power source, let it stand for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from
handling during transportation.

Clean the interior surface with lukewarm water using a soft cloth.

Installing the Wine Cellar:


Place your unit on a floor that is strong enough to support it when it is fully loaded.
To level your unit, adjust the leveling leg at the bottom.

Model SWC525L is designed to be free-standing only, and should not be
recessed or built in (fully recessed). On the other hand, model SWC525LBI is
specifically designed to be built in.

Model SWC525L: Allow 5 inches of space at the back, sides and top of the unit,
which will allow the proper air circulation to cool the compressor.

Model SWC525LBI: This built-in model is designed to be installed under the
counter in a 21-inch opening. When installing, provide the following clearances to
ensure the best operation and proper ventilation: 1/4" on both sides, 2" at the rear

Technical Information

SWC525L
Free-standing
Black with glass door
42 standard wine bottles
45°F - 65°F (7°C - 18°C)
20.0" x 23¼" x
33¼"

Installation Instructions

4
SWC525LBI
Built-in
115V AC / 60Hz
R134a, 1.59 oz.
66.0 lbs.
20.0" x 23¼" x
33¼" to 34½"
