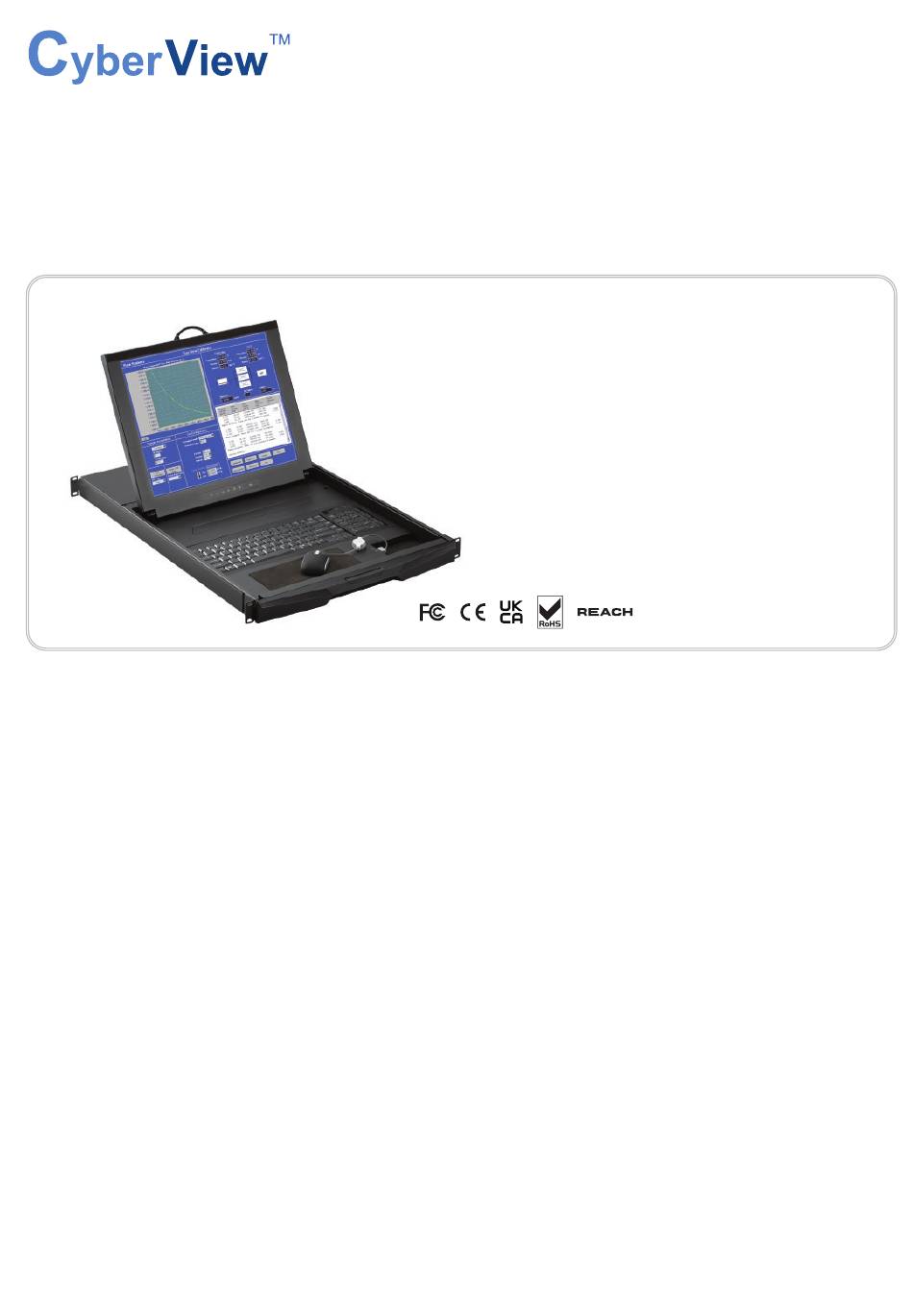

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RKP7 / RKP9 1U LCD Console Drawer Options : - AV / DVI-D / HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-751-RKP7-Q222V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RKP7-Q222V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RKP7 / RKP9 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) < Part. 3 >... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RKP7-Q222V1 www.austin-hughes.com...
-
Page 5: Rkp7 / Rkp9
< Part 1 > < 1.1 > Package Content RKP7 / RKP9 RKP7 or RKP9 unit X 1 - WOM-01 wired mini USB optical mouse X 1 - CB-6A 6ft VGA console cable X 1 - Power cord X 1 - M6 screw, cage nut &... - Page 6 Weight 442 x 650 x 44 mm 590 x 815 x 140 mm 14.3 kg 19.1 kg RKP7 17.4 x 25.6 x 1.73 inch 23.2 x 32.1 x 5.5 inch 31.5 lb 42 lb 442 x 700 x 44 mm 595 x 910 x 140 mm 15.3 kg...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides RKP7 / RKP9 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. -
Page 8: Connection
Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-RKP7-Q222V1 www.austin-hughes.com... -
Page 9: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RKP7 / RKP9 RKP7 RKP9 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 10 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical RKP7 RKP9 Specifi cation Product ( W x D x H ) 442 x 650 x 44 mm 442 x 700 x 44 mm 17.4 x 25.6 x 1.73 inch 17.4 x 27.6 x 1.73 inch...
-
Page 11: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations RKP7 / RKP9 G keyboard WOM-01 Wired mini USB optical mouse Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS... -
Page 12: On-Screen Display Operation ( Osd )
( a ) Press the button to call up the on-screen video mode on top right corner. ( b ) Use up/down arrow to the select the video input ( c ) Press the button to confi rm the selection UM-CV-751-RKP7-Q222V1 www.austin-hughes.com... - Page 13 < 2.3 > On-screen Display Operation ( OSD ) RKP7 / RKP9 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
-
Page 14: Options
4.16A 4.16A 6.25A 12.5A Effi ciency DC power For DC power option : ( 1 ) If the unit with LCD, earthing may be required ( 2 ) DC option excludes AC power adapter and power cord. UM-CV-751-RKP7-Q222V1 P.10 www.austin-hughes.com... -
Page 15: Kvm Integration
< Part. 4 > KVM Integration RKP7 / RKP9 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6... - Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RKP7-Q222V1 www.austin-hughes.com...
