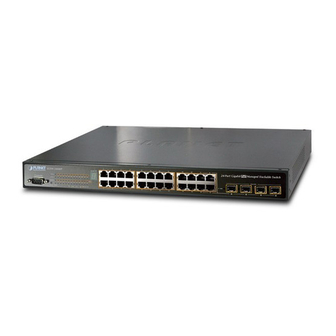

SGSW-24040 / SGSW-24040R

24-Port 10/100/1000Mbps

Layer 2 Managed Stackable Switch

SGSW-24040P / SGSW-24040P4

24G PoE Layer2 Managed Stackable Switch

SGSW-24240 / SGSW-24240R

24-Port 100/1000 SFP Fiber

Layer2 Managed Stackable Switch

SGSW-24040HP

24G High PoE Layer2 Managed Stackable Switch

User's Manual of SGSW-24040 / 24240 Series

User's Manual

1

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the SGSW-24040 and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet SGSW-24040

Page 1 User’s Manual of SGSW-24040 / 24240 Series User’s Manual SGSW-24040 / SGSW-24040R 24-Port 10/100/1000Mbps Layer 2 Managed Stackable Switch SGSW-24040P / SGSW-24040P4 24G PoE Layer2 Managed Stackable Switch SGSW-24240 / SGSW-24240R 24-Port 100/1000 SFP Fiber Layer2 Managed Stackable Switch SGSW-24040HP...
Page 2: Fcc Warning
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
Page 3: Table Of Contents
User’s Manual of SGSW-24040 / 24240 Series TABLE OF CONETNTS 1. INTRODUTION ........................19 1.1 Packet Contents ............................19 1.2 Product Description ........................... 19 1.3 How to Use This Manual ..........................22 1.4 Product Features ............................23 1.5 Product Specification ..........................26 2.
Page 4 User’s Manual of SGSW-24040 / 24240 Series 4.2.1 System Information .............................. 64 4.2.2 IP Configuration ..............................65 4.2.3 IPv6 Configuration ............................... 66 4.2.4 Users Configuration ............................. 67 4.2.5 Users Privilege Levels ............................70 4.2.6 NTP Configuration ............................... 72 4.2.7 UPnP Configuration ............................. 73 4.2.8 DHCP Relay ................................
Page 5 User’s Manual of SGSW-24040 / 24240 Series 4.5.2 LACP Configuration ............................116 4.5.3 LACP System Status ............................117 4.5.4 LACP Port Status ............................... 118 4.5.5 LACP Port Statistics ............................119 4.6 VLAN ................................121 4.6.1 VLAN Overview ..............................121 4.6.2 IEEE 802.1Q VLAN ............................121 4.6.3 VLAN Basic Information.............................
Page 6 User’s Manual of SGSW-24040 / 24240 Series 4.9.1 Understand QOS ............................... 180 4.9.2 QCL Configuration Wizard ..........................181 4.9.2.1 Set up Policy Rules ..........................182 4.9.2.2 Set up Typical Network Application Rules ....................183 4.9.2.3 Set up ToS Precedence Mapping ......................185 4.9.2.4 Set up VLAN Tag Priority Mapping ......................
Page 7 User’s Manual of SGSW-24040 / 24240 Series 4.12.7 Port Security Detail ............................269 4.12.8 DHCP Snooping .............................. 270 4.12.9 DHCP Snooping Statistics ..........................271 4.12.10 IP Source Guard Configuration ........................272 4.12.11 IP Source Guard Static Table ......................... 274 4.12.12 ARP Inspection .............................. 275 4.12.13 ARP Inspection Static Table ...........................
Page 8 User’s Manual of SGSW-24040 / 24240 Series 4.17.1.4 Shortest Path Forwarding ........................324 4.17.2 Stack Configuration............................325 4.17.3 Stack Information ............................. 328 4.17.4 Stack Port State Ovewview ..........................329 4.17.5 Stack Example ..............................330 5. COMMAND LINE INTERFACE ..................334 5.1 Accessing the CLI ............................
Page 9 User’s Manual of SGSW-24040 / 24240 Series IP DNS Proxy ..............................352 IPv6 AUTOCINFIG .............................. 352 IPv6 Setup ................................353 IPv6 Ping ................................354 IP NTP Configuration ............................354 IP NTP Mode ............................... 355 IP NTP Server Add .............................. 355 IP NTP Server IPv6 Add ............................
Page 10 User’s Manual of SGSW-24040 / 24240 Series VLAN Add ................................374 VLAN Delete ................................ 375 VLAN Lookup ..............................375 VLAN Status ................................ 376 6.7 Private VLAN Configuration Command ....................378 PVLAN Configuration ............................378 PVLAN Add ................................. 379 PVLAN Delete ..............................379 PVLAN Lookup ..............................
Page 11 User’s Manual of SGSW-24040 / 24240 Series Security Switch SNMP Trap Community ......................398 Security Switch SNMP Trap Destination ......................399 Security Switch SNMP Trap IPv6 Destination ..................... 399 Security Switch SNMP Trap Authentication Failure ..................... 400 Security Switch SNMP Trap Link-up ........................400 Security Switch SNMP Trap Inform Mode ......................
Page 12 User’s Manual of SGSW-24040 / 24240 Series Security Network NAS State ..........................421 Security Network NAS Reauthentication ......................422 Security Network NAS ReauthPeriod ........................422 Security Network NAS EapolTimeout ........................423 Security Network NAS Agetime ........................... 423 Security Network NAS Holdtime .......................... 424 Security Network NAS RADIUS_QoS .........................
Page 13 User’s Manual of SGSW-24040 / 24240 Series Security Network ARP Inspection Status ......................447 Security AAA Configuration ..........................447 Security AAA Timeout ............................448 Security AAA Deadtime ............................449 Security AAA RADIUS ............................449 Security AAA ACCT_RADIUS ..........................450 Security AAA TACACS+ ............................451 Security AAA Statistics............................
Page 14 User’s Manual of SGSW-24040 / 24240 Series IGMP Leave Proxy .............................. 469 IGMP State ................................469 IGMP Querier ..............................470 IGMP Fastleave ..............................470 IGMP Throttling ..............................471 IGMP Filtering ..............................471 IGMP Router ............................... 472 IGMP Flooding ..............................473 IGMP Groups...............................
Page 15 User’s Manual of SGSW-24040 / 24240 Series LLDPMED Policy Delete............................490 LLDPMED Policy Add ............................490 LLDPMED Port Policy ............................491 LLDPMED Coordinates ............................492 LLDPMED Datum ..............................492 LLDPMED Fast ..............................493 LLDPMED Info ..............................493 LLDPMED Debuge_med_transmit_var ....................... 493 6.15 Power over Ethernet Command ......................
Page 16 User’s Manual of SGSW-24040 / 24240 Series Mirror Mode ................................. 509 6.18 Configuration Command ........................511 Configuration Save .............................. 511 Configuration Load .............................. 511 6.19 Firmware Command ..........................512 Firmware Load ..............................512 Firmware IPv6 Load ............................512 6.20 UPnP Command ............................. 513 UPnP Configuration .............................
Page 17 User’s Manual of SGSW-24040 / 24240 Series SMTP Auth ................................528 SMTP Auth_user ..............................528 SMTP Auth_pass ..............................529 SMTP Mailfrom ..............................529 SMTP Mailsubject..............................529 SMTP Mailto1 ..............................530 SMTP Mailto2 ..............................530 6.24 Show Command ............................. 531 Show ACL Configuration ............................. 531 Show Link Aggregation Configuration .........................
Page 18 User’s Manual of SGSW-24040 / 24240 Series Stages of powering up a PoE link ..........................539 Line Detection................................539 Classification ................................540 Start-up ..................................540 Operation ..................................540 Power Disconnection Scenarios ..........................540 9. TROUBLE SHOOTING ...................... 542 APPENDEX A ........................544 A.1 Switch's RJ-45 Pin Assignments ......................
Page 19: Introdution
1. INTRODUTION The PLANET Layer 2 Managed Gigabit Switch series –SGSW Stackable, SGSW PoE and SGSW Fiber switch are all multiple ports Gigabit Ethernet Switched with SFP fiber optical connective ability and robust layer 2 features; the description of these...
Page 20 High-Performance / Cost-effective / Telecom class Gigabit solution for Enterprise backbone and Data Center Networking The PLANET Managed Switch is a L2/L4 Managed Gigabit Switch. Since Gigabit network interface had become the basic equipment and requirement of Enterprise and Network Servers, with 48Gbps switching fabric, the Managed Switch can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers.
Page 21 Advanced Features and Centralized Power Management for Enterprise and Campus PoE Networking (PoE Model) The PLANET SGSW-24040P series PoE Switch provides 24 10/100/1000Mbps Power-over-Ethernet (PoE, IEEE 802.3af compliant) ports which optimize the installation and power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones, and security video cameras.
Page 22: How To Use This Manual
User’s Manual of SGSW-24040 / 24240 Series trend of higher power demand. Hence, the IEEE 802.3at Power over Ethernet pre-standard is defined to allow delivery of maximum up to 30 Watts input power to per PoE device. The IEEE 802.3at Power over Ethernet pre-standard is an ideal solution to fulfill the high power requirements directly via the RJ-45 Port interface.
Page 23: Product Features
User’s Manual of SGSW-24040 / 24240 Series 1.4 Product Features  Physical Port SGSW-24040 / SGSW-24040R  24-Port 10/100/1000Base-T Gigabit Ethernet RJ-45  4 100/1000Base-X SFP slots, shared with Port-21 to Port-24  RS-232 DB9 console interface for Switch basic management and setup ...
Page 24 User’s Manual of SGSW-24040 / 24240 Series − 802.3ad Link Aggregation Control Protocol (LACP) − Cisco ether-channel (Static Trunk) − Maximum 12 trunk groups, up to 16 ports per trunk group − Up to 16Gbps bandwidth(Duplex Mode) ■ Provide Port Mirror (many-to-1) ■...
Page 25 User’s Manual of SGSW-24040 / 24240 Series  Management ■ Switch Management Interfaces Console / Telnet Command Line Interface Web switch management SNMP v1, v2c, and v3 switch management SSH / SSL secure access ■ Four RMON groups (history, statistics, alarms, and events) ■...
Page 26: Product Specification
IEEE 802.3x Pause Frame for Full-Duplex Flow Control Back pressure for Half-Duplex Jumbo Frame 10Kbytes < 5 seconds: System reboot Reset Button > 10 seconds: Factory Default 440 x 200 x 44.5 mm, 1U high Dimension (W x D x H) SGSW-24040: 3.0kg Weight...
Page 27 User’s Manual of SGSW-24040 / 24240 Series SGSW-24040R: 3.1kg Power, Link/Act and speed per Gigabit port Power Consumption Max. 30.2 watts / 102.98 BTU Power Requirement – AC AC 100~240V, 50/60Hz AC 100~240V, 50/60Hz -48V DC @ 0.6A Power Requirement – DC...
Page 28 User’s Manual of SGSW-24040 / 24240 Series RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Standards Conformance Regulation Compliance FCC Part 15 Class A, CE IEEE 802.3 10Base-T...
Page 29 User’s Manual of SGSW-24040 / 24240 Series Share data Buffer 1392 kilobytes Switch Processing Scheme Store-and-Forward IEEE 802.3x Pause Frame for Full-Duplex Flow Control Back pressure for Half-Duplex Jumbo Frame 10Kbytes < 5 seconds: System reboot Reset Button > 10 seconds: Factory Default 440 x 200 x 44.5 mm, 1U high...
Page 30 User’s Manual of SGSW-24040 / 24240 Series - Port Number - 802.1p priority - DS/TOS field in IP Packet IGMP (v1/v2) Snooping, up to 255 multicast Groups IGMP Snooping IGMP Querier mode support IP-Based ACL / MAC-Based ACL Access Control List...
Page 31 User’s Manual of SGSW-24040 / 24240 Series  SGSW Stackable PoE models Product SGSW-24040P SGSW-24040P4 SGSW-24040HP Hardware Specification Copper Ports 24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports SFP/mini-GBIC Slots 4 SFP interfaces, shared with Port-21 to Port-24 Console Port 1 x RS-232 DB9 serial port (115200, 8, N, 1)
Page 32 User’s Manual of SGSW-24040 / 24240 Series Number of PD @ 15.4Watts Number of PD @ 30.8Watts Layer 2 Function Basic Management Interfaces Console, Telnet, Web Browser, SNMPv1, v2c and v3 Secure Management Interface SSH, SSL, SNMP v3 Port disable/enable.
Page 33 User’s Manual of SGSW-24040 / 24240 Series RFC3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Standards Conformance Regulation Compliance FCC Part 15 Class A, CE IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP...
Page 34: Installation
User’s Manual of SGSW-24040 / 24240 Series 2. INSTALLATION This section describes the hardware features and installation of the Managed Switch on the desktop or rack mount. For easier management and control of the Managed Switch, familiarize yourself with its display indicators, and ports. Front panel illustrations in this chapter display the unit LED indicators.
Page 35 User’s Manual of SGSW-24040 / 24240 Series ■ Gigabit TP interface 10/100/1000Base-T Copper, RJ-45 Twist-Pair: Up to 100 meters. ■ Gigabit SFP slots 1000Base-SX/LX mini-GBIC slot, SFP (Small Factor Pluggable) transceiver module: From 550 meters (Multi-mode fiber), up to 10/30/50/70/120 kilometers (Single-mode fiber).
Page 36: Led Indications
User’s Manual of SGSW-24040 / 24240 Series 2.1.2 LED Indications The front panel LEDs indicates instant status of port links, data activity and system power; helps monitor and troubleshoot when needed. Figure 2-4 & Figure 2-6 shows the LED indications of these Managed Switches.
Page 37 User’s Manual of SGSW-24040 / 24240 Series ■ 1000Base-SX/LX SFP interfaces (Shared Port-21~Port-24) Color Function Lights: To indicate the link through that SFP port is successfully established with 1000 speed 1000Mbps Green Off: To indicate that the SFP port is link down...
Page 38 User’s Manual of SGSW-24040 / 24240 Series ■ 10/100/1000Base-T interfaces Color Function Lights: To indicate the link through that port is successfully established with speed 10Mbps or 100Mbps or 1000Mbps Blink: To indicate that the switch is actively sending or receiving data over that port.
Page 39 User’s Manual of SGSW-24040 / 24240 Series STX1 Green Lights to indicate the stacking link through that port is successfully established. STX2 Green Lights to indicate the stacking link through that port is successfully established. ■ 10/100/1000Base-T interfaces (Shared Port-1~Port-8)
Page 40: Switch Rear Panel
User’s Manual of SGSW-24040 / 24240 Series 2.1.3 Switch Rear Panel The rear panel of the Managed Switch indicates an AC inlet power socket, which accepts input power from 100 to 240V AC, 50-60Hz. Figure 2-7 & Figure 2-11 shows the rear panel of these Managed Switches...
Page 41 STX2 / Cascade UP port should connect to other switch’s STX1 / Cascade Down out. • You can just use attached PLANET CB-STX50 or longer stack cable CB-STX200 connector to stack. • The CB-STX50 and CB-STX200 are Cross-Overed HDMI cables; only attached PLANET stack cable can be used. • Plug-and-play connection.
Page 42 User’s Manual of SGSW-24040 / 24240 Series Figure 2-13 SGSW-24040 /24040R Series Stack Ports...
Page 43: Install The Switch
User’s Manual of SGSW-24040 / 24240 Series 2.2 Install the Switch This section describes how to install your Managed Switch and make connections to the Managed Switch. Please read the following topics and perform the procedures in the order being presented. To install your Managed Switch on a desktop or shelf, simply complete the following steps.
Page 44: Rack Mounting
User’s Manual of SGSW-24040 / 24240 Series Step5: Supply power to the Managed Switch. Connect one end of the power cable to the Managed Switch. Connect the power plug of the power cable to a standard wall outlet. When the Managed Switch receives power, the Power LED should remain solid Green.
Page 45: Installing The Sfp Transceiver
User’s Manual of SGSW-24040 / 24240 Series Figure 2-16 Mounting SGSW-24040 in a Rack Step6: Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply power to the Managed Switch.
Page 46  Approved PLANET SFP Transceivers PLANET Managed Switch supports both Single mode and Multi-mode SFP transceiver. The following list of approved PLANET SFP transceivers is correct at the time of publication: ■ MGB-SX SFP (1000BASE-SX SFP transceiver / Multi-mode / 850nm / 220m~550m) ■...
Page 47: Connecting Dc Power Supply
User’s Manual of SGSW-24040 / 24240 Series Figure 2-18 Pull out the SFP transceiver Never pull out the module without pull the handle or the push bolts on the module. Direct pull out the module with violent could damage the module and SFP module slot of the Managed Switch.
Page 48 User’s Manual of SGSW-24040 / 24240 Series Before connect the DC power cable to the input terminal block of Managed Switch, ensure that the Warning: power switch in the “OFF” position and the DC power is OFF...
Page 49: Stack Installation
SGSW-24040 / 24240 Series The SGSW-24040 / 24240 series Managed Switch provides a switch stacking function to manage up to 16 switches using a single IP address. And up to 384 Gigabit Ethernet ports can be managed by a stacking group and you can add ports and functionality as needed.
Page 50: Connecting Stacking Cable
There are two high-performance HDMI-like Stack ports on the rear panel for proprietary management stack. Only attached PLANET CB-STX50 and CB-STX200 cross-overed HDMI cable can be used. STEP-1: Plug one end of the cable in the “STX1 / Cascade Down” port and the other end to the ”STX2 / Cascade UP” port of next device.
Page 51 STEP-7: Connect the RS-232 serial cable to the console port on the front of the stack master, then loin the SGSW Switch to start the switch management. Or you can use the PLANET Smart Discovery Utility to displayt the IP address of the stack and Web login the stack with this IP address.
Page 52 (console, telnet, web and SNMP) is accessible. It’s allow to build a stack of up to 16 PLANET SGSW Switches. If there is the space limitation or power issue and you wish to stack all the switches in different racks, use long stack cables “CB-STX200” to connect two stacks.
Page 53: Switch Management
User’s Manual of SGSW-24040 / 24240 Series 3. SWITCH MANAGEMENT This chapter explains the methods that you can use to configure management access to the Managed Switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system.
Page 54: Management Access Overview
User’s Manual of SGSW-24040 / 24240 Series 3.2 Management Access Overview The Managed Switch gives you the flexibility to access and manage it using any or all of the following methods:  An administration console  Web browser interface ...
Page 55 User’s Manual of SGSW-24040 / 24240 Series Figure 3-1 Console management Direct Access Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the Managed Switch console (serial) port.
Page 56: Web Management
User’s Manual of SGSW-24040 / 24240 Series 3.4 Web Management The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the switch, you can access the Managed Switch's Web interface applications directly in your Web browser by entering the IP address of the Managed Switch.
Page 57: Snmp-Based Network Management
User’s Manual of SGSW-24040 / 24240 Series 3.5 SNMP-Based Network Management You can use an external SNMP-based application to configure and manage the Managed Switch, such as SNMPc Network Manager, HP Openview Network Node Management (NNM) or What’s Up Gold. This management method requires the SNMP agent on the switch and the SNMP Network Management Station to use the same community string.
Page 58: Web Configuration
User’s Manual of SGSW-24040 / 24240 Series 4. WEB CONFIGURATION This section introduces the configuration and functions of the Web-Based management. About Web-based Management The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.
Page 59 User’s Manual of SGSW-24040 / 24240 Series  Logging on the switch Use Internet Explorer 7.0 or above Web browser. Enter the factory-default IP address to access the Web interface. The factory-default IP Address as following: http://192.168.0.100 When the following login screen appears, please enter the default username "admin" with password “admin” (or the username/password you have changed via console) to login the main screen of Managed Switch.
Page 60 User’s Manual of SGSW-24040 / 24240 Series Figure 4-1-3 Default main page Now, you can use the Web management interface to continue the switch management or manage the Managed Switch by Web interface. The Switch Menu on the left of the web page let you access all the commands and statistics the Managed Switch provides.
Page 61: Main Web
User’s Manual of SGSW-24040 / 24240 Series 4.1 Main Web Page The SGSW Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to access the Managed Switch using the Web browser of your choice. This chapter describes how to use the Managed Switch’s Web browser interface to configure and manage it.
Page 62 User’s Manual of SGSW-24040 / 24240 Series Figure 4-1-5 SGSW Managed Switch Main Functions Menu...
Page 63: System
User’s Manual of SGSW-24040 / 24240 Series 4.2 System Use the System menu items to display and configure basic administrative details of the Managed Switch. Under System the following topics are provided to configure and view the system information: This section has the following items: ■...
Page 64: System Information
User’s Manual of SGSW-24040 / 24240 Series 4.2.1 System Information The System Info page provides information for the current device information. System Info page helps a switch administrator to identify the hardware MAC address, software version and system uptime. The screen in Figure 4-2-1 appears.
Page 65: Ip Configuration
User’s Manual of SGSW-24040 / 24240 Series • Swithc ID The switch ID. • Software Version The software version of the switch. Buttons Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals. : Click to refresh the page; any changes made locally will be undone.
Page 66: Ipv6 Configuration
User’s Manual of SGSW-24040 / 24240 Series • IP Mask Provide the IP mask of this switch dotted decimal notation. • IP Router Provide the IP address of the router in dotted decimal notation. • VLAN ID Provide the managed VLAN ID. The allowed range is 1 through 4095.
Page 67: Users Configuration
User’s Manual of SGSW-24040 / 24240 Series seconds, the total time needed to complete auto-configuration can be significantly longer. • Address Provide the IPv6 address of this switch. IPv6 address is in 128-bit records represented as eight fields of up to four hexadecimal digits with a colon separates each field (:).
Page 68 User’s Manual of SGSW-24040 / 24240 Series Figure 4-2-4 Users Configuration page screenshot The page includes the following fields: Object Description • Username The name identifying the user. This is also a link to Add/Edit User. • Privilege Level The privilgeg level for the user.
Page 69 User’s Manual of SGSW-24040 / 24240 Series Buttons : Click to save changes. : Click to undo any changes made locally and revert to previously saved values. : Click to undo any changes made locally and return to the Users.
Page 70: Users Privilege Levels
User’s Manual of SGSW-24040 / 24240 Series 4.2.5 Users Privilege Levels This page provides an overview of the privilege levels. After setup completed, please press “Save” button to take effect. Please login web interface with new user name and password, the screen in Figure 4-2-7 appears.
Page 71 User’s Manual of SGSW-24040 / 24240 Series contains more than one. The following description defines these privilege level groups in details: System: Contact, Name, Location, Timezone, Log. Security: Authentication, System Access Management, Port (contains Dot1x port, MAC based and the MAC Address Limit), ACL, HTTPS, SSH, ARP Inspection and IP source guard.
Page 72: Ntp Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.2.6 NTP Configuration Configure NTP on this page. NTP is an acronym for Network Time Protocol, a network protocol for synchronizing the clocks of computer systems. NTP uses UDP (data grams) as transport layer. You can specify NTP Servers and set GMT Time zone. The NTP Configuration...
Page 73: Upnp Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.2.7 UPnP Configuration Configure UPnP on this page. UPnP is an acronym for Universal Plug and Play. The goals of UPnP are to allow devices to connect seamlessly and to simplify the implementation of networks in the home (data sharing, communications, and entertainment) and in corporate environments for simplified installation of computer components.
Page 74: Dhcp Relay
User’s Manual of SGSW-24040 / 24240 Series Buttons : Click to save changes. : Click to undo any changes made locally and revert to previously saved values. Figure 4-2-10 UPnP devices shows on Windows My Network Places 4.2.8 DHCP Relay Configure DHCP Relay on this page.
Page 75 User’s Manual of SGSW-24040 / 24240 Series The definition of Circuit ID in the switch is 4 bytes in length and the format is "vlan_id" "module_id" "port_no". The parameter of "vlan_id" is the first two bytes represent the VLAN ID. The parameter of "module_id" is the third byte for the module ID (in standalone switch it always equal 0, in stackable switch it means switch ID).
Page 76: Dhcp Relay Statistics
User’s Manual of SGSW-24040 / 24240 Series DHCP relay information operation mode enabled. Possible policies are: Replace: Replace the original relay information when receive a DHCP message that already contains it. Keep: Keep the original relay information when receive a DHCP message that already contains it.
Page 77 User’s Manual of SGSW-24040 / 24240 Series • Receive Missing The packets number that received packets which Remote ID option was missing. Remote ID • Receive Bad Circuit ID The packets number that the Circuit ID option did not match known circuit ID.
Page 78: Cpu Load
User’s Manual of SGSW-24040 / 24240 Series 4.2.10 CPU Load This page displays the CPU load, using a SVG graph. The load is measured as averaged over the last 100ms, 1sec and 10 seconds intervals. The last 120 samles are graphed, and the last numbers are displayed as text as well.
Page 79: System Log
User’s Manual of SGSW-24040 / 24240 Series 4.2.11 System Log The switch system log information is provided here. The System Log screen in Figure 4-2-14 appears. Figure 4-2-14 System Log page screenshot The page includes the following fields: Object Description •...
Page 80: Detailed Log
User’s Manual of SGSW-24040 / 24240 Series : Updates the system log entries, starting from the last entry currently displayed. : Updates the system log entries, ending at the last available entry ID. 4.2.12 Detailed Log The switch system detailed log information is provided here. The Detailed Log screen in Figure 4-2-15 appears.
Page 81: Remote Syslog
User’s Manual of SGSW-24040 / 24240 Series 4.2.13 Remote Syslog Configure remote syslog on this page. The Remote Syslog screen in Figure 4-2-16 appears. Figure 4-2-16 Remote Syslog page screenshot The page includes the following fields: Object Description • Mode Indicates the remote syslog mode operation.
Page 82 User’s Manual of SGSW-24040 / 24240 Series Figure 4-2-17 Web Firmware Upgrade page screenshot The page includes the following fields: Object Description • SMTP Mode Controls whether SMTP is enabled on this switch. • SMTP Server Type the SMTP server name or the IP address of the SMTP server.
Page 83: Web Firmware Upgrade
User’s Manual of SGSW-24040 / 24240 Series : Click to undo any changes made locally and revert to previously saved values. 4.2.15 Web Firmware Upgrade This page facilitates an update of the firmware controlling the switch. The Web Firmware Upgrade screen in Figure 4-2-18 appears.
Page 84: Tftp Firmware Upgrade
User’s Manual of SGSW-24040 / 24240 Series Do not quit the Firmware Upgrade page without press the “OK” button - after the image be loaded. Or the system won’t apply the new firmware. User has to repeat the firmware upgrade processes again.
Page 85: Configuration Backup
User’s Manual of SGSW-24040 / 24240 Series 4.2.17 Configuration Backup This function allows backup and reload the current configuration of the Managed Switch to the local management station. The Configuration Backup screen in Figure 4-2-21 appears. Figure 4-2-21 Configuration Backup page screenshot You can save/view or load the switch configuration.
Page 86 User’s Manual of SGSW-24040 / 24240 Series Figure 4-2-22 File Download screen Chose the file save path in management workstation. Figure 4-2-23 File save screen...
Page 87: Configuration Upload
User’s Manual of SGSW-24040 / 24240 Series 4.2.18 Configuration Upload This function allows backup and reload the current configuration of the Managed Switch to the local management station. The Configuration Upload screen in Figure 4-2-24 appears. Figure 4-2-24 Configuration Upload page screenshot ...
Page 88: Factory Default
User’s Manual of SGSW-24040 / 24240 Series 4.2.19 Factory Default You can reset the configuration of the stack switch on this page. Only the IP configuration is retained. The new configuration is available immediately, which means that no restart is necessary. The Factory Default screen in Figure 4-2-26 appears.
Page 89: System Reboot
User’s Manual of SGSW-24040 / 24240 Series 4.2.20 System Reboot The Reboot page enables the device to be rebooted from a remote location. Once the Reboot button is pressed, user have to re-login the WEB interface about 60 seconds later, the System Reboot screen in Figure 4-2-27 appears.
Page 90: Simple Network Management Protocol
User’s Manual of SGSW-24040 / 24240 Series 4.3 Simple Network Management Protocol 4.3.1 SNMP Overview The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite.
Page 91: Snmp System Configuration
User’s Manual of SGSW-24040 / 24240 Series  SNMPv3 Communities Configure SNMPv3 communities table on this page.  SNMPv3 Users Configure SNMPv3 users table on this page.  SNMPv3 Groups Configure SNMPv3 groups table on this page.  SNMPv3 Views Configure SNMPv3 views table on this page.
Page 92: Snmp System Information Configuration
User’s Manual of SGSW-24040 / 24240 Series will associated with SNMPv3 communities table. • Engine ID Indicates the SNMPv3 engine ID. The string must contain an even number between 10 and 64 hexadecimal digits, but all-zeros and all-'F's are not allowed.
Page 93: Snmp Trap Configuration
User’s Manual of SGSW-24040 / 24240 Series to 126. Buttons : Click to save changes. : Click to undo any changes made locally and revert to previously saved values. 4.3.4 SNMP Trap Configuration Configure SNMP trap on this page. The SNMP Trap Configuration screen in Figure 4-3-3 appears.
Page 94 User’s Manual of SGSW-24040 / 24240 Series allowed string length is 0 to 255, and the allowed content is the ASCII characters from 33 to 126. • Indicates the SNMP trap destination address. Trap Destination Address • Trap Destination IPv6 Provide the trap destination IPv6 address of this switch.
Page 95: Snmpv3 Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.3.5 SNMPv3 Configuration 4.3.5.1 SNMPv3 Communities Configuration Configure SNMPv3 communities table on this page. The entry index key is Community. The SNMPv3 Communities Configuration screen in Figure 4-3-4 appears. Figure 4-3-4 SNMPv3 Communities Configuration page screenshot...
Page 96 User’s Manual of SGSW-24040 / 24240 Series Figure 4-3-5 SNMPv3 Users Configuration page screenshot The page includes the following fields: Object Description • Delete Check to delete the entry. It will be deleted during the next save. • Engine ID A octet string identifying the engine ID that this entry should belong to.
Page 97 User’s Manual of SGSW-24040 / 24240 Series DES: An optional flag to indicate that this user using DES authentication protocol. • Privacy Password A string identifying the privacy pass phrase. The allowed string length is 8 to 32, and the allowed content is the ASCII characters from 33 to 126.
Page 98: Snmpv3 Groups Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.3.5.3 SNMPv3 Groups Configuration Configure SNMPv3 groups table on this page. The entry index keys are Security Model and Security Name. The SNMPv3 Groups Configuration screen in Figure 4-3-6 appears. Figure 4-3-6 SNMPv3 Groups Configuration page screenshot...
Page 99: Snmpv3 Views Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.3.5.4 SNMPv3 Views Configuration Configure SNMPv3 views table on this page. The entry index key are View Name and OID Subtree. The SNMPv3 Views Configuration screen in Figure 4-3-7 appears. Figure 4-3-7 SNMPv3 Views Configuration page screenshot...
Page 100: Snmpv3 Accesses Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.3.5.5 SNMPv3 Accesses Configuration Configure SNMPv3 accesses table on this page. The entry index key are Group Name, Security Model and Security Level. The SNMPv3 Accesses Configuration screen in Figure 4-3-8 appears. Figure 4-3-8 SNMPv3 Accesses Configuration page screenshot...
Page 101 User’s Manual of SGSW-24040 / 24240 Series Buttons : Click to add a new access entry. : Click to save changes. : Click to undo any changes made locally and revert to previously saved values.
Page 102: Port Management
User’s Manual of SGSW-24040 / 24240 Series 4.4 Port Management Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items:  Port Configuration Configures port connection settings  Port Statistics Overview Lists Ethernet and RMON port statistics ...
Page 103 User’s Manual of SGSW-24040 / 24240 Series • Description Indicates the per port description. • Link The current link state is displayed graphically. Green indicates the link is up and red that it is down. • Provides the current link speed of the port.
Page 104: Port Statistics Overview
User’s Manual of SGSW-24040 / 24240 Series Buttons : Click to save changes. : Click to undo any changes made locally and revert to previously saved values. : Click to refresh the page. Any changes made locally will be undone.
Page 105: Port Statistics Detail
User’s Manual of SGSW-24040 / 24240 Series The displayed counters are: Object Description • Port The logical port for the settings contained in the same row. • Packets The number of received and transmitted packets per port. • The number of received and transmitted bytes per port.
Page 106 User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Receive Total and Transmit Total Object Description • The number of received and transmitted (good and bad) packets Rx and Tx Packets • The number of received and transmitted (good and bad) bytes. Includes FCS, but Rx and Tx Octets excludes framing bits.
Page 107: Sfp Module Information
User’s Manual of SGSW-24040 / 24240 Series Transmit Error Counters Object Description • Tx Drops The number of frames dropped due to output buffer congestion. • Tx Late/Exc. Coll. The number of frames dropped due to excessive or late collisions.
Page 108: Port Mirroring Configuration
User’s Manual of SGSW-24040 / 24240 Series • Speed Display the spedd of current SFP module, the speed value or description is get from the SFP module. Different vendors SFP modules might shows different speed information. • Wave Length(nm) Display the wavelength of current SFP module, the wavelength value is get from the SFP module.
Page 109 User’s Manual of SGSW-24040 / 24240 Series Figure 4-4-5 Port Mirror application The traffic to be copied to the mirror port is selected as follows: • All frames received on a given port (also known as ingress or source mirroring).
Page 110 User’s Manual of SGSW-24040 / 24240 Series Mirror Port Configuration The Port Mirror Configuration screen in Figure 4-4-6 appears. Figure 4-4-6 Port Mirror Configuration page screenshot The page includes the following fields: Object Description • Port to mirror to Frames from ports that have either source or destination mirroring enabled are mirrored...
Page 111 User’s Manual of SGSW-24040 / 24240 Series • Switch to mirror to Frames from ports that have either source (rx) or destination (tx) mirroring enabled are mirrored to this switch. • The logical port for the settings contained in the same row.
Page 112: Link Aggregation
User’s Manual of SGSW-24040 / 24240 Series 4.5 Link Aggregation Port Aggregation optimizes port usage by linking a group of ports together to form a single Link Aggregated Groups (LAGs). Port Aggregation multiplies the bandwidth between the devices, increases port flexibility, and provides link redundancy.
Page 113 User’s Manual of SGSW-24040 / 24240 Series The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems that require high speed redundant links. Link aggregation lets you group up to eight consecutive ports into a single dedicated connection.
Page 114: Static Aggregation Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.5.1 Static Aggregation Configuration This page is used to configure the Aggregation hash mode and the aggregation group. The aggregation hash mode settings are global, whereas the aggregation group relate to the currently selected stack unit, as reflected by the page header.
Page 115 User’s Manual of SGSW-24040 / 24240 Series Figure 4-5-3 Aggregation Group Configuration page screenshot The page includes the following fields: .Object Description • Locality Indicates the aggregation group type. This field is only valid for stackable switches. Global: The group members may reside on different units in the stack. The device supports two 8-port global aggregations.
Page 116: Lacp Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.5.2 LACP Configuration Link Aggregation Control Protocol (LACP) - LACP LAG negotiate Aggregated Port links with other LACP ports located on a different device. LACP allows switches connected to each other to discover automatically whether any ports are member of the same LAG.
Page 117: Lacp System Status
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Port The switch port number. • LACP Enabled Controls whether LACP is enabled on this switch port. LACP will form an aggregation when 2 or more ports are connected to the same partner. LACP can form max 12 LLAGs per switch and 2 GLAGs per stack.
Page 118: Lacp Port Status
User’s Manual of SGSW-24040 / 24240 Series For LLAG the id is shown as 'isid:aggr-id' and for GLAGs as 'aggr-id' • Partner System ID The system ID (MAC address) of the aggregation partner. • The Key that the partner has assigned to this aggregation ID.
Page 119: Lacp Port Statistics
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Port The switch port number. • LACP 'Yes' means that LACP is enabled and the port link is up. 'No' means that LACP is not enabled or that the port link is down.
Page 120 User’s Manual of SGSW-24040 / 24240 Series Figure 4-5-7 LACP Port statistics page screenshot The page includes the following fields: Object Description • Port The switch port number. • LACP Transmitted Shows how many LACP frames have been sent from each port.
Page 121: Vlan
User’s Manual of SGSW-24040 / 24240 Series 4.6 VLAN 4.6.1 VLAN Overview A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single LAN.
Page 122 User’s Manual of SGSW-24040 / 24240 Series to the same physical segment. VLANs help to simplify network management by allowing you to move devices to a new VLAN without having to change any physical connections. VLANs can be easily organized to reflect departmental groups (such as Marketing or R&D), usage groups (such as e-mail), or multicast groups (used for multimedia applications such as videoconferencing).
Page 123: Port Vlan Id
User’s Manual of SGSW-24040 / 24240 Series 1 bit of Canonical Format Identifier (CFI - used for encapsulating Token Ring packets so they can be carried across Ethernet backbones), and 12 bits of VLAN ID (VID). The 3 bits of user priority are used by 802.1p. The VID is the VLAN identifier and is used by the 802.1Q standard.
Page 124 User’s Manual of SGSW-24040 / 24240 Series Tagged packets are forwarded according to the VID contained within the tag. Tagged packets are also assigned a PVID, but the PVID is not used to make packet forwarding decisions, the VID is.
Page 125: Vlan Basic Information
User’s Manual of SGSW-24040 / 24240 Series ■ Untagged VLANs Untagged (or static) VLANs are typically used to reduce broadcast traffic and to increase security. A group of network users assigned to a VLAN form a broadcast domain that is separate from other VLANs configured on the switch. Packets are forwarded only between ports that are designated for the same VLAN.
Page 126: Vlan Port Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.6.4 VLAN Port Configuration This page is used for configuring the Managed Switch port VLAN. The VLAN per Port Configuration page contains fields for managing ports that are part of a VLAN. The port default VLAN ID (PVID) is configured on the VLAN Port Configuration page. All untagged packets arriving to the device are tagged by the ports PVID.
Page 127 User’s Manual of SGSW-24040 / 24240 Series The Managed Switch supports multiple VLAN tags and can therefore be used in MAN applications as a provider bridge, aggregating traffic from numerous independent customer LANs into the MAN (Metro Access Network) space. One of the purposes of the provider bridge is to recognize and use VLAN tags so that the VLANs in the MAN space can be used independent of the customers’...
Page 128 User’s Manual of SGSW-24040 / 24240 Series Figure 4-6-2 VLAN Port Configuration page screenshot The page includes the following fields: Object Description • Port This is the logical port number for this row. • PVID Allow assign PVID for selected port. The range for the PVID is 1-4094.
Page 129 User’s Manual of SGSW-24040 / 24240 Series • Accept Frame Type Determines whether the port accepts all frames or only tagged frames. This parameter affects VLAN ingress processing. If the port only accepts tagged frames, untagged frames received on the port are discarded. By default, the field is set to All.
Page 130: Vlan Membership Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.6.5 VLAN Membership Configuration  Adding Static Members to VLANs (VLAN Index) Use the VLAN Static Table to configure port members for the selected VLAN index. The VLAN membership configuration for the selected stack switch / unit switch can be monitored and modified here. Up to 255 VLANs are supported. This page allows for adding and deleting VLANs as well as adding and deleting port members of each VLAN.
Page 131: Vlan Membership Status For User Static
User’s Manual of SGSW-24040 / 24240 Series Buttons : Click to add new VLAN. : Click to save changes. : Click to undo any changes made locally and revert to previously saved values. : Refreshes the displayed table starting from the "VLAN ID" input fields.
Page 132: Vlan Port Status For User Static
User’s Manual of SGSW-24040 / 24240 Series Server. - Voice VLAN : Voice VLAN is a VLAN configured specially for voice traffic typically originating from IP phones. - MVR : MVR is used to eliminate the need to duplicate multicast traffic for subscribers in each VLAN.
Page 133 User’s Manual of SGSW-24040 / 24240 Series Figure 4-6-5 VLAN Port Status for User Static page screenshot The page includes the following fields: Object Description • Port The logical port for the settings contained in the same row. • PVID Shows the VLAN identifier for that port.
Page 134: Port Isolation Configuration
User’s Manual of SGSW-24040 / 24240 Series parameter affects VLAN ingress processing. If the port only accepts tagged frames, untagged frames received on that port are discarded. • Tx Tag Shows egress filtering frame status whether tagged or untagged. • UVID Shows UVID (untagged VLAN ID).
Page 135 User’s Manual of SGSW-24040 / 24240 Series application examples are provided in this section: • Customers connected to an ISP can be members of the same VLAN, but they are not allowed to communicate with each other within that VLAN.
Page 136 User’s Manual of SGSW-24040 / 24240 Series The port settings relate to the currently selected stack unit, as reflected by the page header. This feature works across the stack. The Port Isolation Configuration screen in Figure 4-6-6 appears. Figure 4-6-6 Port Isolation Configuration page screenshot...
Page 137: Private Vlan Membership Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.6.9 Private VLAN Membership Configuration The Private VLAN membership configurations for the switch can be monitored and modified here. Private VLANs can be added or deleted here. Port members of each Private VLAN can be added or removed here.
Page 138 User’s Manual of SGSW-24040 / 24240 Series The button can be used to undo the addition of new VLANs. Buttons : Click to add new VLAN. : Click to save changes. : Click to undo any changes made locally and revert to previously saved values.
Page 139: Vlan Setting Example
User’s Manual of SGSW-24040 / 24240 Series 4.6.10 VLAN setting example: - Separate VLAN - 802.1Q VLAN Trunk - Port Isolate 4.6.10.1 Two separate 802.1Q VLAN The diagram shows how the Managed Switch handle Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and VLAN Group 3 are separated VLAN.
Page 140 User’s Manual of SGSW-24040 / 24240 Series While the packet leaves Port-2, it will be stripped away it tag becoming an untagged packet. While the packet leaves Port-3, it will keep as a tagged packet with VLAN Tag=2.  Tagged packet entering VLAN 2 While [PC-3] transmit a tagged packet with VLAN Tag=2 enters Port-3, [PC-1] and [PC-2] will received the packet through Port-1 and Port-2.
Page 141 User’s Manual of SGSW-24040 / 24240 Series Figure 4-6-9 Add new VLAN group, assign VLAN members for VLAN 2 and VLAN 3 and remove specify ports from VLAN 1 member It’s import to remove the VLAN members from VLAN 1 configuration. Or the ports would become overlap setting.
Page 142 User’s Manual of SGSW-24040 / 24240 Series Figure 4-6-10 Port 1-Port 6 VLAN Configuration...
Page 143: Vlan Trunking Between Two 802.1Q Aware Switch
User’s Manual of SGSW-24040 / 24240 Series 4.6.10.2 VLAN Trunking between two 802.1Q aware switch The most cases are used for “Uplink” to other switches. VLANs are separated at different switches, but they need to access with other switches within the same VLAN group. The screen in Figure 4-6-11 appears.
Page 144: Port Isolate
User’s Manual of SGSW-24040 / 24240 Series About the VLAN ports connect to the hosts, please refer to 4.6.10.1 examples. The following steps will focus on the VLAN Trunk port configuration. Specify Port-8 to be the 802.1Q VLAN Trunk port.
Page 145 User’s Manual of SGSW-24040 / 24240 Series Setup steps Assign Port Mode Set Port-1~Port-4 in Isolate port. Set Port5 and Port-6 in Promiscuous port. The screen in Figure 4-6-15 appears.
Page 146 User’s Manual of SGSW-24040 / 24240 Series Figure 4-6-15 The configuration of Isolate and Promiscuous port Assign VLAN Member : VLAN 1 : Port-1,Port-2 ,Port-5 and Port-3 VLAN 2 : Port-3~Port-6. The screen in Figure 4-6-16 appears. Figure 4-6-16 Private VLAN port setting...
Page 147: Spanning Tree Protocol
User’s Manual of SGSW-24040 / 24240 Series 4.7 Spanning Tree Protocol 4.7.1 Theory The Spanning Tree protocol can be used to detect and disable network loops, and to provide backup links between switches, bridges or routers. This allows the switch to interact with other bridging devices in your network to ensure that only one route exists between any two stations on the network, and provide backup links which automatically take over when a primary link goes down.
Page 148 User’s Manual of SGSW-24040 / 24240 Series The switch sends BPDUs to communicate and construct the spanning-tree topology. All switches connected to the LAN on which the packet is transmitted will receive the BPDU. BPDUs are not directly forwarded by the switch, but the receiving switch uses the information in the frame to calculate a BPDU, and, if the topology changes, initiates a BPDU transmission.
Page 149 User’s Manual of SGSW-24040 / 24240 Series Figure 4-7-1 STP Port State Transitions You can modify each port state by using management software. When you enable STP, every port on every switch in the network goes through the blocking state and then transitions through the states of listening and learning at power up. If properly configured, each port stabilizes to the forwarding or blocking state.
Page 150 User’s Manual of SGSW-24040 / 24240 Series The following are the user-configurable STP parameters for the switch level: Parameter Description Default Value Bridge Identifier(Not user A combination of the User-set priority and 32768 + MAC configurable the switch’s MAC address.
Page 151 User’s Manual of SGSW-24040 / 24240 Series User-Changeable STA Parameters The Switch’s factory default setting should cover the majority of installations. However, it is advisable to keep the default settings as set at the factory; unless, it is absolutely necessary. The user changeable parameters in the Switch are as follows: Priority –...
Page 152 User’s Manual of SGSW-24040 / 24240 Series Figure 4-7-5 Before Applying the STA Rules In this example, only the default STP values are used. Figure 4-7-6 After Applying the STA Rules...
Page 153: Stp Bridge Configuration
User’s Manual of SGSW-24040 / 24240 Series The switch with the lowest Bridge ID (switch C) was elected the root bridge, and the ports were selected to give a high port cost between switches B and C. The two (optional) Gigabit ports (default port cost = 20,000) on switch A are connected to one (optional) Gigabit port on both switch B and C.
Page 154 User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Basic Settings Object Description • The STP protocol version setting. Valid values are STP, RSTP and MSTP. Protocol Version • The delay used by STP Bridges to transition Root and Designated Ports to Forward Delay Forwarding (used in STP compatible mode).
Page 155: Bridge Status
User’s Manual of SGSW-24040 / 24240 Series The Gigabit Ethernet Switch implement the Rapid Spanning Protocol as the default spanning tree protocol. While select “Compatibles” mode, the system use the RSTP (802.1w) to compatible and co work with another STP (802.1d)’s BPDU control packets.
Page 156: Cist Port Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.7.4 CIST Port Configuration This page allows the user to inspect the current STP CIST port configurations, and possibly change them as well. This page contain settings for aggregations and physical ports. The aggregation settings are stack global.
Page 157 User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Port The switch port number of the logical STP port. • STP Enabled Controls whether RSTP is enabled on this switch port. • Controls the path cost incurred by the port. The Auto setting will set the path cost Path Cost as appropriate by the physical link speed, using the 802.1D recommended...
Page 158 User’s Manual of SGSW-24040 / 24240 Series to the similar bridge setting, the port Edge status does not effect this setting. A port entering error-disabled state due to this setting is subject to the bridge Port Error Recovery setting as well.
Page 159: Msti Priorities
User’s Manual of SGSW-24040 / 24240 Series Fast Ethernet Half Duplex 200,000 Full Duplex 100,000 Trunk 50,000 Gigabit Ethernet Full Duplex 10,000 Trunk 5,000 Table 4-7-3 Default STP Path Costs 4.7.5 MSTI Priorities This page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well.
Page 160: Msti Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.7.6 MSTI Configuration This page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well. The MSTI Configuration screen in Figure 4-7-11 appears. Figure 4-7-11 MSTI Configuration page screenshot...
Page 161: Msti Ports Configuration
User’s Manual of SGSW-24040 / 24240 Series MSTI Mapping Object Description • MSTI The bridge instance. The CIST is not available for explicit mapping, as it will receive the VLANs not explicitly mapped. • VLANs Mapped The list of VLAN's mapped to the MSTI. The VLANs must be separated with comma and/or space.
Page 162 User’s Manual of SGSW-24040 / 24240 Series Figure 4-7-13 MST1 MSTI Port Configuration page screenshot The page includes the following fields: MSTx MSTI Port Configuration Object Description...
Page 163 User’s Manual of SGSW-24040 / 24240 Series • Port The switch port number of the corresponding STP CIST (and MSTI) port. • Path Cost Controls the path cost incurred by the port. The Auto setting will set the path cost as appropriate by the physical link speed, using the 802.1D recommended...
Page 164: Port Status
User’s Manual of SGSW-24040 / 24240 Series 4.7.8 Port Status This page displays the STP CIST port status for port physical ports in the currently selected switch. The STP Port Status screen in Figure 4-7-14 appears. Figure 4-7-14 STP Port Status page screenshot...
Page 165: Port Statistics
User’s Manual of SGSW-24040 / 24240 Series Disabled Blocking Learning Forwarding Non-STP • Uptime The time since the bridge port was last initialized. Buttons : Click to refresh the page immediately. Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
Page 166 User’s Manual of SGSW-24040 / 24240 Series • Discarded Illegal The number of illegal Spanning Tree BPDU's received (and discarded) on the port. Buttons : Click to refresh the page immediately. Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
Page 167: Multicast
User’s Manual of SGSW-24040 / 24240 Series 4.8 Multicast 4.8.1 IGMP Snooping The Internet Group Management Protocol (IGMP) lets host and routers share information about multicast groups memberships. IGMP snooping is a switch feature that monitors the exchange of IGMP messages and copies them to the CPU for feature processing.
Page 168 User’s Manual of SGSW-24040 / 24240 Series Figure 4-8-2 Multicast flooding Figure 4-8-3 IGMP Snooping multicast stream control...
Page 169 User’s Manual of SGSW-24040 / 24240 Series IGMP Versions 1 and 2 Multicast groups allow members to join or leave at any time. IGMP provides the method for members and multicast routers to communicate when joining or leaving a multicast group.
Page 170 User’s Manual of SGSW-24040 / 24240 Series message, and query messages that are specific to a given group. The states a computer will go through to join or to leave a multicast group are shown below: Figure 4-8-4 IGMP State Transitions ...
Page 171: Igmp Snooping Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.8.2 IGMP Snooping Configuration This page provides IGMP Snooping related configuration. Most of the settings are global, whereas the Router Port configuration is related to the currently selected stack unit, as reflected by the page header. The IGMP Snooping Configuration screen in Figure 4-8-5 appears.
Page 172: Igmp Port Related Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.8.3 IGMP Port Related Configuration This page provides IGMP Snooping related configuration. Most of the settings are global, whereas the Router Port configuration is related to the currently selected stack unit, as reflected by the page header.
Page 173: Vlan Configuration
User’s Manual of SGSW-24040 / 24240 Series will act as a router port. • Fast Leave Enable the Fast Leave on the port. • Throttling Enable to limit the number of multicast groups to which a switch port can belong.
Page 174: Port Group Filtering
User’s Manual of SGSW-24040 / 24240 Series Buttons : Refreshes the displayed table starting from the "VLAN" input fields. : Updates the table starting from the first entry in the VLAN Table, i.e. the entry with the lowest VLAN ID.
Page 175: Igmp Snooping Status
User’s Manual of SGSW-24040 / 24240 Series • Port The logical port for the settings. • Filtering Group The IP Multicast Group that will be filtered. Buttons : Check to delete the entry. : Click to add a new entry to the Group Filtering table.
Page 176: Mvr Configuration
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • VLAN ID The VLAN ID of the entry. • Groups The present IGMP groups. Max. are 128 groups for each VLAN. • The ports that are members of the entry.
Page 177 User’s Manual of SGSW-24040 / 24240 Series This page provides MVR related configuration. The MVR Configuration screen in Figure 4-8-10 appears. Figure 4-8-10 MVR Configuration page screenshot The page includes the following fields: Object Description...
Page 178: Mvr Status
User’s Manual of SGSW-24040 / 24240 Series • MVR Mode Enable/Disable the Global MVR. • VLAN ID Specify the Multicast VLAN ID. • Mode Enable MVR on the port. • Type Specify the MVR port type on the port. • Immediate Leave Enable the fast leave on the port.
Page 179 User’s Manual of SGSW-24040 / 24240 Series Buttons : Click to refresh the page immediately. : Clears all Statistics counters. Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
Page 180: Quality Of Service
User’s Manual of SGSW-24040 / 24240 Series 4.9 Quality of Service 4.9.1 Understand QOS Quality of Service (QoS) is an advanced traffic prioritization feature that allows you to establish control over network traffic. QoS enables you to assign various grades of network service to different types of traffic, such as multi-media, video, protocol-specific, time critical, and file-backup traffic.
Page 181: Qcl Configuration Wizard
User’s Manual of SGSW-24040 / 24240 Series Apply a QoS profile to a port(s). 4.9.2 QCL Configuration Wizard This handy wizard helps you set up a QCL quickly. The QCL Configuration Wizard screen in Figure 4-9-1 appears. Figure 4-9-1 Welcome to the QCL Configuration Wizard page screenshot...
Page 182: Set Up Policy Rules
User’s Manual of SGSW-24040 / 24240 Series 4.9.2.1 Set up Policy Rules Group ports into several types according to different QCL policies. The settings relate to the currently selected stack unit, as reflected by the page header. The screen in Figure 4-9-2 appears.
Page 183: Set Up Typical Network Application Rules
User’s Manual of SGSW-24040 / 24240 Series port in a QCL member, click the radio button. Buttons : Click to start the wizard again. : Click to get more information. : Click to continue the wizard. Once the QCL configuration wizard is finished, the below screen appears.
Page 184 User’s Manual of SGSW-24040 / 24240 Series Figure 4-9-3 Set up Typical Network Application Rules page screenshot The page includes the following fields: Object Description • Audio and Video Indicates the common servers that apply to the specific QCE .
Page 185: Set Up Tos Precedence Mapping
User’s Manual of SGSW-24040 / 24240 Series  STEP-2 According to your selection on the previous page, this wizard will create specific QCEs (QoS Control Entries) automatically. First select the QCL ID for these QCEs, and then select the traffic class. Different parameter options are displayed depending on the frame type that you selected.
Page 186 User’s Manual of SGSW-24040 / 24240 Series Figure 4-9-5 Set up ToS Precedence Mapping page screenshot The page includes the following fields: Object Description • Select the QCL ID to which this QCE applies. QCL ID • Select a traffic class of Low, Normal, Medium, or High to apply to the QCE.
Page 187: Set Up Vlan Tag Priority Mapping
User’s Manual of SGSW-24040 / 24240 Series 4.9.2.4 Set up VLAN Tag Priority Mapping Set up the traffic class mapping to the User Priority value (3 bits) when receiving VLAN tagged packets. The Set up VLAN Tag Priority Mapping screen in Figure 4-9-6 appears.
Page 188: Qos Control List Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.9.3 QoS Control List Configuration This page lists the QCEs for a given QCL.  Frames can be classified by 4 different QoS classes: Low, Normal, Medium, and High.  The classification is controlled by a QoS assigned to each port.
Page 189: Qos Control Entry Configuration
User’s Manual of SGSW-24040 / 24240 Series DSCP: IPv4 and IPv6 DSCP. ToS: The 3 precedence bit in the ToS byte of the IPv4/IPv6 header (also known as DS field). Tag Priority: User Priority. Only applicable if the frame is VLAN tagged or priority tagged.
Page 190: Port Qos Configuration
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • QCE Type Select the available type for the specific QCE. Ethernet Type: Matches the received frame's EtherType against the QCE Key. VLAN ID: Matches the frame's VID against the QCE Key.
Page 191 User’s Manual of SGSW-24040 / 24240 Series • A QCL consists of an ordered list of up to 12 QCEs. • Each QCE can be used to classify certain frames to a specific QoS class. • This classification can be based on parameters such as VLAN ID, UDP/TCP port, IPv4/IPv6 DSCP or Tag Priority.
Page 192: Bandwidth Control
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Number of Classes Configure the number of traffic classes as "1", "2", or "4". The default value is "4". • The logical port for the settings contained in the same row.
Page 193 User’s Manual of SGSW-24040 / 24240 Series Figure 4-9-10 Rate Limit Configuration page screenshot The page includes the following fields: Object Description • The logical port for the settings contained in the same row. Port • Policer Enabled Enable or disable the port policer. The default value is "Disabled".
Page 194: Storm Control Configuration
User’s Manual of SGSW-24040 / 24240 Series default value is "kbps". • Shaper Enabled Enable or disable the port shaper. The default value is "Disabled". • Shaper Rate Configure the rate for the port shaper. The default value is "500". This value is restricted to 500-1000000 when the "Policer Unit"...
Page 195: Qos Statistics
User’s Manual of SGSW-24040 / 24240 Series 64, 128, 256, 512, 1K, 2K, 4K, 8K, 16K, 32K, 64K, 128K, 256K, 512K, or 1024K. The 1 kpps is actually 1002.1 pps. Buttons : Click to save changes. : Click to undo any changes made locally and revert to previously saved values.
Page 196: Dscp Remarking
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Port The logical port for the settings contained in the same row. • Low Queue There are 4 QoS queues per port with strict or weighted queuing scheduling. This is the lowest priority queue.
Page 197 User’s Manual of SGSW-24040 / 24240 Series Figure 4-9-13 DSCP Remarking Configuration page screenshot The page includes the following fields: Object Description • Port The logical port for the settings contained in the same row. • DSCP Remarking If the QoS remarking mode is set to enabled, it should be with this DSCP Mode remarking/correction function according to RFC2474 on this port.
Page 198: Voice Vlan Configuration
User’s Manual of SGSW-24040 / 24240 Series CS3 = DSCP (24) CS4 = DSCP (32) CS5 = DSCP (40) CS6 = DSCP (48) CS7 = DSCP (56) Expedite Forward = DSCP (46) Buttons : Click to save changes. : Click to undo any changes made locally and revert to previously saved values.
Page 199 User’s Manual of SGSW-24040 / 24240 Series Figure 4-9-14 Voice VLAN Configuration page screenshot...
Page 200 User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Mode Indicates the Voice VLAN mode operation. We must disable MSTP feature before we enable Voice VLAN. It can avoid the conflict of ingress filter. Possible modes are: Enabled: Enable Voice VLAN mode operation.
Page 201: Voice Vlan Oui Table
User’s Manual of SGSW-24040 / 24240 Series 4.9.10 Voice VLAN OUI Table Configure VOICE VLAN OUI table on this page. The maximum entry number is 16. Modify OUI table will restart auto detect OUI process. The Voice VLAN OUI Table screen in Figure 4-9-15 appears.
Page 202: Access Control Lists
User’s Manual of SGSW-24040 / 24240 Series 4.10 Access Control Lists ACL is an acronym for Access Control List. It is the list table of ACEs, containing access control entries that specify individual users or groups permitted or denied to specific traffic objects, such as a process or a program.
Page 203: Access Control List Configuration
User’s Manual of SGSW-24040 / 24240 Series ARP: The ACE will match ARP/RARP frames. IPv4: The ACE will match all IPv4 frames. IPv4/ICMP: The ACE will match IPv4 frames with ICMP protocol. IPv4/UDP: The ACE will match IPv4 frames with UDP protocol.
Page 204 User’s Manual of SGSW-24040 / 24240 Series Figure 4-10-2 Access Control List Configuration page screenshot The page includes the following fields: Object Description • Ingress Port Indicates the ingress port of the ACE. Possible values are: Any: The ACE will match any ingress port.
Page 205: Ace Configuration
User’s Manual of SGSW-24040 / 24240 Series • Counter The counter indicates the number of times the ACE was hit by a frame. • Modification Buttons You can modify each ACE (Access Control Entry) in the table using the following buttons: : Inserts a new ACE before the current row.
Page 206 User’s Manual of SGSW-24040 / 24240 Series Figure 4-10-3 ACE Configuration page screenshot The page includes the following fields: Object Description • Select the ingress port for which this ACE applies. Ingress Port Any: The ACE applies to any port.
Page 207 User’s Manual of SGSW-24040 / 24240 Series Disabled: Frames matching the ACE are not logged. Please note that the System Log memory size and logging rate is limited. • Shutdown Specify the port shut down operation of the ACE. The allowed values are: Enabled: If a frame matches the ACE, the ingress port will be disabled.
Page 208 User’s Manual of SGSW-24040 / 24240 Series • Tag Priority Specify the tag priority for this ACE. A frame that hits this ACE matches this tag priority. The allowed number range is 0 to 7. The value Any means that no tag priority is specified (tag priority is "don't-care".)
Page 209 User’s Manual of SGSW-24040 / 24240 Series 0: ARP frames where SHA is not equal to the SMAC address. 1: ARP frames where SHA is equal to the SMAC address. Any: Any value is allowed ("don't-care"). • RARP SMAC Match Specify whether frames can hit the action according to their target hardware address field (THA) settings.
Page 210 User’s Manual of SGSW-24040 / 24240 Series UDP: Select UDP to filter IPv4 UDP protocol frames. Extra fields for defining UDP parameters will appear. These fields are explained later in this help file. TCP: Select TCP to filter IPv4 TCP protocol frames. Extra fields for defining TCP parameters will appear.
Page 211 User’s Manual of SGSW-24040 / 24240 Series DIP Address field that appears. Network: Destination IP filter is set to Network. Specify the destination IP address and destination IP mask in the DIP Address and DIP Mask fields that appear. • DIP Address When "Host"...
Page 212 User’s Manual of SGSW-24040 / 24240 Series • When "Specific" is selected for the TCP/UDP source filter, you can enter a TCP/UDP Source No. specific TCP/UDP source value. The allowed range is 0 to 65535. A frame that hits this ACE matches this TCP/UDP source value.
Page 213: Acl Ports Configuration
User’s Manual of SGSW-24040 / 24240 Series 1: TCP frames where the URG field is set must be able to match this entry. Any: Any value is allowed ("don't-care").  Ethernet Type Parameters The Ethernet Type parameters can be configured when Frame Type "Ethernet Type" is selected.
Page 214 User’s Manual of SGSW-24040 / 24240 Series Figure 4-10-4 ACL Ports Configuration page screenshot The page includes the following fields: Object Description • Port The logical port for the settings contained in the same row. • Select the policy to apply to this port. The allowed values are 1 through 8. The Policy ID default value is 1.
Page 215: Acl Rate Limiter Configuration
User’s Manual of SGSW-24040 / 24240 Series • Logging Specify the logging operation of this port. The allowed values are: Enabled: Frames received on the port are stored in the System Log. Disabled: Frames received on the port are not logged.
Page 216 User’s Manual of SGSW-24040 / 24240 Series Figure 4-10-5 ACL Rate Limiter Configuration page screenshot The page includes the following fields: Object Description • The rate limiter ID for the settings contained in the same row. Rate Limiter ID •...
Page 217: Authentication
User’s Manual of SGSW-24040 / 24240 Series 4.11 Authentication This section is to control the access of the Managed Switch, includes the user access and management control. The Authentication section contains links to the following main topics:  IEEE 802.1X Port-Based Network Access Control ...
Page 218: Understanding Ieee 802.1X Port-Based Authentication
User’s Manual of SGSW-24040 / 24240 Series is a valid RADIUS user can be used by anyone, and only the MD5-Challenge method is supported. The 802.1X and MAC-Based Authentication configuration consists of two sections, a system- and a port-wide. Overview of User Authentication It is allowed to configure the Managed Switch to authenticate users logging into the system for management access using local or remote authentication methods, such as telnet and Web browser.
Page 219 User’s Manual of SGSW-24040 / 24240 Series Figure 4-11-1  Client—the device (workstation) that requests access to the LAN and switch services and responds to requests from the switch. The workstation must be running 802.1X-compliant client software such as that offered in the Microsoft Windows XP operating system.
Page 220 User’s Manual of SGSW-24040 / 24240 Series authentication server must support EAP within the native frame format. When the switch receives frames from the authentication server, the server's frame header is removed, leaving the EAP frame, which is then encapsulated for Ethernet and sent to the client.
Page 221: Authentication Configuration
User’s Manual of SGSW-24040 / 24240 Series  Ports in Authorized and Unauthorized States The switch port state determines whether or not the client is granted access to the network. The port starts in the unauthorized state. While in this state, the port disallows all ingress and egress traffic except for 802.1X protocol packets. When a client is successfully authenticated, the port transitions to the authorized state, allowing all traffic for the client to flow normally.
Page 222: Network Access Server Configuration
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Client The management client for which the configuration below applies. • Authentication Method Authentication Method can be set to one of the following values: None: authentication is disabled and login is not possible.
Page 223 User’s Manual of SGSW-24040 / 24240 Series Figure 4-11-4 Network Access Server Configuration page screenshot...
Page 224 User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: System Configuration Object Description • Mode Indicates if NAS is globally enabled or disabled on the switch. If globally disabled, all ports are allowed forwarding of frames.
Page 225 User’s Manual of SGSW-24040 / 24240 Series the entry. • Hold Time This setting applies to the following modes, i.e. modes using the Port Security functionality to secure MAC addresses: Single 802.1X Multi 802.1X MAC-Based Auth. If a client is denied access - either because the RADIUS server denies the client access or because the RADIUS server request times out (according to the timeout specified on the "Configuration →Security→AAA"...
Page 226 User’s Manual of SGSW-24040 / 24240 Series VLAN as listed below. The "Guest VLAN Enabled" checkbox provides a quick way to globally enable/disable Guest VLAN functionality. When checked, the individual ports' ditto setting determines whether the port can be moved into Guest VLAN. When unchecked, the ability to move to the Guest VLAN is disabled for all ports.
Page 227 User’s Manual of SGSW-24040 / 24240 Series In this mode, the switch will send one EAPOL Failure frame when the port link comes up, and any client on the port will be disallowed network access. Port-based 802.1X In the 802.1X-world, the user is called the supplicant, the switch is the authenticator, and the RADIUS server is the authentication server.
Page 228 User’s Manual of SGSW-24040 / 24240 Series really aren't authenticated. To overcome this security breach, use the Single 802.1X variant. Single 802.1X is really not an IEEE standard, but features many of the same characteristics as does port-based 802.1X. In Single 802.1X, at most one supplicant can get authenticated on the port at a time.
Page 229 User’s Manual of SGSW-24040 / 24240 Series Unlike port-based 802.1X, MAC-based authentication is not a standard, but merely a best-practices method adopted by the industry. In MAC-based authentication, users are called clients, and the switch acts as the supplicant on behalf of clients.
Page 230 User’s Manual of SGSW-24040 / 24240 Series • Single 802.1X RADIUS attributes used in identifying a QoS Class: Refer to the written documentation for a description of the RADIUS attributes needed in order to successfully identify a QoS Class. The User-Priority-Table attribute defined in RFC4675 forms the basis for identifying the QoS Class in an Access-Accept packet.
Page 231 User’s Manual of SGSW-24040 / 24240 Series Tag value and fulfil the following requirements (if Tag == 0 is used, the Tunnel-Private-Group-ID does not need to include a Tag): - Value of Tunnel-Medium-Type must be set to "IEEE-802" (ordinal 6).
Page 232 User’s Manual of SGSW-24040 / 24240 Series Guest VLAN and starts authenticating the supplicant according to the port mode. If an EAPOL frame is received, the port will never be able to go back into the Guest VLAN if the "Allow Guest VLAN if EAPOL Seen" is disabled.
Page 233: Network Access Overview
User’s Manual of SGSW-24040 / 24240 Series 4.11.4 Network Access Overview This page provides an overview of the current NAS port states for the selected switch. The Network Access Overview screen in Figure 4-11-5 appears. Figure 4-11-5 Network Access Overview page screenshot...
Page 234: Network Access Statistics
User’s Manual of SGSW-24040 / 24240 Series client for MAC-based authentication. • Last ID The user name (supplicant identity) carried in the most recently received Response Identity EAPOL frame for EAPOL-based authentication, and the source MAC address from the most recently received frame from a new client for MAC-based authentication.
Page 235 User’s Manual of SGSW-24040 / 24240 Series • Port State The current state of the port. Refer to NAS Port State for a description of the individual states. • QoS Class The QoS class assigned by the RADIUS server. The field is blank if no QoS class is assigned.
Page 236 User’s Manual of SGSW-24040 / 24240 Series mesRx received by the switch. Logoff dot1xAuthEapolLogoffFr The number of valid EAPOL amesRx Logoff frames that have been received by the switch. Invalid Type dot1xAuthInvalidEapolF The number of EAPOL ramesRx frames that have been...
Page 237 User’s Manual of SGSW-24040 / 24240 Series Access dot1xAuthBackendAcce 802.1X-based: Challenges ssChallenges Counts the number of times that the switch receives the first request from the backend server following the first response from the supplicant. Indicates that the backend server has communication with the switch.
Page 238 User’s Manual of SGSW-24040 / 24240 Series server. Responses dot1xAuthBackendResp 802.1X-based: onses Counts the number of times that the switch attempts to send a supplicant's first response packet to the backend server. Indicates the switch attempted communication with the backend server. Possible retransmissions are not counted.
Page 239 User’s Manual of SGSW-24040 / 24240 Series Identity 802.1X-based: The user name (supplicant identity) carried in the most recently received Response Identity EAPOL frame. MAC-based: Not applicable. Selected Counters Object Description • Selected Counters The Selected Counters table is visible when the port is one of the following administrative states: Multi 802.1X...
Page 240: Authentication Server Configuration
User’s Manual of SGSW-24040 / 24240 Series remain in the unauthenticated state for Hold Time seconds. • Last Authentication Shows the date and time of the last authentication of the client (successful as well as unsuccessful). Buttons Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
Page 241 User’s Manual of SGSW-24040 / 24240 Series Figure 4-11-7 Authentication Server Configuration page screenshot The page includes the following fields: Port State These setting are common for all of the Authentication Servers. Object Description • Timeout The Timeout, which can be set to a number between 3 and 3600 seconds, is the...
Page 242 User’s Manual of SGSW-24040 / 24240 Series maximum time to wait for a reply from a server. If the server does not reply within this timeframe, we will consider it to be dead and continue with the next enabled server (if any).
Page 243 User’s Manual of SGSW-24040 / 24240 Series applies. • Enabled Enable the RADIUS Accounting Server by checking this box. • IP Address/Hostname The IP address or hostname of the RADIUS Accounting Server. IP address is expressed in dotted decimal notation.
Page 244: Radius Overview
User’s Manual of SGSW-24040 / 24240 Series 4.11.7 RADIUS Overview This page provides an overview of the status of the RADIUS servers configurable on the Authentication configuration page. The RADIUS Authentication/Accounting Server Overview screen in Figure 4-11-8 appears. Figure 4-11-8 RADIUS Authentication/Accounting Server Overview page screenshot...
Page 245: Radius Details
User’s Manual of SGSW-24040 / 24240 Series but will get re-enabled when the dead-time expires. The number of seconds left before this occurs is displayed in parentheses. This state is only reachable when more than one server is enabled. RADIUS Accounting Servers...
Page 246 User’s Manual of SGSW-24040 / 24240 Series Figure 4-11-9 RADIUS Authentication/Accounting for Server Overview page screenshot The page includes the following fields: RADIUS Authentication Servers The statistics map closely to those specified in RFC4668 - RADIUS Authentication Client MIB. Use the server select box to switch between the backend servers to show details for.
Page 247 User’s Manual of SGSW-24040 / 24240 Series ccessRejects Access-Reject packets (valid or invalid) received from the server. Access radiusAuthClientExtA The number of RADIUS Challenges ccessChallenges Access-Challenge packets (valid or invalid) received from the server. Malformed radiusAuthClientExt The number of malformed...
Page 248 User’s Manual of SGSW-24040 / 24240 Series Requests ccessRequests to the server. This does not include retransmissions. Access radiusAuthClientExtA The number of RADIUS Retransmissio ccessRetransmission Access-Request packets retransmitted to the RADIUS authentication server. Pending radiusAuthClientExtP The number of RADIUS Requests...
Page 249 User’s Manual of SGSW-24040 / 24240 Series up and running, and the RADIUS module is ready to accept access attempts. Dead (X seconds left): Access attempts were made to this server, but it did not reply within the configured timeout. The server has temporarily been disabled, but will get re-enabled when the dead-time expires.
Page 250 User’s Manual of SGSW-24040 / 24240 Series radiusAcctClientExt The number of RADIUS Authenticators BadAuthenticators packets containing invalid authenticators received from the server. Unknown Types radiusAccClientExt The number of RADIUS UnknownTypes packets of unknown types that were received from the server on the accounting port.
Page 251: Windows Platform Radius Server Configuration
User’s Manual of SGSW-24040 / 24240 Series different server is counted as a Request as well as a timeout. • Other Info This section contains information about the state of the server and the latest round-trip time. Name RFC4670 Name...
Page 252 User’s Manual of SGSW-24040 / 24240 Series Configure the IP Address of remote RADIUS server and secret key. Figure 4-11-10 RADIUS Server Configuration screenshot Add New RADIUS Cleint on the Windows 2003 server Figure 4-11-11 Windows Server – add new RADIUS client setting...
Page 253 User’s Manual of SGSW-24040 / 24240 Series Assign the client IP address to the Managed switch Figure 4-11-12 Windows Server RADIUS Server setting The shared secret key should be as same as the key configured on the Managed Switch. Figure 4-11-13 Windows Server RADIUS Server setting...
Page 254 User’s Manual of SGSW-24040 / 24240 Series Configure ports attribute of 802.1X, the same as “802.1X Port Configuration”. Figure 4-11-14 802.1x Port Configuration Create user data. The establishment of the user data needs to be created on the Radius Server PC. For example, the...
Page 255 User’s Manual of SGSW-24040 / 24240 Series Enter ” Active Directory Users and Computers”, create legal user data, the next, right-click a user what you created to enter properties, and what to be noticed: Figure 4-11-16 Add User Properties screen...
Page 256: X Client Configuration
User’s Manual of SGSW-24040 / 24240 Series Set the Ports Authenticate Status to “Force Authorized” if the port is connected to the RADIUS server or the port is a uplink port that is connected to another switch. Or once the 802.1X stat to work, the switch might not be able to access the RADIUS server.
Page 257 User’s Manual of SGSW-24040 / 24240 Series Select “Authentication” tab. Select “Enable network access control using IEEE 802.1X” to enable 802.1x authentication. Select “MD-5 Challenge” from the drop-down list box for EAP type. Figure 4-11-19 Click “OK”. When client has associated with the Managed Switch, a user authentication notice appears in system tray. Click on the...
Page 258 User’s Manual of SGSW-24040 / 24240 Series Figure 4-11-20 Windows client popup login request message Enter the user name, password and the logon domain that your account belongs. 10. Click “OK” to complete the validation process. Figure 4-11-21...
Page 259: Security
User’s Manual of SGSW-24040 / 24240 Series 4.12 Security This section is to control the access of the Managed Switch, includes the user access and management control. The Security page contains links to the following main topics:  Port Limit Control ...
Page 260 User’s Manual of SGSW-24040 / 24240 Series Figure 4-12-1 Port Limit Control Configuration Overview page screenshot...
Page 261 User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: System Configuration Object Description • Mode Indicates if Limit Control is globally enabled or disabled on the switchstack. If globally disabled, other modules may still use the underlying functionality, but limit checks and corresponding actions are disabled.
Page 262 User’s Manual of SGSW-24040 / 24240 Series • Limit The maximum number of MAC addresses that can be secured on this port. This number cannot exceed 1024. If the limit is exceeded, the corresponding action is taken. The stackswitch is "born" with a total number of MAC addresses from which all ports draw whenever a new MAC address is seen on a Port Security-enabled port.
Page 263: Access Management
User’s Manual of SGSW-24040 / 24240 Series Buttons : Click to refresh the page. Note that non-committed changes will be lost. : Click to save changes. Click to undo any changes made locally and revert to previously saved values. 4.12.2 Access Management Configure access management table on this page.
Page 264: Access Management Statistics
User’s Manual of SGSW-24040 / 24240 Series host IP address matched the entry. Buttons : Click to add a new access management entry. : Click to save changes. : Click to undo any changes made locally and revert to previously saved values.
Page 265: Https
User’s Manual of SGSW-24040 / 24240 Series 4.12.4 HTTPs Configure HTTPS on this page. The HTTPS Configuration screen in Figure 4-12-4 appears. Figure 4-12-4 HTTPS Configuration screen page screenshot The page includes the following fields: Object Description • Mode Indicates the HTTPS mode operation. Possible modes are: Enabled: Enable HTTPS mode operation.
Page 266: Port Security Status
User’s Manual of SGSW-24040 / 24240 Series Figure 4-12-5 SSH Configuration screen page screenshot The page includes the following fields: Object Description • Mode Indicates the SSH mode operation. Possible modes are: Enabled: Enable SSH mode operation. Disabled: Disable SSH mode operation.
Page 267 User’s Manual of SGSW-24040 / 24240 Series Figure 4-12-6 Port Security Status screen page screenshot The page includes the following fields: User Module Legend The legend shows all user modules that may request Port Security services. Object Description • User Module Name The full name of a module that may request Port Security services.
Page 268 User’s Manual of SGSW-24040 / 24240 Series the port status table. Port Status The table has one row for each port on the selected switch in the switch and a number of columns, which are: Object Description • Port The port number for which the status applies. Click the port number to see the status for this particular port.
Page 269: Port Security Detail
User’s Manual of SGSW-24040 / 24240 Series 4.12.7 Port Security Detail This page shows the MAC addresses secured by the Port Security module. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules - the user modules. When a user module has enabled port security on a port, the port is set-up for software-based learning.
Page 270: Dhcp Snooping
User’s Manual of SGSW-24040 / 24240 Series Auto-refresh Check this box to enable an automatic refresh of the page at regular intervals. 4.12.8 DHCP Snooping DHCP Snooping is used to block intruder on the untrusted ports of DUT when it tries to intervene by injecting a bogus DHCP reply packet to a legitimate conversation between the DHCP client and server.
Page 271: Dhcp Snooping Statistics
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Snooping Mode Indicates the DHCP snooping mode operation. Possible modes are: Enabled: Enable DHCP snooping mode operation. When enable DHCP snooping mode operation, the request DHCP messages will be forwarded to trusted ports and only allowed reply packets from trusted ports.
Page 272: Ip Source Guard Configuration
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • Rx and Tx Discover The number of discover (option 53 with value 1) packets received and transmitted. • Rx and Tx Offer The number of offer (option 53 with value 2) packets received and transmitted.
Page 273 User’s Manual of SGSW-24040 / 24240 Series Configuration screen in Figure 4-12-10 appears. Figure 4-12-10 IP Source Guard Configuration screen page screenshot The page includes the following fields: Object Description • Mode of IP Source Enable the Global IP Source Guard or disable the Global IP Source Guard. All...
Page 274: Ip Source Guard Static Table
User’s Manual of SGSW-24040 / 24240 Series Guard Configuration configured ACEs will be lost when the mode is enabled. • Port Mode Specify IP Source Guard is enabled on which ports. Only when both Global Mode Configuration and Port Mode on a given port are enabled, IP Source Guard is enabled on this given port.
Page 275: Arp Inspection
User’s Manual of SGSW-24040 / 24240 Series • IP Mask It can be used for calculating the allowed network with IP address. Buttons : Click to add a new entry. : Click to save changes. Click to undo any changes made locally and revert to previously saved values.
Page 276 User’s Manual of SGSW-24040 / 24240 Series Figure 4-12-12 ARP Inspection Configuration screen page screenshot The page includes the following fields: Object Description • Mode of ARP Enable the Global ARP Inspection or disable the Global ARP Inspection. Inspection...
Page 277: Arp Inspection Static Table
User’s Manual of SGSW-24040 / 24240 Series Configuration • Port Mode Specify ARP Inspection is enabled on which ports. Only when both Global Mode Configuration and Port Mode on a given port are enabled, ARP Inspection is enabled on this given port.
Page 278 User’s Manual of SGSW-24040 / 24240 Series : Click to save changes. Click to undo any changes made locally and revert to previously saved values.
Page 279: Address Table
User’s Manual of SGSW-24040 / 24240 Series 4.13 Address Table Switching of frames is based upon the DMAC address contained in the frame. The Managed Switch builds up a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame ).
Page 280: Static Mac Table Configuration
User’s Manual of SGSW-24040 / 24240 Series 4.13.2 Static MAC Table Configuration The static entries in the MAC table are shown in this table. The static MAC table can contain 64 entries. The maximum of 64 entries is for the whole stack, and not per switch.
Page 281 User’s Manual of SGSW-24040 / 24240 Series Figure 4-13-3 MAC Address Table Status Navigating the MAC Table Each page shows up to 999 entries from the MAC table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the MAC Table. The first displayed will be the one with the lowest VLAN ID and the lowest MAC address found in the MAC Table.
Page 282: Mac Table Learning
User’s Manual of SGSW-24040 / 24240 Series • MAC address The MAC address of the entry. • Port Members The ports that are members of the entry. Buttons Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
Page 283: Dynamic Arp Inspection Table
User’s Manual of SGSW-24040 / 24240 Series Figure 4-13-4 MAC Table Learning screenshot The page includes the following fields: Object Description • Learning is done automatically as soon as a frame with unknown SMAC is Auto received. • Disable No learning is done.
Page 284 User’s Manual of SGSW-24040 / 24240 Series Figure 4-13-5 Dynamic ARP Inspection Table screenshot Navigating the ARP Inspection Table Each page shows up to 999 entries from the Dynamic ARP Inspection table, default being 20, selected through the "entries per page"...
Page 285: Dynamic Ip Source Guard Table
User’s Manual of SGSW-24040 / 24240 Series 4.13.6 Dynamic IP Source Guard Table Entries in the Dynamic IP Source Guard Table are shown on this page. The Dynamic IP Source Guard Table is sorted first by port, then by VLAN ID, then by IP address, and then by IP mask. The Dynamic IP Source Guard Table screen in Figure 4-13-6 appears.
Page 286 User’s Manual of SGSW-24040 / 24240 Series Updates the table starting from the first entry in the MAC Table, i.e. the entry with the lowest VLAN ID and MAC address. : Updates the table, starting with the entry after the last entry currently displayed.
Page 287: Lldp
User’s Manual of SGSW-24040 / 24240 Series 4.14 LLDP 4.14.1 Link Layer Discovery Protocol Link Layer Discovery Protocol (LLDP) is used to discover basic information about neighboring devices on the local broadcast domain. LLDP is a Layer 2 protocol that uses periodic broadcasts to advertise information about the sending device. Advertised information is represented in Type Length Value (TLV) format according to the IEEE 802.1ab standard, and can include details...
Page 288 User’s Manual of SGSW-24040 / 24240 Series Figure 4-14-1 LLDP Configuration page screenshot The page includes the following fields: LLDP Parameters Object Description • Tx Interval The switch is periodically transmitting LLDP frames to its neighbors for having the network discovery information up-to-date. The interval between each LLDP frame is determined by the Tx Interval value.
Page 289 User’s Manual of SGSW-24040 / 24240 Series >= (4 * Delay Interval) • Tx Hold Each LLDP frame contains information about how long the information in the LLDP frame shall be considered valid. The LLDP information valid period is set to Tx Hold multiplied by Tx Interval seconds.
Page 290 User’s Manual of SGSW-24040 / 24240 Series is enabled. Only CDP TLVs that can be mapped into a corresponding field in the LLDP neighbors table are decoded. All other TLVs are discarded ( Unrecognized CDP TLVs and discarded CDP frame are not shown in the LLDP statistic. Only ). CDP TLVs are mapped into LLDP neighbors table as shown below.
Page 291: Lldpmed Configuration
User’s Manual of SGSW-24040 / 24240 Series Buttons : Click to save changes. Click to undo any changes made locally and revert to previously saved values. 4.14.3 LLDPMED Configuration This page allows you to configure the LLDP-MED. The LLDPMED Configuration screen in Figure 4-14-2 appears.
Page 292 User’s Manual of SGSW-24040 / 24240 Series With this in mind LLDP-MED defines an LLDP-MED Fast Start interaction between the protocol and the application layers on top of the protocol, in order to achieve these related properties. Initially, a Network Connectivity Device will only transmit LLDP TLVs in an LLDPDU.
Page 293 User’s Manual of SGSW-24040 / 24240 Series different floor-to-floor dimensions. An altitude = 0.0 is meaningful even outside a building, and represents ground level at the given latitude and longitude. Inside a building, 0.0 represents the floor level associated with ground level at the main entrance.
Page 294 User’s Manual of SGSW-24040 / 24240 Series • Additional location Additional location info - Example: South Wing info • Name Name (residence and office occupant) - Example: Flemming Jahn • Zip code Postal/zip code - Example: 2791 • Building Building (structure) - Example: Low Library •...
Page 295 User’s Manual of SGSW-24040 / 24240 Series This network policy is potentially advertised and associated with multiple sets of application types supported on a given port. The application types specifically addressed are: 1. Voice 2. Guest Voice 3. Softphone Voice 4.
Page 296 User’s Manual of SGSW-24040 / 24240 Series VLAN or a single 'tagged’ data specific VLAN. When a network policy is defined for use with an 'untagged’ VLAN (see Tagged flag below), then the L2 priority field is ignored and only the DSCP value has relevance.
Page 297: Lldp-Med Neighbor
User’s Manual of SGSW-24040 / 24240 Series • Policy ID The set of policies that shall apply for a given port. The set of policies is selected by checkmarking the checkboxes that corresponds to the policies Buttons : click to add new policy.
Page 298 User’s Manual of SGSW-24040 / 24240 Series 3. IEEE 802.3 Repeater (included for historical reasons) 4. IEEE 802.11 Wireless Access Point 5. Any device that supports the IEEE 802.1AB and MED extensions defined by TIA-1057 and can relay IEEE 802 frames via any method.
Page 299 User’s Manual of SGSW-24040 / 24240 Series communication appliances, such as IP Phones, PC-based softphones, or other communication appliances that directly support the end user. Discovery services defined in this class include provision of location identifier (including ECS / E911 information), embedded L2 switch support, inventory management •...
Page 300: Neighbor
User’s Manual of SGSW-24040 / 24240 Series unknown. Defined: The network policy is defined. • TAG TAG is indicating whether the specified application type is using a tagged or an untagged VLAN. Can be Tagged ot Untagged Untagged: The device is using an untagged frame format and as such does not include a tag header as defined by IEEE 802.1Q-2003.
Page 301: Port Statistics
User’s Manual of SGSW-24040 / 24240 Series • Local Port The port on which the LLDP frame was received. • Chassis ID The Chassis ID is the identification of the neighbor's LLDP frames. • Remote Port ID The Remote Port ID is the identification of the neighbor port.
Page 302 User’s Manual of SGSW-24040 / 24240 Series Figure 4-14-5 LLDP Statistics page screenshot The page includes the following fields: Global Counters Object Description • Shows the time for when the last entry was last deleted or added. It is also shows...
Page 303 User’s Manual of SGSW-24040 / 24240 Series Local Counters The displayed table contains a row for each port. The columns hold the following information: Object Description • The port on which LLDP frames are received or transmitted. Local Port •...
Page 304: Network Diagnostics
User’s Manual of SGSW-24040 / 24240 Series 4.15 Network Diagnostics This section provide the Physical layer and IP layer network diagnostics tools for troubleshoot. The diagnostic tools are designed for network manager to help them quickly diagnose problems between point to point and better service customers.
Page 305: Ipv6 Ping
User’s Manual of SGSW-24040 / 24240 Series ICMP Ping screen in Figure 4-15-1 appears. Figure 4-15-1 ICMP Ping page screenshot The page includes the following fields: Object Description • IP Address The destination IP Address. • Ping Size The payload size of the ICMP packet. Values range from 8 bytes to 1400 bytes.
Page 306: Remote Ip Ping Test
User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • IPv6 Address The destination IPv6 Address. • Ping Size The payload size of the ICMP packet. Values range from 8 bytes to 1400 bytes.
Page 307 User’s Manual of SGSW-24040 / 24240 Series Figure 4-15-3 Remote IP Ping Test page screenshot The page includes the following fields: Object Description • Port The logical port for the settings. • The destination IP Address. Remote IP Address...
Page 308: Cable Diagnostics
User’s Manual of SGSW-24040 / 24240 Series • Ping Size The payload size of the ICMP packet. Values range from 8 bytes to 1400 bytes. • Result Display the ping result. 4.15.4 Cable Diagnostics This page is used for running the Cable Diagnostics.
Page 309 User’s Manual of SGSW-24040 / 24240 Series Figure 4-15-4 VeriPHY Cable Diagnostics page screenshot The page includes the following fields: Object Description • The port where you are requesting Cable Diagnostics. Port • Cable Status Port: Port number. Pair: The status of the cable pair.
Page 310: Power Over Ethernet (Sgsw-24040P / Sgsw-24040P4 / Sgsw-24040Hp)
User’s Manual of SGSW-24040 / 24240 Series 4.16 Power over Ethernet (SGSW-24040P / SGSW-24040P4 / SGSW-24040HP) Providing up to 24 PoE, in-line power interface, the SGSW-24040P / SGSW-24040P / SGSW-24040HP PoE Switch can easily build a power central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, 24 camera / AP can be easily installed around the corner in the company for surveillance demands or build a wireless roaming environment in the office.
Page 311: Power Configuration
User’s Manual of SGSW-24040 / 24240 Series Wireless LAN Access Points Museum, Sightseeing, Airport, Hotel, Campus, Factory, Warehouse can install the Access Point any where with no hesitation 6~12 watts IP Surveillance Enterprise, Museum, Campus, Hospital, Bank, can install IP Camera without limits of install location –...
Page 312 User’s Manual of SGSW-24040 / 24240 Series Optional 6.49 to 12.95 Watts (or to 15.4Watts) Mid power Optional 12.95 to 25.50 Watts (or to 30.8Watts) High power In this mode the Maximum Power fields have no effect.  Allocation mode In this mode the user allocates the amount of power that each port may reserve.
Page 313 User’s Manual of SGSW-24040 / 24240 Series Object Description • System PoE Admin Allows user enable or disable PoE function. It will causes all of PoE ports supply Mode or not supply power. • Power Management There are five modes for configuring how the ports/PDs may reserve power and Mode when to shut down ports.
Page 314: Port Configuration
User’s Manual of SGSW-24040 / 24240 Series Optional 3.84 to 6.49 Watts Low power Optional 6.49 to 12.95 Watts (or to 15.4Watts) Mid power Optional 12.95 to 25.50 Watts (or to 30.8Watts) High power Table 4-16-1 Device class Only SGSW-24040HP has IEEE 802.3at mode and supplies max. power up to 30.8 watts.
Page 315 User’s Manual of SGSW-24040 / 24240 Series The page includes the following fields: Object Description • PoE Mode Ther are three modes for PoE mode. Enable: enable PoE function.. Disable: disable PoE function. Schedule: enable PoE function in schedule mode.
Page 316: Poe Status
User’s Manual of SGSW-24040 / 24240 Series power limit value Buttons : Click to save changes. : Click to undo any changes made locally and revert to previously saved values. Only SGSW-24040HP has IEEE 802.3at mode and supplies max. power up to 30.8 watts.
Page 317 User’s Manual of SGSW-24040 / 24240 Series Figure 4-16-4 PoE Status screenshot The page includes the following fields: Object Description • Current Power Show the total watts usage of PoE Switch. Consumption • Total Power Reserved Shows how much the total power be reserved for all PDs.
Page 318: Poe Schedule
User’s Manual of SGSW-24040 / 24240 Series • Local Port This is the logical port number for this row. • PD Class Display the class of the PD attached to the port, as established by the classification process. Class 0 is the default for PDs. The PD is classified based on power. The classification of the PD is the maximum power that the PD will draw across all input voltages and operational modes.
Page 319: Lldp Neighbor Power Over Ethernet
User’s Manual of SGSW-24040 / 24240 Series Object Description • Profile Set the schedule profile mode. Possible porifles are: Profile1 Profile2 Profile3 Profile4 • Week Day Show the PoE schedule mode usage of week day. Buttons : click to add new rule.
Page 320 User’s Manual of SGSW-24040 / 24240 Series If the device is a PD device it can either run on its local power supply or it can use the PSE as power source. It can also use both its local power supply and the PSE.
Page 321: Stack
Chain topology (same as a disconnected ring) Multiple PLANET SGSW series devices may be connected together to constitute a ring or chain stack topology using the STX / 5Gbps ports as interconnect links. Dedicated stacking features built into SGSW series makes all devices in the stack operate together as a single, much larger switch.
Page 322: Switch Ids
User’s Manual of SGSW-24040 / 24240 Series  Ring Stack: A ring of switches, thereby providing redundant forwarding paths. Figure 4-17-2 Ring Stack topology  Back-to-Back Stack : Two switches interconnected on both stacking ports. Figure 4-17-3 Back to back Stack topology 4.17.1 Stack...
Page 323: Master Election
User’s Manual of SGSW-24040 / 24240 Series be modified by choosing a different Switch ID on the Stack Configuration page. This method allows Switch IDs to be assigned so that it is easier for the user to remember the ID of each switch.
Page 324: Stack Redundancy
User’s Manual of SGSW-24040 / 24240 Series just "slave"). To elect a master, the following criteria are evaluated sequentially: 1. If any switch already claims to have been master for more than 30 seconds, then that switch will become master.
Page 325: Stack Configuration
User’s Manual of SGSW-24040 / 24240 Series  Automatic Loop Prevention – Using Time To Live (TTL) information in the stack-header  Utilize all stack links in the ring. Figure 4-17-5 True Ring Topology 4.17.2 Stack Configuration This page is used for configure the stack, include assign Switch ID, master priority and display the current stack member information.
Page 326 User’s Manual of SGSW-24040 / 24240 Series • Switch ID The Switch ID (1-16) assigned to a switch. For more information, see description of Switch IDs Assigning and Swapping Switch IDs When a switch is added to the stack, a Switch ID is automatically assigned to the switch.
Page 327 User’s Manual of SGSW-24040 / 24240 Series configuration, except for the Switch ID. Switches without an assigned Switch ID can only be assigned to any unused ID. When assigning a Switch ID of an inactive switch to a new switch, the new switch will inherit the former's configuration (see "Replacing a...
Page 328: Stack Information
User’s Manual of SGSW-24040 / 24240 Series "Reelect" being set to "Yes" for one of the switches in the stack. On the Stack State Monitor web page, this is shown by "Reelect" being set to "Yes" for one of the switches in the stack.
Page 329: Stack Port State Ovewview
User’s Manual of SGSW-24040 / 24240 Series  Stack List For each switch in the stack, the following information is shown: The MAC address, Switch ID, product name and version, and master election state. The master election state is normally "No". Only when a forced master election is enforced by the user, the master election state takes the value "Yes".
Page 330: Stack Example
Step 3: Use the Web browser such as IE 7.0 to login the Master Switch, the default IP address is 192.168.0.100. Or you can use the PLANET Smart Discovery Utility to find out the IP address of the stack group.
Page 331 User’s Manual of SGSW-24040 / 24240 Series Figure 4-17-11 Use PLANET Smart Discovery Utility to display the IP address of stack master Step 4: Choose “Stack \ Stack Configuration” from menu tree. You can see the Stack had established automaticatlly. As the...
Page 332 User’s Manual of SGSW-24040 / 24240 Series Figure 4-17-13 Assing new ID for current master  Select the target switch and set up with lower priority “1”, also re-assing the Switch ID=1 for it. After click Save, click “Start Master Election” and save again.
Page 333 User’s Manual of SGSW-24040 / 24240 Series agent by choosing the desired Member ID from the Switch drop down menu. To connect to a Member switch through the CLI, use the rcommand. Figure 4-17-16 To manage the member switch Slave switch IP will be covered by Master one, and disappear temporarily. The slave IP address can be the same as Master IP address.
Page 334: Command Line Interface
User’s Manual of SGSW-24040 / 24240 Series 5. COMMAND LINE INTERFACE 5.1 Accessing the CLI When accessing the management interface for the switch over a direct connection to the server’s console port, or via a Telnet connection, the switch can be managed by entering command keywords and parameters at the prompt. Using the switch's command-line interface (CLI) is very similar to entering commands on a UNIX system.
Page 335 User’s Manual of SGSW-24040 / 24240 Series IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Switch, please use the procedures as follow:  Show the current IP address On ”Switch/>...
Page 336 User’s Manual of SGSW-24040 / 24240 Series Figure 5-3 Set IP address screen Repeat Step 1 to check if the IP address is changed. If the IP address is successfully configured, the Managed Switch will apply the new IP address setting immediately. You can access the Web interface of SGSW Managed Switch through the new IP address.
Page 337: Telnet Login
User’s Manual of SGSW-24040 / 24240 Series 5.2 Telnet Login The Managed Switch also supports telnet for remote management. The switch asks for user name and password for remote login when using telnet, please use “admin” for username & password.
Page 338: Command Line Mode
User’s Manual of SGSW-24040 / 24240 Series 6. Command Line Mode The CLI groups all the commands in appropriate modes according to the nature of the command. A sample of the CLI command modes are described below. Each of the command modes supports specific software commands.
Page 339: System Name
User’s Manual of SGSW-24040 / 24240 Series Syntax: System Configuration [all] [<port_list>] Parameters: : Show all switch configuration, default: Show system configuration <port_list>: Port list or 'all', default: All ports Example: To display system information: SWITCH/>System configuration System Contact :...
Page 340: System Contact
User’s Manual of SGSW-24040 / 24240 Series <name>: System name or 'clear' to clear System name is a text string drawn from the alphabet (A-Za-z), digits (0-9), minus sign (-). No blank or space characters are permitted as part of a name. The first character must be an alpha character, and the first or last character must not be a minus sign.
Page 341: System Timezone
User’s Manual of SGSW-24040 / 24240 Series <location>: System location string. Use 'clear' or "" to clear the string In CLI, no blank or space characters are permitted as part of a contact. Default Setting: empty Example: To set device location: Switch/>System location 9F-LAB...
Page 342: System Restore Default
User’s Manual of SGSW-24040 / 24240 Series <prompt>: CLI prompt string Default Setting: SWITCH Example: To change CLI title: Switch/>system prompt SGSW-24040 SGSW-24040/> System Reboot Description: Reboot the system. Syntax: System Reboot Example: To reboot device without changing any of the settings: Switch/>system reboot...
Page 343: System Load
User’s Manual of SGSW-24040 / 24240 Series System Load Description: Show current CPU load: 100ms, 1s and 10s running average (in percent, zero is idle). Syntax: System Load Example: To show current CPU load: Switch/>system load Load average(100ms, 1s, 10s):...
Page 344 User’s Manual of SGSW-24040 / 24240 Series Level Time Message ---- ------ ------------------------- ------- 1 Info - Switch just made a cold boot. 2 Info 1970-01-01 Thu 00:00:04 +0000 Link up on port 10...
Page 345: Stack List
User’s Manual of SGSW-24040 / 24240 Series 6.2 Stack Stack List Description: Show the list of switches in stack. Syntax: Stack List [detailed|productinfo] Parameters: detailed|productinfo: Show product information Example: Show the stack list: Switch/>stack list Distance Master Stack Member SID Type...
Page 346: Stack Master Reelect
User’s Manual of SGSW-24040 / 24240 Series Stack Master Reelect Description: Force master reelection (ignoring master time). Syntax: Stack Master Reelect Example: Force master reelection. Switch/>stack master reelect Switch/> Stack Select Description: Set or show the selected switch ID. Syntax: Stack Select [<sid>|all]...
Page 347: Stack Sid Delete
User’s Manual of SGSW-24040 / 24240 Series Syntax: Stack SID Swap <sid> <sid> Parameters: <sid>: Switch ID (1-16), default: Show SID Example: Change stack SID value. Switch/>stack sid swap 1 2 Switch/> Stack SID Delete Description: Delete SID assignment and associated configuration.
Page 348 User’s Manual of SGSW-24040 / 24240 Series <sid> : Switch ID (1-16) <mac_addr>: MAC address (xx-xx-xx-xx-xx-xx) Example: Assign SID 10 for 00-30-4f-24-04-0a Switch/>stack sid assign 10 00-30-4f-24-04-0a Switch/>...
Page 349: Ip Command
User’s Manual of SGSW-24040 / 24240 Series 6.3 IP Command IP Configuration Description: Show IP configuration. Syntax: IP Configuration Example: Show IP configuration: Switch/>ip configuration IP Configuration: ================= DHCP Client : Disabled IP Address : 192.168.0.100 IP Mask : 255.255.255.0 IP Router : 192.168.0.1...
Page 350: Ip Setup
User’s Manual of SGSW-24040 / 24240 Series Parameters: enable : Enable or renew DHCP client disable: Disable DHCP client Default Setting: Disable Example: Disable DHCP sever: SWITCH/>ip dhcp disable IP Setup Description: Set or show the IP setup. Syntax: IP Setup [<ip_addr>] [<ip_mask>] [<ip_router>] [<vid>] Parameters: <ip_addr>...
Page 351 User’s Manual of SGSW-24040 / 24240 Series IP Ping Description: Ping IP address (ICMP echo). Syntax: IP Ping <ip_addr_string> [<ping_length>] Parameters: <ip_addr_string>: IP host address (a.b.c.d) or a host name string <ping_length> : Ping data length (8-1400), excluding MAC, IP and ICMP headers Example: SWITCH/>ip ping 192.168.0.21...
Page 352: Ip Dns Proxy
User’s Manual of SGSW-24040 / 24240 Series SWITCH/>ip dns 168.95.1.1 IP DNS Proxy Description: Set or show the IP DNS Proxy mode. Syntax: IP DNS_Proxy [enable|disable] Parameters: enable : Enable DNS Proxy disable: Disable DNS Proxy Default Setting: disable Example: Enable DNS proxy function: SWITCH/>ip dns_proxy enable...
Page 353: Ipv6 Setup
User’s Manual of SGSW-24040 / 24240 Series Enable IPv6 autoconfig function: SWITCH/>ip ipv6 autoconfig enable IPv6 Setup Description: Set or show the IPv6 setup. Syntax: IP IPv6 Setup [<ipv6_addr>] [<ipv6_prefix>] [<ipv6_router>] [<vid>] Parameters: <ipv6_addr> : IPv6 address is in 128-bit records represented as eight fields of up to four hexadecimal digits with a colon separates each field (:).
Page 354: Ip Ntp Configuration
User’s Manual of SGSW-24040 / 24240 Series IPv6 Ping Description: Ping IPv6 address (ICMPv6 echo). Syntax: IP IPv6 Ping6 <ipv6_addr> [<ping_length>] Parameters: <ipv6_addr> : IPv6 host address. IPv6 address is in 128-bit records represented as eight fields of up to four hexadecimal digits with a colon separates each field (:).
Page 355: Ip Ntp Server Add
User’s Manual of SGSW-24040 / 24240 Series NTP Mode : Disabled Server IP host address (a.b.c.d) or a host name string ------------------------------------------------------ pool.ntp.org europe.pool.ntp.org north-america.pool.ntp.org asia.pool.ntp.org oceania.pool.ntp.org IP NTP Mode Description: Set or show the NTP mode. Syntax: IP NTP Mode [enable|disable]...
Page 356: Ip Ntp Server Ipv6 Add
User’s Manual of SGSW-24040 / 24240 Series Parameters: <server_index> : The server index (1-5) <ip_addr_string>: IP host address (a.b.c.d) or a host name string Example: To add NTP server: SWITCH/>ip ntp server add 1 60.249.136.151 IP NTP Server IPv6 Add Description: Add NTP server IPv6 entry.
Page 357 User’s Manual of SGSW-24040 / 24240 Series <server_index>: The server index (1-5) Example: To delete NTP server: SWITCH/>ip ntp server delete 1...
Page 358: Port Mode
User’s Manual of SGSW-24040 / 24240 Series 6.4 Port Management Command Port Configuration Description: Show port configuration. Syntax: Port Configuration [<port_list>] [up|down] Parameters: <port_list>: Port list or 'all', default: All ports : Show ports, which are up down : Show ports, which are down...
Page 359: Port Flow Control
User’s Manual of SGSW-24040 / 24240 Series Parameters: <port_list>: Port list or 'all', default: All ports 10hdx : 10 Mbps, half duplex 10fdx : 10 Mbps, full duplex 100hdx : 100 Mbps, half duplex 100fdx : 100 Mbps, full duplex...
Page 360: Port State
User’s Manual of SGSW-24040 / 24240 Series Port State Description: Set or show the port administrative state. Syntax: Port State [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable port disable : Disable port (default: Show administrative mode)
Page 361: Port Power
User’s Manual of SGSW-24040 / 24240 Series Port Power Description: Set or show the port PHY power mode. Syntax: Port Power [<port_list>] [enable|disable|actiphy|dynamic] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable all power control disable: Disable all power control...
Page 362: Port Excessive
User’s Manual of SGSW-24040 / 24240 Series ---- -------------- -------- --------------- ----------- 1000Base-LX 1000-Base 1310 10000 1000Base-LX 1000-Base 1310 10000 Port Excessive Description: Set or show the port excessive collision mode. Syntax: Port Excessive [<port_list>] [discard|restart] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 363: Port Veriphy
User’s Manual of SGSW-24040 / 24240 Series packets : Show packet statistics bytes : Show byte statistics errors : Show error statistics discards : Show discard statistics filtered : Show filtered statistics : Show low priority statistics normal : Show normal priority statistics...
Page 364: Mac Configuration
User’s Manual of SGSW-24040 / 24240 Series 6.5 MAC Address Table Command MAC Configuration Description: Show MAC address table configuration. Syntax: MAC Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show Mac address state SWITCH/>mac configuration...
Page 365: Mac Delete
User’s Manual of SGSW-24040 / 24240 Series Auto Auto Auto Auto Auto Auto Auto Auto Auto MAC Add Description: Add MAC address table entry. Syntax: MAC Add <mac_addr> <port_list> [<vid>] Parameters: <mac_addr> : MAC address (xx-xx-xx-xx-xx-xx) <port_list>: Port list or 'all' or 'none' <vid>...
Page 366: Mac Lookup
User’s Manual of SGSW-24040 / 24240 Series Example: Delete Mac address 00-30-4F-01-01-02 in vid1 SWITCH/>mac delete 00-30-4f-01-01-02 1 MAC Lookup Description: Lookup MAC address entry. Syntax: MAC Lookup <mac_addr> [<vid>] Parameters: <mac_addr>: MAC address (xx-xx-xx-xx-xx-xx) <vid> : VLAN ID (1-4095), default: 1...
Page 367: Mac Learning
User’s Manual of SGSW-24040 / 24240 Series Set agetime value in 30 SWITCH/>mac agetime 30 MAC Learning Description: Set or show the port learn mode. Syntax: MAC Learning [<port_list>] [auto|disable|secure] Parameters: <port_list>: Port list or 'all', default: All ports auto...
Page 368: Mac Statistics
User’s Manual of SGSW-24040 / 24240 Series Example: Show all of MAC table SWITCH/>mac dump Type MAC Address Ports ------ ----------------- ----- Static 00-30-00-33-22-55 Static 00-30-4f-24-04-d1 None,CPU Static 33-33-ff-24-04-d1 None,CPU Static 33-33-ff-a8-00-64 None,CPU Dynamic 1 40-61-86-04-18-69 Static ff-ff-ff-ff-ff-ff 1-24,CPU MAC Statistics Description: Show MAC address table statistics.
Page 369: Mac Flush
User’s Manual of SGSW-24040 / 24240 Series Total Dynamic Addresses: 1 Total Static Addresses : 5 MAC Flush Description: Flush all learned entries. Syntax: MAC Flush...
Page 370: Vlav Pvid
User’s Manual of SGSW-24040 / 24240 Series 6.6 VLAN Configuration Command VLAN Configuration Description: Show VLAN configuration. Syntax: VLAN Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', (default: All ports) Example: Show VLAN status of port1 SWITCH/>vlan configuration 1 VLAN Configuration: =================== Mode : IEEE 802.1Q...
Page 371: Vlan Frame Type
User’s Manual of SGSW-24040 / 24240 Series Parameters: <port_list>: Port list or 'all', default: All ports <vid>|none : Port VLAN ID (1-4095) or 'none', (default: Show port VLAN ID) Default Setting: Example: Set PVID2 for port20 SWITCH/>vlan pvid 20 2...
Page 372: Vlan Mode
User’s Manual of SGSW-24040 / 24240 Series Syntax: VLAN IngressFilter [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable VLAN ingress filtering disable : Disable VLAN ingress filtering (default: Show VLAN ingress filtering) Default Setting:...
Page 373: Vlan Link Type
User’s Manual of SGSW-24040 / 24240 Series VLAN Link Type Description: Set or show the port VLAN link type. Syntax: VLAN LinkType [<port_list>] [untagged|tagged] Parameters: <port_list>: Port list or 'all', default: All ports untagged : VLAN Link Type Tagged tagged...
Page 374: Vlan Ethernet Type
User’s Manual of SGSW-24040 / 24240 Series SWITCH/>vlan qinq 2 man VLAN Ethernet Type Description: Set or show out layer VLAN tag ether type in Q-in-Q VLAN mode. Syntax: VLAN Ethtype [<port_list>] [man|dot1q] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 375: Vlan Delete
User’s Manual of SGSW-24040 / 24240 Series Example: Add port17 to port24 in VLAN10 SWITCH/>vlan add 10 17-24 VLAN Delete Description: Delete VLAN entry. Syntax: VLAN Delete <vid> Parameters: <vid>: VLAN ID (1-4095) Example: Delete port17 to port24 in VLAN10 SWITCH/>vlan delete 10...
Page 376: Vlan Status
User’s Manual of SGSW-24040 / 24240 Series Example: Show VLAN status SWITCH/>vlan lookup Ports ---- ----- 1-24 None VLAN Status Description: VLAN Port Configuration Status. Syntax: VLAN Status [<port_list>] [combined|static|nas|mvr|voice_vlan|mstp|all|conflicts] Parameters: <port_list>: Port list or 'all', default: All ports combined...
Page 377 User’s Manual of SGSW-24040 / 24240 Series Voice VLAN MSTP Combined Enabled Disabled Untag This...
Page 378: Pvlan Configuration
User’s Manual of SGSW-24040 / 24240 Series 6.7 Private VLAN Configuration Command PVLAN Configuration Description: Show Private VLAN configuration. Syntax: PVLAN Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show private VLAN configuration SWITCH/> pvlan configuration...
Page 379: Pvlan Add
User’s Manual of SGSW-24040 / 24240 Series Disabled Disabled Disabled Disabled Disabled Disabled Disabled PVLAN ID Ports -------- ----- 1-24 PVLAN Add Description: Add or modify Private VLAN entry. Syntax: PVLAN Add <pvlan_id> [<port_list>] Parameters: <pvlan_id> : Private VLAN ID <port_list>: Port list or 'all', default: All ports...
Page 380: Pvlan Lookup
User’s Manual of SGSW-24040 / 24240 Series Parameters: <pvlan_id> : Private VLAN ID Example: Delete PVLAN10 SWITCH/>pvlan delete 10 PVLAN Lookup Description: Lookup Private VLAN entry. Syntax: PVLAN Lookup [<pvlan_id>] Parameters: <pvlan_id> : Private VLAN ID Example: Lookup PVLAN SWITCH/> lookup...
Page 381 User’s Manual of SGSW-24040 / 24240 Series disable : Disable port isolation (default: Show port isolation port list) Default Setting: Promiscous Example: Enable isolate for port10 SWITCH/>pvlan isolate 10 enable...
Page 382: Security Switch User Configuration
User’s Manual of SGSW-24040 / 24240 Series 6.8 Security Command Security Switch User Configuration Description: Show users configuration. Syntax: Security Switch Users Configuration Default Setting: User Name Privilege admin guest Example: Enable isolate for port10 SWITCH/>security switch user configuration Users Configuration:...
Page 383: Security Switch User Delete
User’s Manual of SGSW-24040 / 24240 Series Example: Add new user: username: test, password: test & privilege: 10 SWITCH/>security switch users add test test 10 Security Switch User Delete Description: Delete users entry. Syntax: Security Switch Users Delete <user_name> Parameters: <user_name>...
Page 384: Security Switch Privilege Level Group
User’s Manual of SGSW-24040 / 24240 Series CRO CRW SRO SRW -------------------------------- --- --- --- --- Aggregation 5 10 5 10 Debug 15 15 15 15 Diagnostics 5 10 5 10 IGMP_Snooping 5 10 5 10 5 10 5 10...
Page 385: Security Switch Privilege Level Current
User’s Manual of SGSW-24040 / 24240 Series <srw> : Status/Statistics read-write privilege level (1-(15)) Example: Change privilege level of MVR group. SWITCH/>security switch privilege level group mvr 15 15 15 15 Security Switch Privilege Level Current Description: Show the current privilege level.
Page 386: Security Switch Auth Method
User’s Manual of SGSW-24040 / 24240 Series ------- ---------------------- ----------------------------- console local Disabled telnet local Disabled local Disabled local Disabled Security Switch Auth Method Description: Set or show Auth method. Syntax: Security Switch Auth Method [console|telnet|ssh|web] [none|local|radius|tacacs+] [enable|disable] Parameters: console...
Page 387: Security Switch Ssh Configuration
User’s Manual of SGSW-24040 / 24240 Series Security Switch SSH Configuration Description: Show SSH configuration. Syntax: Security Switch SSH Configuration Example: Show SSH configuration. SWITCH/>security switch ssh configuration SSH Configuration: ================== SSH Mode : Disabled Security Switch SSH Mode Description: Set or show the SSH mode.
Page 388: Security Switch Https Configuration
User’s Manual of SGSW-24040 / 24240 Series Security Switch HTTPs Configuration Description: Show HTTPS configuration. Syntax: Security Switch HTTPS Configuration Default Setting: disable Example: Show HTTPs configuration. SWITCH/>security switch https configuration HTTPS Configuration: ==================== HTTPS Mode : Disabled HTTPS Redirect Mode : Disabled...
Page 389: Security Switch Https Redirect
User’s Manual of SGSW-24040 / 24240 Series SWITCH/>security switch https mode enable Security Switch HTTPs Redirect Description: et or show the HTTPS redirect mode. Automatic redirect web browser to HTTPS during HTTPS mode enabled. Syntax: Security Switch HTTPS Redirect [enable|disable]...
Page 390: Security Switch Access Mode
User’s Manual of SGSW-24040 / 24240 Series System Access Mode : Disabled System Access number of entries: 0 Security Switch Access Mode Description: Set or show the access management mode. Syntax: Security Switch Access Mode [enable|disable] Parameters: enable : Enable access management...
Page 391: Security Switch Access Ipv6 Add
User’s Manual of SGSW-24040 / 24240 Series snmp : SNMP interface telnet : TELNET/SSH interface (default: Show configured and current mode) Example: Add access management list from 192.168.0.1 to 192.168.0.200 via web interface. SWITCH/>security switch access add 1 192.168.0.1 192.168.0.200 web...
Page 392: Security Switch Access Delete
User’s Manual of SGSW-24040 / 24240 Series Security Switch Access Delete Description: Delete access management entry. Syntax: Security Switch Access Delete <access_id Parameters: <access_id>: entry index (1-16) Example: Delete access management ID 1 SWITCH/>security switch access delete 1 Security Switch Access Lookup Description: Lookup access management entry.
Page 393: Security Switch Access Statistics
User’s Manual of SGSW-24040 / 24240 Series Example: Clear access management entry. SWITCH/>security switch access clear Security Switch Access Statistics Description: Show or clear access management statistics. Syntax: Security Switch Access Statistics [clear] Parameters: clear: Clear access management statistics Default Setting:...
Page 394 User’s Manual of SGSW-24040 / 24240 Series Example: Show SNMP configuration. SWITCH/>security switch snmp configuration SNMP Configuration: =================== SNMP Mode : Enabled SNMP Version : 2c Read Community : public Write Community : private Trap Mode : Disabled Trap Version...
Page 395: Security Switch Snmp Mode
User’s Manual of SGSW-24040 / 24240 Series Number of entries: 1 SNMPv3 Groups Table; Idx Model Security Name Group Name --- ----- -------------------------------- -------------------------------- public default_ro_group private default_rw_group public default_ro_group private default_rw_group default_user default_rw_group Number of entries: 5 SNMPv3 Views Table:...
Page 396: Security Switch Snmp Version
User’s Manual of SGSW-24040 / 24240 Series Default Setting: enable Example: Disable SNMP mode. SWITCH/>security switch snmp mode disable Security Switch SNMP Version Description: Set or show the SNMP protocol version. Syntax: Security Switch SNMP Version [1|2c|3] Parameters: 1 : SNMP version 1...
Page 397: Security Switch Snmp Write Community
User’s Manual of SGSW-24040 / 24240 Series Parameters: <community>: Community string. Use 'clear' or "" to clear the string (default: Show SNMP read community) Default Setting: public Example: Set SNMP read community private. SWITCH/>security switch snmp read community private Security Switch SNMP Write Community Description: Set or show the community string for SNMP write access.
Page 398: Security Switch Snmp Trap Version
User’s Manual of SGSW-24040 / 24240 Series Parameters: enable : Enable SNMP traps disable: Disable SNMP traps (default: Show SNMP trap mode) Default Setting: disable Example: Enable SNMP trap mode. SWITCH/>security switch snmp trap mode enable Security Switch SNMP Trap Version Description: Set or show the SNMP trap protocol version.
Page 399: Security Switch Snmp Trap Destination
User’s Manual of SGSW-24040 / 24240 Series Syntax: Security Switch SNMP Trap Community [<community>] Parameters: <community>: Community string. Use 'clear' or "" to clear the string (default: Show SNMP trap community) Default Setting: public Example: Set private value for SNMP trap community.
Page 400: Security Switch Snmp Trap Authentication Failure
User’s Manual of SGSW-24040 / 24240 Series Parameters: <ipv6_addr>: IPv6 address is in 128-bit records represented as eight fields of up to four hexadecimal digits with a colon separates each field (:). For example, four hexadecimal digits with a colon separates each field (:). For example, fe80::215:c5ff:fe03:4dc7'.
Page 401: Security Switch Snmp Trap Inform Mode
User’s Manual of SGSW-24040 / 24240 Series Syntax: Security Switch SNMP Trap Link-up [enable|disable] Parameters: enable : Enable SNMP trap link-up and link-down disable: Disable SNMP trap link-up and link-down (default: Show SNMP trap link-up and link-down mode) Default Setting:...
Page 402: Security Switch Snmp Trap Inform Timeout
User’s Manual of SGSW-24040 / 24240 Series Security Switch SNMP Trap Inform Timeout Description: Set or show the SNMP trap inform timeout (usecs). Syntax: Security Switch SNMP Trap Inform Timeout [<timeout>] Parameters: <timeout>: SNMP trap inform timeout (0-2147 seconds) (default: Show SNMP trap inform timeout)
Page 403: Security Switch Snmp Trap Probe Security Engine Id
User’s Manual of SGSW-24040 / 24240 Series Security Switch SNMP Trap Probe Security Engine ID Description: Show SNMP trap security engine ID probe mode. Syntax: Security Switch SNMP Trap Probe Security Engine ID [enable|disable] Parameters: enable : Enable SNMP trap security engine ID probe...
Page 404: Security Switch Snmp Trap Security Name
User’s Manual of SGSW-24040 / 24240 Series Security Switch SNMP Trap Security Name Description: Set or show SNMP trap security name. Syntax: Security Switch SNMP Trap Security Name [<security_name>] Parameters: <security_name>: A string representing the security name for a principal...
Page 405: Security Switch Snmp Community Delete
User’s Manual of SGSW-24040 / 24240 Series Add or modify SNMPv3 community entry. The entry index key is <community>. Syntax: Security Switch SNMP Community Add <community> [<ip_addr>] [<ip_mask>] Parameters: <community>: Community string <ip_addr> : IP address (a.b.c.d), default: Show IP address <ip_mask>...
Page 406: Security Switch Snmp User Add
User’s Manual of SGSW-24040 / 24240 Series Parameters: <index>: entry index (1-64) Example: Lookup SNMPv3 community entry SWITCH/>security switch snmp community lookup Idx Community Source IP Source Mask --- -------------------------------- --------------- --------------- public 192.168.0.20 255.255.255.0 private 0.0.0.0 0.0.0.0 Number of entries: 2...
Page 407: Security Switch Snmp User Delete
User’s Manual of SGSW-24040 / 24240 Series Security Switch SNMP User Delete Description: Delete SNMPv3 user entry. Syntax: Security Switch SNMP User Delete <index> Parameters: <index>: entry index (1-64) Example: Delete SNMPv3 user entry SWITCH/>security switch snmp user delete 1...
Page 408: Security Switch Snmp Group Add
User’s Manual of SGSW-24040 / 24240 Series Syntax: Security Switch SNMP User Lookup [<index>] Parameters: <index>: entry index (1-64) Example: Lookup SNMPv3 user entry SWITCH/>security switch snmp user lookup Idx Engine ID User Name Level Auth Priv --- --------- --------------------------------...
Page 409: Security Switch Snmp Group Delete
User’s Manual of SGSW-24040 / 24240 Series Security Switch SNMP Group Delete Description: Delete SNMPv3 group entry. Syntax: Security Switch SNMP Group Delete <index> Parameters: <index>: entry index (1-64) Example: Delete SNMPv3 group entry SWITCH/>security switch snmp group delete 1...
Page 410: Security Switch Snmp View Add
User’s Manual of SGSW-24040 / 24240 Series Security Switch SNMP View Add Description: Add or modify SNMPv3 view entry. The entry index key are <view_name> and <oid_subtree>. Syntax: Security Switch SNMP View Add <view_name> [included|excluded] <oid_subtree> Parameters: <view_name> : A string identifying the view name that this entry should belong to...
Page 411: Security Switch Snmp Access Add
User’s Manual of SGSW-24040 / 24240 Series Lookup SNMPv3 view entry. Syntax: Security Switch SNMP View Lookup [<index>] Parameters: <index>: entry index (1-64) Example: Lookup SNMPv3 view entry SWITCH/>security switch snmp view lookup Idx View Name View Type OID Subtree...
Page 412: Security Switch Snmp Access Delete
User’s Manual of SGSW-24040 / 24240 Series values Example: Add SNMPv3 access entry SWITCH/>security switch snmp access add group_snmpv3 usm authpriv snmpv3_view snmpv3_view Security Switch SNMP Access Delete Description: Delete SNMPv3 access entry. Syntax: Security Switch SNMP Access Delete <index>...
Page 413: Security Network Psec Switch
User’s Manual of SGSW-24040 / 24240 Series --- -------------------------------- ----- -------------- default_ro_group NoAuth, NoPriv default_rw_group NoAuth, NoPriv Number of entries: 2 Security Network Psec Switch Description: Show Port Security status. Syntax: Security Network Psec Switch [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 414: Security Network Psec Port
User’s Manual of SGSW-24040 / 24240 Series ---- No users ---- No users ---- No users ---- No users ---- No users ---- No users ---- No users ---- No users ---- No users ---- No users ---- No users...
Page 415: Security Network Limit Configuration
User’s Manual of SGSW-24040 / 24240 Series <none> Security Network Limit Configuration Description: Show Limit Control configuration. Syntax: Security Network Limit Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show Limit Control configuration. SWITCH/>security network limit configuration...
Page 416: Security Network Limit Mode
User’s Manual of SGSW-24040 / 24240 Series Disabled None Disabled None Disabled None Disabled None Disabled None Disabled None Disabled None Disabled None Disabled None Disabled None Disabled None Disabled None Security Network Limit Mode Description: Set or show global enabledness.
Page 417: Security Network Limit Agetime
User’s Manual of SGSW-24040 / 24240 Series Syntax: Security Network Limit Aging [enable|disable] Parameters: enable : Enable aging disable : Disable aging (default: Show current enabledness of aging) Default Setting: disable Example: Enable limit aging SWITCH/>security network limit aging enable...
Page 418: Security Network Limit Limit
User’s Manual of SGSW-24040 / 24240 Series Syntax: Security Network Limit Port [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable port security on this port disable : Disable port security on this port (default: Show current port enabledness of port security limit control)
Page 419: Security Network Limit Action
User’s Manual of SGSW-24040 / 24240 Series Security Network Limit Action Description: Set or show the action involved with exceeding the limit. Syntax: Security Network Limit Action [<port_list>] [none|trap|shut|trap_shut] Parameters: <port_list> : Port list or 'all', default: All ports none|trap|shut|trap_shut: Action to be taken in case the number of MAC addresses exceeds the limit...
Page 420: Security Network Nas Configuration
User’s Manual of SGSW-24040 / 24240 Series Security Network NAS Configuration Description: Show 802.1X configuration. Syntax: Security Network NAS Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show 802.1X configuration of port 1 SWITCH/>security network nas configuration 1 802.1X Configuration:...
Page 421: Security Network Nas State
User’s Manual of SGSW-24040 / 24240 Series Syntax: Security Network NAS Mode [enable|disable] Parameters: enable : Globally enable 802.1X disable: Globally disable 802.1X (default: Show current 802.1X global enabledness) Default Setting: disable Example: Enable IEEE802.1X function SWITCH/>security network nas mode enable...
Page 422: Security Network Nas Reauthentication
User’s Manual of SGSW-24040 / 24240 Series SWITCH/>security network nas state 1 Port Admin State Port State Last Source Last ID ---- ------------------ --------------------- ----------------- ------------------ Force Authorized Link Down Security Network NAS Reauthentication Description: Set or show Reauthentication enabledness.
Page 423: Security Network Nas Eapoltimeout
User’s Manual of SGSW-24040 / 24240 Series Default Setting: 3600 Example: Set reauthentication period in 3000sec. SWITCH/>security network nas reauthperiod 3000 Security Network NAS EapolTimeout Description: Set or show the time between EAPOL retransmissions. Syntax: Security Network NAS EapolTimeout [<eapol_timeout>] Parameters: <eapol_timeout>: Time between EAPOL retransmissions (1-65535 seconds)
Page 424: Security Network Nas Holdtime
User’s Manual of SGSW-24040 / 24240 Series Default Setting: Example: Set NAS age time in 1000sec SWITCH/>security network nas agetime 1000 Security Network NAS Holdtime Description: Time in seconds before a MAC-address that failed authentication gets a new authentication chance.
Page 425: Security Network Nas Radius_Vlan
User’s Manual of SGSW-24040 / 24240 Series (default: Show current per-port RADIUS-assigned QoS enabledness) enable : Enable RADIUS-assigned QoS either globally or on one or more ports disable: Disable RADIUS-assigned QoS either globally or on one or more ports (default: Show current RADIUS-assigned QoS enabledness)
Page 426: Security Network Nas Authenticate
User’s Manual of SGSW-24040 / 24240 Series Set or show either global enabledness and parameters (use the global keyword) or per-port enabledness of Guest VLAN Unless the 'global' keyword is used, the <reauth_max> and <allow_if_eapol_seen> parameters will not be unused.
Page 427: Security Network Nas Statistics
User’s Manual of SGSW-24040 / 24240 Series Parameters: <port_list>: Port list or 'all', default: All ports now: Force reauthentication immediately Example: Start NAS authentication now for port 1. SWITCH/>security network nas authenticate 1 now Security Network NAS Statistics Description: Show or clear 802.1X statistics.
Page 428: Security Network Acl Configuration
User’s Manual of SGSW-24040 / 24240 Series Rx Other Requests: Rx Auth. Successes: Rx Auth. Failures: Security Network ACL Configuration Description: Show ACL Configuration. Syntax: Security Network ACL Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show ACL Configuration.
Page 429: Security Network Acl Action
User’s Manual of SGSW-24040 / 24240 Series Permit Disabled Disabled Disabled Disabled 0 Permit Disabled Disabled Disabled Disabled 0 Permit Disabled Disabled Disabled Disabled 0 Permit Disabled Disabled Disabled Disabled 746 Permit Disabled Disabled Disabled Disabled 0 Permit Disabled Disabled...
Page 430: Security Network Acl Policy
User’s Manual of SGSW-24040 / 24240 Series Parameters: <port_list> : Port list or 'all', default: All ports permit : Permit forwarding (default) deny : Deny forwarding <rate_limiter>: Rate limiter number (1-15) or 'disable' <port_copy> : Port number for copy of frames or 'disable' <logging>...
Page 431: Security Network Acl Rate
User’s Manual of SGSW-24040 / 24240 Series Security Network ACL Rate Description: Set or show the ACL rate limiter. Syntax: Security Network ACL Rate [<rate_limiter_list>] [<packet_rate>] Parameters: <rate_limiter_list>: Rate limiter list (1-15), default: All rate limiters <packet_rate> : Rate in pps (1, 2, 4, ..., 512, 1k, 2k, 4k, ..., 1024k)
Page 432 User’s Manual of SGSW-24040 / 24240 Series [permit|deny] [<rate_limiter>] [<port_copy>] [<logging>] [<shutdown>] Parameters: <ace_id> : ACE ID (1-128), default: Next available ID <ace_id_next> : Next ACE ID (1-128), default: Add ACE last switch : Switch ACE keyword port : Port ACE keyword <port>...
Page 433: Security Network Acl Delete
User’s Manual of SGSW-24040 / 24240 Series Security Network ACL Delete Description: Delete ACE. Syntax: Security Network ACL Delete <ace_id> Parameters: <ace_id>: ACE ID (1-128) Example: Delete ACE 1 SWITCH/>security network acl delete 1 Security Network ACL Lookup Description: Show ACE, default: All ACEs.
Page 434: Security Network Acl Status
User’s Manual of SGSW-24040 / 24240 Series Example: Clear all ACL counters. SWITCH/>security network acl clear Security Network ACL Status Description: Show ACL status. Syntax: Security Network ACL Status [combined|static|dhcp|upnp|arp_inspection|ip_source_guard|conflicts] Parameters: combined : Shows the combined status static : Shows the static user configured status...
Page 435: Security Network Dhcp Relay Mode
User’s Manual of SGSW-24040 / 24240 Series DHCP Relay Configuration: ========================= DHCP Relay Mode : Disabled DHCP Relay Server : NULL DHCP Relay Information Mode : Disabled DHCP Relay Information Policy : replace Security Network DHCP Relay Mode Description: Set or show the DHCP relay mode.
Page 436: Security Network Dhcp Relay Information Mode
User’s Manual of SGSW-24040 / 24240 Series Syntax: Security Network DHCP Relay Server [<ip_addr>] Parameters: <ip_addr>: IP address (a.b.c.d), default: Show IP address Default Setting: null Example: Set DHCP relay server in 192.168.0.20 SWITCH/>security network dhcp relay server 192.168.0.20 Security Network DHCP Relay Information Mode Description: Set or show DHCP relay agent information option mode.
Page 437: Security Network Dhcp Relay Information Policy
User’s Manual of SGSW-24040 / 24240 Series Security Network DHCP Relay Information Policy Description: Set or show the DHCP relay mode. When enable DHCP relay information mode operation, if agent receive a DHCP message that already contains relay agent information. It will enforce the policy.
Page 438: Security Network Dhcp Snooping Configuration
User’s Manual of SGSW-24040 / 24240 Series Security Network DHCP Snooping Configuration Description: Show DHCP snooping configuration. Syntax: Security Network DHCP Snooping Configuration Example: Set NAS age time in 1000sec SWITCH/>security network dhcp snooping configuration DHCP Snooping Configuration: ============================ DHCP Snooping Mode : Disabled...
Page 439: Security Network Dhcp Snooping Mode
User’s Manual of SGSW-24040 / 24240 Series trusted trusted trusted Security Network DHCP Snooping Mode Description: Set or show the DHCP snooping mode. Syntax: Security Network DHCP Snooping Mode [enable|disable] Parameters: enable : Enable DHCP snooping mode. When enable DHCP snooping mode operation, the request DHCP messages will be forwarded to trusted ports and only allowed reply packets from trusted ports.
Page 440: Security Network Dhcp Snooping Statistics
User’s Manual of SGSW-24040 / 24240 Series untrusted: Configures the port as untrusted sources of the DHCP message (default: Show flow DHCP snooping port mode) Default Setting: trusted Example: Set untrusted DHCP snooping port mode in port 1 SWITCH/>security network dhcp snooping port mode 1 untrusted...
Page 441: Security Network Ip Source Guard Configuration
User’s Manual of SGSW-24040 / 24240 Series Rx Lease Active: Tx Lease Active: Security Network IP Source Guard Configuration Description: Show IP source guard configuration. Syntax: Security Network IP Source Guard Configuration Example: Show IP source guard configuration. SWITCH/>security network ip source guard configuration...
Page 442: Security Network Ip Source Guard Mode
User’s Manual of SGSW-24040 / 24240 Series Disabled unlimited Disabled unlimited Disabled unlimited Disabled unlimited Disabled unlimited Disabled unlimited Disabled unlimited IP Source Guard Entry Table: Type Port VLAN IP Address IP Mask ------- ---- ---- --------------- --------------- Security Network IP Source Guard Mode Description: Set or show IP source guard mode.
Page 443: Security Network Ip Source Guard Limit
User’s Manual of SGSW-24040 / 24240 Series Syntax: Security Network IP Source Guard Port Mode [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable IP Source Guard port disable : Disable IP Source Guard port...
Page 444: Security Network Ip Source Guard Entry
User’s Manual of SGSW-24040 / 24240 Series Security Network IP Source Guard Entry Description: Add or delete IP source guard static entry. Syntax: Security Network IP Source Guard Entry [<port_list>] add|delete <vid> <allowed_ip> <ip_mask> Parameters: <port_list> : Port list or 'all', default: All ports...
Page 445: Security Network Arp Inspection Configuration
User’s Manual of SGSW-24040 / 24240 Series Security Network ARP Inspection Configuration Description: Show ARP inspection configuration. Syntax: Security Network ARP Inspection Configuration Example: Show ARP inspection configuration. SWITCH/>security network arp inspection configuration Security Network ARP Inspection Mode Description: Set or show ARP inspection mode.
Page 446: Security Network Arp Inspection Entry
User’s Manual of SGSW-24040 / 24240 Series Security Network ARP Inspection Port Mode [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable ARP Inspection port disable : Disable ARP Inspection port (default: Show ARP Inspection port mode)
Page 447: Security Network Arp Inspection Status
User’s Manual of SGSW-24040 / 24240 Series Security Network ARP Inspection Status Description: Show ARP inspection static and dynamic entries. Syntax: Security Network ARP Inspection Status [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show ARP inspection static and dynamic entries.
Page 448: Security Aaa Timeout
User’s Manual of SGSW-24040 / 24240 Series ------ -------- --------------- ------------------------------ ----- Disabled 1812 Disabled 1812 Disabled 1812 Disabled 1812 Disabled 1812 RADIUS Accounting Server Configuration: ======================================= Server Mode IP Address Secret Port ------ -------- --------------- ------------------------------ ----- Disabled 1813...
Page 449: Security Aaa Deadtime
User’s Manual of SGSW-24040 / 24240 Series Default Setting: Example: Set 30sec for server timeout SWITCH/>security aaa timeout 30 Security AAA Deadtime Description: Set or show server dead time. Syntax: Security AAA Deadtime [<dead_time>] Parameters: <dead_time>: Time that a server is considered dead if it doesn't answer a request (0-3600 seconds)
Page 450: Security Aaa Acct_Radius
User’s Manual of SGSW-24040 / 24240 Series enable : Enable RADIUS authentication server disable : Disable RADIUS authentication server (default: Show RADIUS server mode) <ip_addr_string>: IP host address (a.b.c.d) or a host name string <secret> : Secret shared with external authentication server.
Page 451: Security Aaa Tacacs
User’s Manual of SGSW-24040 / 24240 Series Security AAA TACACS+ Description: Set or show TACACS+ authentication server setup. Syntax: Security AAA TACACS+ [<server_index>] [enable|disable] [<ip_addr_string>] [<secret>] [<server_port>] Parameters: The server index (1-5) (default: Show TACACS+ authentication server configuration) enable : Enable TACACS+ authentication server...
Page 452 User’s Manual of SGSW-24040 / 24240 Series Example: Show RADIUS statistics. SWITCH/>security aaa statistics...
Page 453: Stp Configuration
User’s Manual of SGSW-24040 / 24240 Series 6.9 Spanning Tree Protocol Command STP Configuration Description: Show STP configuration. Syntax: STP Configuration Example: Show STP configuration. SWITCH/>stp cofiguration STP Configuration: ================== Protocol Version: MSTP Max Age : 20 Forward Delay : 15...
Page 454: Stp Maxhops
User’s Manual of SGSW-24040 / 24240 Series Example: Set the STP Bridge protocol version. SWITCH/> stp version rstp STP Tx Hold Description: Set or show the STP Bridge Transmit Hold Count parameter. Syntax: STP Txhold [<holdcount>] Parameters: <holdcount>: STP Transmit Hold Count (1-10)
Page 455: Stp Maxage
User’s Manual of SGSW-24040 / 24240 Series Example: Set STP maximum hops in 25 SWITCH/>stp maxhops 25 STP MaxAge Description: Set or show the CIST/MSTI bridge maximum age. Syntax: STP MaxAge [<max_age>] Parameters: <max_age>: STP maximum age time (6-40, and max_age <= (forward_delay-1)*2)
Page 456: Stp Cname
User’s Manual of SGSW-24040 / 24240 Series Set STP forward delay value in 25 SWITCH/>stp fwddelay 25 STP CName Description: Set or Show MSTP configuration name and revision. Syntax: STP CName [<config-name>] [<integer>] Parameters: <config-name>: MSTP Configuration name. A text string up to 32 characters long.
Page 457: Stp Bpdu Guard
User’s Manual of SGSW-24040 / 24240 Series Example: Set edge port BPDU filtering SWITCH/>stp bpdufilter enable STP BPDU Guard Description: Set or show edge port BPDU Guard. Syntax: STP bpduGuard [enable|disable] Parameters: enable|disable: enable or disable BPDU Guard for Edge ports...
Page 458: Stp Status
User’s Manual of SGSW-24040 / 24240 Series Example: Set STP recovery value in 30 sec. SWITCH/>stp recovery 30 STP Status Description: Show STP Bridge status. Syntax: STP Status [<msti>] [<port_list>] Parameters: <msti> : STP bridge instance no (0-7, CIST=0, MSTI1=1, ...) <port_list>: Port list or 'all', default: All ports...
Page 459: Stp Msti Priority
User’s Manual of SGSW-24040 / 24240 Series STP MSTI Priority Description: Set or show the CIST/MSTI bridge priority. Syntax: STP Msti Priority [<msti>] [<priority>] Parameters: <msti> : STP bridge instance no (0-7, CIST=0, MSTI1=1, ...) <priority> : STP bridge priority (0/16/32/48/.../224/240)
Page 460: Stp Msti Add
User’s Manual of SGSW-24040 / 24240 Series Example: Add MST1 priority value in 48. SWITCH/>stp msti priority 1 48 STP MSTI Add Description: Add a VLAN to a MSTI. Syntax: STP Msti Add <msti> <vid> Parameters: <msti>: STP bridge instance no (0-7, CIST=0, MSTI1=1, ...) <vid>...
Page 461: Stp Port Mode
User’s Manual of SGSW-24040 / 24240 Series Enabled Enabled Enabled Disabled Disabled Disabled Auto STP Port Mode Description: Set or show the STP enabling for a port. Syntax: STP Port Mode [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all'. Port zero means aggregations.
Page 462: Stp Port Autoedge
User’s Manual of SGSW-24040 / 24240 Series Example: Disable STP edge function on port1 SWITCH/>stp port edge 1 disable STP Port AutoEdge Description: Set or show the STP autoEdge port parameter. Syntax: STP Port AutoEdge [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 463: Stp Port Restrictedrole
User’s Manual of SGSW-24040 / 24240 Series Default: auto Example: Disable STP P2P function on port1 SWITCH/>stp port p2p 1 disable STP Port RestrictedRole Description: Set or show the MSTP restrictedRole port parameter. Syntax: STP Port RestrictedRole [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 464: Stp Port Bpduguard
User’s Manual of SGSW-24040 / 24240 Series enable : Enable MSTP restricted TCN disable : Disable MSTP restricted TCN Default: disable Example: Eisable STP restricted TCN on port1 SWITCH/>stp port restrictedtcn 1 enable STP Port bpduGuard Description: Set or show the bpduGuard port parameter.
Page 465: Stp Port Mcheck
User’s Manual of SGSW-24040 / 24240 Series Parameters: <port_list>: Port list or 'all', default: All ports Example: Show STP port statistics. SWITCH/>stp port statistics Port Rx MSTP Tx MSTP Rx RSTP Tx RSTP Rx STP Tx STP Rx TCN Tx TCN Rx Ill. Rx Unk.
Page 466: Stp Msti Port Cost
User’s Manual of SGSW-24040 / 24240 Series Default: auto Example: Set MSTI2 in port1~2 SWITCH/>stp msti port configuration 2 1-2 MSTI Port Path Cost Priority ---- ---- ---------- -------- MST2 Aggr Auto MSTI Port Path Cost Priority ---- ---- ----------...
Page 467: Stp Msti Port Priority
User’s Manual of SGSW-24040 / 24240 Series MST7 1 Auto STP MSTI Port Priority Description: Set or show the STP CIST/MSTI port priority. Syntax: STP Msti Port Priority [<msti>] [<port_list>] [<priority>] Parameters: <msti> : STP bridge instance no (0-7, CIST=0, MSTI1=1, ...) <port_list>...
Page 468: Igmp Configuration
User’s Manual of SGSW-24040 / 24240 Series 6.10 Multicast Configuration Command IGMP Configuration Description: Show IGMP snooping configuration. Syntax: IGMP Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show IGMP snooping configuration. SWITCH/>igmp configuration IGMP Mode Description: Set or show the IGMP snooping mode.
Page 469: Igmp Leave Proxy
User’s Manual of SGSW-24040 / 24240 Series IGMP Leave Proxy Description: Set or show the mode of IGMP Leave Proxy. Syntax: IGMP Leave Proxy [enable|disable] Parameters: enable : Enable IGMP Leave Proxy disable: Disable IGMP Leave Proxy (default: Show IGMP snooping mode)
Page 470: Igmp Querier
User’s Manual of SGSW-24040 / 24240 Series SWITCH/>igmp state 1 disable IGMP Querier Description: Set or show the IGMP snooping querier mode for VLAN. Syntax: IGMP Querier [<vid>] [enable|disable] Parameters: <vid>: VLAN ID (1-4095), default: Show all VLANs enable : Enable IGMP querier...
Page 471: Igmp Throttling
User’s Manual of SGSW-24040 / 24240 Series Default Setting: disable Example: Enable the IGMP snooping fast leave port mode. SWITCH/>igmp fastleave 1 enable IGMP Throttling Description: Set or show the IGMP port throttling status. Syntax: IGMP Throttling [<port_list>] [limit-group-number] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 472: Igmp Router
User’s Manual of SGSW-24040 / 24240 Series Parameters: <port_list>: Port list or 'all', default: All ports add : Add new port group filtering entry del : Del existing port group filtering entry (default: Show IGMP port group filtering list) IP multicast group address (a.b.c.d)
Page 473: Igmp Flooding
User’s Manual of SGSW-24040 / 24240 Series IGMP Flooding Description: Set or show the IGMP snooping unregistered flood operation. Syntax: IGMP Flooding [enable|disable] Parameters: enable : Enable IGMP flooding disable: Disable IGMP flooding (default: Show IGMP flood mode) Default Setting:...
Page 474 User’s Manual of SGSW-24040 / 24240 Series Parameters: <vid>: VLAN ID (1-4095) Default Setting: disable...
Page 475: Link Aggregation Command
User’s Manual of SGSW-24040 / 24240 Series 6.11 Link Aggregation Command Aggregation Configuration Description: Show link aggregation configuration. Syntax: Aggr Configuration Example: SWITCH/>aggr configuration Aggregation Mode: SMAC : Enabled DMAC : Disabled : Enabled Port : Enabled Aggregation Add Description: Add or modify link aggregation.
Page 476: Aggregation Delete
User’s Manual of SGSW-24040 / 24240 Series Aggregation Delete Description: Delete link aggregation. Syntax: Aggr Delete <aggr_id> Parameters: <aggr_id>: Aggregation ID, global: 1-2, local: 3-14 Example: Delete Group2 SWITCH/>aggr delete 2 Aggregation Lookup Description: Lookup link aggregation. Syntax: Aggr Lookup [<aggr_id>] Parameters: <aggr_id>: Aggregation ID , global: 1-2, local: 3-14...
Page 477: Aggregation Mode
User’s Manual of SGSW-24040 / 24240 Series Aggregation Mode Description: Set or show the link aggregation traffic distribution mode. Syntax: Aggr Mode [smac|dmac|ip|port] [enable|disable] Parameters: smac : Source MAC address dmac : Destination MAC address : Source and destination IP address...
Page 478: Link Aggregation Control Protocol Command
User’s Manual of SGSW-24040 / 24240 Series 6.12 Link Aggregation Control Protocol Command LACP Configuration Description: Show LACP configuration. Syntax: LACP Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show LACP configuration SWITCH/>lacp configuration Port Mode...
Page 479: Lacp Mode
User’s Manual of SGSW-24040 / 24240 Series Disabled Auto Active Disabled Auto Active Disabled Auto Active LACP Mode Description: Set or show LACP mode. Syntax: LACP Mode [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable LACP protocol...
Page 480: Lacp Role
User’s Manual of SGSW-24040 / 24240 Series Default Setting: auto Example: Set key1 for port1~4 SWITCH/>lacp key 1-4 1 LACP Role Description: Set or show the LACP role. Syntax: LACP Role [<port_list>] [active|passive] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 481: Lacp Statistics
User’s Manual of SGSW-24040 / 24240 Series <port_list>: Port list or 'all', default: All ports Example: Show LACP status of port1~4 SWITCH/>lacp status 1-4 Port Mode Aggr ID Partner System ID Partner Port ---- -------- ----- ------- ----------------- ------------ Disabled...
Page 482: Lldp Command
User’s Manual of SGSW-24040 / 24240 Series 6.13 LLDP Command LLDP Configuration Description: Show LLDP configuration. Syntax: LLDP Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show LLDP configuration of port1~4 SWITCH/>lldp configuration 1-4 LLDP Configuration:...
Page 483: Lldp Optional Tlv
User’s Manual of SGSW-24040 / 24240 Series Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable LLDP reception and transmission disable: Disable LLDP : Enable LLDP reception only : Enable LLDP transmission only (default: Show LLDP mode)
Page 484: Lldp Interval
User’s Manual of SGSW-24040 / 24240 Series System capabilities: Enable Master's IP address: Enable Example: Disable description of the port for port1 SWITCH/>lldp optional_tlv 1 port_descr disable LLDP Interval Description: Set or show LLDP Tx interval. Syntax: LLDP Interval [<interval>] Parameters: <interval>: LLDP transmission interval (5-32768)
Page 485: Lldp Delay
User’s Manual of SGSW-24040 / 24240 Series Example: Set LLDP hold value in 10 SWITCH/>lldp hold 10 LLDP Delay Description: Set or show LLDP Tx delay. Syntax: LLDP Delay [<delay>] Parameters: <delay>: LLDP transmission delay (1-8192) Default Setting: Example: Set LLDP delay value in 1 SWITCH/>lldp delay 1...
Page 486: Lldp Statistics
User’s Manual of SGSW-24040 / 24240 Series Example: Set LLDP reinit delay value in 3 SWITCH/>lldp reinit 3 LLDP Statistics Description: Show LLDP Statistics. Syntax: LLDP Statistics [<port_list>] [clear] Parameters: <port_list>: Port list or 'all', default: All ports clear : Clear LLDP statistics...
Page 487: Lldp Info
User’s Manual of SGSW-24040 / 24240 Series LLDP Info Description: Show LLDP neighbor device information. Syntax: LLDP Info [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports LLDP CDP Aware Description: Set or show if discovery information from received CDP ( Cisco Discovery Protocol ) frames is added to the LLDP neighbor table.
Page 488: Lldpmed Command
User’s Manual of SGSW-24040 / 24240 Series 6.14 LLDPMED Command LLDPMED Configuration Description: Show LLDP-MED configuration. Syntax: LLDPMED Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show LLDP-MED configuration of port1~4 SWITCH/>lldpmed configuration 1-4 LLDP-MED Configuration:...
Page 489: Lldpmed Ecs
User’s Manual of SGSW-24040 / 24240 Series Syntax: LLDPMED Civic [country|state|county|city|district|block|street|leading_street_direction|trailing_street_suffix|str_suf|house_no|house_no_s uffix|landmark|additional_info|name|zip_code|building|apartment|floor|room_number|place_type|postal_com_name|p_o_ box|additional_code] [<civic_value>] Parameters: country : Country state : National subdivisions (state, caton, region, province, prefecture) county : County, parish,gun (JP), district(IN) city : City, townchip, shi (JP) district...
Page 490: Lldpmed Policy Delete
User’s Manual of SGSW-24040 / 24240 Series Syntax: LLDPMED ecs [<ecs_value>] Parameters: <ecs_value>: lldpmed The value for the Emergency Call Service LLDPMED Policy Delete Description: Delete the selected policy. Syntax: LLDPMED policy delete [<policy_list>] Parameters: <policy_list>: List of policies to delete...
Page 491: Lldpmed Port Policy
User’s Manual of SGSW-24040 / 24240 Series visitors with their own IP Telephony handsets and other similar appliances supporting interactive voice services. guest_voice_signaling : Guest Voice Signaling (conditional) for use in network topologies that require a different policy for the guest voice signaling than for the guest voice media.
Page 492: Lldpmed Coordinates
User’s Manual of SGSW-24040 / 24240 Series LLDPMED Coordinates Description: Set or show LLDP-MED Location. Syntax: LLDPMED Coordinates [latitude|longitude|altitude] [north|south|west|east|meters|floor] [coordinate_value] Parameters: latitude : Latitude, 0 to 90 degress with max. 4 digits ( Positive numbers are north of the equator and negative numbers are south of the equator).
Page 493: Lldpmed Fast
User’s Manual of SGSW-24040 / 24240 Series LLDPMED Fast Description: Set or show LLDP-MED Fast Start Repeat Count. Syntax: LLDPMED Fast [<count>] Parameters: <count>: The number of times the fast start LLDPDU are being sent during the activation of the fast start mechanism defined by LLDP-MED (1-10).
Page 494: Poe Configuration
User’s Manual of SGSW-24040 / 24240 Series 6.15 Power over Ethernet Command PoE Configuration Description: Show PoE configuration. Syntax: PoE Configuration Parameters: <port_list>: Port list or 'all', default: All ports Example: Show PoE configuration. SWITCH/>poe configuration Port Mode Priority Max.Power[W]...
Page 495: Poe Mode
User’s Manual of SGSW-24040 / 24240 Series Enabled High 15.4 15.4 Enabled High 15.4 15.4 Enabled High 15.4 15.4 Power management mode ---------------------- Power management mode : automode PoE Mode Description: Set or show the PoE mode. Syntax: PoE Mode [<port_list>] [enable|disable] [af|at] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 496: Poe Mamagement Mode
User’s Manual of SGSW-24040 / 24240 Series Syntax: PoE Priority [<port_list>] [low|high|critical] Parameters: <port_list>: Port list or 'all', default: All ports : Set priority to low high : Set priority to high critival: Set priority to critical (default: Show PoE priority)
Page 497: Poe Maximum Power
User’s Manual of SGSW-24040 / 24240 Series PoE Maximum Power Description: Set or show PoE maximum power per port (0-30.8, with one digit). Syntax: PoE Maximum_Power [<port_list>] [<port_power>] Parameters: <port_list> : Port list or 'all', default: All ports <port_power>: PoE maiximum power for the port ( 0-30.8 ) Default Setting: 30.8...
Page 498: Poe Power Supply
User’s Manual of SGSW-24040 / 24240 Series PoE Power Supply Description: Set or show the value of the power supply. Syntax: PoE Power_Supply [<supply_power>] Parameters: <supply_power>: PoE power for a power supply Example: Set 200 watts of power supply. SWITCH/>poe power_supply 200...
Page 499: Qos Configuration
User’s Manual of SGSW-24040 / 24240 Series 6.16 Quality of Service Command QoS Configuration Description: Show QoS Configuration. Syntax: QoS Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Example: Show QoS Configuration of port 1-4. SWITCH/>qos configuration 1-4...
Page 500: Qos Default
User’s Manual of SGSW-24040 / 24240 Series Syntax: QoS Classes [<class>] Parameters: <class>: Number of traffic classes (1,2 or 4) Default Setting: Example: Set QoS classes 2 SWITCH/>qos classes 2 QoS Default Description: Set or show the default port priority.
Page 501: Qos Qcl Port
User’s Manual of SGSW-24040 / 24240 Series Syntax: QoS Tagprio [<port_list>] [<tag_prio>] Parameters: <port_list>: Port list or 'all', default: All ports <tag_prio> : VLAN tag priority (0-7) Default Setting: Example: Set priority7 for port 3 SWITCH/>qos tagprio 3 7 QoS QCL Port Description: Set or show the port QCL ID.
Page 502: Qos Qcl Delete
User’s Manual of SGSW-24040 / 24240 Series If the QCE ID parameter <qce_id> is specified and an entry with this QCE ID already exists, the QCE will be modified. Otherwise, a new QCE will be added. If the QCE ID is not specified, the next available QCE ID will be used.
Page 503: Qos Qcl Lookup
User’s Manual of SGSW-24040 / 24240 Series QoS QCL Lookup Description: Lookup QCE. Syntax: QoS QCL Lookup [<qcl_id>] [<qce_id>] Parameters: <qcl_id>: QCL ID <qce_id>: QCE ID (1-24) QoS Mode Description: Set or show the port egress scheduler mode. Syntax: QoS Mode [<port_list>] [strict|weighted] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 504: Qos Rate Limiter
User’s Manual of SGSW-24040 / 24240 Series Syntax: QoS Weight [<port_list>] [<class>] [<weight>] Parameters: <port_list> : Port list or 'all', default: All ports <class> : Traffic class low/normal/medium/high or 1/2/3/4 <weight> : Traffic class weight 1/2/4/8 QoS Rate Limiter Description: Set or show the port rate limiter.
Page 505: Qos Storm Unicast
User’s Manual of SGSW-24040 / 24240 Series Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable shaper disable : Disable shaper (default: Show shaper mode) <bit_rate> : Rate in 1000 bits per second (500-1000000 kbps) Default Setting:...
Page 506: Qos Strom Broadcast
User’s Manual of SGSW-24040 / 24240 Series Set or show the multicast storm rate limiter. Syntax: QoS Storm Multicast [enable|disable] [<packet_rate>] Parameters: enable : Enable multicast storm control disable : Disable multicast storm control <packet_rate>: Rate in pps (1, 2, 4, ..., 512, 1k, 2k, 4k, ..., 1024k)
Page 507: Qos Dscp Remarking
User’s Manual of SGSW-24040 / 24240 Series QoS DSCP Remarking Description: Set or show the status of QoS DSCP Remarking. Syntax: QoS DSCP Remarking [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable QoS Remarking...
Page 508: Mirror Configuration
User’s Manual of SGSW-24040 / 24240 Series 6.17 Mirror Command Mirror Configuration Description: Show mirror configuration. Syntax: Mirror Configuration [<port_list>] Parameters: <port_list>: Port list or 'all', default: All ports Default Setting: disable Example: Show mirror configuration. SWITCH/>mirror configuration Mirror Port Description: Set or show the mirror port.
Page 509: Mirror Sid
User’s Manual of SGSW-24040 / 24240 Series Mirror SID Description: Set or show the mirror switch ID. Syntax: Mirror SID [<sid>] Parameters: <sid>: Switch ID (1-16) Default Setting: Example: Set SID2 for mirror switch ID. SWITCH/>mirror sid 2 Mirror Mode Description: Set or show the mirror mode.
Page 510 User’s Manual of SGSW-24040 / 24240 Series Example: Enable the mirror mode for port 1-4. SWITCH/>mirror mode 1-4 enable...
Page 511: Configuration Command
User’s Manual of SGSW-24040 / 24240 Series 6.18 Configuration Command Configuration Save Description: Save configuration to TFTP server. Syntax: Config Save <ip_server> <file_name> Parameters: <ip_server>: TFTP server IP address (a.b.c.d) <file_name>: Configuration file name Configuration Load Description: Load configuration from TFTP server.
Page 512: Firmware Command
User’s Manual of SGSW-24040 / 24240 Series 6.19 Firmware Command Firmware Load Description: Load new firmware from TFTP server. Syntax: Firmware Load <ip_addr_string> <file_name> Parameters: <ip_addr_string>: IP host address (a.b.c.d) or a host name string <file_name> : Firmware file name...
Page 513: Upnp Command
User’s Manual of SGSW-24040 / 24240 Series 6.20 UPnP Command UPnP Configuration Description: Show UPnP configuration. Syntax: UPnP Configuration Example: Show UPnP configuration. SWITCH/>upnp configuration UPnP Configuration: =================== UPnP Mode : Disabled UPnP TTL UPnP Advertising Duration : 100 UPnP Mode Description: Set or show the UPnP mode.
Page 514: Upnp Ttl
User’s Manual of SGSW-24040 / 24240 Series SWITCH/>upnp mode enable UPnP TTL Description: Set or show the TTL value of the IP header in SSDP messages. Syntax: UPnP TTL [<ttl>] Parameters: <ttl>: ttl range (1..255), default: Show UPnP TTL Default Setting: Example: Set the value 10 for TTL value of the IP header in SSDP messages.
Page 515: Mvr Command
User’s Manual of SGSW-24040 / 24240 Series 6.21 MVR Command MVR Configuration Description: Show the MVR configuration. Syntax: MVR Configuration Example: Show the MVR configuration. SWITCH/>mvr configuration MVR Configuration: ================== MVR Mode: Disabled Muticast VLAN ID: 100 Port Port Mode...
Page 516: Mvr Group
User’s Manual of SGSW-24040 / 24240 Series Disabled Receive Disabled Disabled Receive Disabled Disabled Receive Disabled Disabled Receive Disabled Disabled Receive Disabled Disabled Receive Disabled MVR Group Description: Show the MVR group. Syntax: MVR Group MVR Status Description: Show the MVR status.
Page 517: Mvr Port Mode
User’s Manual of SGSW-24040 / 24240 Series Default Setting: disable Example: Enable MVR mode. SWITCH/>mvr mode enable MVR Port Mode Description: Set or show the MVR port mode. Syntax: MVR Port Mode [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports...
Page 518: Mvr Port Type
User’s Manual of SGSW-24040 / 24240 Series Parameters: <vid>: VLAN ID (1-4095), default: Show current MVR multicast VLAN ID Default Setting: Example: Set VLAN 1000 for MVR multicast VLAN ID. SWITCH/>mvr multicast vlan 1000 MVR Port Type Description: Set or show MVR port type.
Page 519 User’s Manual of SGSW-24040 / 24240 Series MVR Immediate Leave [<port_list>] [enable|disable] Parameters: <port_list>: Port list or 'all', default: All ports enable : Enable Immediate-leave mode disable : Disable Immediate-leave mode (default: Show MVR Immediate-leave mode) Default Setting: disable Example: Enable MVR port state about immediate leave for port 1.
Page 520: Voice Vlan Command
User’s Manual of SGSW-24040 / 24240 Series 6.22 Voice VLAN Command Voice VLAN Configuration Description: Show Voice VLAN configuration. Syntax: Voice VLAN Configuration Example: Show Voice VLAN configuration. SWITCH/>voice vlan configuration Voice VLAN Configuration: ========================= Voice VLAN Mode : Disabled...
Page 521: Voice Vlan Mode
User’s Manual of SGSW-24040 / 24240 Series Port Mode Security Discovery Protocol ---- -------- -------- ------------------ Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled...
Page 522: Voice Vlan Id
User’s Manual of SGSW-24040 / 24240 Series disable: Disable Voice VLAN mode (default: Show flow Voice VLAN mode) Default Setting: disable Example: Enable the Voice VLAN mode. SWITCH/>voice vlan mode enable Voice VLAN ID Description: Set or show Voice VLAN ID.
Page 523: Voice Vlan Traffic Class
User’s Manual of SGSW-24040 / 24240 Series Parameters: <age_time>: MAC address age time (10-10000000) default: Show age time Default Setting: 86400sec Example: Set Voice VLAN age time in 100sec. SWITCH/>voice valn agetime 100 Voice VLAN Traffic Class Description: Set or show Voice VLAN ID.
Page 524: Voice Vlan Oui Delete
User’s Manual of SGSW-24040 / 24240 Series Parameters: <oui_addr> : OUI address (xx-xx-xx) <description>: Entry description. Use 'clear' or "" to clear the string No blank or space characters are permitted as part of a contact.(only in CLI) Example: Add Voice VLAN OUI entry.
Page 525: Voice Vlan Oui Lookup
User’s Manual of SGSW-24040 / 24240 Series Voice VLAN OUI Lookup Description: Lookup Voice VLAN OUI entry. Syntax: Voice VLAN OUI Lookup [<oui_addr>] Parameters: <oui_addr>: OUI address (xx-xx-xx), default: Show OUI address Example: Lookup Voice VLAN OUI entry. SWITCH/>voice vlan oui lookup...
Page 526: Voice Vlan Security
User’s Manual of SGSW-24040 / 24240 Series Example: Set auto mode for port 1-4 of Voice VLAN port mode. SWITCH/>voice vlan port mode 1-4 auto Voice VLAN Security Description: Set or show the Voice VLAN port security mode. When the function is enabled, all non-telephone MAC address in Voice VLAN will be blocked 10 seconds.
Page 527: Smtp Command
User’s Manual of SGSW-24040 / 24240 Series 6.23 SMTP Command SMTP Configuration Description: Show SMTP configure. Syntax: SMTP Configuration Default Setting: disable SMTP Mode Description: Enable or disable SMTP configure. Syntax: SMTP Mode [enable|disable] Parameters: enable : Enable SMTP mode...
Page 528: Smtp Auth
User’s Manual of SGSW-24040 / 24240 Series <server>: SMTP server address <port> : SMTP server port Default Setting: disable SMTP Auth Description: Enable or disable SMTP authentication configure. Syntax: SMTP Auth [enable|disable] Parameters: enable : Enable SMTP Authentication disable : Disable SMTP Authentication...
Page 529: Smtp Auth_Pass
User’s Manual of SGSW-24040 / 24240 Series SMTP Auth_pass Description: Set or show SMTP authentication password configure. Syntax: SMTP Auth_pass [<auth_pass_text>] Parameters: <auth_pass_text>: SMTP Authentication Password Default Setting: disable SMTP Mailfrom Description: Set or show SMTP e-mail from configure. Syntax: SMTP Mailfrom [<mailfrom_text>]...
Page 530: Smtp Mailto1
User’s Manual of SGSW-24040 / 24240 Series Default Setting: disable SMTP Mailto1 Description: Set or show SMTP e-mail 1 to configure. Syntax: SMTP Mailto1 [<mailto1_text>] Parameters: <mailto1_text>: SMTP e-mail 1 to address Default Setting: disable SMTP Mailto2 Description: Set or show SMTP e-mail 2 to configure.
Page 531: Show Command
User’s Manual of SGSW-24040 / 24240 Series 6.24 Show Command Show ACL Configuration Description: Show ACL Configuration. Syntax: Show acl Show Link Aggregation Configuration Description: Show link aggregation configuration. Syntax: Show aggr Show IGMP Configuration Description: Show IGMP snooping configuration.
Page 532: Show Lacp Configuration
User’s Manual of SGSW-24040 / 24240 Series Show LACP Configuration Description: Show LACP configuration. Syntax: Show lacp Show LLDP Configuration Description: Show LLDP configuration. Syntax: Show lldp Show MAC Configuration Description: Show MAC address table configuration. Syntax: Show MAC Show Mirror Configuration Description: Show mirror configuration.
Page 533: Show Port Configuration
User’s Manual of SGSW-24040 / 24240 Series Syntax: Show PoE Show Port Configuration Description: Show port configuration. Syntax: Show port Show Private VLAN Configuration Description: Show Private VLAN configuration. Syntax: Show pvlan Show QoS Configuration Description: Show QoS Configuration. Syntax:...
Page 534: Show Stack Configuration
User’s Manual of SGSW-24040 / 24240 Series Show Stack Configuration Description: Show the list of switches in stack. Syntax: Show stack Show System Configuration Description: Show system configuration. Syntax: Show system Show VLAN Configuration Description: Show VLAN configuration. Syntax: Show vlan...
Page 535: Switch Operation
User’s Manual of SGSW-24040 / 24240 Series 7. SWITCH OPERATION 7.1 Address Table The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc. This in-formation comes from the learning process of Ethernet Switch.
Page 536: Auto-Negotiation
User’s Manual of SGSW-24040 / 24240 Series 7.5 Auto-Negotiation The STP ports on the Switch have built-in "Auto-negotiation". This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset). This is done by detect the modes and speeds at the second of both device is connected and capable of, both 10Base-T and 100Base-TX devices can connect with the port in either Half- or Full-Duplex mode.
Page 537: Power Over Ethernet Overview
User’s Manual of SGSW-24040 / 24240 Series 8. POWER OVER ETHERNET OVERVIEW What is PoE? Based on the global standard IEEE 802.3af, PoE is a technology for wired Ethernet, the most widely installed local area network technology adopted today. PoE allows the electrical power necessary for the operation of each end-device to be carried by data cables rather than by separate power cords.
Page 538 User’s Manual of SGSW-24040 / 24240 Series Figure 8-1 - Power Supplied over the Spare Pins The data pairs are used. Since Ethernet pairs are transformer coupled at each end, it is possible to apply DC power to the center tap of the isolation transformer without upsetting the data transfer. In this mode of operation the pair on pins 3 and 6 and the pair on pins 1 and 2 can be of either polarity.
Page 539: The Poe Provision Process
User’s Manual of SGSW-24040 / 24240 Series References: IEEE Std 802.3af-2003 (Amendment to IEEE Std 802.3-2002, including IEEE Std 802.3ae-2002), 2003 Page(s):0_1-121 White Paper on Power over Ethernet (IEEE802.3af) http://www.poweroverethernet.com/articles.php?article_id=52 Microsemi /PowerDsine http://www.microsemi.com/PowerDsine/ Linear Tech http://www.linear.com/ The PoE Provision Process While adding PoE support to networked devices is relatively painless, it should be realized that power cannot simply be transferred over existing CAT-5 cables.
Page 540: Classification
User’s Manual of SGSW-24040 / 24240 Series Classification Once a PD is detected, the PSE may optionally perform classification, to determine the maximal power a PD is to consume. The PSE induces 15.5-20.5 VDC, limited to 100 mA, for a period of 10 to 75 ms responded by a certain current consumption by the PD, indicating its power class.
Page 541 User’s Manual of SGSW-24040 / 24240 Series DC Disconnect DC Disconnect detection involves measurement of current. Naturally, a disconnected PD stops consuming current, which can be inspected by the PSE. The PSE must therefore disconnect power within 300 to 400 ms from the current flow stop. The lower time boundary is important to prevent shutdown due to random fluctuations.
Page 542: Trouble Shooting
User’s Manual of SGSW-24040 / 24240 Series 9. TROUBLE SHOOTING This chapter contains information to help you solve problems. If the Ethernet Switch is not functioning properly, make sure the Ethernet Switch was set up according to instructions in this manual.
Page 543 User’s Manual of SGSW-24040 / 24240 Series If that device works, refer to the next step. If that device does not work, check the AC power  While IP Address be changed or forgotten admin password – To reset the IP address to the default IP Address “192.168.0.100” or reset the password to default value. Press the hardware reset button at the front panel about 10 seconds.
Page 544: Appendex A
User’s Manual of SGSW-24040 / 24240 Series APPENDEX A A.1 Switch's RJ-45 Pin Assignments 1000Mbps, 1000Base T Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.
Page 545 User’s Manual of SGSW-24040 / 24240 Series 7, 8 Not used The standard cable, RJ-45 pin assignment The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color...
Page 546: Appendex B : Glossary
User’s Manual of SGSW-24040 / 24240 Series APPENDEX B : GLOSSARY ACE is an acronym for Access Control Entry. It describes access permission associated with a particular ACE ID. There are three ACE frame types (Ethernet Type, ARP, and IPv4) and two ACE actions (permit and deny). The ACE also contains many detailed, different parameter options that are available for individual application.
Page 547 User’s Manual of SGSW-24040 / 24240 Series ranging from 1-1024K packets per seconds. Under "Ports" and "Access Control List" web-pages you can assign a Rate Limiter ID to the ACE(s) or ingress port(s). AES is an acronym for Advanced Encryption Standard. The encryption key protocol is applied in 802.1i standard to improve WLAN security.
Page 548 User’s Manual of SGSW-24040 / 24240 Series CCM is an acronym for Continuity Check Message. It is a OAM frame transmitted from a MEP to it's peer MEP and used to implement CC functionality. CDP is an acronym for Cisco Discovery Protocol.
Page 549 User’s Manual of SGSW-24040 / 24240 Series The DHCP option 82 enables a DHCP relay agent to insert specific information into a DHCP request packets when forwarding client DHCP packets to a DHCP server and remove the specific information from a DHCP reply packets when forwarding server DHCP packets to a DHCP client.
Page 550 User’s Manual of SGSW-24040 / 24240 Series EPS is an abbreviation for Ethernet Protection Switching defined in ITU/T G.8031. Ethernet Type Ethernet Type, or EtherType, is a field in the Ethernet MAC header, defined by the Ethernet networking standard. It is used to indicate which protocol is being transported in an Ethernet frame.
Page 551 User’s Manual of SGSW-24040 / 24240 Series HTTPS is really just the use of Netscape's Secure Socket Layer (SSL) as a sublayer under its regular HTTP application layering. (HTTPS uses port 443 instead of HTTP port 80 in its interactions with the lower layer, TCP/IP.) SSL uses a 40-bit key size for the RC4 stream encryption algorithm, which is considered an adequate degree of encryption for commercial exchange.
Page 552 User’s Manual of SGSW-24040 / 24240 Series IP is an acronym for Internet Protocol. It is a protocol used for communicating data across a internet network. IP is a "best effort" system, which means that no packet of information sent over it is assured to reach its destination in the same condition it was sent.
Page 553 User’s Manual of SGSW-24040 / 24240 Series LLDP-MED LLDP-MED is an extendsion of IEEE 802.1ab and is defined by the telecommunication industry association (TIA-1057). LOC is an acronym for Loss Of Connectivity and is detected by a MEP and is indicating lost connectivity in the network.
Page 554 User’s Manual of SGSW-24040 / 24240 Series NAS is an acronym for Network Access Server. The NAS is meant to act as a gateway to guard access to a protected source. A client connects to the NAS, and the NAS connects to another resource asking whether the client's supplied credentials are valid.
Page 555 User’s Manual of SGSW-24040 / 24240 Series For some TLVs it is configurable if the switch shall include the TLV in the LLDP frame. These TLVs are known as optional TLVs. If an optional TLVs is disabled the corresponding information is not included in the LLDP frame.
Page 556 User’s Manual of SGSW-24040 / 24240 Series POP3 POP3 is an acronym for Post Office Protocol version 3. It is a protocol for email clients to retrieve email messages from a mail server. POP3 is designed to delete mail on the server as soon as the user has downloaded it. However, some implementations allow users or an administrator to specify that mail be saved for some period of time.
Page 557 User’s Manual of SGSW-24040 / 24240 Series Each accessible traffic object contains an identifier to its QCL. The privileges determine specific traffic object to specific QoS class. QL In SyncE this is the Quality Level of a given clock source. This is received on a port in a SSM indicating the quality of the clock received in the port.
Page 558 User’s Manual of SGSW-24040 / 24240 Series SAMBA Samba is a program running under UNIX-like operating systems that provides seamless integration between UNIX and Microsoft Windows machines. Samba acts as file and print servers for Microsoft Windows, IBM OS/2, and other SMB client machines.
Page 559 User’s Manual of SGSW-24040 / 24240 Series SSID Service Set Identifier is a name used to identify the particular 802.11 wireless LANs to which a user wants to attach. A client device will receive broadcast messages from all access points within range advertising their SSIDs, and can choose one to connect to based on pre-configuration, or by displaying a list of SSIDs in range and asking the user to select one (wikipedia).
Page 560 User’s Manual of SGSW-24040 / 24240 Series The TCP protocol guarantees reliable and in-order delivery of data from sender to receiver and distinguishes data for multiple connections by concurrent applications (for example, Web server and e-mail server) running on the same host.
Page 561 User’s Manual of SGSW-24040 / 24240 Series UDP is an acronym for User Datagram Protocol. It is a communications protocol that uses the Internet Protocol (IP) to exchange the messages between computers. UDP is an alternative to the Transmission Control Protocol (TCP) that uses the Internet Protocol (IP). Unlike TCP, UDP does not provide the service of dividing a message into packet datagrams, and UDP doesn't provide reassembling and sequencing of the packets.
Page 562 User’s Manual of SGSW-24040 / 24240 Series Provider switching: This is also known as Q-in-Q switching. Ports connected to subscribers are VLAN unaware, members of one VLAN, and set up with this unique Port VLAN ID. Ports connected to the service provider are VLAN aware, members of multiple VLANs, and set up to tag all frames.
Page 563 User’s Manual of SGSW-24040 / 24240 Series WPA-Radius WPA-Radius is an acronym for Wi-Fi Protected Access - Radius (802.1X authentication server). WPA was designed to enhance the security of wireless networks. There are two flavors of WPA: enterprise and personal. Enterprise is meant for use with an IEEE 802.1X authentication server, which distributes different keys to each user.
Page 564: Ec Declaration Of Conformity
EC Declaration of Conformity For the following equipment: *Type of Product: 24-Port 10 / 100 / 1000Mbps Layer 2 Managed Stackable Switch *Model Number: SGSW-24040 / SGSW-24040R * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C.
Page 565 *Model Number: SGSW-24240 / SGSW-24240R * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2004/108/EC).
Page 566 *Model Number: SGSW-24040P4 / SGSW-24040P * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2004/108/EC).
Page 567 *Model Number: SGSW-24040HP * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2004/108/EC).

This manual is also suitable for:

Sgsw-24040p Sgsw-24040p4 Sgsw-24240 Sgsw-24240r Sgsw-24040r Sgsw-24040hp ... Show all

Save PDF
