- Page 1 L3 Multi-Port Full Gigabit Stackable Managed Switch SGS-6341-24T4X/SGS-6341-24P4X/ SGS-6341-48T4X/SGS-6341-16S8C4XR Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Switch Management ..................4 3. Requirements ..................... 5 4. Terminal Setup ................... 6 4.1 Logon to the Console ................7 4.2 Configuring IP Address ................. 7 4.3 Setting 1000BASE-X for SFP+ Port ............9 4.4 Saving the Configuration ..............9 5. -
Page 3: Package Contents

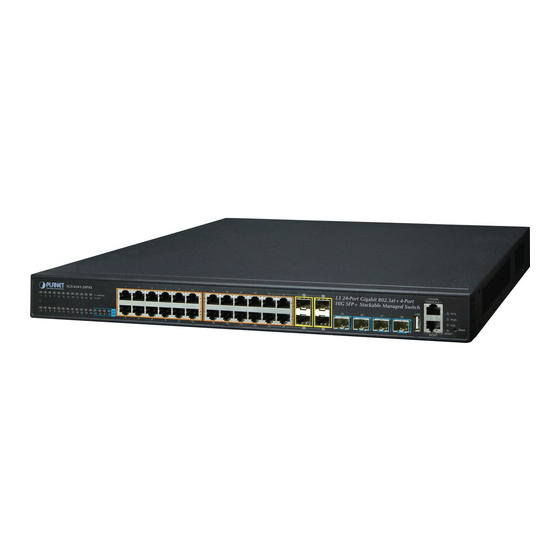

1. Package Contents Thank you for purchasing PLANET L3 Multi-Port Full Gigabit Stackable Managed Switch, SGS-6341-24T4X/SGS-6341-24P4X/SGS-6341-48T4X/SGS-6341-16S8C4XR. The descriptions of these models are as follows: Layer 3 24-Port 10/100/1000T + 4-Port 10G SFP+ SGS-6341-24T4X Stackable Managed Switch Layer 3 24-Port 10/100/1000T 802.3at PoE + 4-Port SGS-6341-24P4X 10G SFP+ Stackable Managed Switch (370W) Layer 3 48-Port 10/100/1000T + 4-Port 10G SFP+ SGS-6341-48T4X Stackable Managed Switch Layer 3 16-Port 100/1000X SFP + 8-Port Gigabit TP/ SGS-6341-16S8C4XR SFP + 4-Port 10G SFP+ Stackable Managed Switch (100~240V AC, 12V DC) Unless specified, “Managed Switch” mentioned in this Quick Installation Guide refers to the above three models. -
Page 4: Switch Management
2. Switch Management To set up the Managed Switch, the user needs to configure the Managed Switch for network management. The Managed Switch provides two management options: Out-of-Band Management and In-Band Management. Out-of-Band Management Out-of-band management is the management through Console interface. Generally, the user will use out-of-band management for the initial switch configuration, or when in-band management is not available. -
Page 5: Requirements
3. Requirements z Workstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols. z Workstations are installed with Ethernet NIC (Network Interface Card) z Serial Port Connection (Terminal) The above Workstations come with COM Port (DB9) or USB-to-RS232 converter. The above Workstations have been installed with terminal emulator, such as Tera Term or PuTTY. -
Page 6: Terminal Setup
4. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to serial (console) port of the Managed Switch. The console port of the Managed Switch is DCE already, so that you can connect the console port directly through PC without the need of Null Modem. -
Page 7: Logon To The Console
4.1 Logon to the Console Once the terminal is connected to the device, power on the Managed Switch, and the terminal will display “running testing procedures”. Then, the following message asks for the login user name and password. The factory default user name and password are as follows as the login screen in Figure 4-3 appears. - Page 8 The previous command would apply the following settings for the Managed Switch. IPv4 Address: 192.168.1.254 Subnet Mask: 255.255.255.0 Figure 4-4 Configuring IPv4 Address Screen To check the current IP address or modify a new IP address for the Managed Switch, please use the procedure as follows: Show the current IP address 1. On “SGS-6341-Series#” prompt, enter “show ip interface brief”. 2. The screen displays the current IP address, subnet mask and gateway as shown in Figure 4-5.
-
Page 9: Setting 1000Base-X For Sfp+ Port
4.3 Setting 1000BASE-X for SFP+ Port The Managed Switch supports both 1000BASE-X and 10GBASE-X SFP transceiver by manual setting and the default SFP+ port speed is set to 10Gbps. For example, to establish the fiber connection with 1000BASE-X SFP transceiver in the Ethernet 1/0/25, the following command configuration is required: SGS-6341-Series#config SGS-6341-Series(config)#interface ethernet 1/0/25 SGS-6341-Series(config-if-ethernet1/0/25)#speed-duplex force1g-full Figure 4-6 Setting 1000BASE-X Screen 4.4 Saving the Configuration In Managed Switch, the running configuration file stores in the RAM. In the current version, the running configuration sequence running-config can be saved from the RAM to FLASH by write command or copy running-config startup- config command, so that the running configuration sequence becomes the start-up... -
Page 10: Starting Web Management
5. Starting Web Management The Managed Switch provides a built-in browser interface. You can manage it remotely by having a remote host with Web browser, such as Microsoft Internet Explorer, Mozilla Firefox, Google Chrome or Apple Safari. PC / Workstation with Web Browser 192.168.0.x Managed Switch RJ45/UTP Cable IP Address: 192.168.0.254 Figure 5-1 IP Management Diagram... -
Page 11: Logging In To The Managed Switch
5.1 Logging in to the Managed Switch 1. Use Internet Explorer 8.0 or above Web browser and enter IP address http://192.168.0.254 to access the Web interface. 2. When the following dialog box appears, please enter the configured username “admin” and password “admin” (or the username/password you have changed via console). The login screen in Figure 5-2 appears. Figure 5-2 Login Screen... - Page 12 3. After entering the password, the main screen appears as shown in Figure 5-3. Figure 5-3 Web Main Screen of Managed Switch 4. The Switch Menu on the left of the Web page lets you access all the commands and statistics the Switch provides. Now, you can use the Web management interface to continue the Switch management or manage the Managed Switch by console interface. Please refer to the user manual for more.
-
Page 13: Saving Configuration Via The Web
5.2 Saving Configuration via the Web In the Managed Switch, the running configuration file stores in the RAM. In the current version, the running configuration sequence of running-config can be saved from the RAM to FLASH by “Save current running-configurations” function, so that the running configuration sequence becomes the startup configuration file, which is called configuration save. To save all applied changes and set the current configuration as a startup configuration, the startup-configuration file will be loaded automatically across a system reboot. -
Page 14: Recovering Back To Default Configuration
10 seconds. After the device is rebooted, you can login the management Web interface within the same subnet of 192.168.0.xx. Console L3 24-Port Gigabit 802.3at+4-Port 115200,N,8,1 10G SFP+ Stackable Managed Switch Reset MGMT MGMT Figure 6-1: SGS-6341-24P4X Reset Button Console Layer3 24-Port 10/100/1000T+ 115200,N,8,1 4-Port 10G SFP+ Stackable Managed Switch Reset MGMT MGMT Figure 6-2: SGS-6341-24T4X Reset Button... - Page 15 MGMT Console PWR SYS Reset MGMT Figure 6-3: SGS-6341-48T4X Reset Button Console MGMT 115200,N,8,1 RESET MGMT Figure 6-4: SGS-6341-16S8C4XR Reset Button...
-
Page 16: Customer Support
7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource at the PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. PLANET online FAQs: http://www.planet.com.tw/en/support/faq.php?type=1 Switch support team mail address: support@planet.com.tw SGS-6341 Series User’s Manual http://www.planet.com.tw/en/support/download.php?type1=1&model=&type=3#list (Please select your switch model name from the drop-down menu of Product Models.)
