Evaluating the 8-Lead MSOP Devices in the Switch/Mux Portfolio
FEATURES
8-lead MSOP evaluation board
Clamp to allow the main device to be changed easily
Gold pin connectors to allow the addition of passive
components
SMB connectors for the input/output of signals
Additional space on board to allow for prototyping
EVALUATION KIT CONTENTS
EVAL-8MSOPEBZ
evaluation board
ONLINE RESOURCES
Documents needed
Data sheet of the device being evaluated
EVAL-8MSOPEBZ
user guide
EQUIPMENT NEEDED
Device being evaluated
DC voltage source
Analog signal source
Method to measure voltage, such as a digital multimeter (DMM)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
GENERAL DESCRIPTION
The
devices in the switch/mux portfolio that are purchased separately.
A clamp is supplied with the
board so that the device can be secured to the evaluation board
without the need for soldering which makes the board reusable
for multiple devices.
Figure 1 shows the
device can be clamped or soldered to the center of the evaluation
board. Each pin of the device is broken out to a link that can be
set to either VDD or GND. A wire screw terminal supplies VDD
and GND. SMB connectors are on the board to allow additional
external signals to be supplied to the device. In addition, there is
space available at the top of the board for prototyping.
Full specifications of the device under test (DUT) are available in
the product data sheet, which should be consulted in conjunction
with this user guide when using the evaluation board.

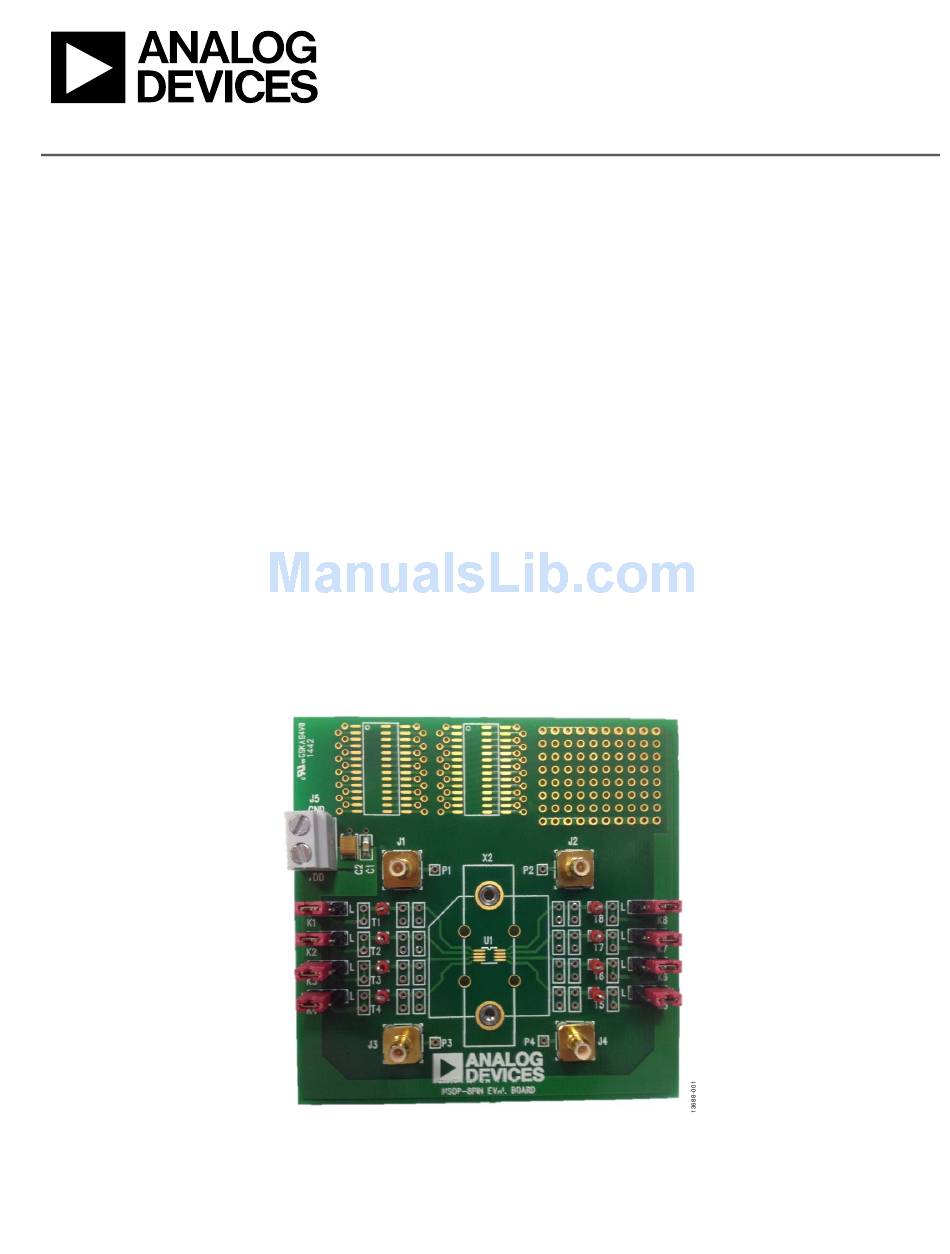

EVALUATION BOARD PHOTOGRAPH
Figure 1.
Rev. 0 | Page 1 of 6
Evaluation Board User Guide
EVAL-8MSOPEBZ
evaluation board is for 8-lead MSOP
EVAL-8MSOPEBZ
EVAL-8MSOPEBZ
UG-893
evaluation
evaluation board. The
Advertisement
Table of Contents
Related Manuals for Analog Devices UG-893
Summary of Contents for Analog Devices UG-893
- Page 1 Evaluation Board User Guide UG-893 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the 8-Lead MSOP Devices in the Switch/Mux Portfolio FEATURES GENERAL DESCRIPTION EVAL-8MSOPEBZ evaluation board is for 8-lead MSOP...
- Page 2 UG-893 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Power Supply ..................3 Evaluation Kit Contents ..............1 Link Headers ..................3 Online Resources ................1 SMB Connectors................3 Equipment Needed ................1 Input Signal Traces ................3 General Description ................. 1 Evaluation Board Schematics and Artwork ........4...
-
Page 3: Evaluation Board Hardware
Evaluation Board User Guide UG-893 EVALUATION BOARD HARDWARE Use the EVAL-8MSOPEBZ to evaluate the 8-lead MSOP devices Table 1. Link Header Descriptions in the switch/mux portfolio. Figure 1 shows the evaluation board. Label Position Description POWER SUPPLY K1to K8 Connector J5 provides the ability to supply VDD and GND supplies to the board. -
Page 4: Evaluation Board Schematic And Artwork
UG-893 Evaluation Board User Guide EVALUATION BOARD SCHEMATIC AND ARTWORK Figure 2. EVAL-8MSOPEBZ Evaluation Board Schematic Figure 3. EVAL-8MSOPEBZ Silkscreen Rev. 0 | Page 4 of 6... - Page 5 Evaluation Board User Guide UG-893 Figure 4. EVAL-8MSOPEBZ Top Layer Figure 5. EVAL-8MSOPEBZ Bottom Layer Rev. 0 | Page 5 of 6...
-
Page 6: Ordering Information
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
