REMOTE SIREN AMPLIFIER
INSTALLATION AND OPERATING
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Carson Manufacturing Co., Inc.
5451 North Rural Street
Indianapolis, IN 46220
Phone: (888) 577-6877
www.carsonsirens.com
SA-430-10
RADIO
HORN
MAN
WAIL
YELP
PHASER
INSTRUCTIONS
Fax: (317) 254-2667
PA
SIREN
VOL
SA-430
ON
POWER
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson SA-430-10
Summary of Contents for Carson SA-430-10
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Carson is a trademark of Carson Manufacturing Company, Inc. Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
-
Page 2: Table Of Contents
Page 2 of 16 SA-430-10 Installation and Operating Instructions TABLE OF CONTENTS TABLE OF CONTENTS ......................2 SPECIFICATIONS ........................3 NOTICE ............................. 3 GENERAL DESCRIPTION ......................4 INSTALLATION ......................... 5 SAFETY PRECAUTIONS....................... 5 UNPACKING .......................... 5 OPTION SWITCHES......................6 MOUNTING – Amplifier......................7 MOUNTING –... -
Page 3: Specifications
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 4: General Description

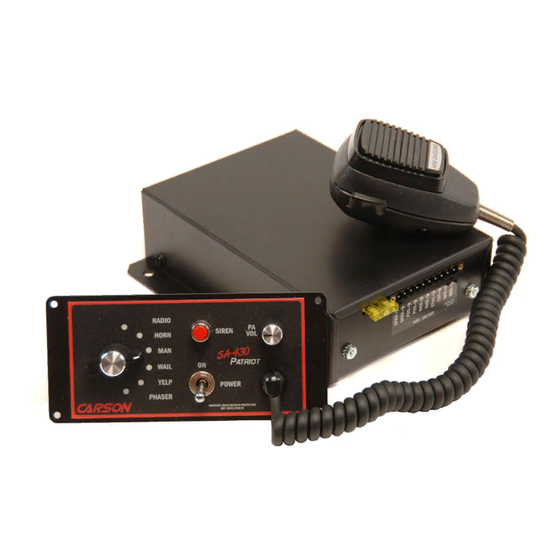

Page 4 of 16 SA-430-10 Installation and Operating Instructions GENERAL DESCRIPTION The SA-430 Remote Siren Amplifier with is a premium unit designed for single or dual 100W speaker use. The control head is only 1 inch deep and can be installed in minimum clearance areas. -
Page 5: Installation
SA-430-10 Installation and Operating Instructions Page 5 of 16 INSTALLATION Proper installation of the unit is essential for years of safe, reliable operation. Please read all instruction before installing the unit. Failure to follow these instructions can cause serious damage to the unit or vehicle and may void warranties. -
Page 6: Option Switches
Page 6 of 16 SA-430-10 Installation and Operating Instructions OPTION SWITCHES An 8-position DIP switch on the remote amplifier may be changed to select various options. Option Switches On Remote Amp Option Switches Default Setting Shown (Switch 6 is ON) SW-1 Two-Tone - Turn this switch on to replace Phaser tone with Two-Tone. -
Page 7: Mounting - Amplifier
SA-430-10 Installation and Operating Instructions Page 7 of 16 MOUNTING – Amplifier Select a location for the amplifier in an area such as the driver compartment firewall, under a seat, etc. Mounting the amplifier in the engine compartment or in an area directly exposed to weather is not recommended. -
Page 8: Electrical Connections - Amplifier
Page 8 of 16 SA-430-10 Installation and Operating Instructions ELECTRICAL CONNECTIONS - Amplifier Electrical connections to the amplifier are made using a terminal block plug located on the amplifier. A label on the unit identifies each terminal function. You should install the plug on the unit before wiring. -
Page 9: Electrical Connections Continued
SA-430-10 Installation and Operating Instructions Page 9 of 16 ELECTRICAL CONNECTIONS CONTINUED Horn HORN RLY Vehicle +VDC Circuit Momentary Horn SPST Auxiliary Input -VDC Switch Splice Connection +VDC May need to Examples Added add diode -VDC SPDT (10mA current) Aux input is... -
Page 10: Operation
Page 10 of 16 SA-430-10 Installation and Operating Instructions OPERATION Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity. -
Page 11: Microphone (Pa Override)
SA-430-10 Installation and Operating Instructions Page 11 of 16 MICROPHONE (PA Override) The noise-canceling microphone is used for public address operation and overrides any function when the push-to-talk button on the side of the microphone is pressed. PA VOL This control adjusts the PA volume. With the vehicle parked, set the PA volume to the maximum level with no feedback (squeal). -
Page 12: Service
Page 12 of 16 SA-430-10 Installation and Operating Instructions SERVICE This unit is designed to provide years of reliable service under even the worst conditions. Many times there may appear to be a problem with the unit when the true problem is in the speaker(s) or improper installation. -
Page 13: Parts And Accessories
SA-430-10 Installation and Operating Instructions Page 13 of 16 PARTS and ACCESSORIES The following parts and accessories are available from Carson Manufacturing Company, Inc.: Part Description CP5018 Button, Switch Cap Red (for Siren pushbutton) CP4732 Control, 1K Vertical Trimmer (Amplifier) -
Page 14: Return
Returned Merchandise Authorization number (RMA#) before you ship the product to Carson. Please write the RMA# clearly on the package near the mailing label. Be sure to provide a return address, contact and phone number, along with a brief description of the problem. -
Page 15: Control Head Installation Template
SA-430-10 Installation and Operating Instructions Page 15 of 16 CONTROL HEAD INSTALLATION TEMPLATE 03/31/10 CP4854E... - Page 16 Page 16 of 16 SA-430-10 Installation and Operating Instructions BLANK PAGE CP4854E 03/31/10...
