Intek KT-950EE Instruction Manual

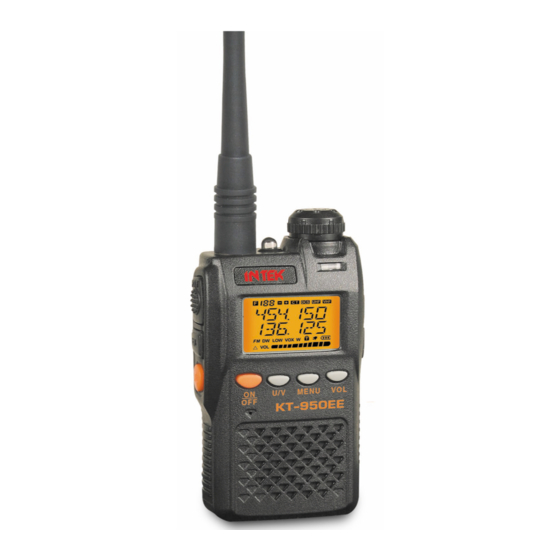

Dual band amateur radio vhf / uhf fm pocket size handheld transceiver, 144-146 mhz / 99ch / 2w 430-440 mhz / 99ch / 2w pc programmable
Hide thumbs Also See for KT-950EE:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

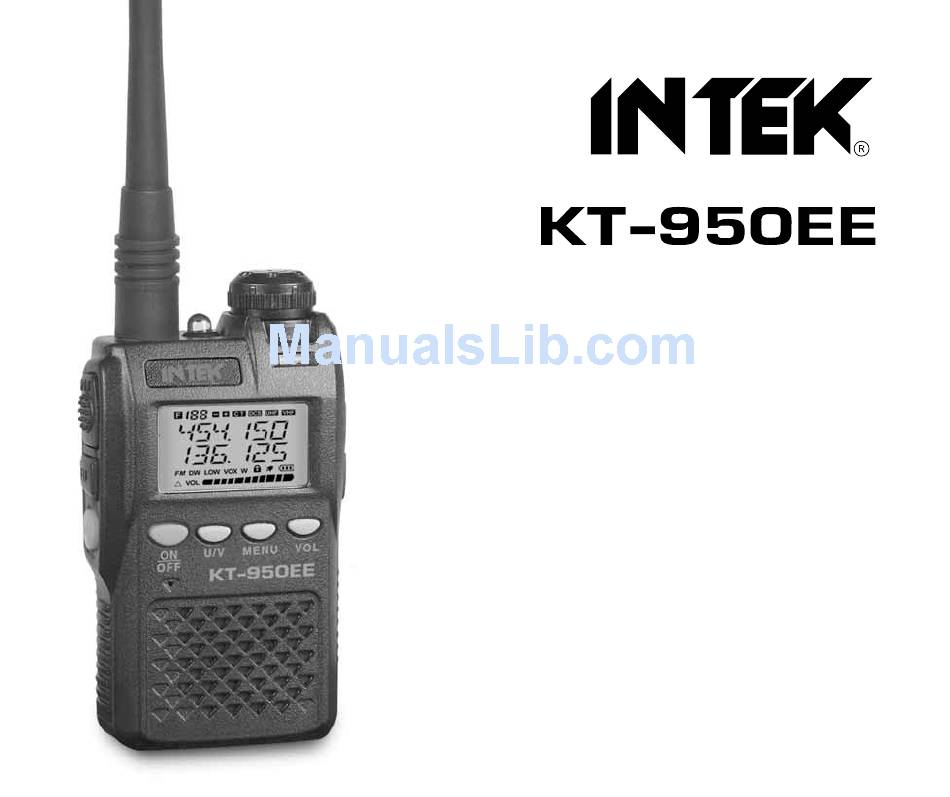

DUAL BAND AMATEUR RADIO
VHF / UHF FM POCKET SIZE
HANDHELD TRANSCEIVER
144-146 MHz / 99CH / 2W
430-440 MHz / 99CH / 2W
PC PROGRAMMABLE

INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KT-950EE and is the answer not in the manual?

Questions and answers

Related Manuals for Intek KT-950EE

Summary of Contents for Intek KT-950EE

  • Page 1: Instruction Manual

    DUAL BAND AMATEUR RADIO VHF / UHF FM POCKET SIZE HANDHELD TRANSCEIVER 144-146 MHz / 99CH / 2W 430-440 MHz / 99CH / 2W PC PROGRAMMABLE INSTRUCTION MANUAL...

  • Page 2: Declaration Of Conformity

    (to EC Directive 2006/95, 2004/108, 99/5) DECLARATION OF CONFORMITY With the present declaration, we certify that the following products : INTEK KT-950EE comply with all the technical regulations applicable to the above mentioned products in accordance with the EC Directives 2006/95/EC, 2004/108/EC, 99/5/EC.

  • Page 3: General Description

    SAFETY TRAINING INFORMATION Your KT-950EE radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as "Occupational Use Only ",meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards.This radio is NOT...
  • Page 4 INTEK S.R.L. declines any responsibility concerning any modification of the product, made by the user or by a third party, after delivery of the product.
  • Page 5 PRECAUTIONS - Refer service to qualified technicians only. - Do not disassemble or modify the transceiver for any reason. - Do not expose the transceiver under direct sunlight long or to extremely hot condition. - Do not place the transceiver on the unstable surface. - Keep the transceiver out of dust, moisture, water.

  • Page 6: Table Of Contents

    CONTENTS UNPACKING AND CHECKING EQUIPMENTS INSTALLATION OF ACCESSORIES BATTERY CHARGING GETTING ACQUAINTED OPERATION ADVANCED OPERATION ADDITIONAL FUNCTIONS AND SETTINGS TROUBLESHOOTING GUIDE SPECIFICATIONS GENERAL INFORMATION...

  • Page 7: Unpacking And Checking Equipments

    UNPACKING AND CHECKING EQUIPMENTS Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, please contact the dealers immediately. Standard Accessories ITEM QUANTITY...

  • Page 8: Installation Of Accessories

    Optional Accessories EM-950 External Earset-Microphone with tie clip CDKT-0950-USB Programming Kit (PC interface cable and software CD) INSTALLATION OF ACCESSORIES ANTENNA INSTALLATION Antenna The supplied antenna provides good results over the entire frequency range of the transceiver. However, for enhanced based station medium-wave and shortwave reception, you may wish to connect an external antenna, as the supplied antenna is ver y smal l and can not be expecte d to provid e hig h...
  • Page 9 Note: Never transmit without having an antenna connected. When installing the supplied antenna, never hold the upper part of antenna while screwing it onto the mating connector on the transceiver. If using an external antenna for transmission, ensure that the SWR presented to the transceiver is 1.5:1 or lower, to avoid excessive feed line loss.

  • Page 10: Battery Charging

    BATTERY PACK INSTALLATION The battery pack is a high-performance Li-ion battery providing high capacity in a very compact package. Under normal use, the battery may be used for approximately 400 charge cycles, after which operating time may be expected to decrease. If you have an older battery that is displaying diminished capacity, you should replace the battery with a new one.
  • Page 11 is available, the optional DC Adapter (with its cigarette lighter plug) may also be used for charging the battery. While the battery is being charged, the display will indicate ( See PIC 5) , this S-mete r will deflec t accordin g to the charging status, and the TX/BUSY indicator will glow red.

  • Page 12: Getting Acquainted

    GETTING ACQUAINTED PULL KNOB UP TO UNLOCK ANTENNA Jack DIAL Knob TX Indicator PTT Switch SP. MIC. F/ALERT Switch EXT DC Jack LAMP/FM Switch VOL/MON Key ON/OFF Key MENU/LOCK Key Microphone U/V MODE Key Speaker - 6 -...
  • Page 13 THE DEFINITION OF THE CONTRO L The main tuning Dial is used for setting the operating frequency, and is used for audio volume level, menu selections, and other [DIAL]Knob adjustments. To rotate this Dial knob, pull the knob to unlock the mechanical dial lock, and then rotate the Dial knob.

  • Page 14: Lcd Display

    LCD DISPLAY The display icons appear when certai n operation s are performed or certain specific features are activated. It will help you to know the meaning of the indicator and know how to set functions. ICON DESCRIPTION Secondary Keypad Active ( Press [F/ALERT] ) Operating Band Number or Memory Channel Number CTCSS Operation DCS Operation...
  • Page 15 COMBINATION KEY FUNCTION 1750Hz Tone Calling:PTT+VOL/MONI for 1 second Press and hold in the button PTT VOL/MONI to enter the Tone Calling Mode(1750Hz). The transceiver send out the signal (1750Hz). Release the button VOL/MONI to exit. Restore to Defaul t Factor y Setting:ON/OFF + VOL/MON for 5 seconds Press and hold the key ON/OFF + VOL/MON ,then Power ON, the transceiver will restore to the default factory...
  • Page 16 MENU DESCRIPTION Menu Item Description Settings RXCODE OFF'CTCSS, DCS TXCODE OFF'CTCSS, DCS 0---9 (Squelch) LIGHT OFF/ON /Key (LCD Illumination) BEEP OFF--ON (Keypad Beeper) OFF/1---9 POWER HIGH/LOW (RF Output Power) ON/OFF (Dual Watch/UHF&VHF) STEP 5/6.25/10/12.5/20/25 KHz OFFSET 0--37.995/0--69.995MHz SHIFT 0/-/+ ON/OFF (Tail Tone Elimination) WIDE/NARROW (Wide Band/Narrow Band)
  • Page 17 MENU SETTING Press MENU/LOCK , com e t o MEN U [01]RXCODE Press MENU/LOCK , tur n clockwis e counterclockwis e DIAL , come to MENU [02]TX CODE. Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [03] SQL. Press MENU/LOCK , tur n...
  • Page 18 Press MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [05] BEEP. Press MENU/LOCK tur n clockwis e or counterclockwise DIAL , come to MENU [06] VOX. Press MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [07] POWER.
  • Page 19 Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [09] STEP. Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [10] OFFSET. Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [11] SHIFT.
  • Page 20 Press MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [13] W/N. Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU[14] SAVE. Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [15] TOT..
  • Page 21 Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [17] RELAYM. Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [18] BCLO. Pres s MENU/LOCK , tur n clockwis e or counterclockwise DIAL , come to MENU [19] PRI.

  • Page 22: Operation

    OPERATION POWER ON/OFF 1.Be sure the Battery Pack is installed, and the battery is fully charged. Connect the antenna to the top panel ANTENNA jack. 2.Press and hold the key ON/OFF ,the current DC suppl y voltage will appear on the LCD for 2 seconds, and beeps will be heard, the display will resume its normal indication of the operating frequency.
  • Page 23 1) Press MENU/LOCK , rotate the DIAL knob, come to MENU [1]: RXCODE 2) Then press U/V key, enter the set mode. 3) Clockwise or counterclockwise rotation of DIAL knob to select from OFF /67.0-754N, press MENU/LOCK again, to select the code (Positive or negative), such as 023N---023I. NOTE: [CTCSS:67Hz---254.1Hz(50 groups);...
  • Page 24 NOTE: [CTCSS:67Hz---254.1Hz (50groups); DCS: 023N-754N(104 groups)] 4) Press U/V key to save the setting and EXIT. Press MENU/LOCK or PTT , EXIT to normal operation. SQL (SQUELCH ADJUSTMENT) Squelch System allows you to mute the background noise when no signal being received. The Squelch system make 'Standby' operation more pleasant, and significantly reduces battery current consumption.
  • Page 25 LIGHT (LCD ILLUMIN ATION ON/KEY/OFF) Radio includes a reddish illumination lamp which aids in nighttime operation. The red illumination yields clear viewing of the display in a dark environment, with minimal degradation of your night vision. Three options for activating the lamp are provided: Key: Illuminates the LCD when any key pressed.
  • Page 26 1) Press MENU/LOCK , rotate the DIAL knob, come to MENU [5]: BEEP 2) Then press U/V key to enter the set mode. 3) Clockwise or counterclockwise rotation of DIAL knob to set ON/OFF 4) Press key to save the setting. 5) Press MENU/LOCK orPTT...
  • Page 27 5) Press MENU/LOCK , EXIT to normal operation. NOTE: Grade 7-9: the Most Sensitive VOX Gain Level-Set under silent conditions. Grad e 4-6: the Mediu m Sensitiv e VOX Gain Level-Set unde r commo n conditions. Grade1-3: the Least Sensitive VOX Gain Level-Set under too much noise conditions.
  • Page 28 DW (DUAL WATCH FEATURE) The transceiver' s Scannin g feature s include a two-channe l scanning capability, which allows you to operate between UHF channel and VHF channel in the VFO mode, while periodically checking a user-defined channel for activity. If one channel is received the signal, the scanner will pause on that channel.
  • Page 29 4) Press key to save the setting. 5) Press MENU/LOCK , EXIT to normal operation. OFFSET (Repeater Operation) includes a number of features which make repeater KT-950EE operation simple and enjoyable. 1) Press MENU/LOCK , rotate the DIAL knob, come to...
  • Page 30 downward (-) or upward (+). One of these icons will appear at the top of the LCD when repeater shifts have been enabled. 1) Press MENU/LOCK , rotate the DIAL knob, come to MENU [11]: SHIFT 2) Then press key to enter the set mode. 3) Clockwise or counterclockwise rotation of DIAL knob...
  • Page 31 W/N (Wide/Narrow Band Selection) 1) Press MENU/LOCK , rotate the DIAL knob, come to MENU [13]: W/N 2) Then press key to enter the set mode. 3) Clockwise or counterclockwise rotation of DIAL knob to select the WIDE/NARROW: 4) Press key to save the setting.
  • Page 32 3) Clockwise or counterclockwise rotation of DIAL knob to select the SAVE: ON/OFF 4) Press key to save the setting. 5) Press MENU/LOCK , EXIT to normal operation. TOT (Time-out Timer) The TOT Feature provides a safety switch, which limits transmission time to a preprogrammed value.
  • Page 33 To select the scanning mode, please see below: 1) Press MENU/LOCK , rotate the DIAL knob, come to MENU [16]: SCANM 2) Then press key to enter the set mode. 3) Clockwise or counterclockwise rotation of DIAL knob to select the SCANM: TO/CO 4) Press key to save the setting.
  • Page 34 BCLO (Busy Channel Lock-out) The BCLO feature prevents the radio' s transmitter from being activated if a signal strong enough to break through the 'noise' squelch is present . On a frequency where stations using different CTCSS or DCS codes may be active .

  • Page 35: Additional Functions And Settings

    ADDITIONAL FUNCTIONS AND SETTINGS MEMORY CHANNEL STORAGE (Memory Channels 01-99) Store the Memory Channel according to the following instructions: - Select the desired frequency while operating in the VFO mode. Be sure to set up any desired CTCSS or DCS tones, as well as any repeater offset. - Press F/ALERT button, then press...

  • Page 36: Troubleshooting Guide

    1) Under the FM radio frequency mode, set the frequency you want to save. 2) Press the F/ALERT button, and then press the button, 01-15 flashes on the LCD display, rotate the DIAL knob to save it. 3) Press the button to confirm saving.

  • Page 37: Specifications

    SPECIFICATIONS General Frequency VHF 144-146 MHz (136-174 MHz) (*) UHF 430-440 MHz (400-470 MHz) (*) Channels Channel spacing 5, 6.25, 10, 12.5, 25 KHz DC input voltage 3.7 VDC Standard Battery 1500mAh Operating temperature -20/+60° Dimensions / Weight mm 47 x 81 x 23 (main body) / 130 gr. ≤75mA Current Drain (Stand-By) Receiver...

  • Page 38: General Information

    INTEK does not take any responsibility for illegal use and operation of this product not in accordance with the regulation of the country where the product is used.
  • Page 39 Notes - 33 -...
