8.3 Dip switches

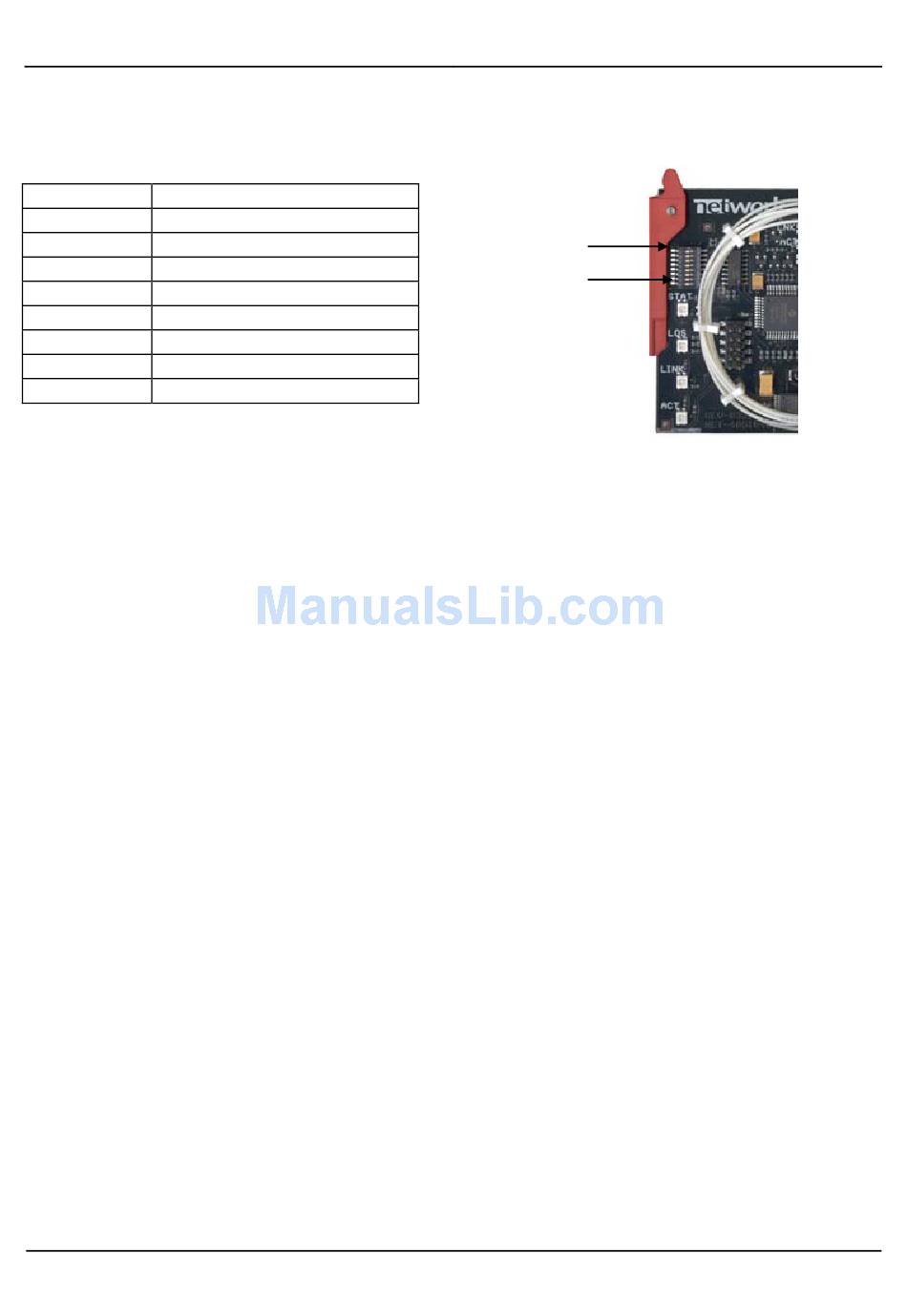

The tables below explains the functionality of the dipswitches shown in the below figure.
Dip switch # Description
1 Enable 10Mbit
2 Enable 100Mbit
3 Enable 1000Mbit (GbE)
4 Reserved
5 Reserved
6 Reserved
7 Reserved
8 Gyda override/DIP
When DIP switch 1,2 and 3 are all on or all off, highest speed possible will be used when link
connection.
Switch 1 disables 10Mbit connection when DIP is closest to board edge. Switch 2 enables/disables
100Mbit and switch 3 enables/disables 1000Mbit.
Dip 4, 5, 6 and 7 are reserved.
Dip 8 sets if Gyda is able to configure or not. When Gyda override is set, the actual setting can be read by
using the info command (se Gyda user manual for details).
Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98
E-mail: support@network-electronics.com - Web: http://www.network-electronics.com/
Technical specifications are subject to be changed without notice.
Dip sw # 1
Dip sw # 8
