- Page 1 RGBHV/Stereo Audio Matrix Switcher 16x16 USER MANUAL MRG1616A PTN RGBHV/Stereo Audio Matrix Switcher 16x16 Version: MRG1616A2013V1.1 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
RGBHV/Stereo Audio Matrix Switcher 16x16 Table of Contents 1. Introduction ....................... 1 1.1. Introduction of MRG1616A ................1 1.2. Package Contents..................1 1. Features ........................1 2. Specification ......................1 3. Operations of the Control panel and the Remote Controller ........3 4.1. -
Page 4: Introduction

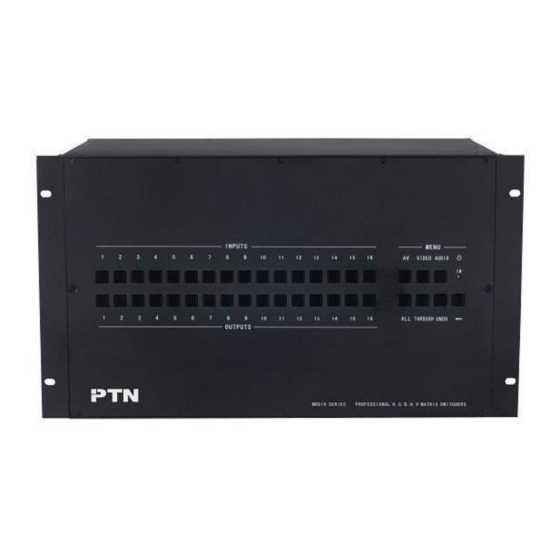

1. Introduction 1.1. Introduction of MRG1616A MRG1616A is a 16x16 RGBHV matrix switcher following with stereo audio. It supports audio follow and audio breakaway switching. With bandwidth up to 450MHz (-3db), it supports cross-point switching. It shows a good application in broadcast room, television teaching room, commanding center etc. - Page 5 2 = TX, 3 = RX, 5 = Control Port D connector Configurations Front Panel IR Remote Default IR remote Buttons Control Options TCP/IP control by PTNET(PTN's programmable interface) General Power 100VAC ~ 240VAC, Power Supply 50/60Hz Consumption Temperature -20 ~ +70℃...
-
Page 6: Operations Of The Control Panel And The Remote Controller
Example: To transfer audio signals from input channel No.2 to output channel No.3. Operation: Press buttons in this order “AUDIO”, “2”, “3” All button: To transfer an input channel to all output channels. Example1: To transfer video and audio signals from input PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Usage Of The Remote Controller
Because the function buttons on the remote controller are the same with the ones on the front control panel, the remote controller shares the same control operation and command format with the control panel. Operations of the remote controller are showed as follows. PTN Electronics Limited www.PTN-electronics.com... - Page 8 RGBHV/Stereo Audio Matrix Switcher 16x16 The inputs channels, from 0~9, and plusing “10+” for more. Menu, for switching source and function. The outputs channels, from 0~9, and plusing “10+” for more. F4-2 Panel of the Remote Controller PTN Electronics Limited www.PTN-electronics.com...
-
Page 9: External Connection
Super Video (YC) and VGA signal source. RGBHV signal output terminals or YC output terminals are needed in AV device; RGBHV signal output terminals are needed in VGA device. The BNC connector is shown as the figure below. PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Audio Signal Connection
The connection should be selected is up to the interface of the device. When available, the balanced connection is the first choice. Before connection, please read the command or relevant demand in the user manual carefully. In some cases, maybe there PTN Electronics Limited www.PTN-electronics.com... -
Page 11: Connection With Rs232 Communication Port
When the switcher connects to the COM1 or COM2 of the computer with control software, users can control it by that computer. To control the switcher, users may use the RS232 software. F 5-3 Connection between MRG matrix switcher and the computer PTN Electronics Limited www.PTN-electronics.com... -
Page 12: System Diagram
RGBHV/Stereo Audio Matrix Switcher 16x16 6. System Diagram F6-1 MRG1616A system connection 7. Communication Protocol and Command Codes Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Command Functions Types Codes /*Type;... - Page 13 2) In above commands, “[”and “]” are symbols for easy reading and do not need to be typed in actual operation. 3) Please remember to end the commands with the ending symbols “.” and “;”. PTN Electronics Limited www.PTN-electronics.com...
- Page 14 Example: “Save7.” to save the present operation to the preset command No.7. 13、 Recall the preset command [Y]: Recall[Y]. Example: “Recall5.” to recall the preset command No.5. 14、 Clear the preset command [Y]: Clear[Y]. Example: “Clear5.” to clear the preset command No.5. PTN Electronics Limited www.PTN-electronics.com...
-
Page 15: Safety Operation Guide
5) As to non-professional or without permission, please DO NOT try to open the casing of the equipment, DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 6) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 16: Troubleshooting & Maintenance
7) If the Matrix cannot be controlled by the keys on the front panel, RS232 port or remote controller, the unit may has already been broken. Please send it to the dealer for fixing. PTN Electronics Limited www.PTN-electronics.com... -
Page 17: After-Sales Service
Damage caused by force majeure. Remarks: For any more questions or problems, please try to get help from your local distributor, or email PTN at support@PTN-electronics.com. PTN Electronics Limited www.PTN-electronics.com...
