- Page 1 PTN Electronics MTX Series Matrix Switcher User Manual MTX Series ---Combo Matrix Switcher Please read this manual carefully before using this product.
- Page 2 Notice： This MTX series Matrix Switchers User Manual takes example of the Matrix model MTX400. It can be used as user’s manual of other MTX series matrix switcher models. This manual is only an instruction for operators, not for any maintenance usage.
-
Page 3: Safety Operation Guide
MTX Series Matrix Switcher Safety Operation Guide In order to ensure the credibility use of the product and the user’s safety, please comply with the following items during installation and maintenance: The system must be earthed properly. Please do not use two blades plugs and ensure the alternating power supply ranged from 100v to 240v and from 50Hz to 60Hz. -
Page 4: Table Of Contents
1. INTRODUCTION ......................1 1.1 About MTX Matrix Switcher System ..............1 1.2 MTX Series Matrix Switcher Models ..............1 1.2.1 the MTX series chassis (main unit) ..............1 1.2.2 MTX card (changeable cards)................2 2. PACKING OF THE PRODUCT ..................2 3. - Page 5 MTX Series Matrix Switcher 6.1 Front Panel Description ..................14 6.2 Command Format of the Switching Operation ........... 15 Examples of Operation ..................16 7. COMMUNICATION PROTOCOL AND COMMAND CODES ........16 8. SPECIFICATION ......................19 8.1 Main Unit (Chassis) ....................19 8.2 Changeable Cards ....................
-
Page 6: Introduction
Every card is going with the ID identification. So, it works with the main board by internal protocol. The MTX series product is used for different project, because of the change-able card design. It is the combo solution for multimedia classroom, control rooms, conference rooms, lecture rooms, shopping center etc. -
Page 7: Mtx Card (Changeable Cards)
MTX Series Matrix Switcher 1.2.2 MTX card (changeable cards) According to different situation and users, the MTX card (changeable cards) can be classified into the following models: Specifications Inputs Outputs Signal Format Height Features Models MXDV4 DVI (HDMI) Signal Gang... -
Page 8: Installation

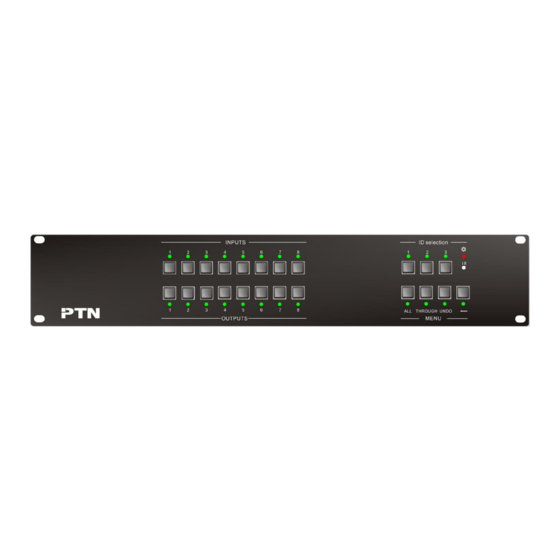

MTX Series Matrix Switcher 3. Installation MTX series matrix switchers adopt metal shell and can be stacked with other device. Moreover, they are rack-mountable enclosure and can be installed in the standard 19 inches case. 4. Front View and Rear View of the Product 4.1 Front View of the MTX200... -
Page 9: Rear View Of The Mtx200
MTX Series Matrix Switcher 4.2 Rear View of the MTX200 4.3 Front View of the MTX400 (Crystal Buttons Version) There are two different button in the front panel. 1: Regular buttons. Black plastic buttons, with red LED indicating. 2: Crystal buttons. -
Page 10: Rear View Of The Mtx400
MTX Series Matrix Switcher 4.4 Rear View of the MTX400 （ Maximum installed 6 cards. The cards in the pictures is only for reference. The user can change it , plug and play. ） 4.5 Front View of the MTX500 (Crystal Buttons Version) There are two different button in the front panel. -
Page 11: Rear View Of The Mtx500
MTX Series Matrix Switcher 4.6 Rear View of the MTX500 （ Maximum installed 8 cards. The cards in the pictures is only for reference. The user can change it , plug and play. ） Please contact us for more information: info@PTN-electronics.com... -
Page 12: Mxdv8
MTX Series Matrix Switcher Pin Layout of the DVI-I connector (Dual-Link). (female) Function Function T.M.D.S.Data2- T.M.D.S.Data3+ T.M.D.S.Data2+ +5V Power T.M.D.S. Data 2/4 Shield Ground (for +5V) T.M.D.S. Data 4- Hot Plug Detect T.M.D.S. Data 4+ T.M.D.S. Data 0－ DDC Clock T.M.D.S. -
Page 13: Mxvg4
MTX Series Matrix Switcher Pin Number Signal Name Pin Number Signal Name TMDS Data 2+ SHELL TMDS Data 2 Shield 19 Hot Plug Detect TMDS Data 2- +5V Power TMDS Data 1+ Ground TMDS Data 1 Shield 16 DDC Data... -
Page 14: Mxvg8
MTX Series Matrix Switcher 5.1.5 MXVG8 VGA cross point matrix switcher 8x8. (Please check the specification from 9.2.2) The bandwidth is up to 350MHz(-3dB) Supporting RGBHV, RGsB, RGBS, RsGsBs, YUV, YC and Composite video. Please check the 5.1.4 for the introduction of VGA pin layout. -
Page 15: Mxus8
Audio Mixer : The 8 output is built in the mixer function, which can mix any two or more inputs. The mixer function can be controlled by RS232 or TCP/IP, working with PTN PC software. PTN Electronics Limited... -
Page 16: Mxtp8
8 inputs (4 VGA/Stereo audio and 4RJ45), 8 outputs (8 RJ45), 1 local monitor for VGA and stereo audio. It is working with PTN TP200 Pro (VGA/Stereo Audio twisted pair). The transmission distance is up to 300 meters. It is built in the skew equalizer (EQ) function for each channel. -
Page 17: Id Matching, Between The Slot And Card
MTX Series Matrix Switcher (There are 6 slots to the MTX400. Their ID is ranging from 1 to 6, from top to bottom) So, it means the ID of MTX200 is ranging from “1” to “3”, from top to bottom. -
Page 18: Connection Of Rs-232 Communication Port
5.4 Connection of TCP/IP Communication Port (Optional Function) The MTX matrix switchers can work with the PTN model “PTNET”, to enable the TCP/IP function. The PTNET is a programmable RCP/IP to RS232 processor, which is built in the FTP and fixed IP address inside and working compatible with internet. -
Page 19: System Diagram
MTX Series Matrix Switcher 5.5 System Diagram 6. Operation of the Control Panel 6.1 Front Panel Description PTN Electronics Limited www.PTN-electronics.com... -
Page 20: Command Format Of The Switching Operation
MTX Series Matrix Switcher Buttons Function Description ID selection buttons. It is the ID number of every slot. The user need to select the ID, before controlling this slot(card). Selection Example: you want to control the second slot (card), you need to select the ID button "2"... -
Page 21: Examples Of Operation
MTX Series Matrix Switcher “Output Channel”: press the number of output channels to be controlled 6.3 Examples of Operation Example 1：To transfer the signal of ID”1” from input channel No.1 to output channel No.3,4 Video Audio 1, Press the “1” from the ID selection menu. - Page 22 MTX Series Matrix Switcher (refer to Detail example 5) /:MessageOn; Switch on the feedback command from the com port. (refer to Detail example 6) Demo. Switch to the “demo” mode, 1->1, 2->2, 3->3 … and so on, every 2 seconds, and cycled switching.
- Page 23 MTX Series Matrix Switcher Run Command: “&2+3All.” 2、 Transfer all input signals on [Y] card to the corresponding output channels respectively: &[Y] + All#. Example: If the command “&1+All#” is carried out, the status of the first card will be: 1->1, 2->2, 3->3, 4->4……8->8.
-
Page 24: Specification
Pin Configurations 2 = TX, 3 = RX, 5 = GND connector Intallation Rack Mountable Front panel control Buttons Options TCP/IP control by PTNET(PTN's programmable interface) General Power Supply 110VAC ~ 240VAC, 50/60Hz Power Consumption 17W (MTX400) PTN Electronics Limited www.PTN-electronics.com... -
Page 25: Changeable Cards
MTX Series Matrix Switcher Temperature 25W (MTX500) -20 ~ +70℃ W482.6 x H174.5 x D282mm 2.5Kg(MTX400) (MTX400) Case Dimension Product Weight W482.6 x H221.5 x D300mm 3.5Kg (MTX500) (MTX500) 8.2 Changeable Cards 8.2.1 MXDV4, MXDV8, MXHD4 Input Output Input 4 DVI; 8 DVI ; 4 HDMI Output 4 DVI;... -
Page 26: Mxcv8,Mxsv8
MTX Series Matrix Switcher VGA-UXGA,RGBHV,RGBS, VGA-UXGA,RGBHV,RGBS, RGsB, RsGsBs, component RGsB, RsGsBs, component Video Signal Video Type video, S-video, and video, S-video, and composite video . composite video . Switching Speed 200ns (Max.) Crosstalk <-50dB@5MHz 8.2.3 MXCV8, MXSV8 Input Output Input... -
Page 27: Mxus8
MTX Series Matrix Switcher Mixer Max. Mixer Processor Built in DSP effects 21 dB Output Gain 61 degrees controllable/preset Input Volume 61 degrees controllable/preset Output Volume 13 degrees Bass/Treble controllable/preset Frequency 20Hz~20KHz, ±0.5dB CMRR >90dB@20Hz~20KHz Response Stereo Channel 1% @ 1 kHz, 0.3% @ 20 >80dB@1KHz... -
Page 28: Troubleshooting & Maintenance
MTX Series Matrix Switcher Input Impedance >10KΩ Output Impedance 50Ω Audio general Frequency Response 20Hz ~ 20KHz ± 1dB CMRR >90dB@20Hz~20KHz Stereo Channel 0.15% @ 1 kHz at nominal >80dB@1KHz THD + Noise Separation level >70 dB at maximum output(unweighted) 9. - Page 29 MTX Series Matrix Switcher the host may has already been broken. Please send it to the dealer for fixing. PTN Electronics Limited www.PTN-electronics.com...
